TD-8810
End of LifeADSL2+ Router
- Provide Internet access via ADSL Service and create a wired sharing network, all with one product
- Works with the latest ADSL standards: up to 24Mbps downstream superior performance
- Built-in firewall protects against Internet attacks
- Various QoS policies enable various application, meeting people's different needs
What This Product Does

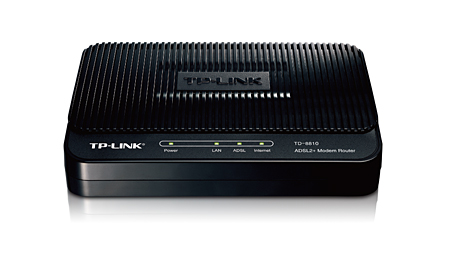

ADSL2+ Ethernet Modem Router TD-8810 is a high performance modem router that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. It is a 2-in-1 device that combines the function of a high-speed DSL modem and a one-Port 10/100Mbps NAT router. Using the TD-8810, you can easily create a secure and high-speed wired network to share files, music, photos, and printers with multiple computers.2-in-1 Solution
As a 2-in-1 device, TD-8810 combines the functions of a high speed DSL modem, and a one-Port 10/100Mbps NAT router. No need to buy a separate router, the TD-8810 is designed to give you a perfect solution to acquiring and sharing high speed Internet access. Then you could save the cost of procurement and the cost of device running.
Access High-Speed Internet
Unlike a dial-up Internet service, a DSL Internet connection is always on so that you do not have to wait to access the web. Supporting the latest ADSL standard, the TD-8810 provides higher performance (up to 24Mbps downstream) and longer reach from the central office of your ISP(Internet Service Provider).Advanced Network Security
Support NAT firewall, TD-8810 could prevent potential attacks from across the Internet. For added convenience, it supports access control based on MAC address, IP address so parents and network administrators can establish restricted access policies for children or staff.Quality Of Service
Built-in QoS engine provides various QoS policies that help prioritize Internet traffic to enable smooth IPTV streaming and lag-free online gaming. Thus users could experience the benefit of smooth network connection without concern of traffic congestion.Easy to Use
The device comes with a CD with an Easy Setup Assistant that helps you step by step to complete your Internet connection and security configurations. This feature allows even novice users to setup the router products without sacrificing any key features, just play the AUTO-RUN CD bundled to have your network set up quickly & hassle-free.9.0-BA_normal_20231212012841s.png)
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 10/100Mbps RJ45 Ports 1 RJ11 Port |
| Button | 1 Power On/Off Switch |
| External Power Supply | 9VDC/0.6A |
| IEEE Standards | IEEE 802.3, 802.3u |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1 , ITU-T G.996.1, ITU-T G.997.1, ITU-T K.2.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 5.5*3.6*1.1 in.(140*92*29mm) |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | QoS Remarking based on IPP/ToS, DSCP and 802.1p |
| Advanced Features | Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP reservation; Network Address Translation (NAT); Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS IGMP Multicast, UPnP |
| Security | NAT Firewall, MAC /IP Filtering |
| Management | Web Based Configuration(HTTP), Remote management, Telnet management, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, Diagnostic Tools |
| Port Forwarding | Virtual server, DMZ, ACL(Access Control List) |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs, |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TD-8810 External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and the maximum number of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
