Archer VR900
AC1900 Wireless Gigabit VDSL/ADSL Modem Router
- Versatile Connectivity – Ethernet WAN and USB ports, the VR900 is fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standard, fiber/cable access and 3G/4G USB dongles
- Superfast Wi-Fi – 600Mbps on 2.4GHz + 1300Mbps on 5GHz
- Maximum Range – 3 dual band detachable antennas provide maximum Omni-directional wireless coverage and reliability
- 1GHz Dual-core Processor – Ensures no interruption while processing multiple wired or wireless tasks simultaneously
- Beamforming Technology – Improves wireless range and performance on both 2.4GHz and 5GHz band
Broadband and Wi-Fi Unleashed
The Archer VR900 features superfast broadband speeds of up to 100Mbps and supports VDSL2,as well as backward compatibility with ADSL2+/ADSL2/ADSL.
The modem router exploits the full potential of VDSL broadband connections to deliver Wi-Fi speeds of up to 1900Mbps(600Mbps on 2.4 GHz and 1300Mbps on 5GHz). Also, by using two dedicated networks, it reduces wireless signal interference.
1300Mbps
5GHz band
600Mbps
2.4GHz band
The Ultimate
Buffer Breaker
Supporting Any Connection
AC 1900 Wireless Gigabit VDSL/ADSL
Modem Router
Versatile Connectivity
The Archer VR900 is an integrated DSL modem router that works with any kind of Internet connection, including VDSL2, ADSL, ADSL2, and ADSL2+. It can also be used with any fiber broadband, cable modem, or 3G/4G dongles.
Better Coverage and a More Stable Connection
Three external antennas help the Archer VR900 provide stable coverage throughout your entire home and property. Advanced Beamforming technology automatically locates wireless devices and forms targeted, highly efficient wireless connections.

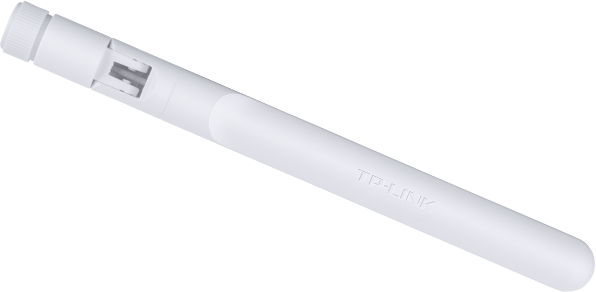

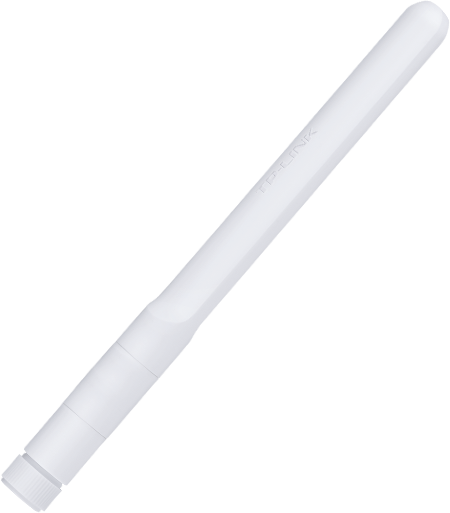

High Performance Antennas
The Archer VR900 features three specially-designed, detachable antennas. The antennas boast gains of 3x2 dBi on the 2.4GHz band and 3x3 dBi on the 5GHz band, ensuring both stability and reach. All three are completely adjustable to ensure optimal orientation and provide you with the best possible Wi-Fi performance.
All three antennas are completely adjustable to ensure optimal orientation and provide you with the best possible Wi-Fi performance.
3x 2dBi
2.4GHz
3x 3dBi
5GHz
Recommended Antenna Orientation
Powerful Processor for Enhanced Performance
The powerful, 1GHz dual-core Broadcom processor boosts speeds and ensures that performance is never compromised even while simultaneously processing multiple wireless and/or wired tasks. Let the processor handle your busy network while you enjoy a hassle-free, connected life.
The powerful, 1GHz dual-core Broadcom processor boosts speeds and ensures that performance is never compromised even while simultaneously processing multiple wireless and/or wired tasks.
Fast USB Sharing
With USB 3.0 and 2.0 ports, you can easily access and share a local printer, a local network drive, or a remote FTP server. Storing, accessing, and sharing files and media has never been easier.
For added connection versatility, both USB ports support 3G/4G dongles, so you can stay connected without missing a beat.
With USB 3.0 and 2.0 ports, storing, accessing, and sharing files and media has never been easier. Both USB ports support 3G/4G dongles.
USB 3.0 10x
USB 2.0 1x
-
Printer
-
Music
-
Photos
-
Video
-
USB Dongle
USB 3.0

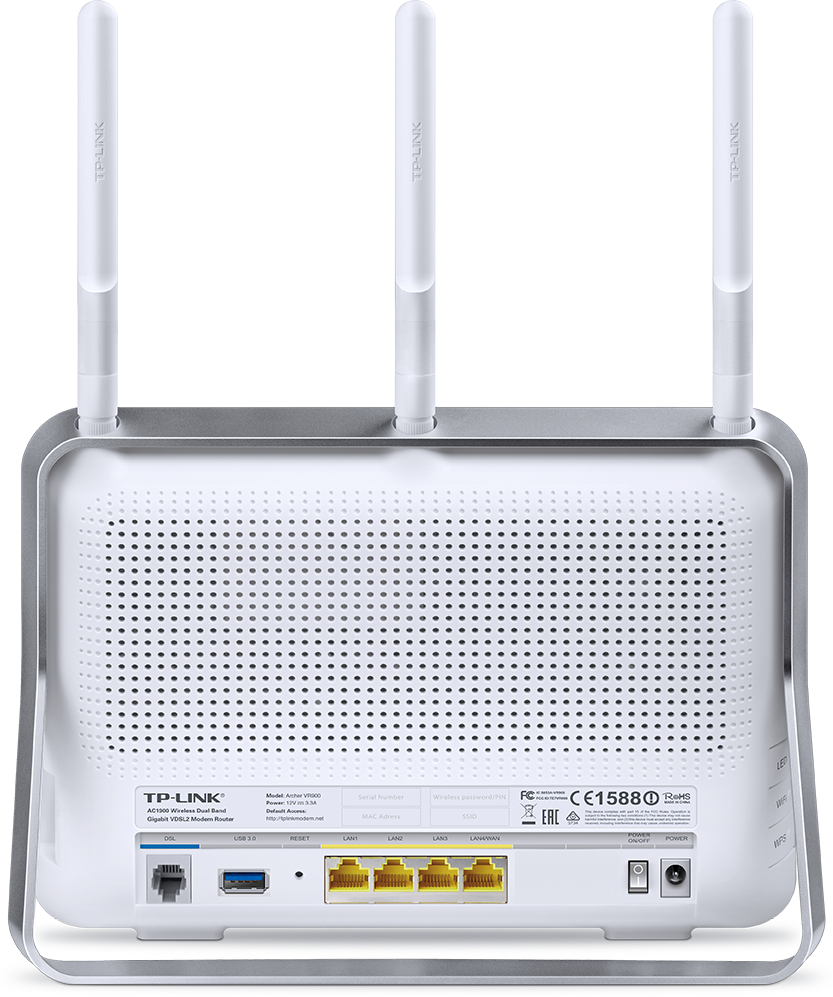

Gigabit Wired Connection
With four built-in Gigabit Ethernet ports, the Archer VR900 is capable of providing the stable, ultra-fast wired connections that you need to ensure lag-free gaming and uninterrupted HD video streaming.
-
IPTV
-
Online Gaming
-
Laptop
-
HD Video
Elegant Appearance
The sophisticated design enhances every home. Its gentle curves, excellent crafting and remarkable quality exudes style and elegance without compromising on performance.
The sophisticated design enhances every home.
Easy Setup and Use
Set up the Archer VR900 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and media sharing.
Learn more about Tether App
| Functionaliteit van de Hardware | |
|---|---|
| Interface | 1 10/100/1000Mbps RJ45 WAN/LAN Port 3 10/100/1000Mbps RJ45 LAN Ports 1 RJ11 Port 2 USB 3.0 Port |
| Knop | WPS Button, Reset Button, LED On/Off Button, Wireless On/Off Button, Power On/Off Button |
| Externe Voeding | 12V/2.5A |
| IEEE-Standaarden | IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 Standaarden | ITU-T G.993.2, Up to 17a profile (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP） |
| ADSL-Standaarden | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2-Standaarden | ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standaarden | ITU-T G.992.5 |
| Afmetingen ( B x D x H ) | 216 x 164 x 36.8mm |
| Type Antenne | 3 external detachable dual band antennas (RP-SMA) |
| Antenneversterking | 3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz |
| Draadloze Functies | |
|---|---|
| Standaarden voor Draadloze Netwerken | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Wireless Speeds | 1300Mbps at 5GHz, 600Mbps at 2.4GHz |
| Frequentie | 2.4GHz and 5GHz |
| Draadloos Zendvermogen | <20dBm(EIRP) |
| Draadloze Functies | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Support 2.4GHz and 5GHz Wireless Schedule |
| Draadloze Beveiliging | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering |
| Functionaliteit van de Software | |
|---|---|
| Kwaliteit van de Dienst (QoS) | ATM QoS, Traffic Control(IP QoS) |
| Veiligheid | NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
| Werkmodi | VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router |
| Management | Web Based Configuration(HTTP), Remote management,command Line Interface, SSL for TR-069, SNMP v1/2c, Web BasedFirmware Upgrade, Diagnostic Tools, Free Online Firmware Update |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Poort Doorsturen | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamische DNS | DynDns, NO-IP |
| VPN-Doorvoer | PPTP, L2TP, IPSec Passthrough |
| Protocollen | Supports IPv4 and IPv6 |
| ATM/PPP Protocollen | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
| Geavanceerde Functies | Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Deling | Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem |
| Gastnetwerk | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| Overige | |
|---|---|
| Certificatie | CE, RCM, RoHS |
| Pakketinhoud | AC1900 Wireless Dual Band Gigabit VDSL/ADSL Modem Router Archer VR900 External Splitter RJ11 DSL Cable RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
| Systeemvereisten | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access) |
| Omgeving | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
