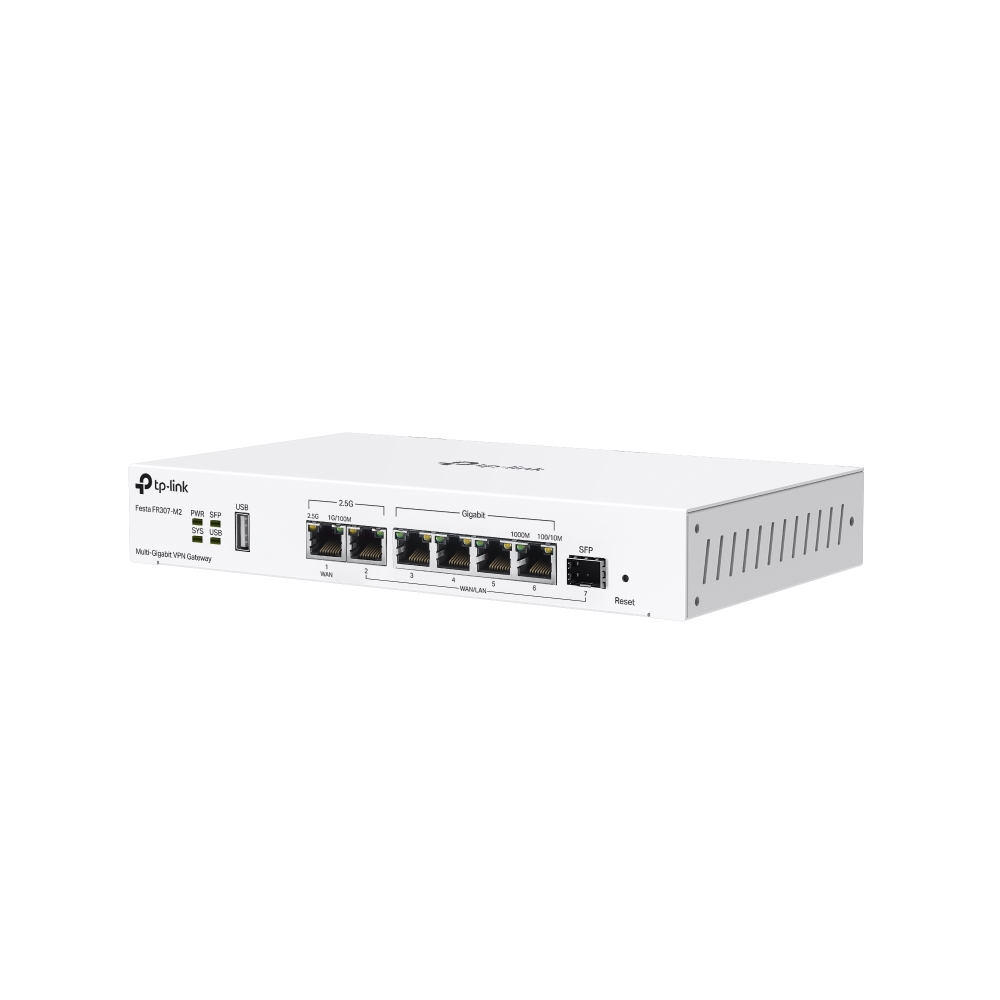

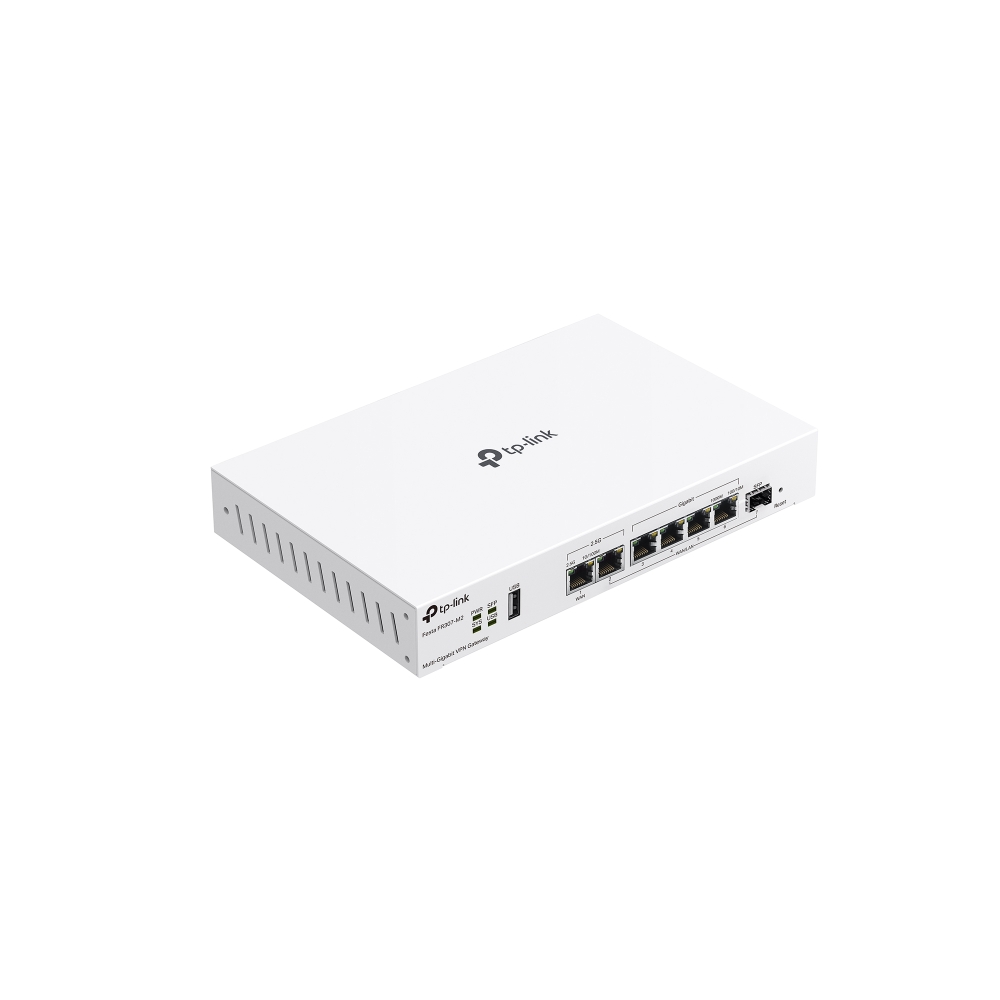

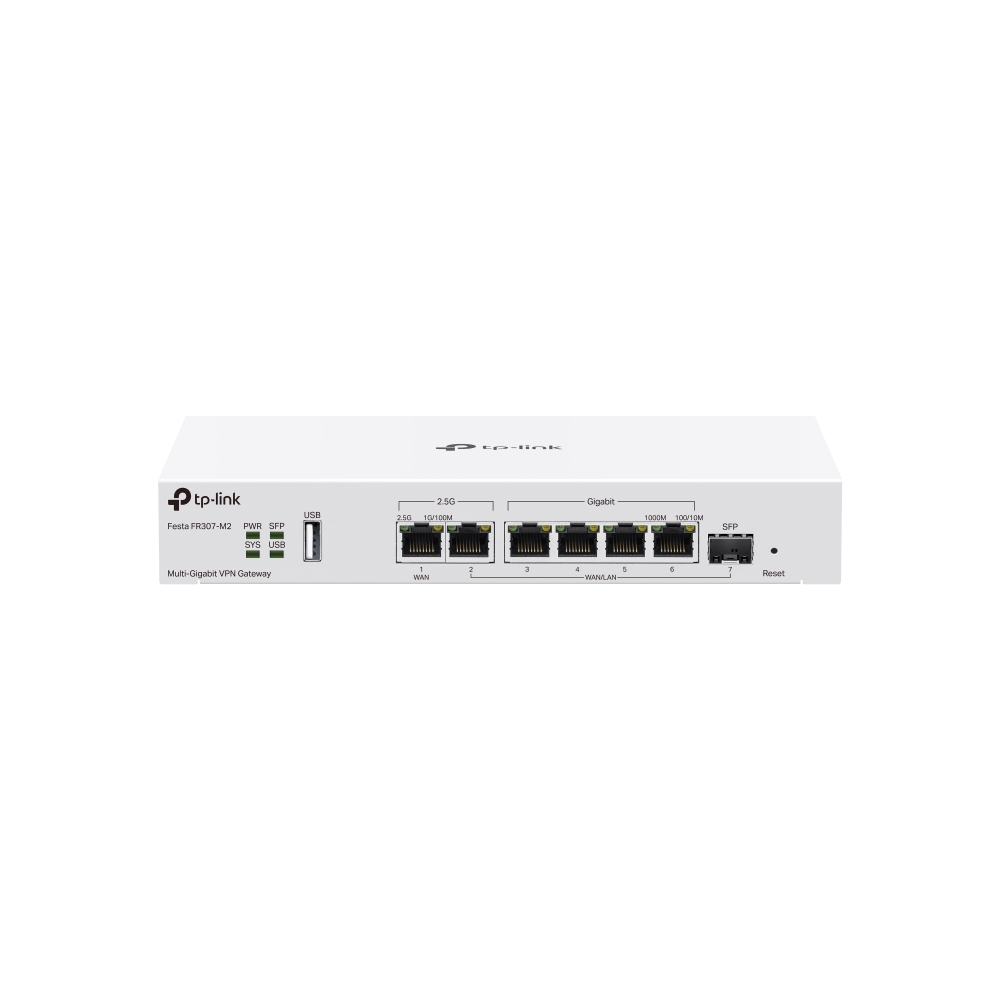

Festa FR307-M2

Multi-Gigabit VPN Gateway

Free Cloud Centralized Management: Accessible via the Festa app or the web^†.
Easy Setup and Use: No professional IT technician is required. Festa App, Self-Organizing Networking, and Zero-Touch Provisioning technology make it a breeze.
Complete Festa Ecosystem: Business-class features with consumer-inspired simplicity. It's ideal for small businesses, home offices, cafes, retail, prosumers, advanced consumers, and large households.
2× 2.5G, 5× Gigabit Ports (Including 1 SFP): Provides high-speed multi-gigabit connectivity.
1× USB WAN Port: Enables mobile broadband backup via a 4G/3G modem^‡.
Load Balancing on Up to 6 WAN Ports: Optimizes multi-line broadband utilization.
High-Security VPN Options: Supports IPSec, PPTP, L2TP, and OpenVPN.
Business-Level Quality: Features an elegant metal casing and a design suitable for desktop or wall mounting.

2× 2.5G Ports,
5× Gigabit Ports
Load Balancing on up to
6 WAN Ports
Desktop or
Wall Mount
Free Centralized
Management Via Cloud^†

Festa App for Easy
Setup and Management
Zero-Touch
Provisioning (ZTP)
IPSec/PPTP/L2TP
/OpenVPN
Self-Organizing Network (SON)
Quick Service Restaurants

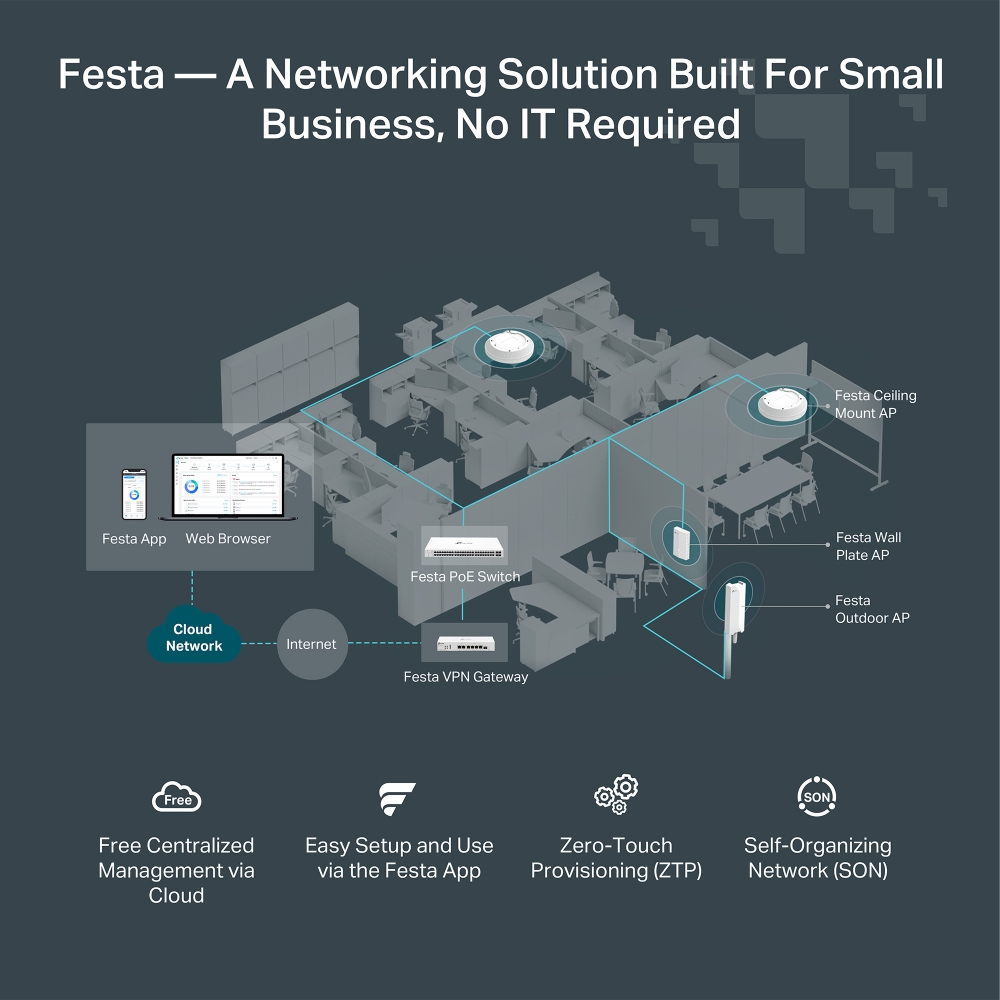

Festa 一 A Networking Solution Built For Small Business, No IT Required

Festa offers business-class features with consumer-inspired simplicity. Our free cloud-based management is Festa offers business-class features with consumer-inspired simplicity. Our free cloud-based centralized management is accessible via the Festa app or web, providing essential features for small businesses without the complexity required by larger-scale operations.

Learn More >

Festa App

Web Browser

Festa PoE Switch

Festa VPN Gateway

Festa Ceiling
Mount AP

Festa Wall
Plate AP

Festa
Outdoor AP

Cloud
Network

Internet

Free Centralized
Management Via Cloud
Festa App for Easy
Setup and Management
Zero-Touch
Provisioning (ZTP)
Self-Organizing
Network (SON)

Small Offices

Quick Service Restaurants

Boutique Hotels

Houses of Worship

Public Facilities

Large Homes

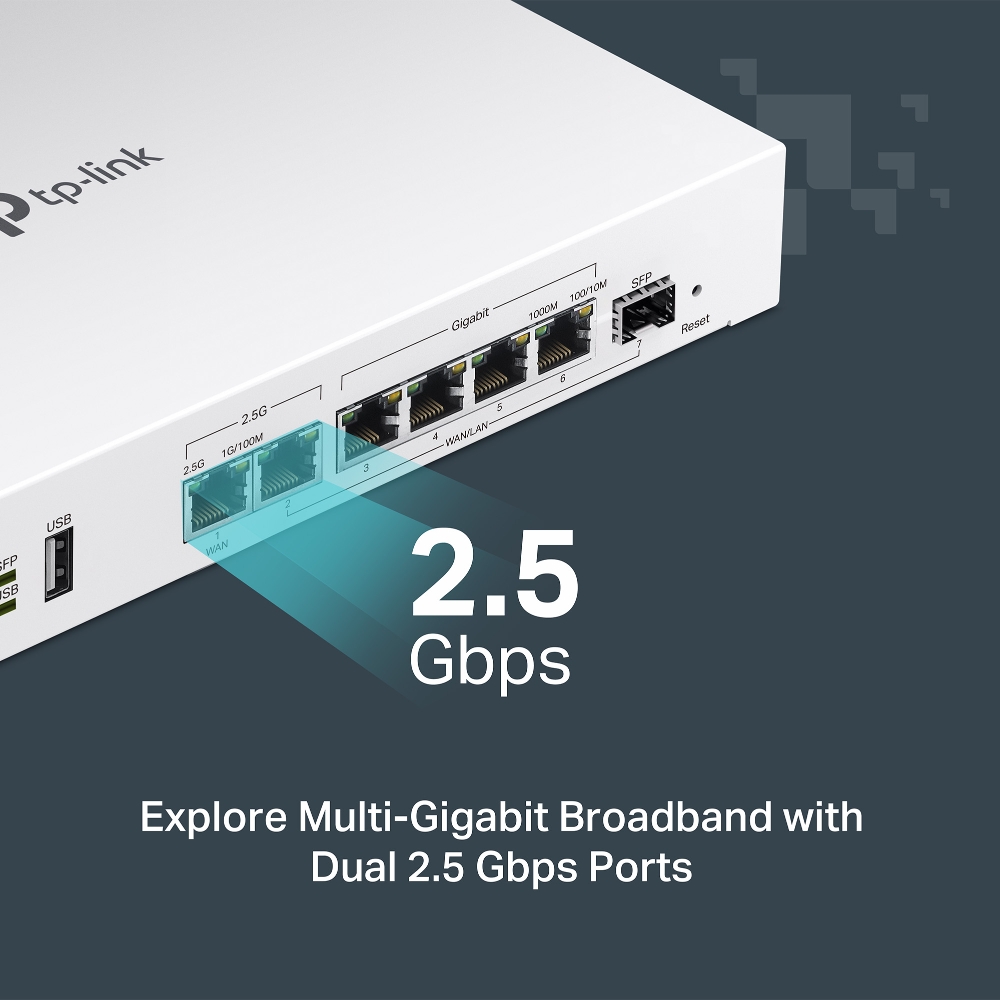

Explore Multi-Gigabit Broadband with Dual 2.5 Gbps Ports

2.5 Gbps

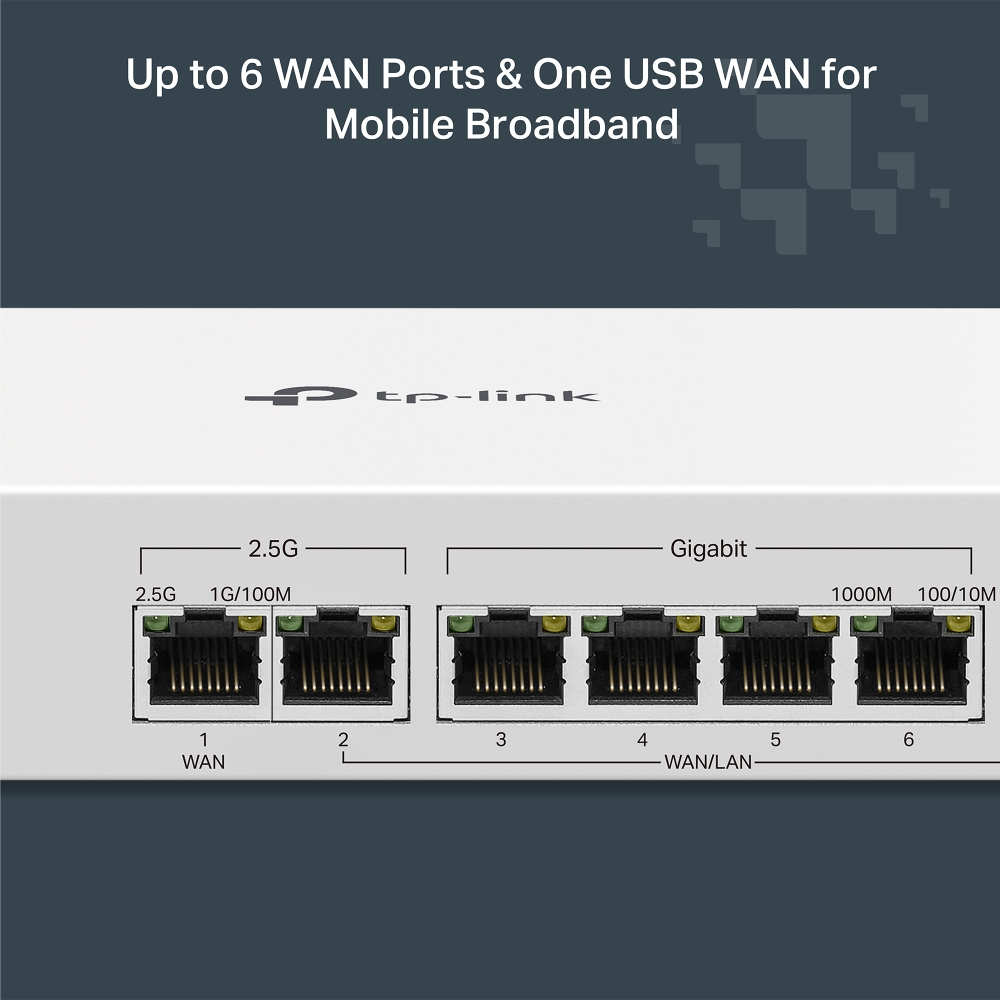

Up to Five WAN Gigabit Ports & One USB WAN
for Mobile Broadband

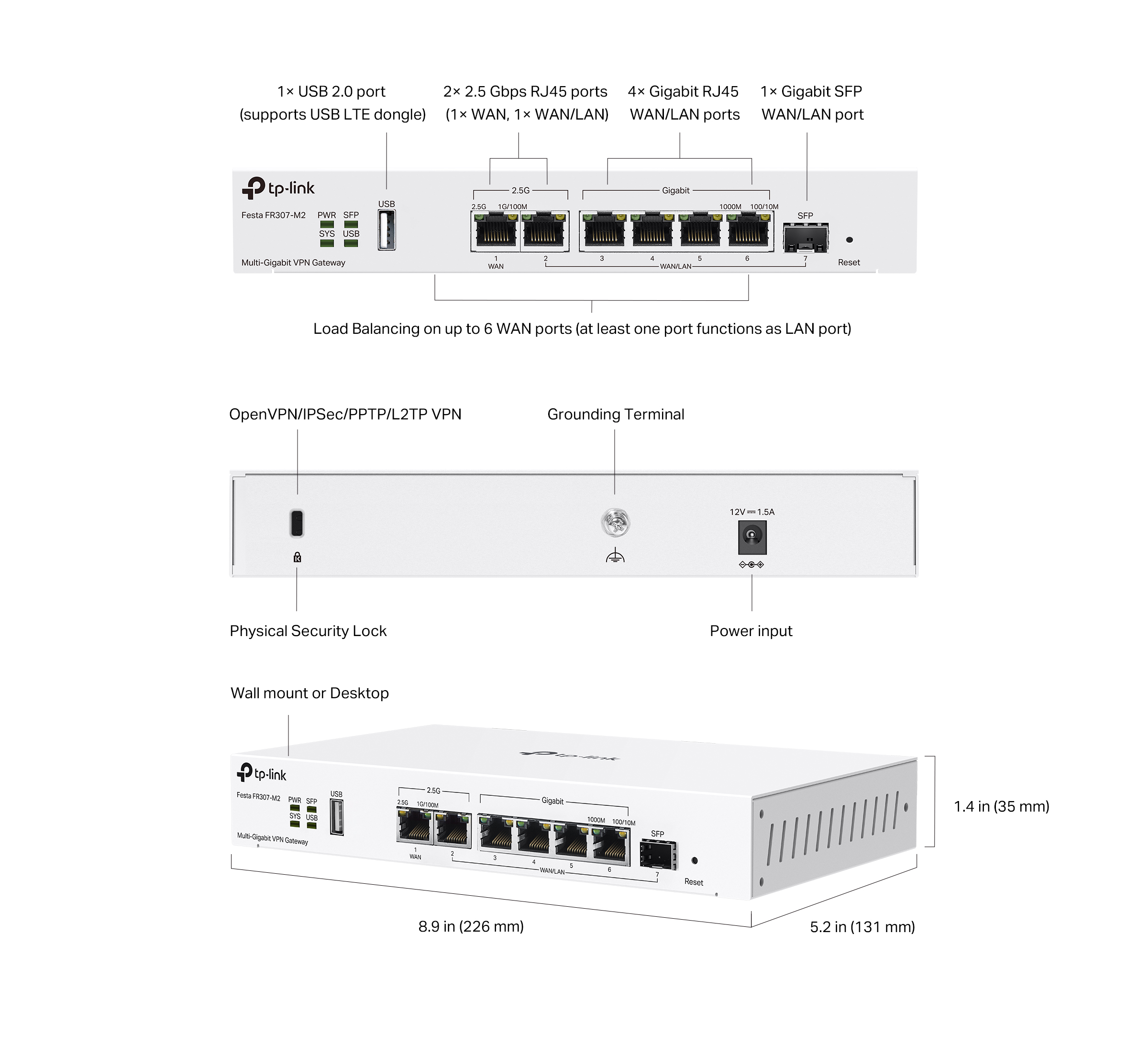

1× USB 2.0 port (Supports USB storage, and LTE backup with LTE dongle)

2× 2.5 Gbps RJ45 ports (1× WAN, 1× WAN/LAN)

4× Gigabit RJ45 WAN/LAN ports

1× Gigabit SFP WAN/LAN port

Load Balancing on up to 6 WAN Ports^△ Distributes data streams according to the bandwidth proportion of every
WAN port to increase the utilization rate of multi-line broadband

High-Security and
High-Performance VPN

OpenVPN/IPSec/PPTP/L2TP VPN effortlessly establishes secure VPN tunnels for safe internet browsing, communication between branches, or enabling remote work and study from home.

IPSec VPN

Headquarters

Subsidiary

One-click Auto

Festa Cloud Web UI

Cloud

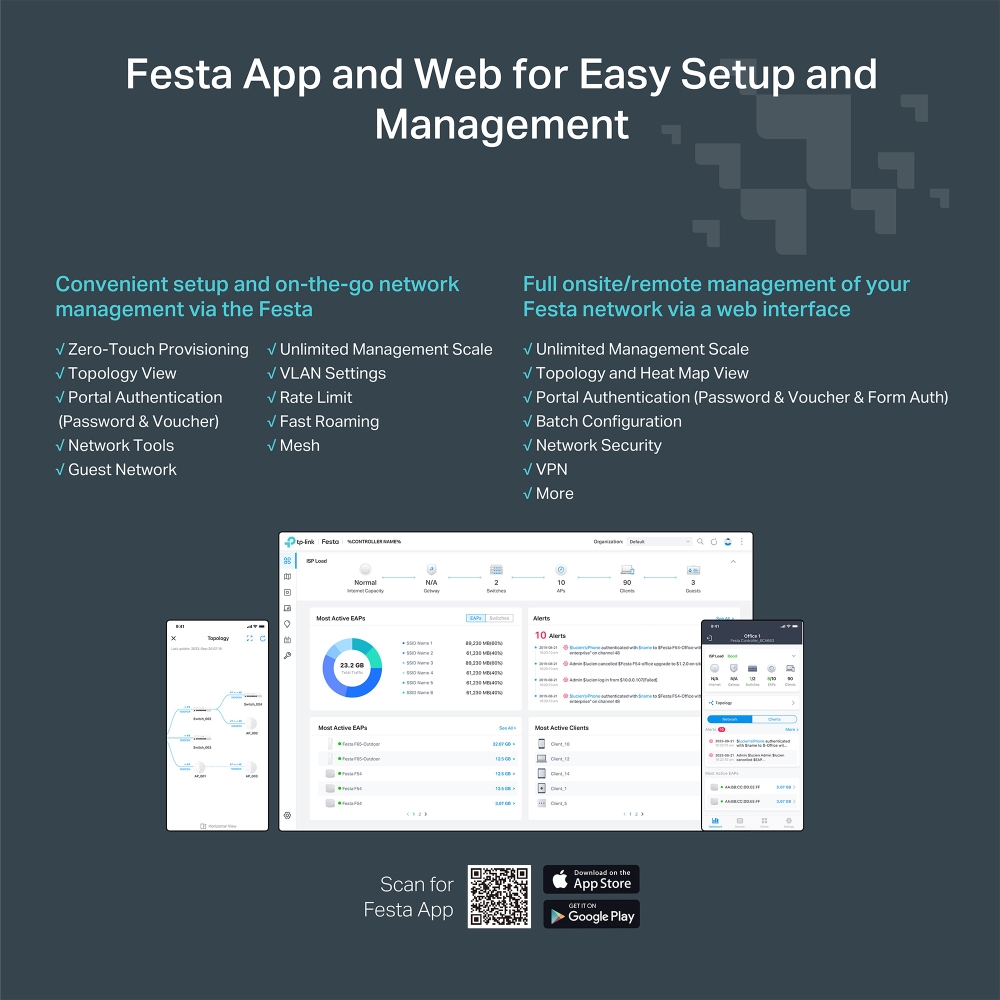

Festa App and Web for Easy Setup and Management

Convenient setup and on-the-go network management via the Festa app

• Zero-Touch Provisioning
• Unlimited Management Scale
• Topology View
• VLAN Settings
• Portal Authentication
(Password & Voucher)
• Rate Limit
• Fast Roaming
• Network Tools
• Mesh
• Guest Network

Full onsite/remote management of your Festa network via a web interface

• Unlimited Management Scale
• Topology and Heat Map View
• Portal Authentication (Password & Voucher & Form Auth)
• Batch Configuration
• Network Security
• VPN
• More

Scan for Festa App

SECURITY
Access Control	Source/Destination IP-Based Access Control
Filtering	• URL Filtering

HARDWARE FEATURES
Interface	• 1× 2.5G RJ45 WAN Port • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 (supports USB LTE dongle and USB Storage)
Button	Reset Button

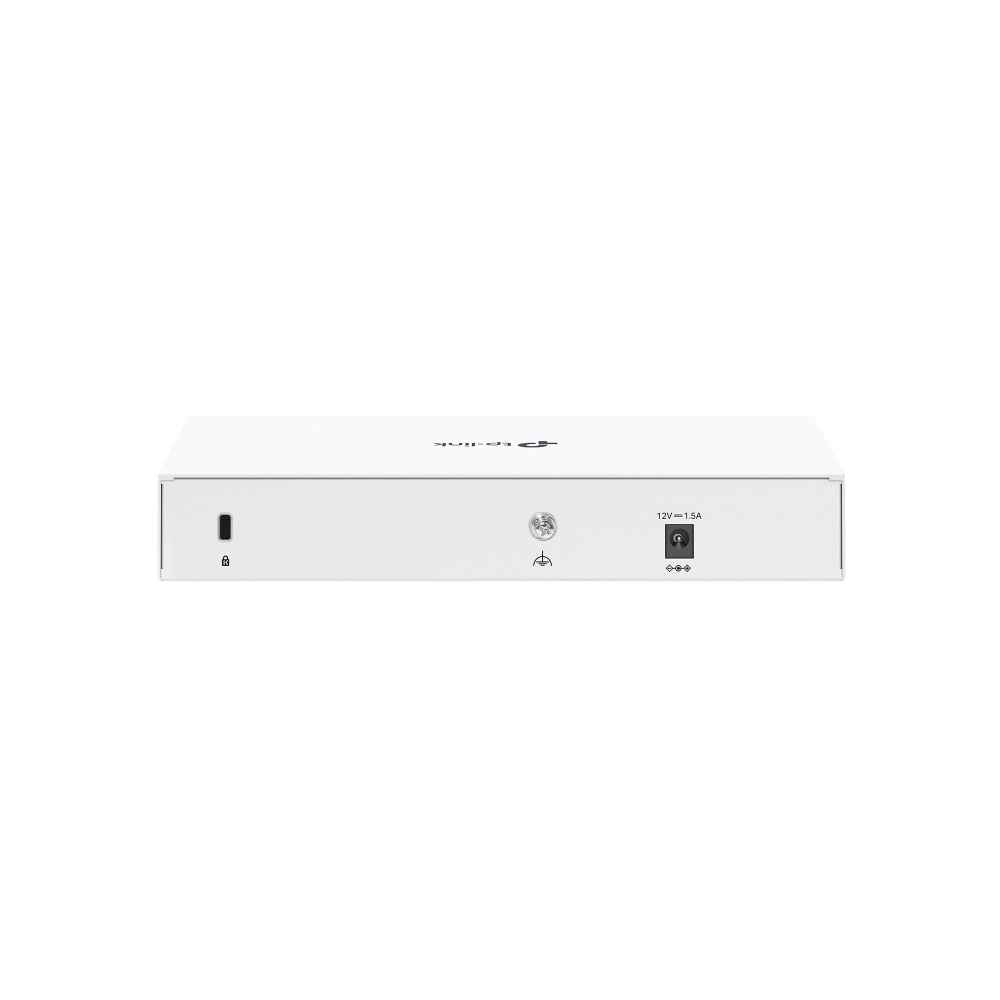

Power Supply	Included 12VDC / 1.5A Power Adapter
Flash	128 MB NAND
DRAM	1GB DDR4
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 132 × 36 mm)
Enclosure	Steel

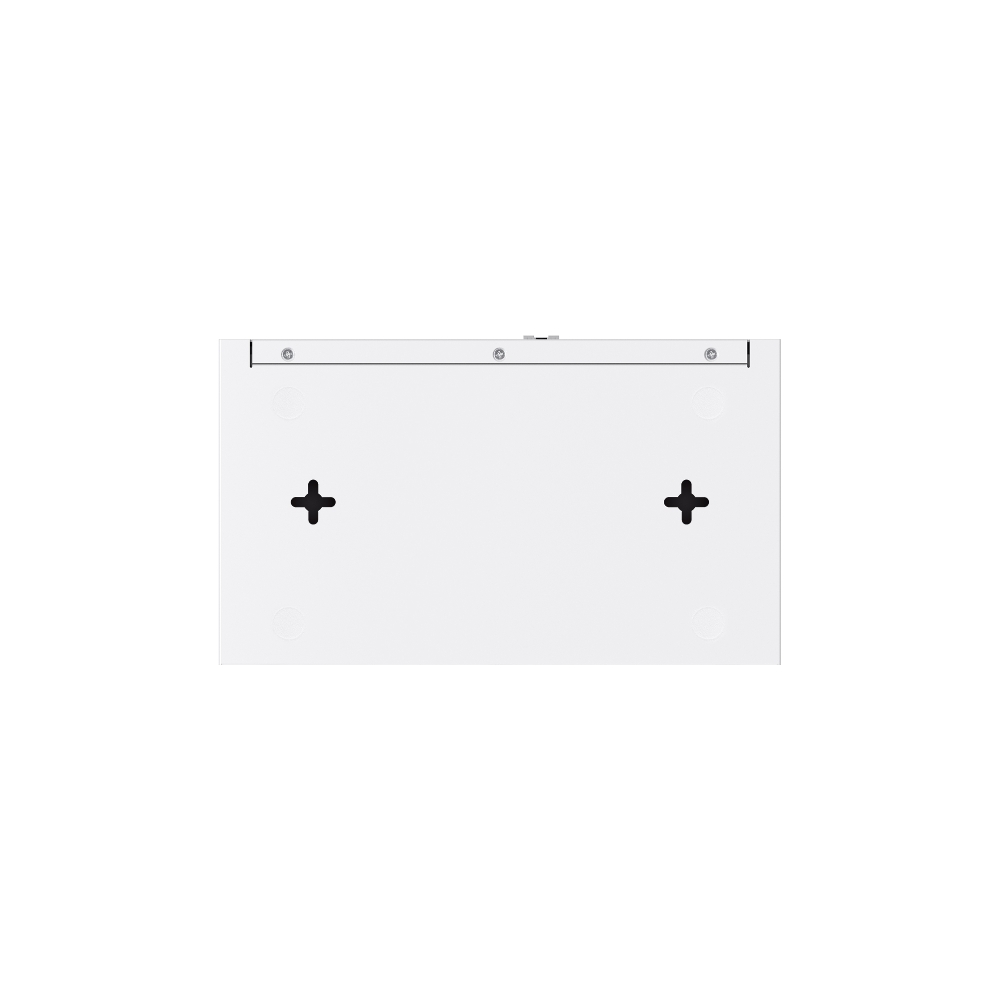

Mounting	• Desktop • Wall Mounting • Rack Mounting
Max. Power Consumption	• 14.2 W (with USB2.0 connected) • 7.1 W (without USB2.0 connected)

PERFORMANCE
Concurrent Session	500,000
New Sessions /Second	6,000
IPsec VPN Throughput	• ESP-SHA1-AES256: 673.3 Mbps • ESP-SHA256-AES256: 650.2 Mbps • ESP-SHA384-AES256: 629.3 Mbps • ESP-SHA512-AES256: 633.8 Mbps
OpenVPN	135.0 Mbps
L2TP VPN Throughput	• Unencrypted: 1243.7 Mbps • Encrypted: 561.0 Mbps
66 Byte Packet Forwarding Rate	1832.69 Mbps / 1741.84 Mbps
1,518 Byte Packet forwarding rate	2461.18 Mbps / 2457.32 Mbps

BASIC FUNCTIONS
WAN Connection Type	• IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6in4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone	Modify WAN MAC Address
DHCP	• DHCP Server • DHCP Options Customization • Multi-IP Interfaces • Multi-Net DHCP
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

TRANSMISSION
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Failover) • Online Detection
NAT	• NAT-DMZ • Port Forwarding
Routing	• Static Routing • Policy Routing
Bandwidth Control	IP-based Bandwidth Control

VPN
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (12)* • 60 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (12)* • 60 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (6)* • 66 OpenVPN Tunnels

Management Features
Centralized Management	√ （via Festa App or Web UI)
APP support	Festa App
Cloud Access	Free Cloud
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	• Web Management Interface • SNMP v1/v2c/v3 • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	√
Management Features	• Self-Organizing Network (SON) • Auto Topology • Multi-site Management • Remote Maintenance • Batch Firmware Upgrading • Batch Configuration • Integrated Troubleshooting Tools • Monitor Network Status • Access Condition Logs and Alerts

OTHERS
Certification	CE, FCC, RoHS

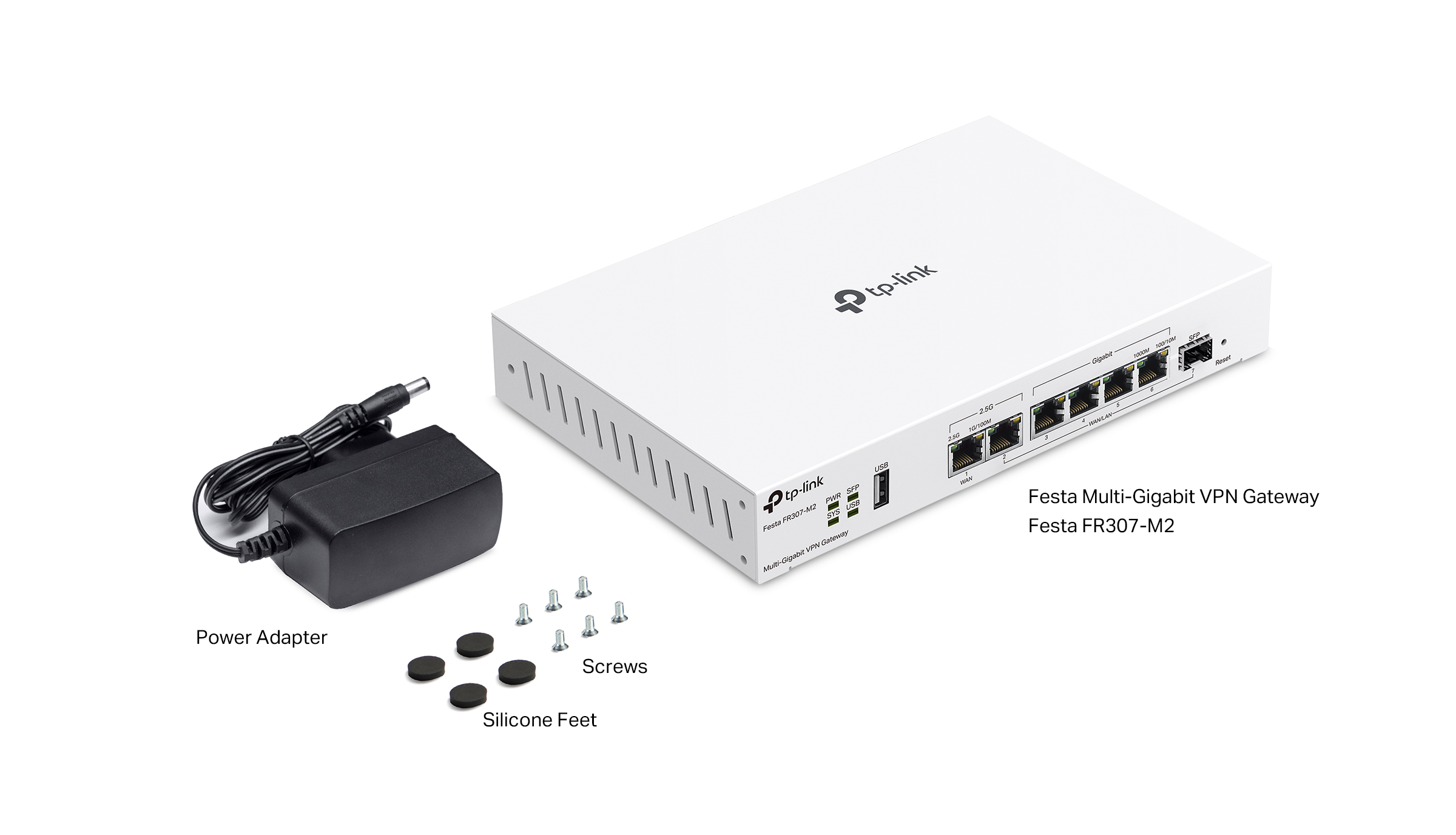

Package Content	• Festa FR307-M2 • Power Adapter • Quick Installation Guide • Silicone Feet
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

For additional version information, please go to the support page.

^†Festa currently offers free cloud access for centralized management and reserves the right to apply fees in the future.

^‡For the complete compatibility list of 4G/3G modem, go to https://www.tp-link.com/en/festa-router/compatibility/

*Festa FR307-M2 can work as a VPN client and can connect with up to 12 PPTP/L2TP VPN servers and 6 OpenVPN servers.
