VIGI NVR2016H
VIGI 16 Channel Network Video Recorder
- 16-Channel Live View and 4K HDMI Video Output
- Up to 2-ch@8MP(25fps)/4-ch@4MP(25fps)/8-ch@2MP(25fps) Decoding Capability
- 16-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB*
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
-
16-Channel
Live View -
4K HDMI
Video Output -
2× SATA Interfaces
(1 Up to 16 TB)* -
16-Channel
Synchronous Playback† -
Smart Video
Coding -
Comprehensive
Compatibility‡ -
Auto
Initialise -
Remote
Monitoring
Auto Initialise for Quick Configuration
Just click “Auto Initialise” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
Click “Auto Initialise”
Initialising
Done
| Video and Audio | |
|---|---|
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16 |
| DECODING | |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP30fps: 4-ch @ 3MP, 2-ch @ 5MP |
| Record Management | |
|---|---|
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, FullScreen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| NETWORK | |
|---|---|
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |
| External Interface | |
|---|---|
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD* |
| Alarm | |
|---|---|
| General Alarm | Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame |
| Anomaly Alarm | Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
| GENERAL | |
|---|---|
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | VIGI Network Video RecorderPower AdapterHDD ScrewsMouseQuick Installation Guide |
| Working Temperature | NVR: -10–55 °CPower Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |

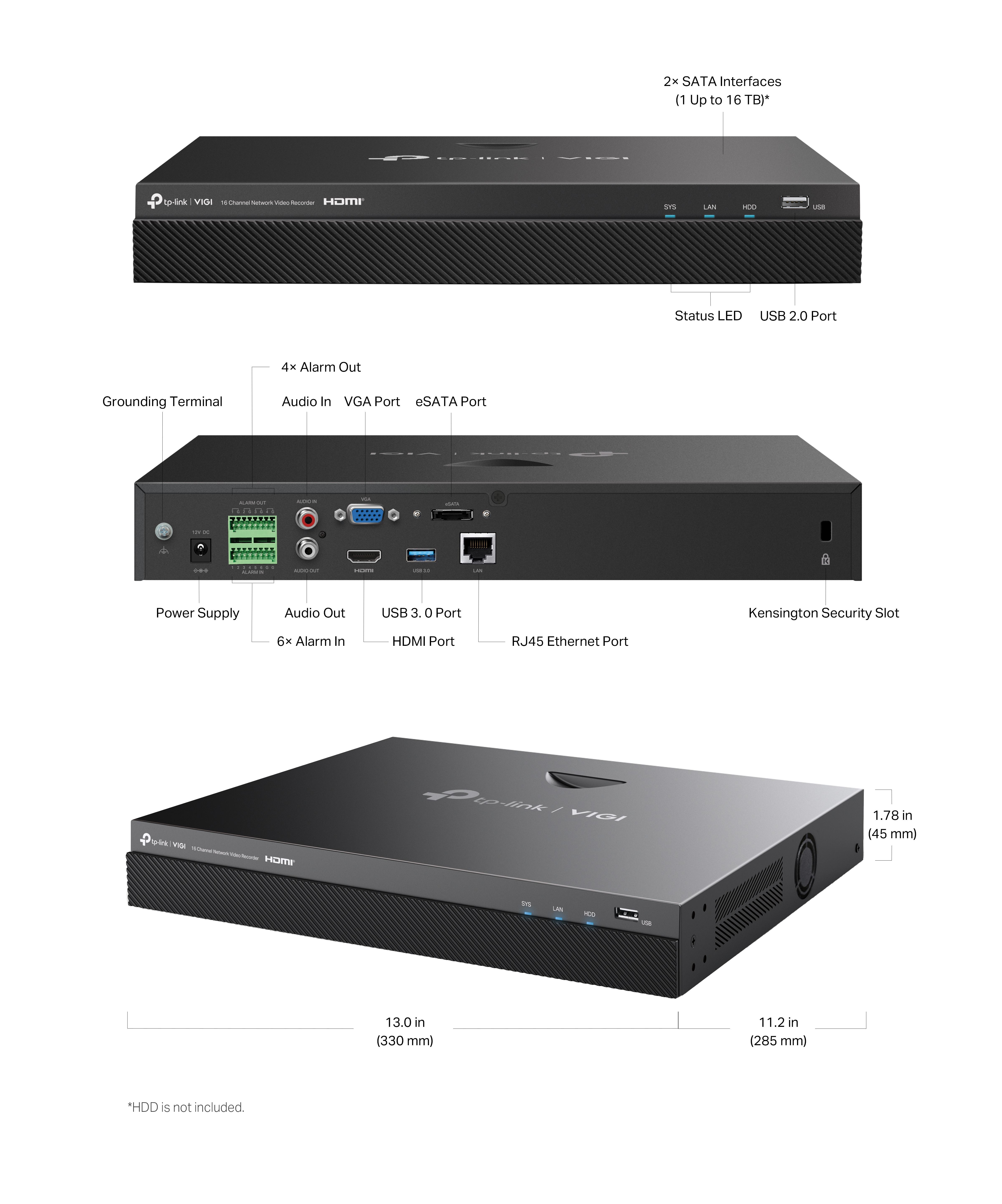

| Dimensions( W X D X H ) | 330 × 285 × 45 mm |
| Net Weight | 1.9 Kg |
| Gross Weight | 3.2 Kg |
| Power Supply | 12V DC/3.3A |
| Power Consumption | 4.78 W (Without Disk)24.16 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
†The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 16MP.
*HDD is not included.
‡This model currently supports ONVIF Profile S.
§Due to the weight of this model, it is recommended to use a tray when mounting the rack with angle iron. Please note that the tray is not included.
