AV600 Powerline Wi-Fi Kit
- HomePlug AV2 Standard - Provides fast powerline transfer speeds of up to 600 Mbps*
- 300Mbps Wi-Fi - Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office*
- Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
- 2 Ethernet Ports - The TL-WPA4220 (Wi-Fi extender) provides reliable high-speed wired connection for game consoles, smart TVs and more
- One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
- Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
- Easy Management - Gives you easy control of your network through a powerful web interface, the user-friendly tpPLC Utility and the intuitive tpPLC mobile app
Wired or Wireless? Why not Both!
Internet Goes Further with Your Home's Electricity System

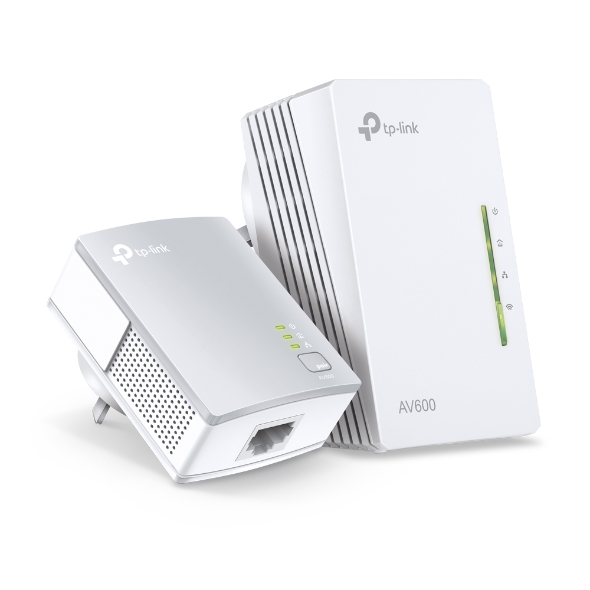

AV600 Powerline Wi-Fi Kit
TL-WPA4220 KIT
Extend Wired and Wireless
Network to Any Room
Using Existing Powerline
Based on the Powerline technology, your network extension is never limited to the primary coverage of your router. with advanced HomePlug AV600, the TL-WPA4220 KIT transforms your home's existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired and wireless net work to any where there is a power outlet.
- HomePlug
AV2 600Mbps - 300Mbps
Wi-Fi
AV600 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA4220 KIT provides stable and high-speed data transmission of up to 600Mbps* for ranges up to 300 meters where there is a power outlet. Not interference on electrical or electronic equipment. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Internet
HOMEPLUG
AV600
Up to 300 Meters
*Listed HomePlug AV2 speed refers to the theoretical maximum physical-layer data transfer rate. Actual data speeds vary and are limited by the product's Ethernet port and other network conditions such as data traffic, electrical noise, and wiring issues.

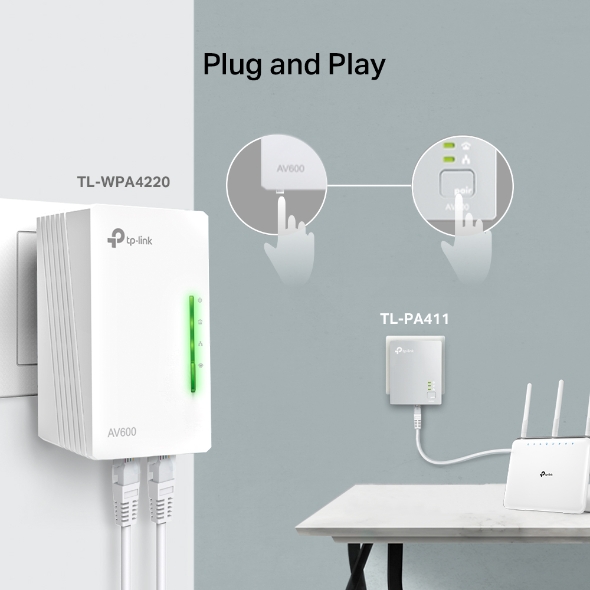

Plug and Play with No Configuration Required
Ditch the complicated setup for good. Get started
with powerline in just two steps:
Step1: connect TL-PA411 to your router.
Step2: plug in TL-WPA4220 wherever you need wired and
wireless internet service
Pair for more security
Press the "Pair" button on each adapter
to create a more secure network
Wi-Fi Auto-Sysc for Unified Wi-Fi Network
Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.
PASSWORD

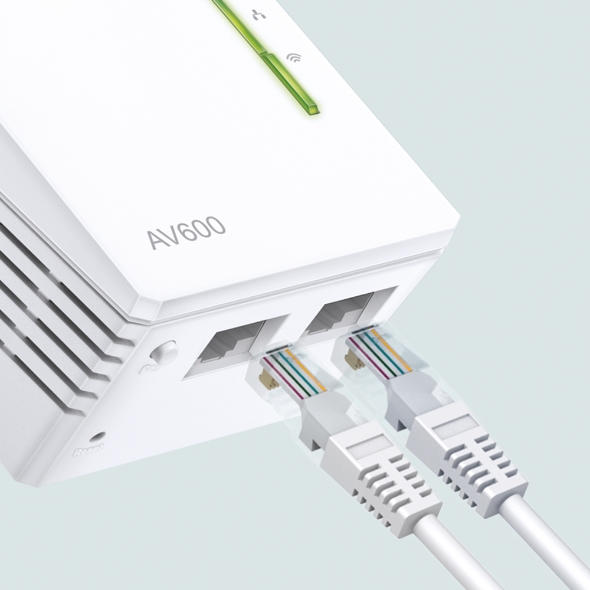

Two Fast Ethernet Ports for Wired
Connections
With two fast Ethernet ports, the TL-WPA4220 can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. Two Ethernet cables are included in the box.
Powerline Management on
Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless net- work settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices. You can download the intuitive new tpPLC Utility for your PC at www.tp-link.com/support/download.
| HARDWARE FEATURES | |
|---|---|
| Plug Type | AU |
| Standards and Protocols | HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n |
| Interface | TL-WPA4220: 2 Ethernet Ports TL-PA411: 1 Ethernet Port |
| Button | Pair, Reset, Wi-Fi Clone |
| Power Consumption | TL-WPA4220: Maximum: 5.6W, Typical: 5.2W TL-PA411: Maximum: 2.5W, Typical: 2.3W |
| LED Indicator | Power, Powerline, Ethernet, Wi-Fi |
| Dimensions ( W x D x H ) | TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm) TL-PA411: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm) |
| Range | Up to 300 meters/1000 feet over existing electrical wiring |
| Compatibility | Compatible with all HomePlug AV & AV2 standard powerline adapters |
| Transmission Speeds | Powerline: up to 600 Mbps Ethernet: 10/100 Mbps |
| WIRELESS FEATURES | |
|---|---|
| Wireless Security | WPA-PSK / WPA2-PSK, WEP Encrptions |
| SOFTWARE FEATURES | |
|---|---|
| Management | TP-Link tpPLC App Or download new tpPLC Utility on PCs: www.tp-link.com. |
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security: 128-bit AES EncryptionWireless Security:WPA-PSK / WPA2-PSK, WEP Encrptions |
| OTHERS | |
|---|---|
| Certification | RoHS, RCM |
| Package Contents | Package Contents: ● AV600 Powerline Wi-Fi Kit: TL-WPA4220 × 1 & TL-PA411 × 1 ● Ethernet Cable × 2 ● Quick Installation Guide × 1 |
| System Requirements | Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Warranty | Limited 3-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
*1. The theoretical maximum channel data transfer rate is derived from HomePlug AV specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.
*2. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
*3. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
