TL-WPA4220
End of LifeAV600 Powerline Wi-Fi Extender
- Extend wired and wireless network to any room using your home's existing electrical system
- One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
Find Wired and Wireless Network from
Any Outlet with Your Home's Electrical System
300Mbps AV600 Powerline Wi-Fi Extender
TL-WPA4220

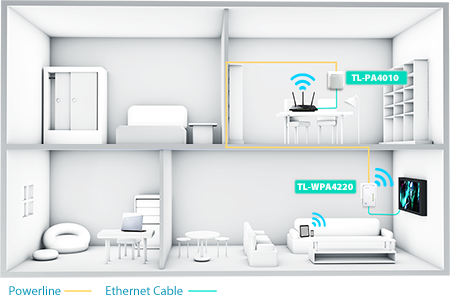

Extend Your Network to Any Room Using Existing Powerline
The TL-WPA4220 transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling. With advanced HomePlug AV, TL-WPA4220, an add-on unit, is perfect for further extending the existing powerline network, providing stable and high-speed data transfer rates of up to 600 Mbps on a line length of up to 300 meters and bringing wired and wireless network simultaneously to anywhere there is a power outlet.
- HomePlug
AV 600Mbps - 300Mbps
Wi-Fi
Plug & Play, No Configuration Required
Plug the powerline adapter in the wall and connect it to the router with an Ethernet cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! No configuration is required. Just enjoy the seamless, high speed wired and wireless network.
Pair for More Security
Press the “Pair” button on both adapters to create a more secure network.
Wi-Fi Auto-Sync for Unified Wi-Fi Network
Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.
Two Ethernet Ports for Wired Connections
With two Ethernet ports, the TL-WPA4220 can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. One Ethernet cable is included in the box.
Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices. You can download the intuitive new tpPLC Utility for your PC at www.tp-link.com/en.
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n |
| Plug Type | AU |
| Interface | 2*10/100Mbps Ethernet Port |
| Button | Pair, Reset, Wi-Fi/Wi-Fi Clone |
| Power Consumption | Maximum: 5.308W (220V/50Hz) Typical: 5.086W (220V/50Hz) Standby: 4.170W (220V/50Hz) |
| LED Indicator | PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone |
| Dimensions ( W x D x H ) | 3.7 x 2.1 x 1.6 in. (94×54×40mm) |
| Range | 300 Meters over electrical circuit |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Wireless Security | 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
| Advanced Functions | Enable/DisableWireless Radio,WMM, Wireless Statistics |
| Transmission Power | CE:<20dBm(2.4GHz) FCC:<30dBm |
| SOFTWARE FEATURES | |
|---|---|
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security: 128-bit AES Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Powerline Ethernet Adapter TL-WPA4220 6.5 ft. (2 m) Ethernet cable (RJ45) Resource CD Quick Installation Guide |
| System Requirements | Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Warranty | Limited 3-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
*1. The theoretical maximum channel data transfer rate is derived from HomePlug AV specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.
*2. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
*3. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
