Archer C24 , TL-WR941HP , TL-WR902AC , Archer C50 , TL-WA841HP , Archer C6U , Archer C20 , Archer C86 , TL-WR841N , TL-WR820N , TL-WR840N , TL-WR940N , Archer C80 , Archer C58HP , Archer A6 , Archer C6 , Archer A5 , TL-WR845N , TL-WR802N , TL-WR810N
Recent updates may have expanded access to feature(s) discussed in this FAQ. Visit your product's support page, select the correct hardware version for your device and check either the Datasheet or the firmware section for the latest improvements added to your product.

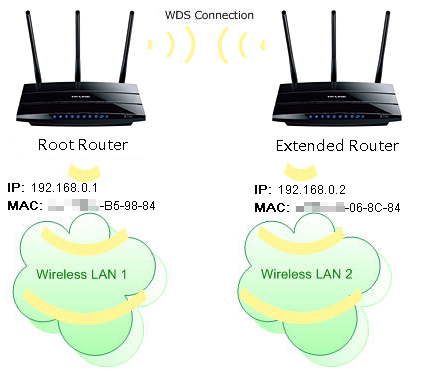

For example, my house covers a large area. The wireless coverage of the router I’m using (the root router) is limited. I want to use an extended router to extend the wireless network of the root router.
Note:
• WDS bridging only requires configuration on the extended router and make sure your router supports WDS. It doesn't support this feature If it can not be found on the web page with the latest firmware updated.
• WDS bridging function can be enabled either in 2.4GHz frequency or 5GHz frequency for a dual-band router. We use the WDS bridging function in 2.4GHz frequency as an example.
1. Log in to the web-based interface of the router. If you don’t know how to do that, please refer to
How to log in to the web-based interface of Wi-Fi Routers (new logo)?
2. Configure the IP address of the router:

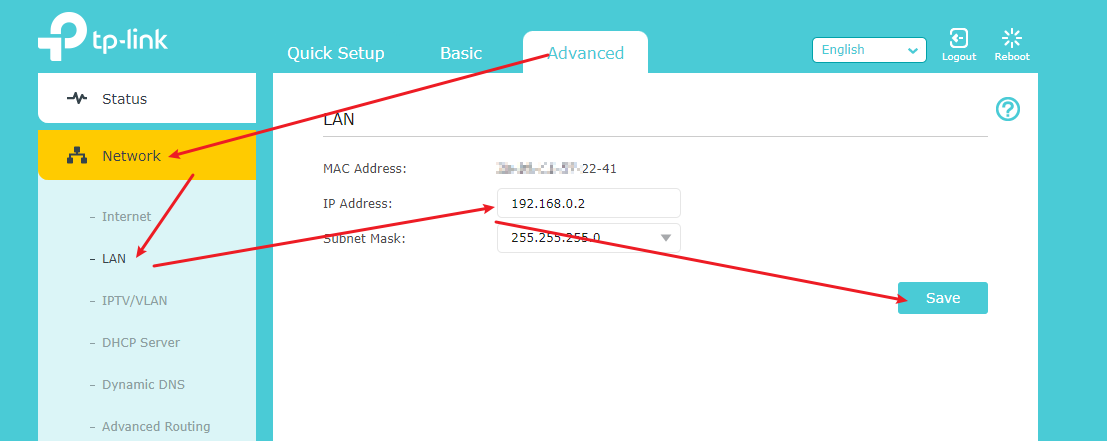

1) Go to Advanced > Network > LAN, configure the IP address of the extended router to be in the same subnet with the root router; (For example, the IP address 101 of the root router is 192.168.0.1, the IP address of the extended router can be 192.168.0.2~192.168.0.254. We take 192.168.0.2 as an example.)
2) Click Save.
Note: Log in to the web management page again if the IP address of the router is altered.
3. Survey the SSID to be bridged:

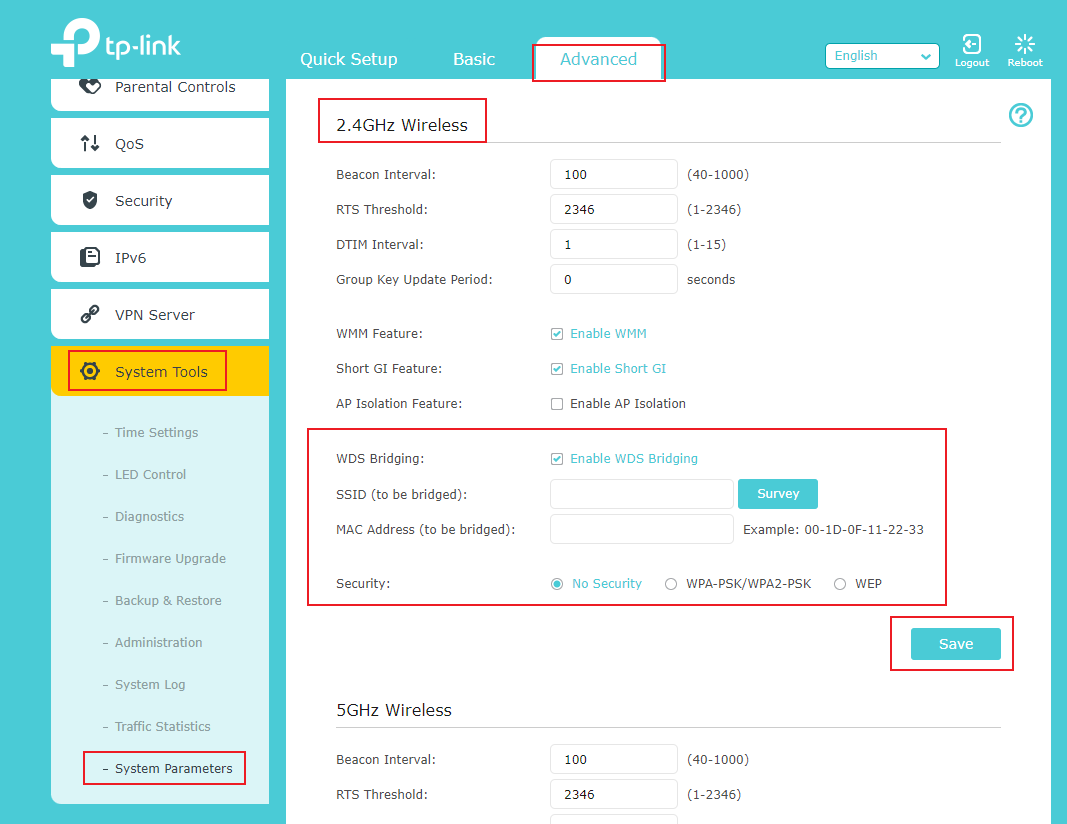

1) Go to Advanced > System Tools > System Parameters and focus on the 2.4GHz Wireless section, click Enable WDS Bridging.
2) Click Survey, locate the root router’s SSID, and click Choose (Here we take TP-Link_4F98 as an example).
3) If the root router has a wireless password, you should enter the wireless password of the root router.
4) Click Save.

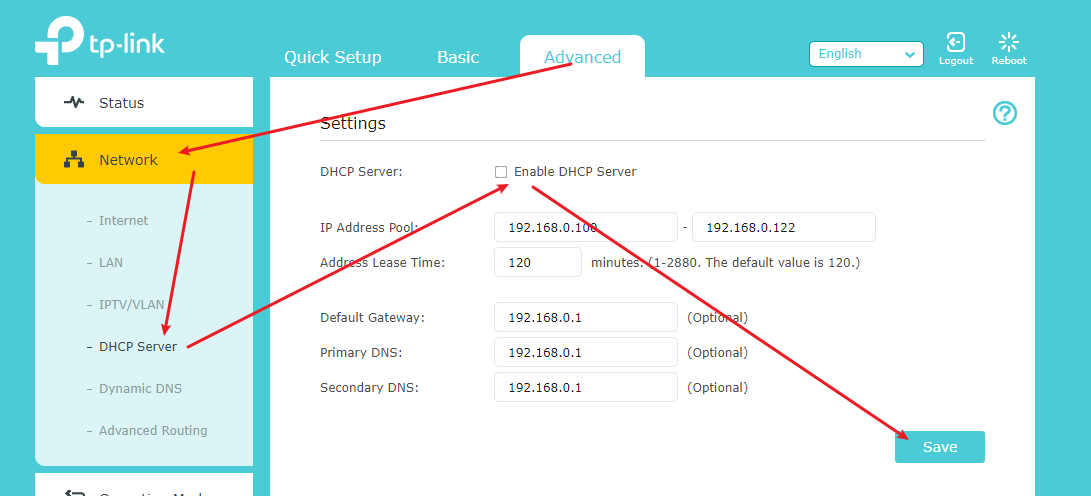

4. Disable DHCP:
1) Go to Network > DHCP Server.
2) Deselect Enable DHCP Server and click Save.

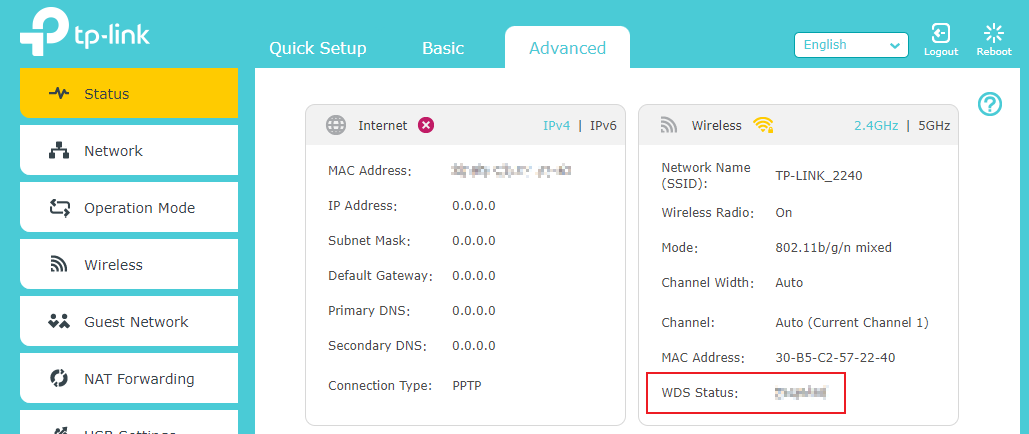

Now you can go to Advanced > Status > Wireless to check the WDS status. When the WDS status is Run, it means WDS bridging is successfully built.
Get to know more details of each function and configuration please go to Download Center to download the manual of your product.
