Камери VIGI C340-W V1

VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera 1

VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera 2

VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera 3

VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera 4

VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera 5

VIGI C340-W V1

Нов

VIGI 4MP Outdoor Full-Color Wi-Fi Bullet Network Camera

4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
Waterproof: Reliable IP66 for stable outdoor performance.
Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

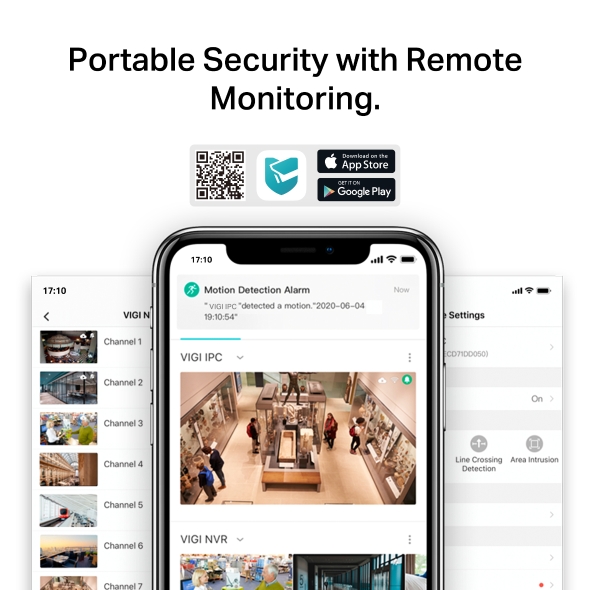

VIGI App: Manage your security from the palm of your hand with the VIGI app.

Преглед

All The Colors,
All The Time

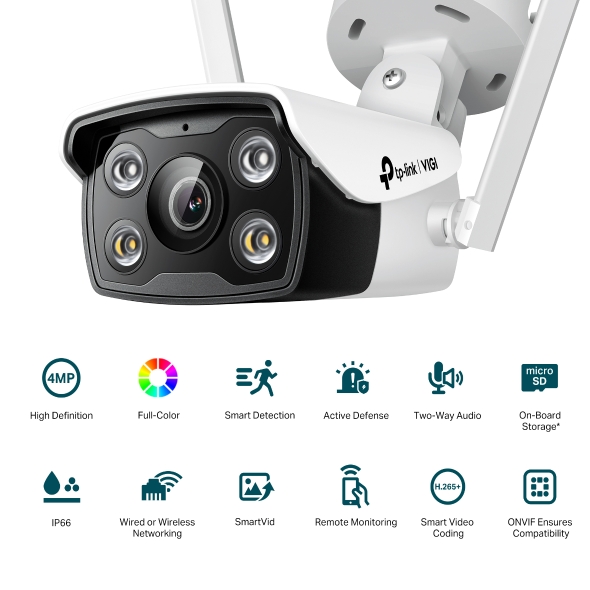

4MP Outdoor Full-Color Bullet Network Camera

VIGI C340-W

High Definition
Full-Color
Smart Detection
Active Defense
Two-Way Audio
On-Board Storage*
Wired/Wireless Networking
SmartVid
Remote Monitoring
Smart Video Coding
ONVIF Ensures Compatibility
IP66

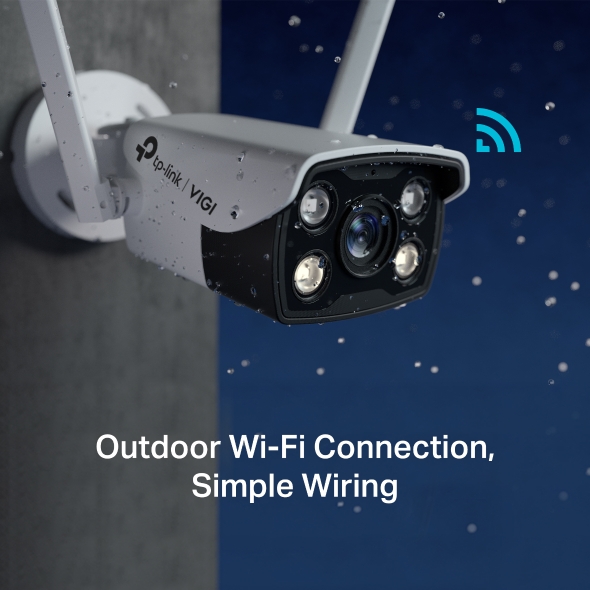

Outdoor Wi-Fi Connection, Simple Wiring

Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protect stable performance in outdoor scenarios.

Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI C340-W provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

VIGI 4MP Full-Color Camera
2MP IR Camera

We keep an eye on your business.

Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Motion Detection

Get instant notifications when your camera detects motion.
Area Intrusion

Set customized activity zones around key areas for more focused monitoring.
Line-Crossing

Set a boundary and receive an alert anytime a person crosses it from either or both directions.
Camera Tampering

Receive alerts when someone obstructs the camera.

You will be notified when someone crosses the boundary you set.

Active Defense

Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.

Every Event is Under Your Control.

VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

Please leave the package by the door.

Never miss a detail.

SmartVid-Smart Video Enhancement

Smart IR

Keeps objects from being under-rendered when far away or overexposed when close to camera at night.

General IR Camera

Smart IR Camera

Wide Dynamic Range

Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

WDR off

WDR on

3D DNR

Removes abnormal pixelation to provide clearer video and eliminate distortion.

3D DNR off

3D DNR on

More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

**Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.

57.5%
Gap**

50%
Gap**

15% Gap**

H.265+

H.265

H.264

Video Coding Technology

Flexible Management and Storage

Take full control over your security via four management methods: Web UI, VIGI UI, App, and Security Manger. Local storage is available for each methods, as well as on-board storage with SD card slot (up to 256 GB).

Seamless Management
Flexible Storage

HDD
(Installed in an NVR)

PC Client
(VIGI Security Manager Installed)

NAS

SD Card*

FTP

Flexible Installation

Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

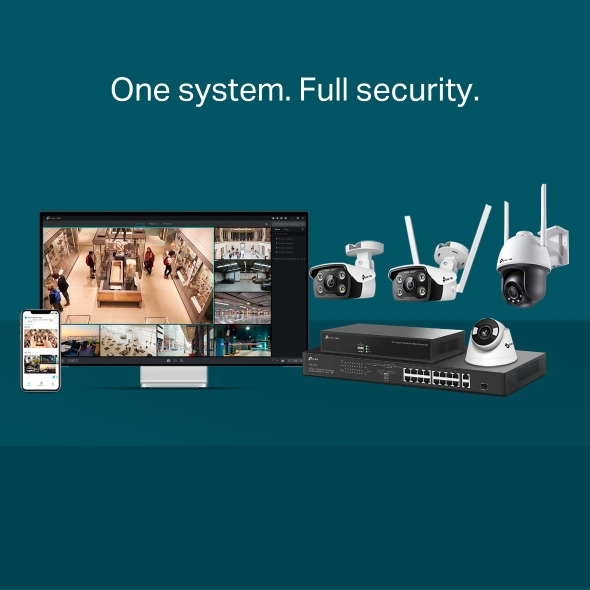

One system. Full security.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Спецификации

Камера
Светлочувствителен сензор	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	4 mm: F1.6
Обектив	Fixed focal lens (4 mm)
Lens Mount	M12
Minimum Illumination	0 lux with IR/white Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Day/Night/Auto/Schedule-Switch
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP66
IR Working Distance	30m
Illumination Distance	30 m
Зрителен ъгъл	(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount	M12
DORI Distance	Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)

Angle Adjustment (Manual)
Range	Pan: -90° to 90°, Tilt: -90° to 90°

ILLUMINATOR
IR LED	Quantity: 2 Range: 30m Wavelength: 850nm
White LED	Quantity: 2 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2560 X 1440
Main Stream	Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Видео компресия	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

АУДИО
Аудио комуникация	Two-Way Audio
Аудио вход	Yes
Аудио изход	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

МРЕЖА
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate	11 Mbps (802.11b) 54 Mbps (802.11g) 150 Mbps (802.11n)
Wireless Security	WPA/WPA2-PSK
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Защита	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage	NAS (NFS, SMB/ CIFS)
Frequency	2.4 GHz

БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ
Standards	IEEE 802.11b/g/n
WiFi Channels	UN: 1-13 US: 1-11
Честота	2.4 GHz
Предавателна безжична мощност	High
Auto Wireless Channel	N/A
Wireless Statistics	N/A
Throughput Monitoring	N/A
Radio Bandwidth	Auto: N/A 20M: Yes 40M: Yes
Wireless Rate	11Mbps(802.11b) 54Mbps(802.11g) 150Mbps(802.11n)
Wireless Security	PWPA/WPA2-PSK
Wireless Mode	AP, AP Client

УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА
Smart Event	Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

ИНТЕРФЕЙСИ
Мрежов интерфейс	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Бутони	Reset Button
Slot	Micro SD card
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

ОБЩИ ХАРАКТЕРИСТИКИ
Околна температура при работа	-30–60 °C
Storage Temperature	-40–60 °C
Околна влажност при работа	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Тегло	195g
Съдържание на пакета	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Размери	80 × 70.6 × 173.4 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.31 Kg
Gross Weight	0.6 Kg
Power Consumption	Maximum: 8.5 W Typical (Day Mode): 2.14 W Typical (Night Mode with IR LED): 3.66 W Typical (Night Mode with White LED): 3.84 W
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
Antenna	Quantity: 2 Type: 2.4GHz Welded Dipole Omni-Directional Antenna Gain: 2.0dBi
Protection	IP66
Product Dimensions (L x W x H)	80× 173 × 71 mm (excluding antennas)
Certifications	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

ВИДЕО/СНИМКА
Видео компресия	Main stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Кадрова скорост и резолюции	Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080 Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Видео стрийминг	Main Stream Sub-Stream
Настройки на изображението	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET
Smart Event	Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

For additional version information, please go to the support page.

Поддръжка

†Picture for reference only.

*Micro SD card is not included in the package.
