Festa F65-Wall
AX3000 Wall Plate WiFi 6 Access Point
- Up to 3.0 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz*
- 4× Gigabit Ports(1× uplink + 3× downlink) offer gigabit connectivity, including a PoE pass-through downlink port for easy PoE device integration
- Seamless Roaming and rich WiFi security technologies enable smooth and secure connectivity
- Free cloud centralized management via the Festa app or the web†
- Easy setup and use, no professional technician required. Self-Organizing Networking and Zero-Touch Provisioning technology make it a breeze
- Compatible with 86 mm & EU & US standard junction box and PoE for flexible installation
AX3000 Wall Plate Wi-Fi 6 Access
Point for Full In-Room Coverage
-
WiFi 6 Speeds up
to 3.0 Gbps† -
Seamless
Roaming -
Free Cloud
Management* -
Zero-Touch
Provisioning (ZTP) -
Easy Management
with Festa App/Web -
4× Gigabit Port
-
802.3af/at PoE
-
Easy
Installation

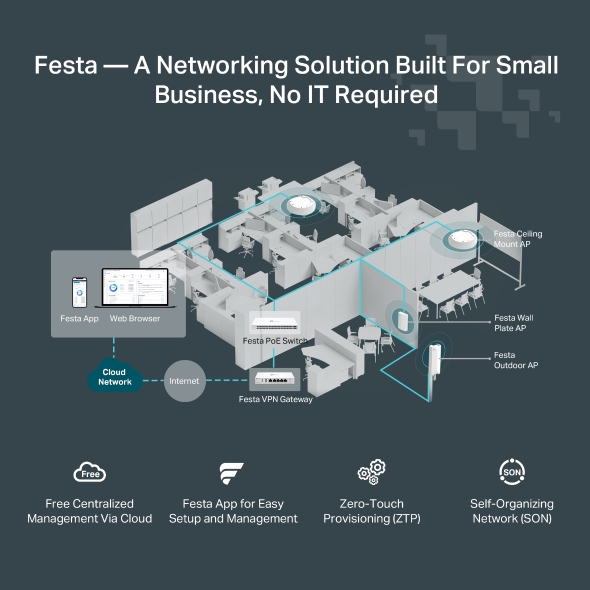

Festa 一 A Networking Solution Built For Small Business, No IT Required
Festa offers business-class features with consumer-inspired simplicity. Our free cloud-based centralized management is accessible via the Festa app or web, providing essential features for small businesses without the complexity required by larger-scale operations.
Mount AP
Plate AP
Outdoor AP
Network
-
Free Centralized
Management Via Cloud -
Festa App for Easy
Setup and Management -
Zero-Touch
Provisioning (ZTP) -
Self-Organizing
Network (SON)
Boutique Hotels
Meeting Room
Villa
Dormitory
Apartment
Condominiums
Dual-Band Wi-Fi 6 up to 3.0 Gbps
Lightning-Fast WiFi Speeds
-
1024 QAM
for 25% more data encoded at one time
-
Long OFDM Symbol
for 11% faster speed
2.4 GHz
5 GHzHigher Efficiency for More Devices
WiFi 6 features OFDMA and MU-MIMO to handle multiple clients across congested environments.

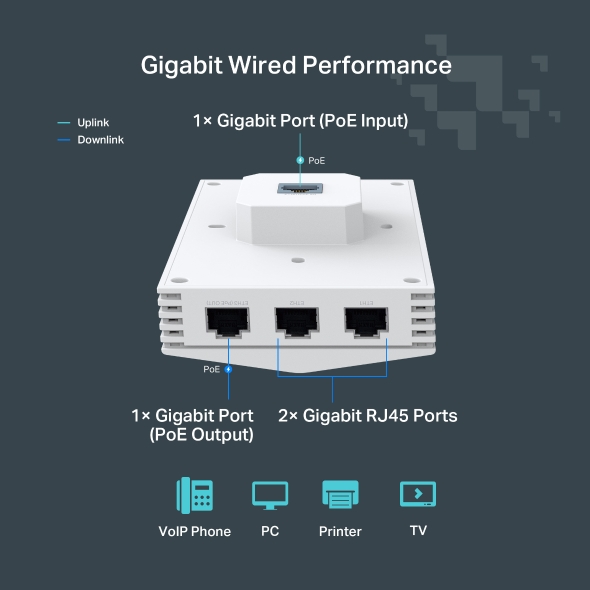

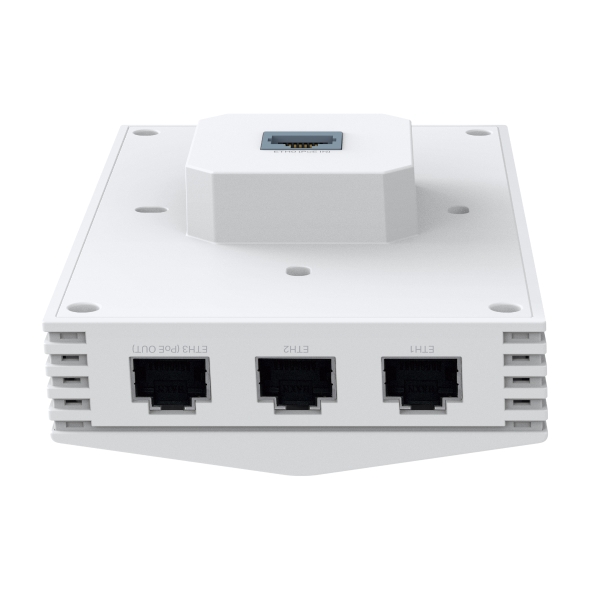

Gigabit Wired Performance
Four gigabit Ethernet ports provide full connectivity throughout the network for high-speed transmissions, allowing you to connect
several devices to your network.
(PoE Input)

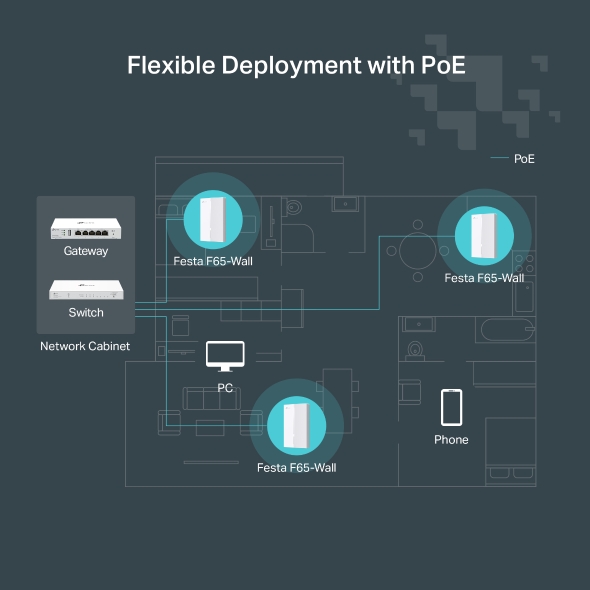

Flexible Deployment with PoE
With 802.3af/at PoE support, a single ethernet cable provides both data and power. Place your AP in optimal locations
without the need for a separate power source.

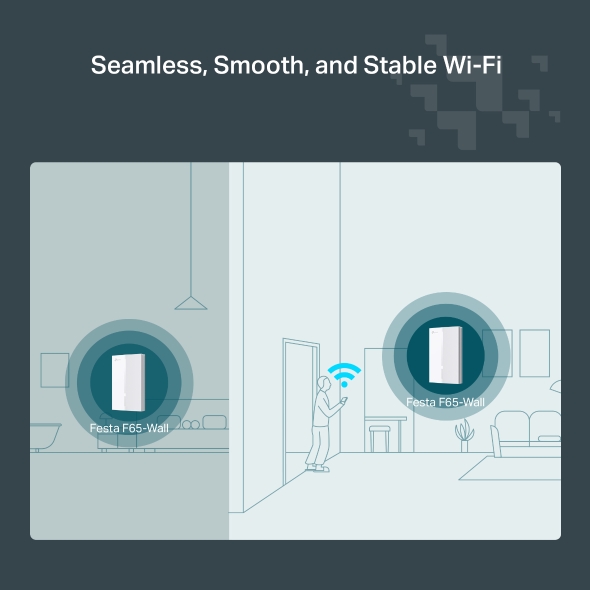

Seamless, Smooth, and Stable Wi-Fi
Seamless Wi-Fi ensures that all users enjoy uninterrupted connections when moving between different access points through 802.11 k/v/r seamless roaming technology.
Quick, Flexible Installation
Compatible with standard wall junction boxes and featuring ultra-compact design, installation is easier than ever.
junction box
junction box
junction box
Festa App and Web for Easy Setup and Management
Convenient setup and on-the-go network management via the Festa app
- • Zero-Touch Provisioning
- • Unlimited Management Scale
- • Topology View
- • VLAN Settings
- • Portal Authentication
(Password & Voucher) - • Rate Limit
• Fast Roaming - • Network Tools
- • Mesh
- • Guest Network
Full onsite/remote management of your Festa network via a web interface
- • Unlimited Management Scale
- • Topology and Heat Map View
- • Portal Authentication (Password & Voucher & Form Auth)
- • Batch Configuration
- • Network Security
- • VPN
- • More
| HARDWARE FEATURES | |
|---|---|
| Interface | • Uplink: 1× Gigabit Port (PoE In)• Downlink: 1× Gigabit PoE Out Port, 2× Gigabit RJ45 Ports |
| Button | Reset, LED |
| Power Supply | 802.3af/at PoE |
| Power Consumption | • EU: 12W (PoE Out off)• US: 12.6W (PoE Out off) |
| Weight | 284.6g |
| Dimensions ( W x D x H ) | 5.6 × 3.4 × 1.7 in (143 × 86 × 42.4 mm) |
| Antenna Type | 2 Dual-Band Antennas• 2.4 GHz: 2× 3 dBi• 5 GHz: 2× 5 dBi |
| Mounting | Wall Plate Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 50㎡(600 ft²)*** |
| Concurrent Clients | 120+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • Seamless Roaming • Beamforming• Automatic Channel Selection• MIMO：2*2 (2.4G and 5G) SU-MIMO2*2 (2.4G and 5G) SU-MIMO• OFDMA UL/DL‡• HE160‡• Band Steering• Load Balance• Airtime Fairness • RADIUS Accounting• Wireless Schedule• Wireless Statistics• Static IP/Dynamic IP• Rate Limit: Based on SSID/Client• Multiple SSIDs: 16(8 on each band)• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Transmit Power Control: Adjust Transmit Power on dBm• QoS (WMM) |
| Wireless Security | • Captive Portal Authentication• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise• Maximum number of MAC Filter：4000• 802.1X Support• VLAN |
| Transmission Power | • CE: <20 dBm (2.4GHz, EIRP)<23 dBm (5GHz band1 & 2, EIRP)<26 dBm (5GHz band3, EIRP)• FCC: < 21 dBm (2.4 GHz)< 21 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Centralized Management | √ |
| APP support | Festa App |
| Cloud Access | Free cloud |
| Email Alerts | √ |
| LED ON/OFF Control | √ |
| Management MAC Access Control | √ |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | √ |
| SSH | √ |
| Web-based Management | HTTP/HTTPS |
| L3 Management | √ |
| Multi-site Management | √ |
| Management VLAN | √ |
| Zero-Touch Provisioning | √ |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • Festa F65-Wall• Installation Guide• Wall-Mounting Kit |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
†Festa currently offers free cloud access for centralized management and reserves the right to apply fees in the future.
‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
