Kasa Smart Ceiling Fan Control and Dimmer Switch

2-in-1 Intuitive Design - 2 independent touch bars make controlling light and fan in one panel intuitive and easy.

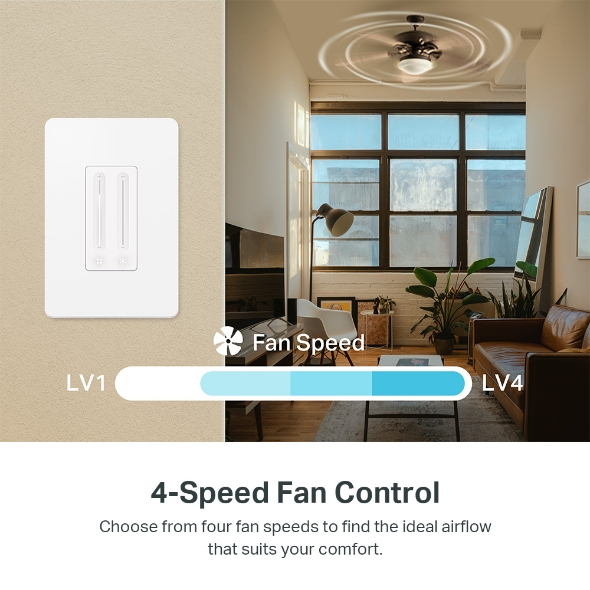

4-Speed Fan Control – Choose from four fan speeds to achieve the utmost comfort levels.

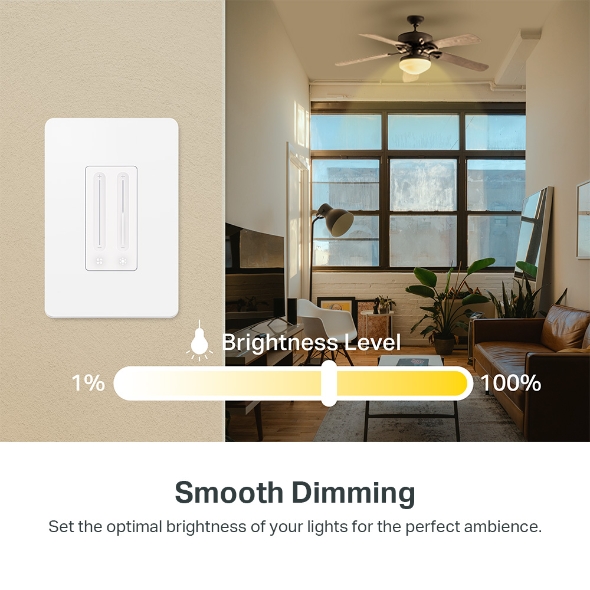

1-100% Dimming Control – Control the brightness of your lights to set the ideal ambiance for different activities.
Voice Control – Manage your connected fan and light with voice commands via Amazon Alexa, Apple Siri^®, or Google Assistant.
Remote Control – Manage fan and lighting levels from wherever you are through the Kasa Smart app.
Schedule – Schedule your lights and fans to turn on/off at your preferred brightness and speed.
Sleep Mode – Automate the fan to drop down to low speed after a set time.
Fade On/Off – Adjust the light with smooth lighting transitions to prevent eye irritation.

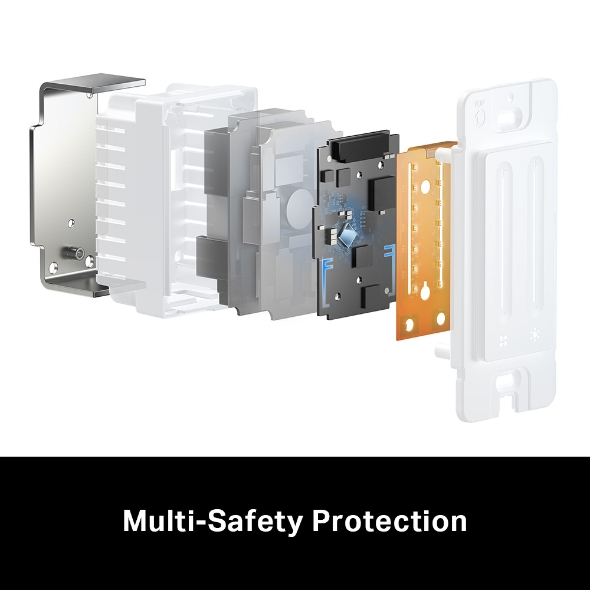

Multi-Safety Protection – ETL certified with advanced safety features including aluminum cooling, overload protection, and premium flame-retardant materials.

Overview

NETWORK
Protocol	IEEE 802.11b/g/n, Bluetooth (for setup only)
Wireless Type	2.4 GHz WiFi Only, Bluetooth (for setup only)

GENERAL
Material	PC (V-0, UL 94), Flame-retardant
Buttons	Fan On/Off Button & LED Fan Speed Control Bar Light On/Off Button & LED Dimmer Control Bar Restart Button

Working Status
Rated	120V~, 50/60Hz
Maximum Load	Lighting Load:150W LED/300W Incandescent/150W CFL Ceiling Fan Load: 1.5A Max, 4-Speed (For a better user experience, the fan rating is recommended to be less than 60W)
Circuit Type	Single Pole
Neutral Wire Required	Yes
Dimmable	Leading Edge Dimming / TRIAC Phase Cut *It's also suggested to contact your bulb’s Support to check the supported dimming type of your bulb.

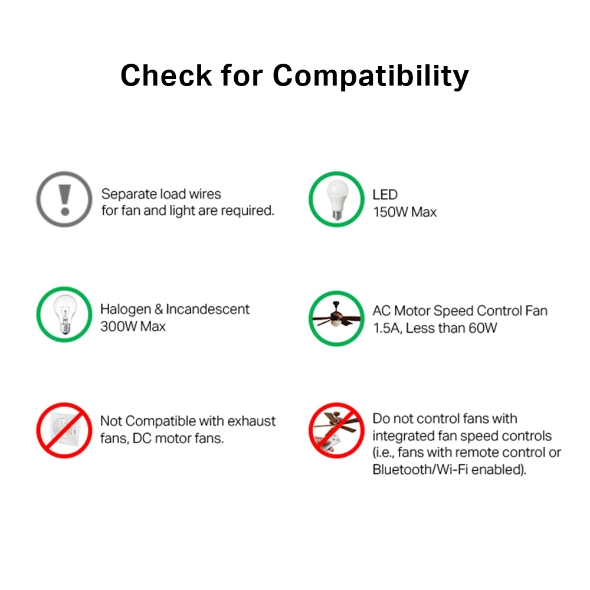

Supported Fan Type	AC Motor Speed Control *Compatible with most pull-string type ceiling fans (Not for use with exhaust-type fans and DC motor fans). DO NOT use to control fans with integrated fan speed controls (i.e. fans have a remote control or Bluetooth / Wi-Fi enabled).

COMPATIBILITY
Third-Party Platform	• Apple Home • Alexa • Google Assistant

OTHERS
Package Content	1× Smart Ceiling Fan Control & Dimmer Switch 1× Wall Plate 5× Wire Nuts 2× Screws Wire Labels Quick Start Guide
Certifications	FCC, ETL, RoHS
Environment	0 ºC ~ 40 ºC (32°F ~ 104°F) 10%~90% RH, Non-condensing
