AP300
End of LifeAC1200 Wireless Gigabit Access Point
- Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz Wi-Fi speeds, ideal for HD streaming and online gaming
- 2 dual band detachable antennas provide superior Wi-Fi coverage to eliminate “dead zones”
- Beamforming technology delivers highly targeted and efficient wireless connections
- Gigabit Ethernet port provides gigabit-class Internet access or an ultra-fast connection for wired device
- Dual Core 800MHz processor ensures great performance, even with more devices connected at the same time
- Various operation modes, including AP, Repeater/Bridge, Client, and Multi-SSID, provide flexible solutions to meet the wireless needs in any situation
Go Further, Go Faster
Upgrade to Next Generation Wi-Fi
Wireless Gigabit Access Point
AP300
Lightning-Fast AC1200 Dual Band Wi-Fi
Upgrade your home or office network with the latest-generation of dual band 802.11ac access point, which offers combined speeds of up to 1200Mbps and is perfectly suited to serve multiple devices at the same time. The 5GHz band is ideal for HD streaming video and online gaming, while the 2.4GHz band is there for all of your everyday Internet needs, like sending email and browsing the Internet.
| 867Mbps 5GHz |
| 300 Mbps 2.4GHz |
Superior Wi-Fi Coverage
Two detachable dual band antennas provide superior coverage to eliminate dead zones. The addition of Beamforming Technology helps concentrate Wi-Fi signal strength in the direction of connected devices to deliver a stable connection, even over long distances.

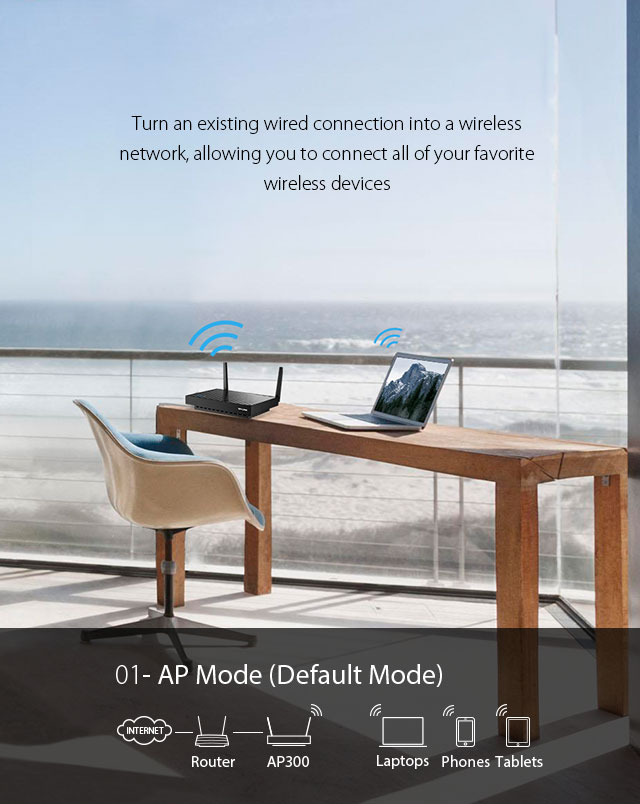

Turn an existing wired connection into a wireless network, allowing you to connect all of your favorite wireless devices

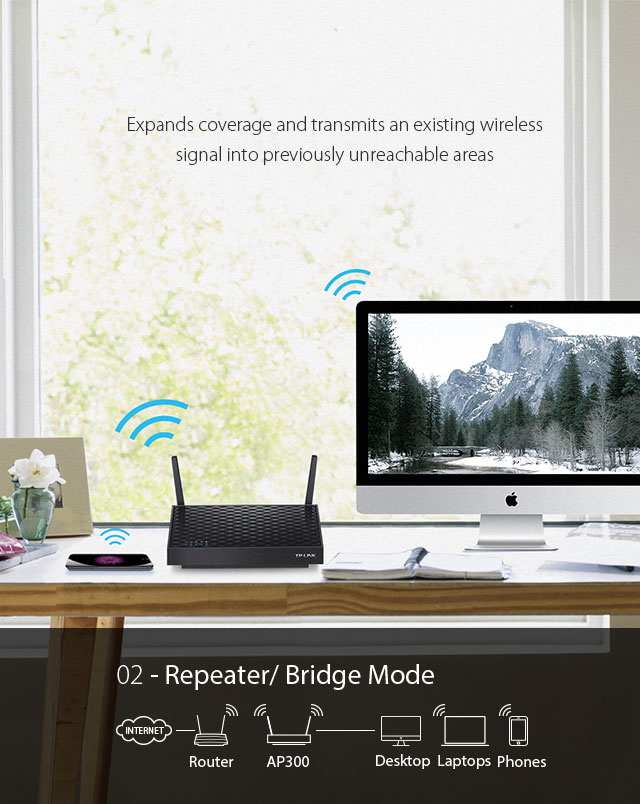

Expands coverage and transmits an existing wireless signal into previously unreachable areas

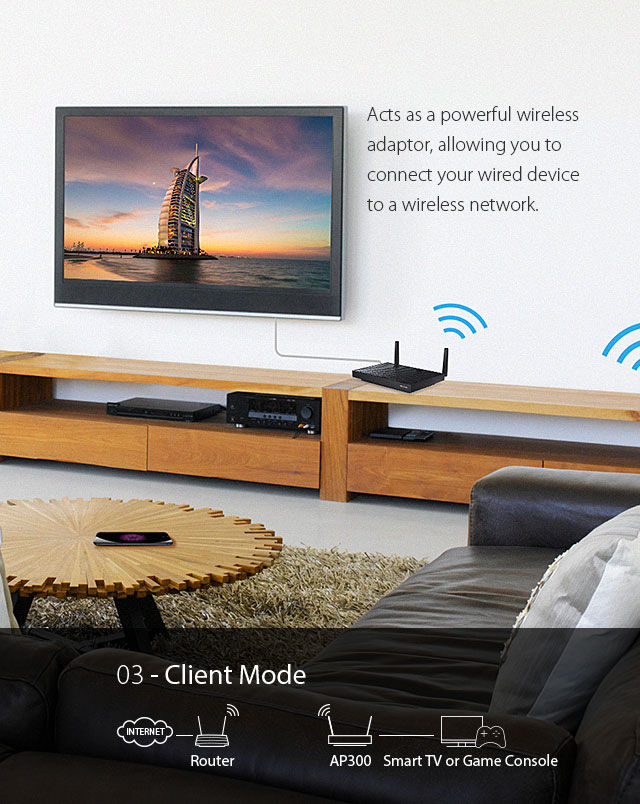

Acts as a powerful wireless adaptor, allowing you to connect your wired device to a wireless network

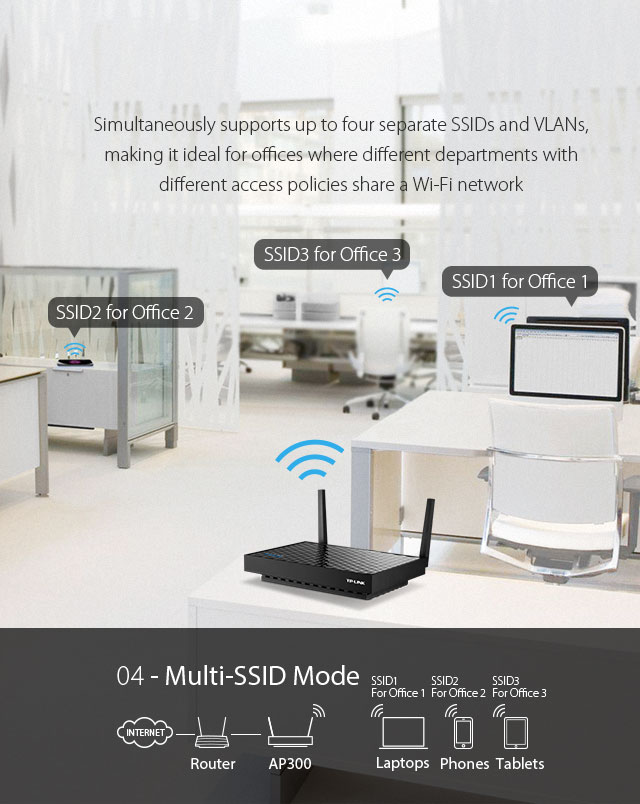

Simultaneously supports up to four separate SSIDs and VLANs, making it ideal for offices where different departments with different access policies share a Wi-Fi network
Gigabit-Class Wired Performance
The Ethernet port can provide gigabit-class Internet access or an ultra-fast connection for wired devices such as smart TVs, game consoles or desktops, etc.
- Smart TV
- or
- Game consoles
- or
- Desktop
800 MHz Dual Core Processor for More Devices and Applications
The 800 MHz Dual Core Processor improves efficiency and performance by dividing tasks between the cores, effectively allowing multiple things to be done simultaneously. This ensures great performance, even when the AP300 is serving numerous devices and performing multiple complex tasks at the same time.
Easy Setup and Use
The AP300's powerful web interface allows it to be set up and configured in a matter of minutes. The intuitive design makes installation faster and easier than ever and allows users to monitor and personalize settings for a wide range of functions.
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Interface | 1 * 10/100/1000Mbps Ethernet Port (RJ45) |
| Botón | WPS Button, Reset Button, LED Button, Power Button |
| Fuente de Alimentación Externa | 12V/2.5A |
| Dimensiones (W X D X H) | 9.5 X 6.4 X 1.7 in. (242 X 162 X 44mm) |
| Antena | 2 dual band detachable antennas |
| CARACTERÍSTICAS INALÁMBRICAS | |
|---|---|
| Estándares Inalámbricos | IEEE 802.11a/ac, IEEE 802.11b/g/n |
| Frecuencia | 2.4GHz & 5GHz(11ac) |
| Tasa de Señal | 2.4GHz: Up to 300Mbps 5GHz: Up to 867Mbps |
| Sensibilidad de Recepción | 2.4GHz: 11g 54M: -76dBm@10% PER 11n HT20 MCS7: -73.5dBm@10% PER 11n HT40 MCS7: -71dBm@10% PER 5GHz: 11a 6Mbps:-93dBm@10% PER 11a 54Mbps: -75dBm@10% PER 11ac HT20 MCS8: -67dBm@10% PER 11ac HT40 MCS9: -62.5dBm@10% PER 11ac HT80 MCS9: -59.5dBm@10% PER |
| Potencia de Transmision | CE: <20dBm(2.4GHz), <23dBm(5GHz), FCC: <30dBm |
| Modos Inalámbricos | Access Point, Repeater (Range Extender)/Bridge with AP, Client, Multi-SSID |
| Funciones Inalámbricas | Wireless Statistic, Concurrent Mode boost both 2.4G/5G WiFi band, LED Control, Domain Login Function |
| Seguridad Inalámbrica | 64/128-bit WEP, WPA-PSK / WPA2-PSK |
| Otros | |
|---|---|
| Certificacion | CE, FCC, RoHS |
| Contenidos del Paquete | AC1200 Wireless Gigabit Access Point, AP300 2 Detachable Antennas Power Adapter RJ-45 Ethernet Cable Desktop Mounting Stand Quick Installation Guide |
| Requisitos del Sistema | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac® OS, NetWare®, UNIX® or Linux. |
| Ambiente | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
* Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications are based upon test results under normal usage conditions. Actual wireless transmission rate and wireless coverage are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
