TL-SG1005P
5-Port Gigabit Desktop Switch with 4-Port PoE
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE
TL-SG1005P
-
Surveillance
Work with IP Cameras
-
Conference Call
Work with IP Phones
-
Wi-Fi Coverage
Work with Omada EAPs
Easy to Use
-
Connect To Power
-
Connect To Devices
IP Phone Printer Computer Internet Router TL-SG1005P -
Enjoy
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Power

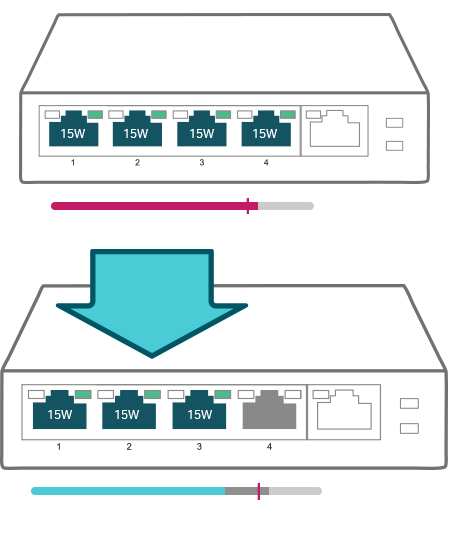

Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Power overload 56W Power Management Intelligent power supply 56WAdvanced Functions for Higher Performance
Qos
For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP
Snooping
Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
| HARDWARE FEATURES | |
|---|---|
| Interface | 5 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| PoE Ports (RJ45) | Standard: 802.3 af compliantPoE Ports: Port1- Port4Power Supply: 56W |
| Backbound Bandwidth | 10Gbps |
| Mac Address Table | 2K |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
| Max Power Consumption | 3.95W(220/50Hz. no PD connected)64.44W(220/50Hz. with 56W PD connected) |
| Max Heat Dissipation | 13.48BTU/h(no PD connected)219.87BTU/h(with 56W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Compatible With IEEE 802.3af Compliant PDsPriority FunctionMac Address Auto-Learning And Auto-AgingIEEE 802.3x Flow Control802.1p/DSCP QoSIGMP Snooping |
| Transfer Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1005P, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90%RH non-condensingStorage Humidity: 5%~90%RH non-condensing |
