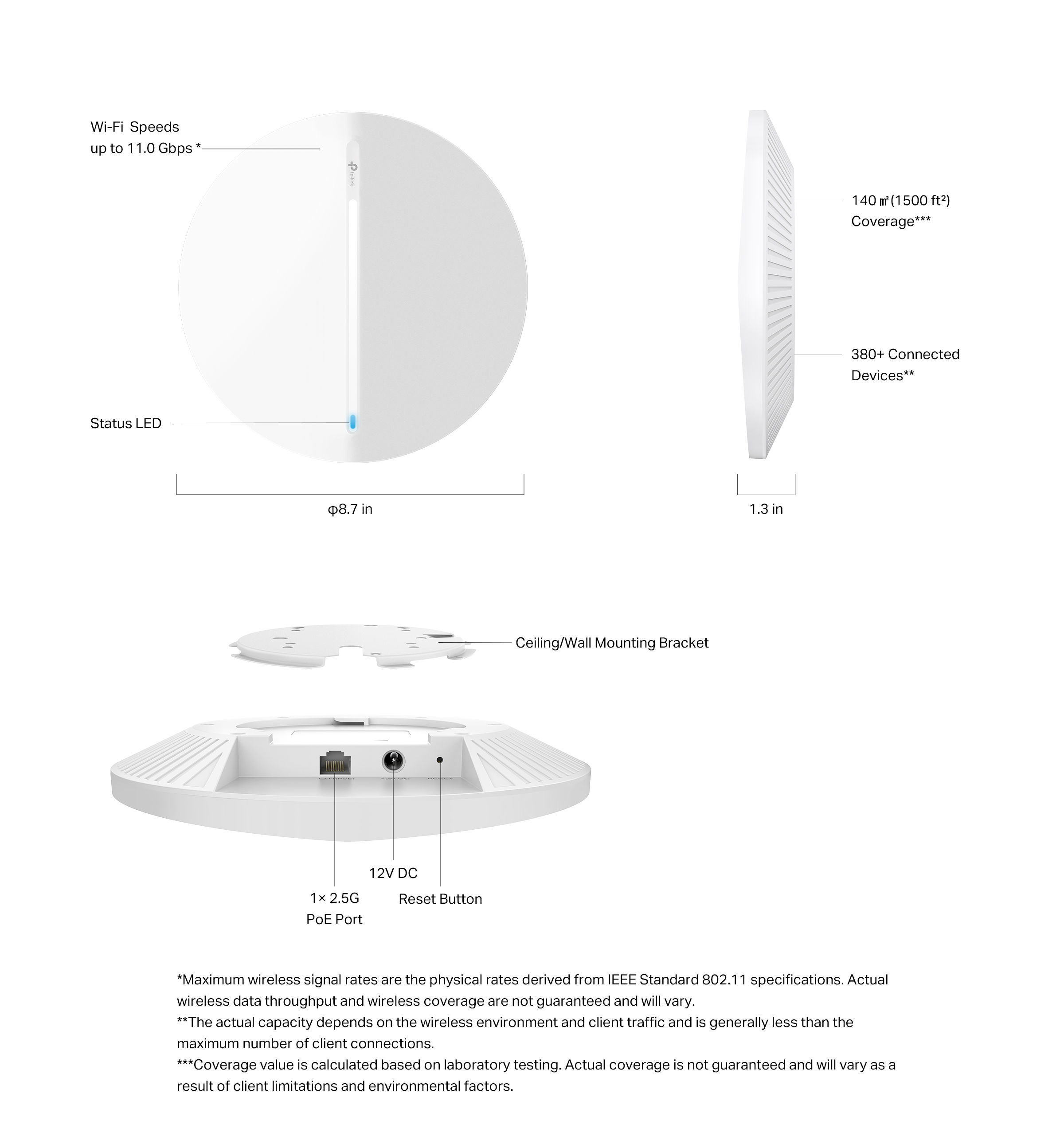

BE11000 Ceiling Mount tri-band WiFi 7 Access Point

  • Up to 11 Gbps WiFi 7 Speeds: 5765 Mbps on 6GHz, 4324 Mbps on 5GHz and 688 Mbps on 2.4 GHz *
  • Mesh & Seamless Roaming enable smooth wireless connectivity
  • 1× 2.5 Gigabit PoE Port & Compact Design (Φ8.7 in × 1.3 in) for flexible installation
  • Free cloud centralized management via the Festa app or the web
  • Easy setup and use, no professional technician required. Self-Organizing Networking and Zero-Touch Provisioning technology make it a breeze



HARDWARE FEATURES
Interface 1x 2.5 Gigabit Ethernet Port
Power Supply • 802.3at PoE
• 12V/2.5A DC (Power Adapter is not included)
Power Consumption 25.44 W (For PoE); 22.57 W (For DC)
Weight 697.6g
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 33.9 mm)
Antenna Type • 2.4 GHz: 2× 4dBi
• 5 GHz: 2× 5dBi
• 6 GHz: 2× 5dBi
Mounting Ceiling / Wall mouting (Kits included)
WIRELESS FEATURES
Coverage 140㎡(1500 ft²)***
Concurrent Clients 380+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)*
Wireless Functions • Seamless Roaming
• Mesh
• Beamforming
• Automatic Channel Selection
• MU-MIMO
• OFDMA
• HE320
• Band Steering
• Load Balance
• Airtime Fairness
• RADIUS Accounting
• Wireless Schedule
• Wireless Statistics
• Static IP/Dynamic IP
• Rate Limit: Based on SSID/Client
• Multiple SSIDs: 24(8 on each band)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Transmit Power Control: Adjust Transmit Power on dBm
• QoS (WMM)
Wireless Security • Captive Portal Authentication
• Access Control
• Maximum Number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
• 802.1X Support
• VLAN
Transmission Power < 25 dBm (2.4 GHz)
< 25 dBm (5 GHz)
< 23 dBm (6 GHz)
MANAGEMENT
APP support Festa App
Cloud Access Free cloud
LED ON/OFF Control
SNMP v1, v2c, v3
System Logging Local/Remote Syslog
SSH
Zero-Touch Provisioning
OTHERS
Certification CE, FCC, RoHS, IC
Package Contents • Festa F76
• Ceiling/Wall Mounting Kit
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Festa currently offers free cloud access for centralized management and reserves the right to apply fees in the future.

Use of WiFi 7 (802.11be) and its features, including OFDMA, HE320, and 4K-QAM, require clients to support the corresponding features. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 APs.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
