LS1024G
New24-Port Gigabit Desktop/Rackmount Switch
- 24× 10/100/1000Mbps ports
- Supports MAC address self-learning, Auto MDI/MDIX and Auto Negotiation
- Plug & play design

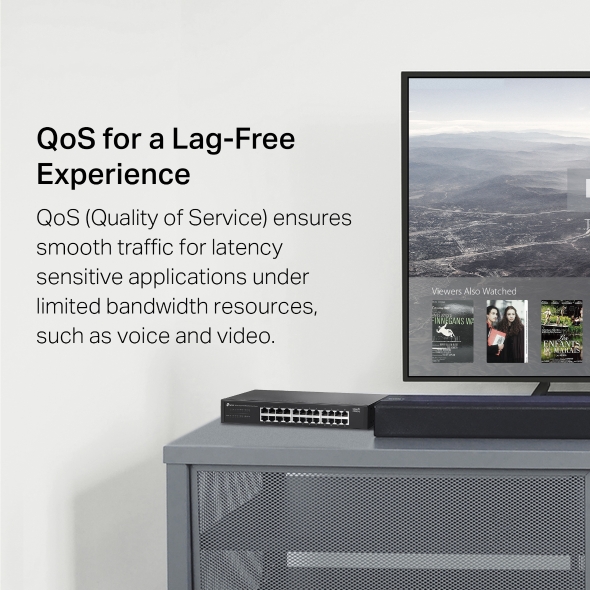

- QoS ensures smooth traffic for latency sensitive applications such as voice or video
- Innovative energy-efficient technology saves power consumption
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
- Durable metal casing provides improved heat dissipation and ensures a longer product life
- Desktop or rackmount installation
What This Product Does
The LS1024G Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the LS1024G can save power consumption, making it an eco-friendly solution for your business network.
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p |
| Interface | 24× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 200m)• 100BASE-TX: UTP category 5 or above cable (maximum 170m)• 1000BASE-T: UTP category 5e or above cable (maximum 160m) |
| Fan Quantity | Fanless |
| Power Supply | 100-240V~50/60Hz, 0.6A |
| Dimensions ( W x D x H ) | 11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm) |
| Max Power Consumption | 12.6 W (110V/60Hz) |
| Max Heat Dissipation | 42.77 BTU/h (110V/60Hz) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.712Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| Green Technology | Yes |
| Transfer Method | Store-and-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHs |
| Package Contents | 24-Port Gigabit Desktop/Rackmount SwitchPower CordInstallation GuideRackmount KitsRubber Feet |
| Environment | Operating Temperature: 0℃~45℃ (32℉~113℉);Storage Temperature: -40℃~70℃ (-40℉~158℉);Operating Humidity: 10%~90% non-condensing;Storage Humidity: 5%~90% non-condensing |
