TD25
Tapo Video Doorbell Camera
- 8-Month Battery or Wired: 10000mAh battery or 8-24V hardwired, supports pre-roll when hardwired.

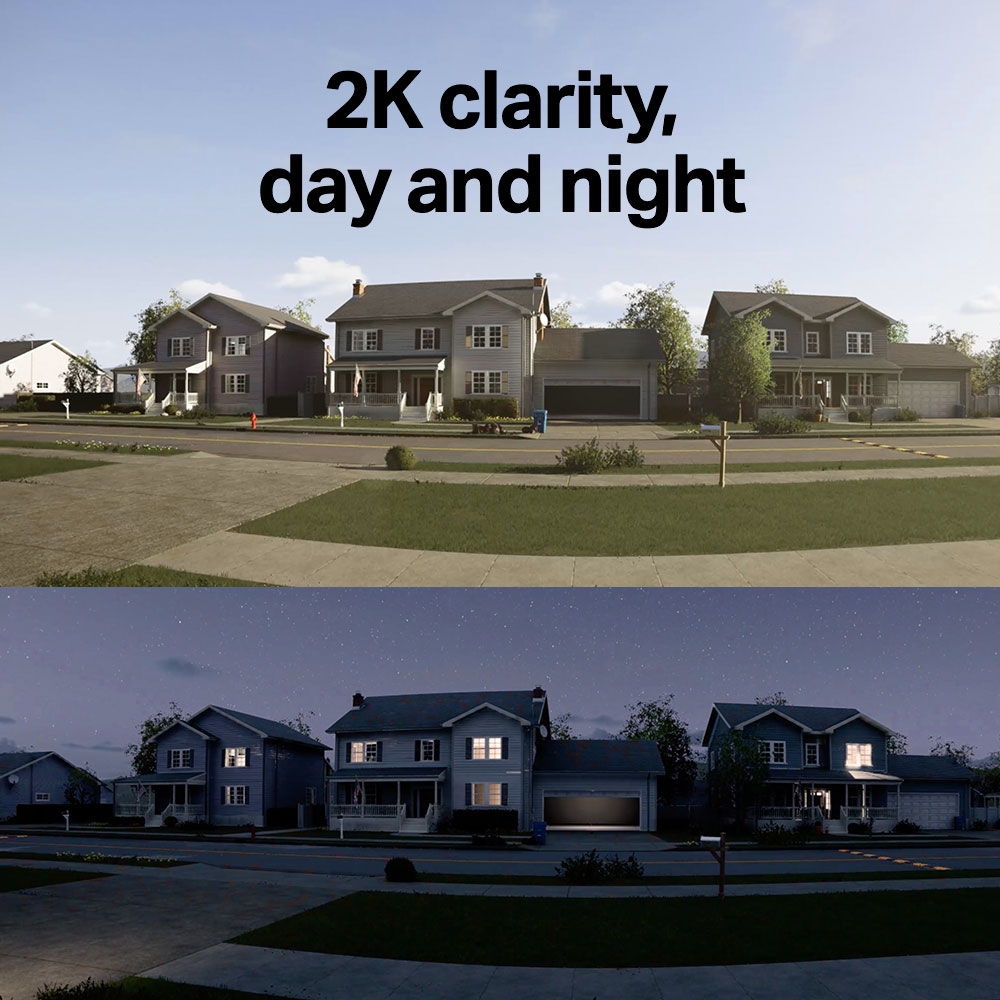

- 2K 5MP Clarity: Provides finer details and incredible clarity.
- 180° Ultra-Wide View: Captures everything from head-to-toe.

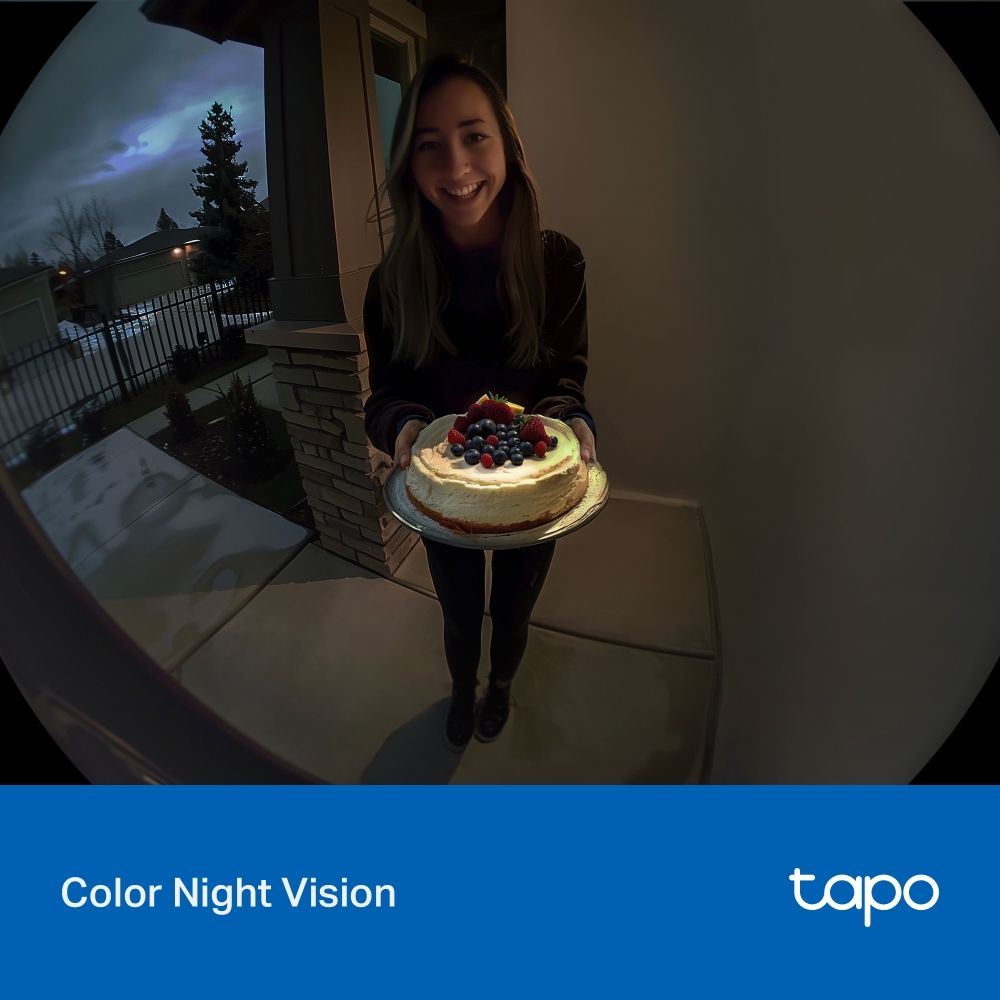

- Full Color Night Vision with Spotlight: Vivid night visibility and security.
- Free Detection and Notification: Alerts for person, vehicle, pet, and package.

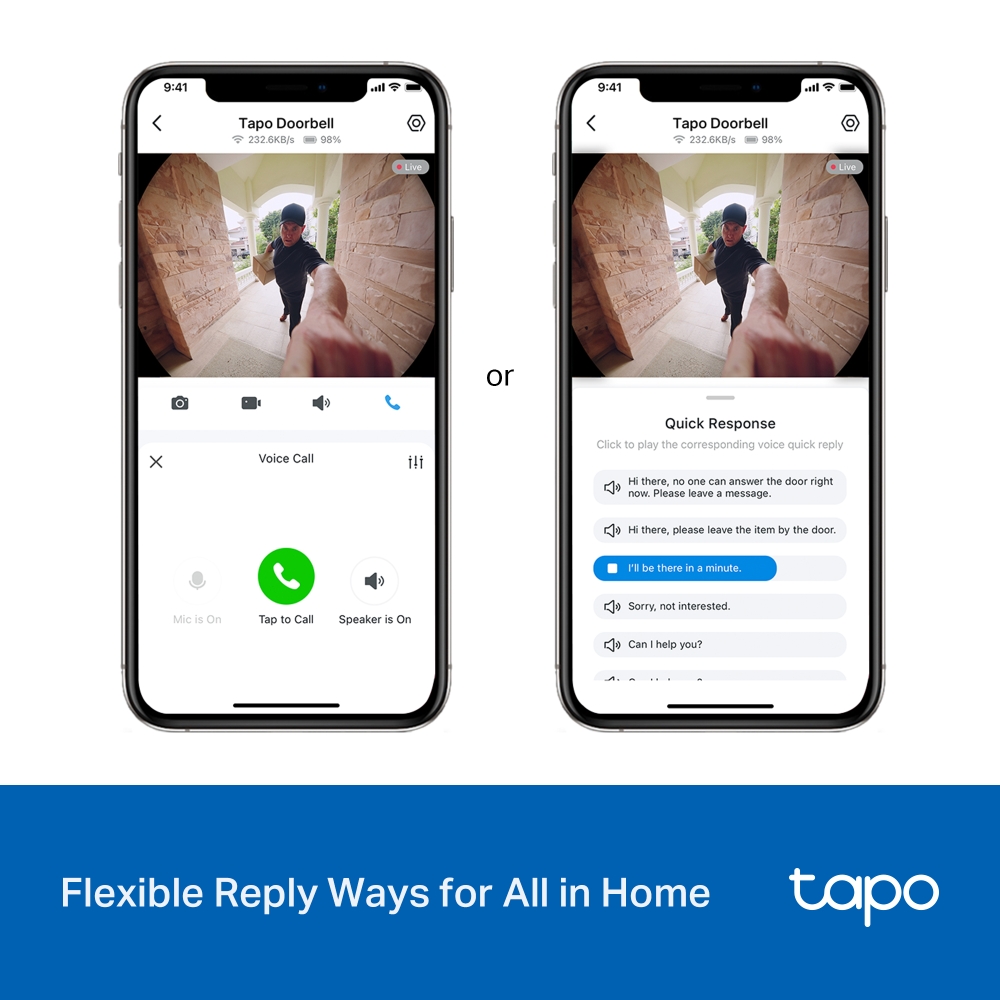

- Two-Way Audio: High-quality talk with premium mic and speakers.
- Quick Response: Rapid reaction to any situation.
- IP66 Weatherproof: Reliable in all weather conditions.
- Local and Cloud Storage: Supports microSD card (up to 512GB) and Tapo Care cloud services.
Smart.Secure.Easy.
Always Know Who’s There

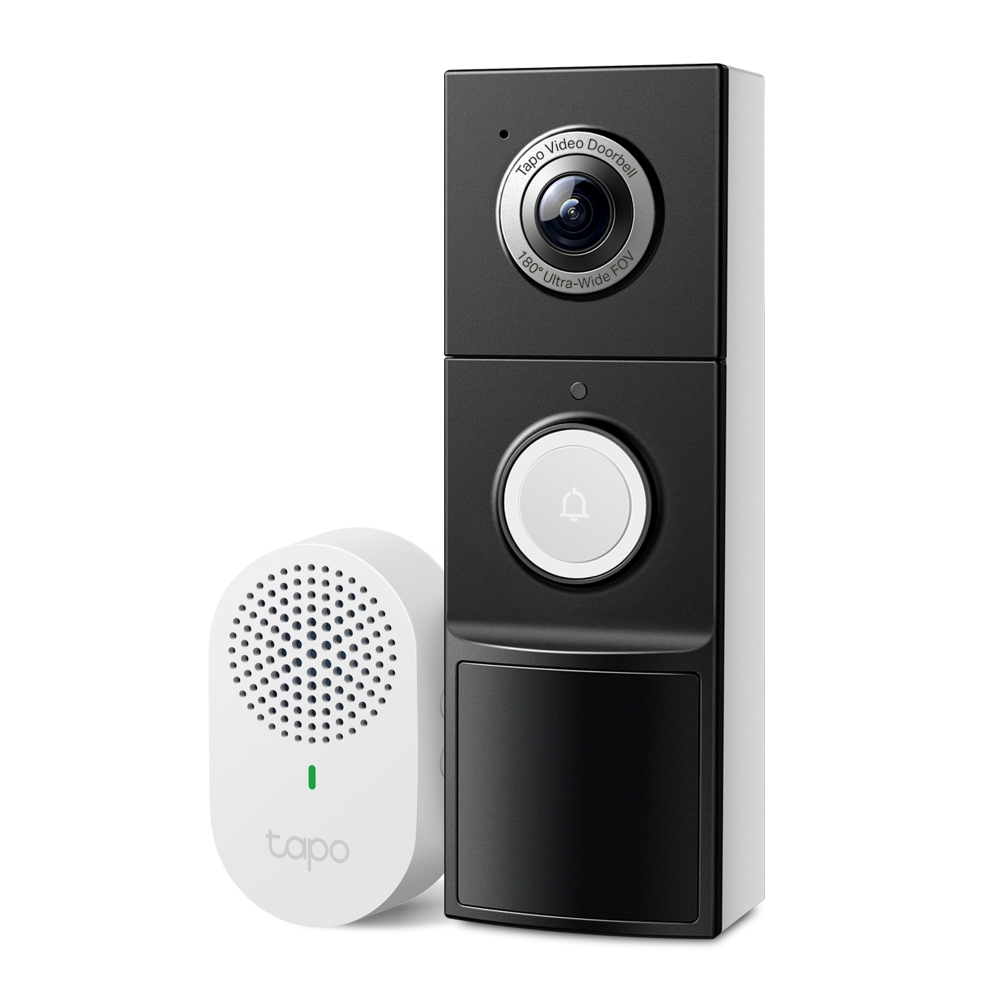

Video Doorbell Camera
TD25
-

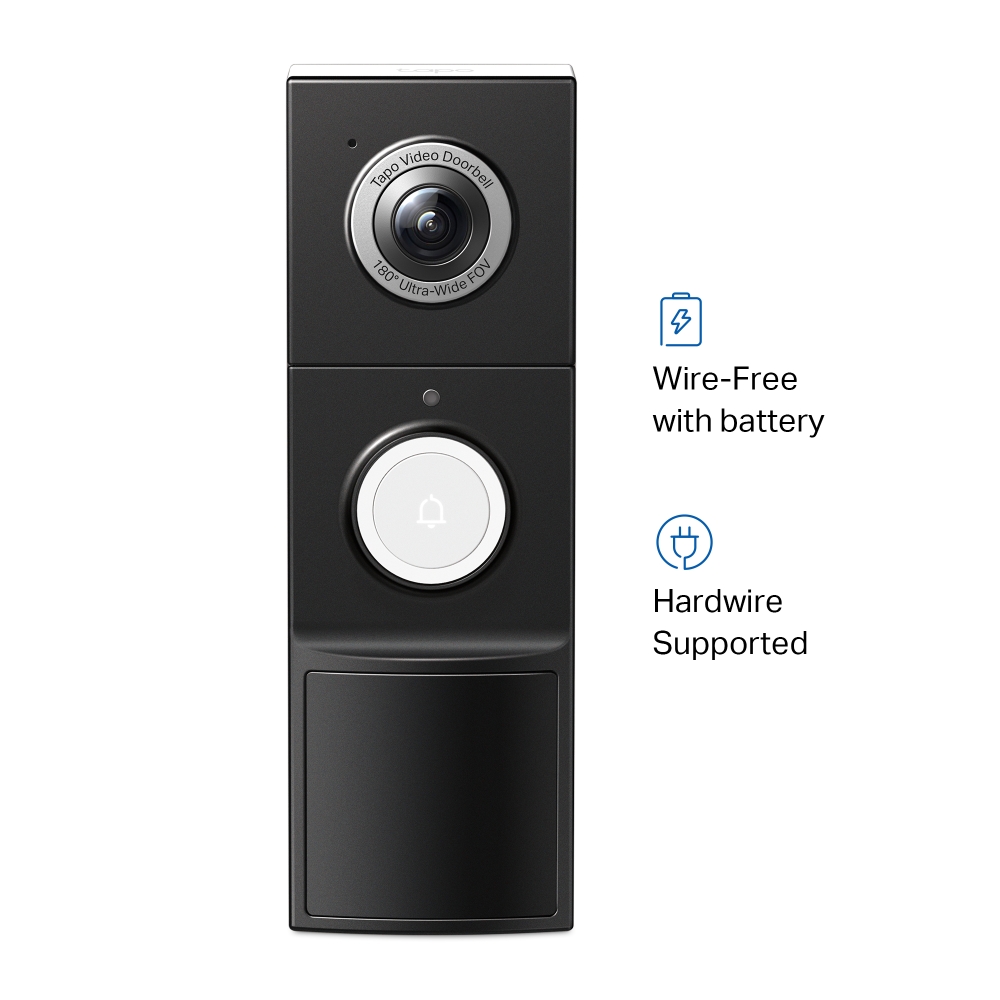

Hardwire & Battery
Power Supply -
Chime
Included -
IP66 Water &
Dust Resistance
Live View + Starlight Sensor
4:3 /180° filed of View
Hardwire Supported
Person / Pet / Vehicle / Package

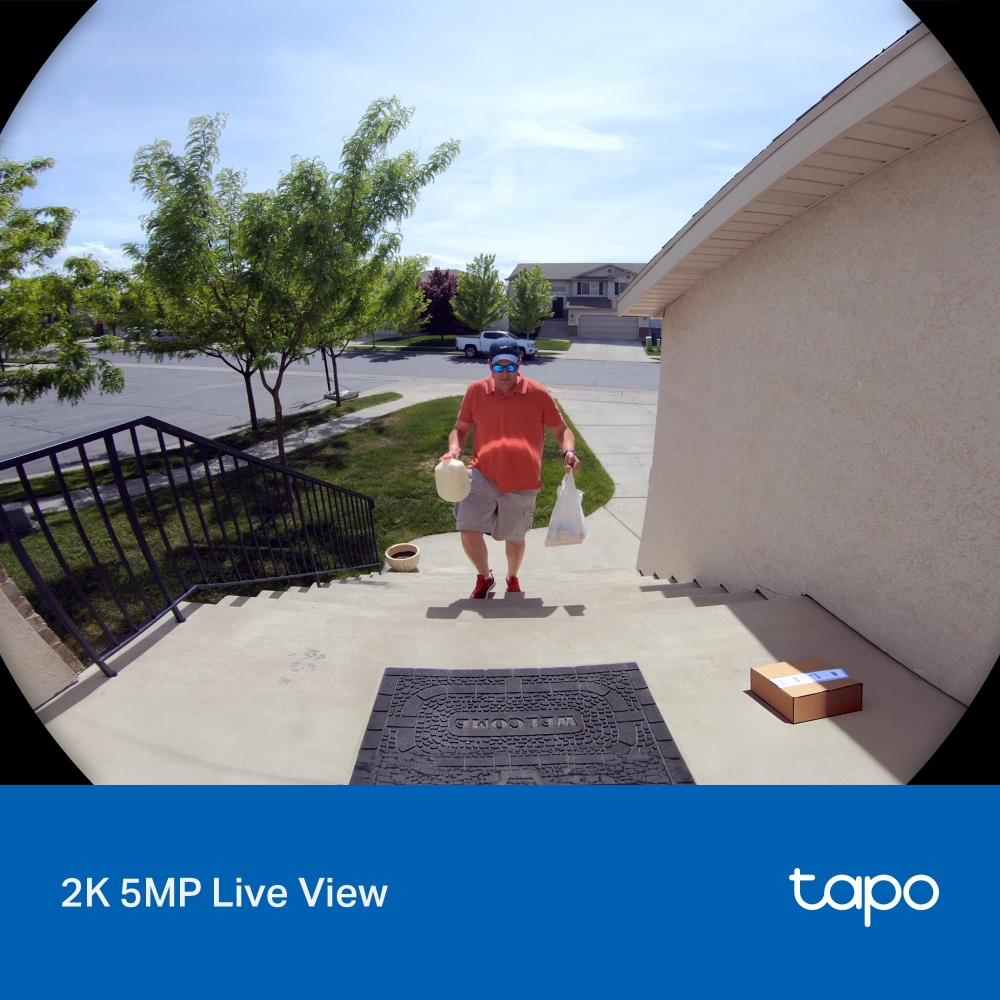

2K 5MP Head-to-Toe 180° DFOV
Details matter, and with 2K 5MP clarity, TD25 exceeds traditional Full HD resolution with finer details and incredible clarity. Experience the full picture with our 180° ultra-wide field of view, capturing every detail from head to toe in a single sweeping glance.
160°
Others brand
180°
TD25

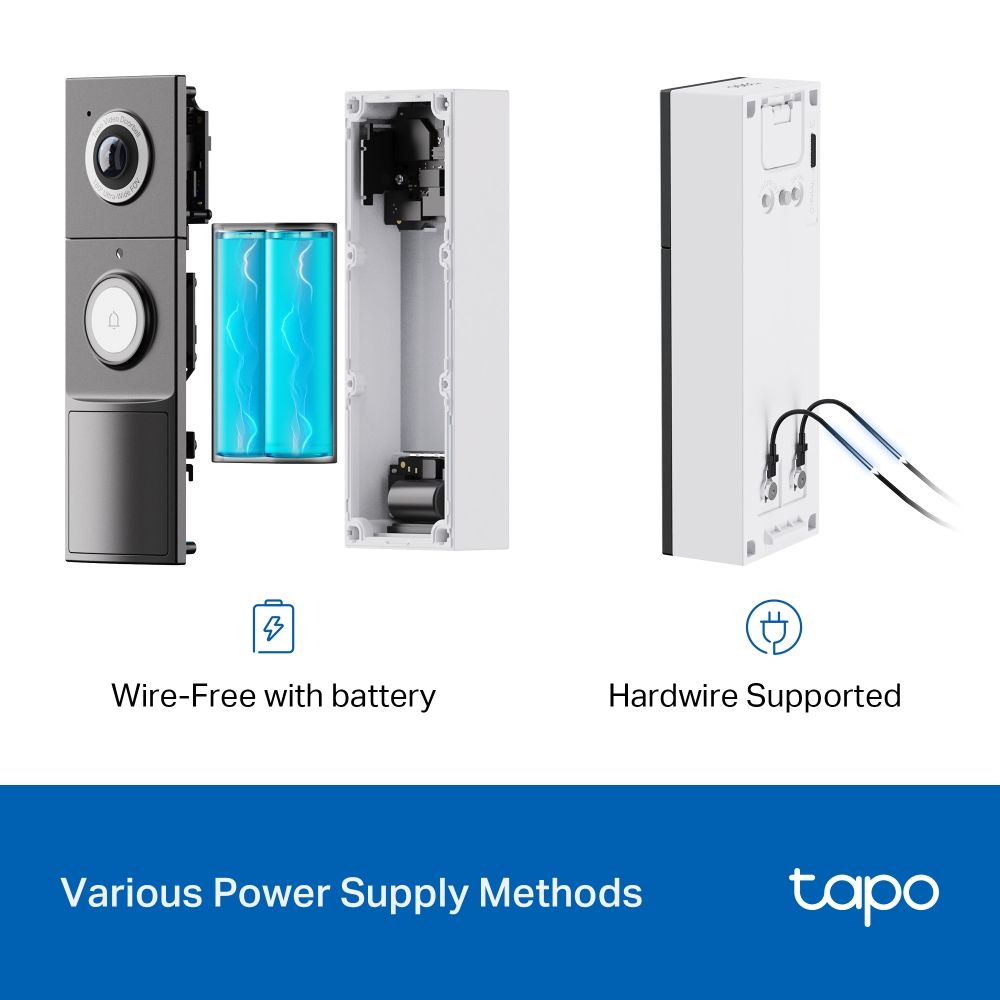

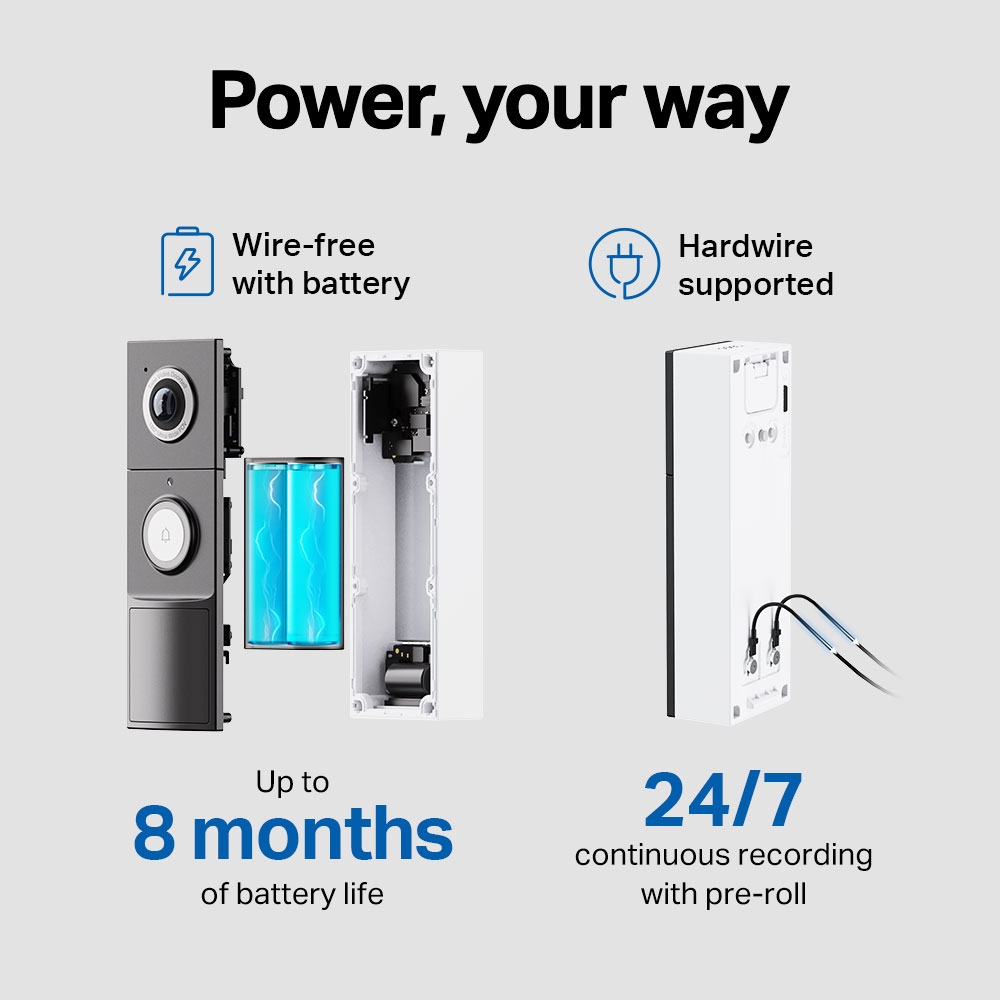

Various Power Supply Methods
Flexible Wedges, Flexible Views
Different wedge choices give users possibilities to make the doorbell suits more placement scenarios. Users can also use these wedges to adjust the views.

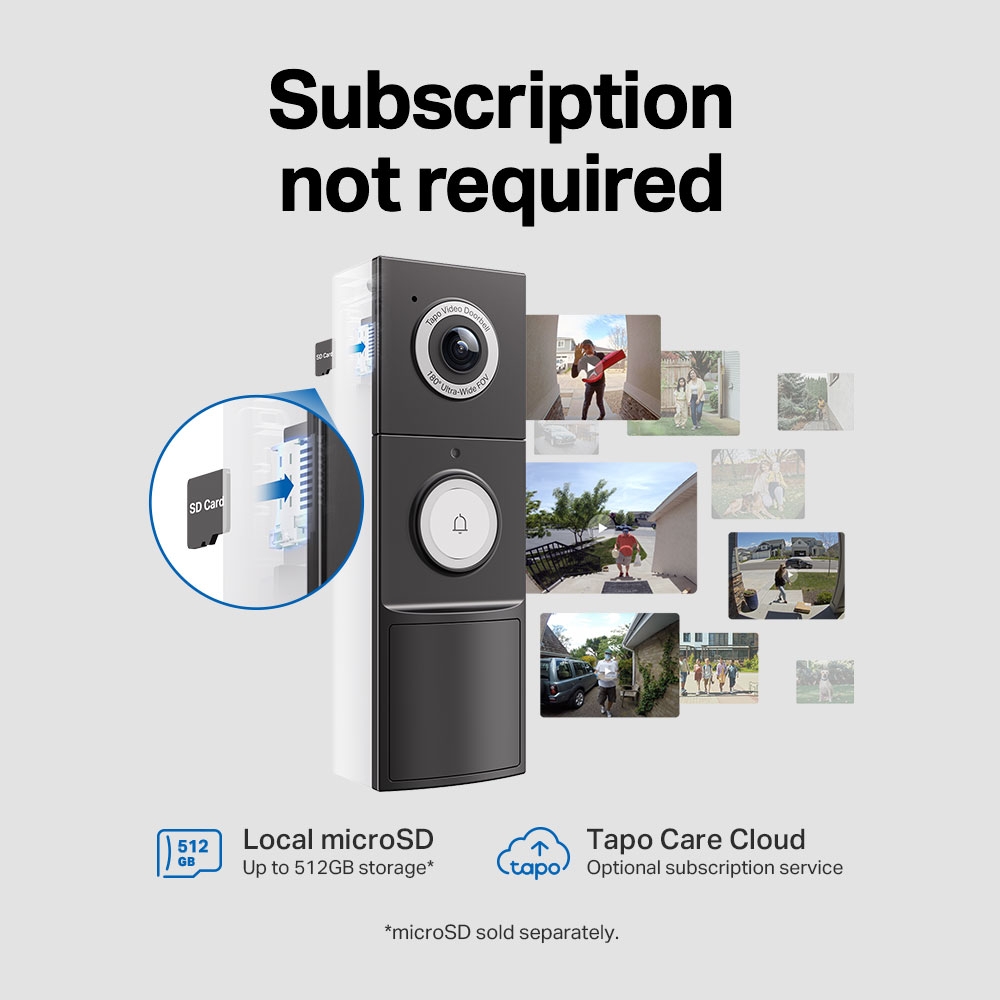

Local and Cloud Storage
Save recorded videos on the microSD Card (up to 512 GB, purchased separately) or use Tapo Care cloud storage services (subscribe separately).
Up to
512 GB

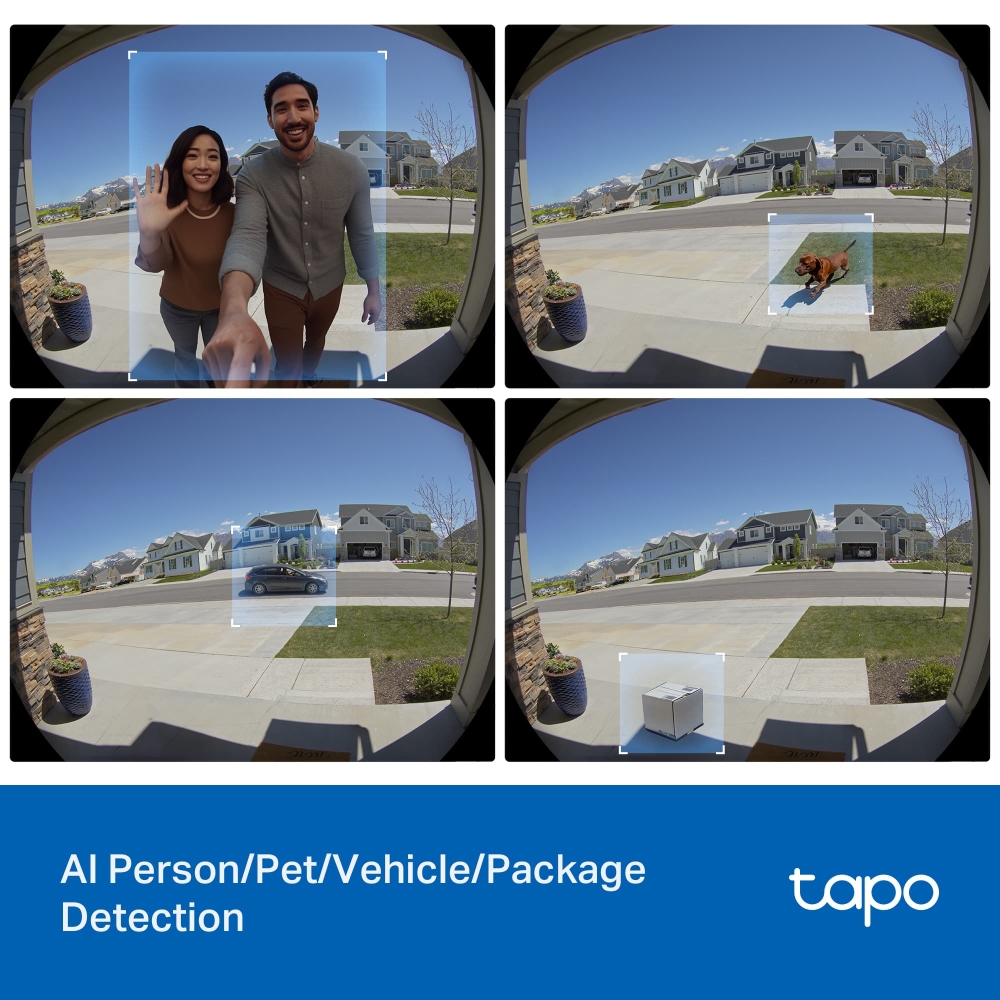

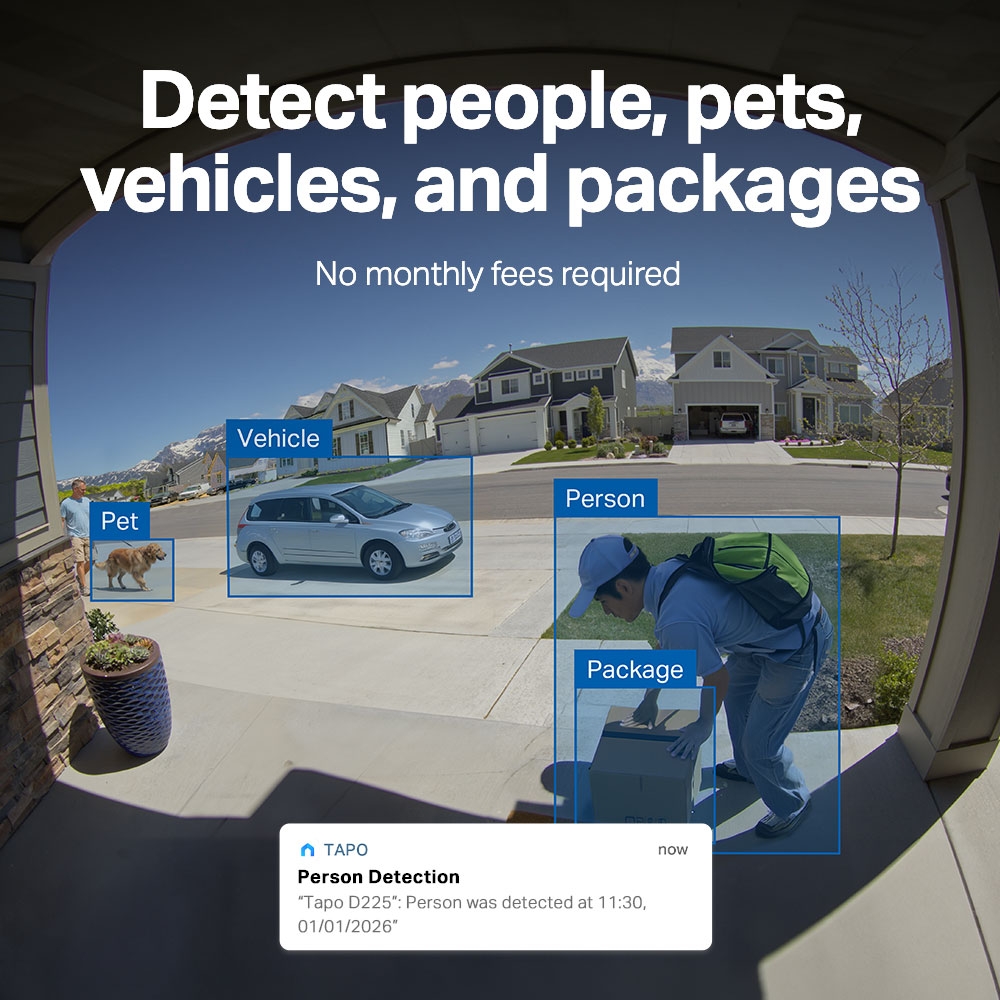

Smart AI Detection and Notification
Smart AI identifies people, pets, vehicles, and packages, notifying users as needed.
Install Your Doorbell
Step 1
Option 1: Stick to the wall
Attach the included adhesive to the back of the bracket or the wedge you have selected. If you use the wedge, affix the bracket and the wedge with screws.
3M Adhesive
or
Mounting Wedge
Route the wires through the bracket (if there are existing wires) . Wipe off the dust from the surface using a dry cloth, stick the bracket with adhesive to the smooth wall, and press it down for 15 seconds to ensure the bracket is firmly attached.
or
Option 2: Mount to the wall
Route the wires (if there are existing wires) through the mounting template and stick the template. Drill two holes where indicated.
Φ=6 mm (15/64 in.)
Route the wires (if there are existing wires) through the bracket. Insert two anchors into the holes and use the screws to affix the bracket over the anchors.
Step 2 Mount the doorbell to the bracket
Option 1: Battery Powered
Mount the doorbell to the bracket.
Option 2: Hardwire Powered
Connect the wires to the doorbell and tighten the screws. Mount the doorbell to the bracket and turn on the circuit breaker.
If the wires are too short
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7“ Progressive Scan CMOS Sensor |
| Lens | Focal Length: 1.18mmAperture: F1.8Field of View: 170.6° (Horizontal), 140.1° (Vertical) |
| Night Vision | 850 nm IR LED (33 ft / 10 m)Full-Color Night Vision |
| Lighting | Built-in Spotlights |
| Interface & Button | 1× RESET /SYNC Button1× Doorbell Button1× Anti-Theft Button1× Power ON/OFF Button |
| VIDEO & AUDIO | |
|---|---|
| Maximum Resolution | 2K 5MP (2560 × 1920px) |
| Frame Rate | 15/20 fps |
| Digital Zoom | 16x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNRWDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 98dB (Level measured at 4-inch/10-cm distance) |
| STORAGE | |
|---|---|
| Local Storage | MicroSD Card Slot on Hub (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS | |
|---|---|
| Sensor | Single PIR Motion Sensor (FOV: 130° horizontal)One Ambient Light Sensor |
| AI Detection | Motion DetectionPerson DetectionPet DetectionVehicle DetectionPackage Detection |
| Activity Zones | Yes*Only works with Motion Detection. |
| Output Notification | System NotificationSystem Notification with Snapshot (Tapo Care Services) |
| NETWORK | |
|---|---|
| Network Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| ONVIF | Connect via Wi-Fi |
| SECURITY | |
|---|---|
| Security | On-Device Machine Learning128-bit AES Encryption with SSL/TLSWPA/WPA2-PSK |
| POWER | |
|---|---|
| Power Source | 10000 mAh Built-in Rechargeable Lithium-ion BatteryHardwire chargeHardwire supply |
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz |
| Output Voltage | Doorbell Battery Pack Adapter Output: 5.0 V, 2.0 A |
| GENERAL | |
|---|---|
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Stick to a WallMount to a Wall |
| Operating Temperature | -20℃~45℃ |
| Storage Temperature | -20℃~45℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Charging Temperature | 0-45℃ |
| Dimensions | Doorbell Dimensions: 2.13 × 1.97 × 1.52 in (150 × 50 × 38.4 mm)Chime Dimensions:US/JP Version: 2.87×1.85×1.71 in (73×46.9×43.5 mm)EU Version: 2.87 × 2.15 × 1.89 in (73×54.6×48 mm)UK Version: 2.87×2.45×1.71 in (73×62.3×43.5 mm)KR Version: 2.87×2.46×1.71 in (73×62.4×43.5mm)AU Version: 2.87×2.01×1.71 in (73×51×43.5 mm) |
| Package Contents | Tapo Video Doorbell × 1Tapo Chime × 1Mounting Template × 1Mounting Bracket × 1Vertical Mounting Wedge× 1Horizontal Mounting Wedge × 1USB Adapter Cable × 1Jumper for Existing Chime × 1Extension Wires × 2Mounting Screws and Anchors × 3Hardwire Installation Screws × 2Doorbell Detaching Pin × 1Mounting Wedge Screws × 53M Adhesive × 1Foam Pad × 1Wire Nuts × 2Quick Start Guide |
| Certifications | CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA |
