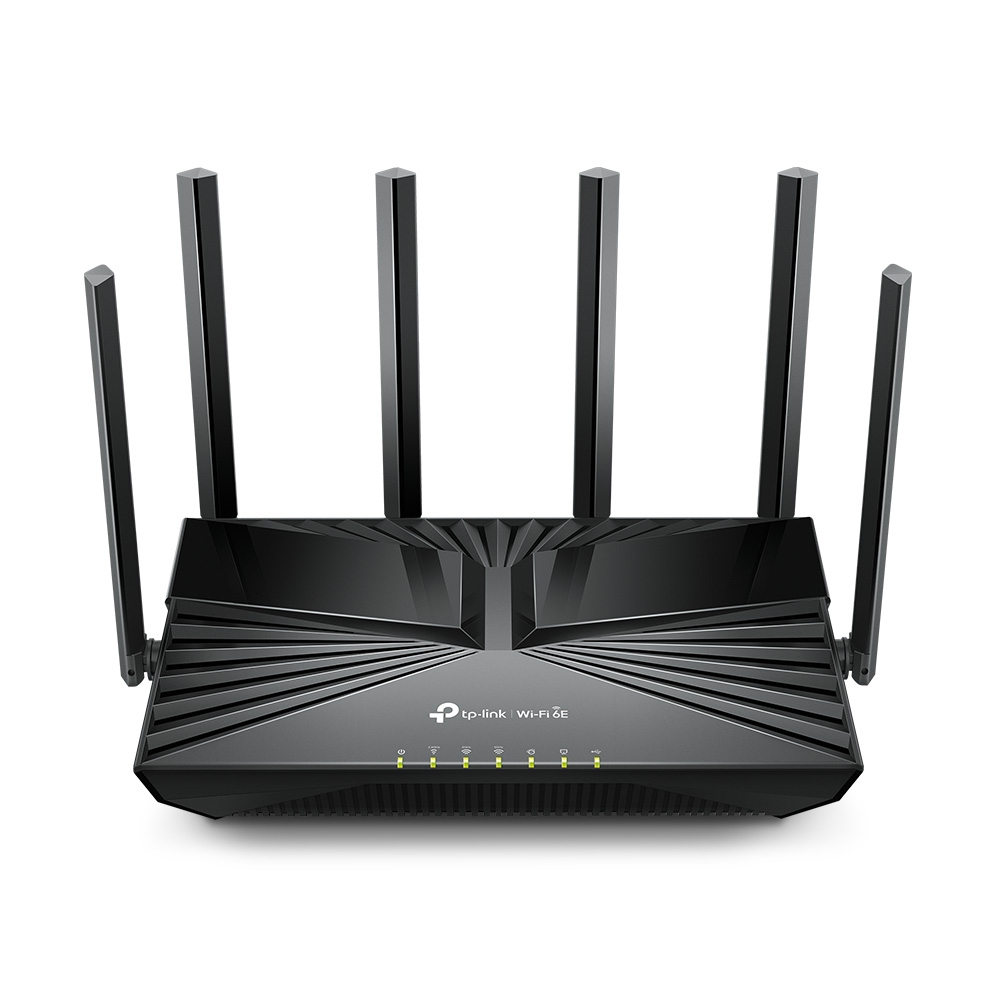

Archer AXE5400
AXE5400 Tri-Band 6-Stream Wi-Fi 6E Router
- WiFi 6E Unleashed: The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.‡
- AXE5400 Tri-Band: Delivers Wi-Fi speeds up to 5.4 Gbps, enabling your devices to run at full speed.†
- Extensive Coverage: 6× antennas and Beamforming ensure broad coverage.†
- OneMesh™: Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
- Connect More Devices: OFDMA, MU-MIMO, and a powerful CPU increase capacity by 4 times to enable simultaneous stable transmission to more devices.†
- HomeShield: Customize your home network with enhanced security and control.*
- Great Compatibility: Works with all Wi-Fi devices** and all internet providers***, and is compatible with Amazon Alexa.

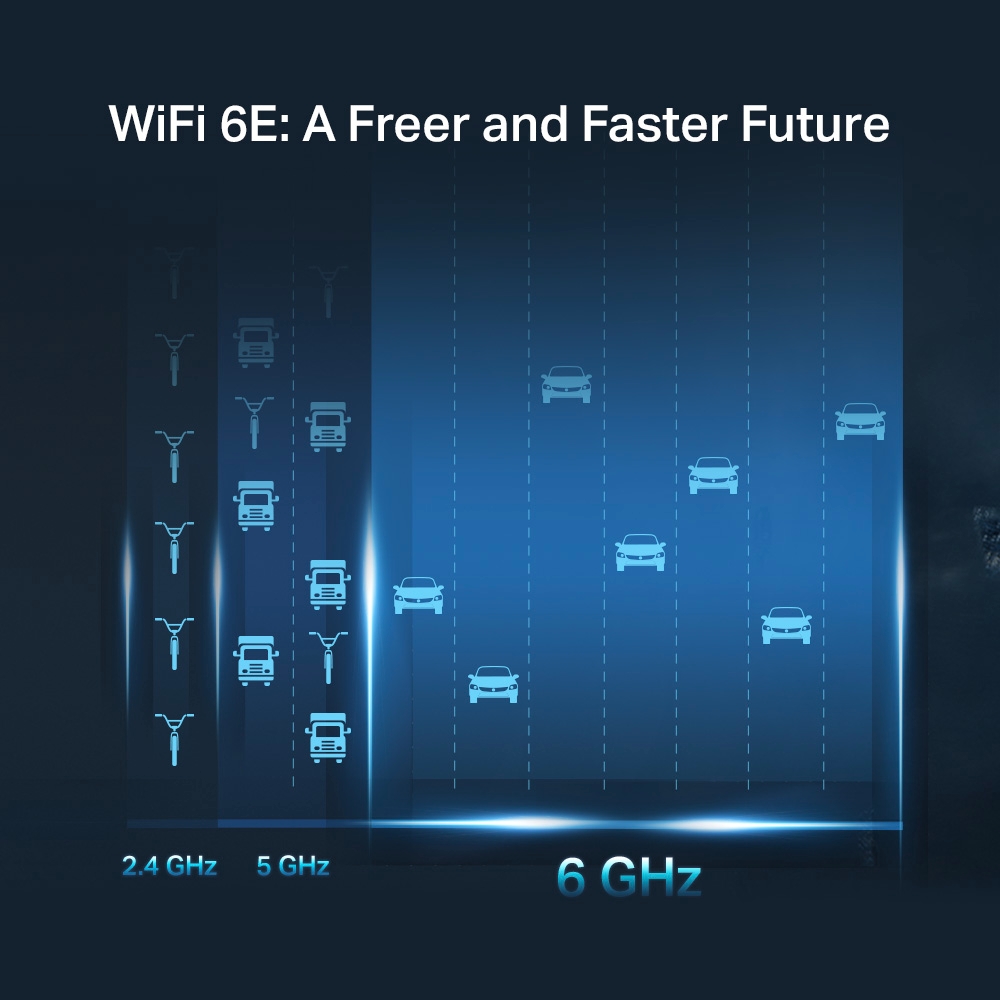

WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices.‡ This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.
Archer AXE5400 offers great compatibility by working with all WiFi devices** and all internet providers***, while also being compatible with Amazon Alexa.
Maximize All Your
Device Speeds
Archer AXE5400 provides WiFi speeds up to 5.4 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†
- Archer AX3000 WiFi 6 Router 2976 Mbps †
- Archer AXE5400 5378 Mbps †
- 2× Faster than WiFi 6
-
160 MHz Width Channel
Double the width,
double the speed ‡ -
1024-QAM
25% faster △
-
6-Stream Tri-Band
More available bandwidth and less congestion
-
Smart Connect
Intelligently assigns devices to the best WiFi band
Connect More, Stay Fast
The number of IoT devices today creates greater demands on home WiFi. Archer AXE5400 future-proofs your home network with a higher capacity of up to 200+ devices. OFDMA, MU-MIMO, and a powerful CPU ensure a stable WiFi experience and cut down the clutter throughout your frequency bands, eliminating latency and jitter. †
WiFi Coverage Throughout Your Home
6× high-performance antennas boost WiFi signals throughout your home. †
Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Beamforming
6× Antennas
High-Power FEM

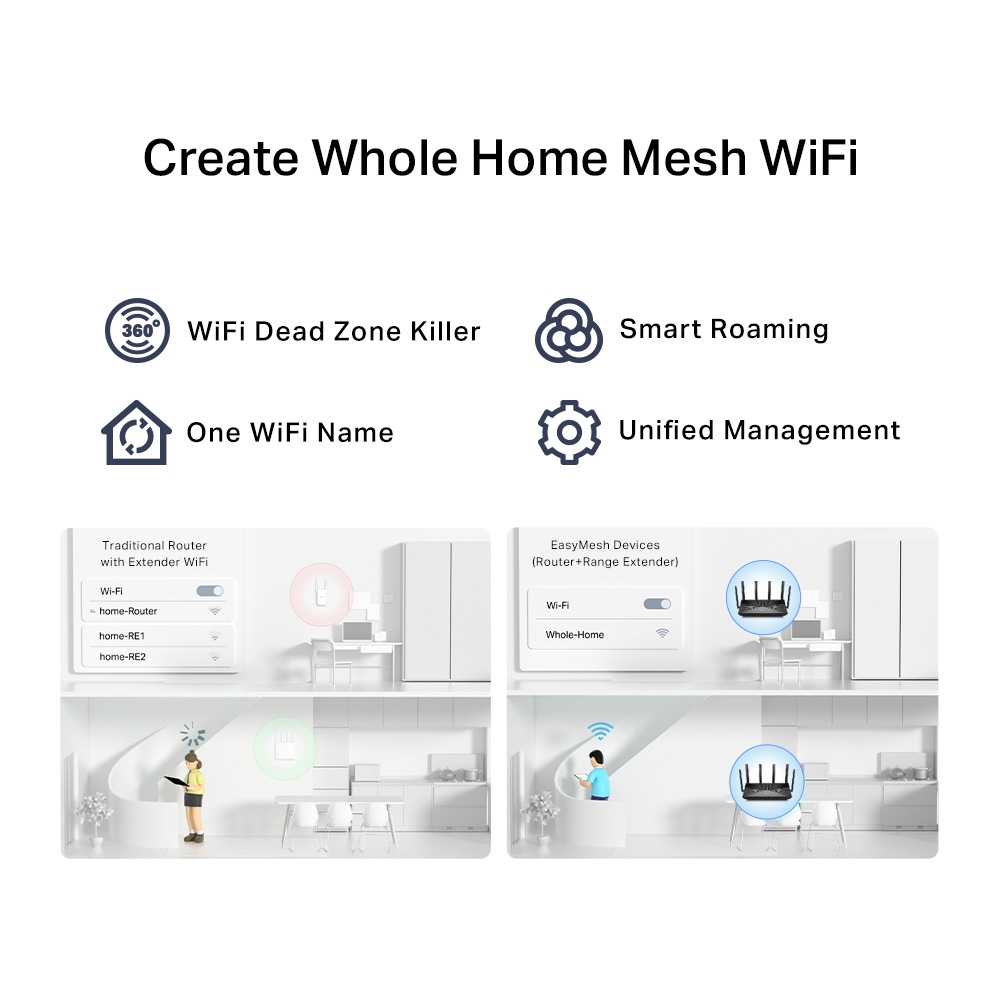

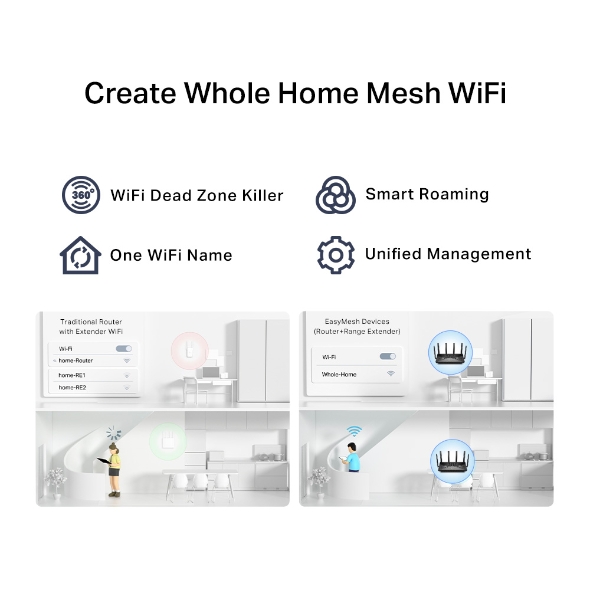

TP-Link OneMesh™
Flexibly Create Whole Home WiFi with Archer AXE5400
OneMesh™ is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMeshTM range extender to a OneMeshTM router. No more searching for a stable connection.
-
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
-
Smart Roaming
Uninterrupted streaming when moving around your home
-
One WiFi Name
No more switching WiFi network names
-
Unified Management
Manage your whole home WiFi from the central node via the Tether app/Web UI
TP-Link HomeShield:
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.
Learn more about HomeShield >>
-
Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
-
Parental Controls
Manage time online and block inappropritate content keeping your family safe online.
-
Quality of Service
Assign your favorite devices to have the fastest connections for top performance.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer AXE5400 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Ordinary Internet
Encryption VPN Connection (Open VPN/ PPTP VPN/ L2TP VPN)
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AXE5400 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.

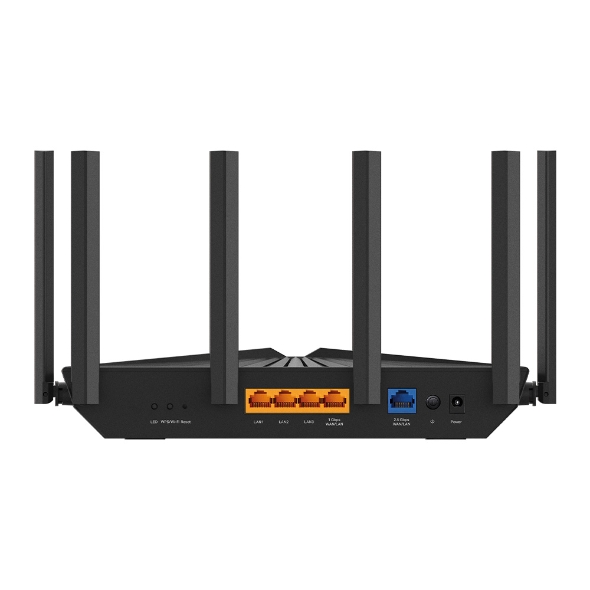

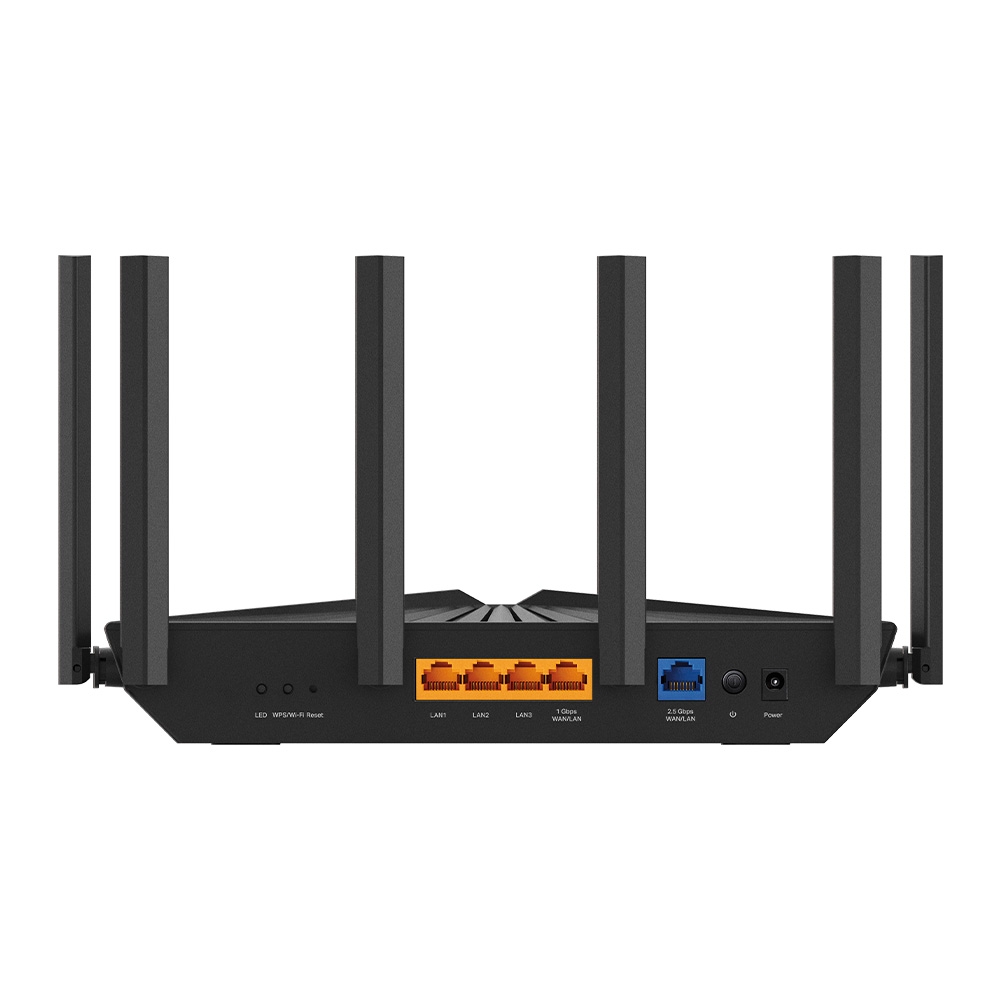

Dimension and Ports
-
-
1Depth 5.6 in (143.5 mm)
-
2Width 10.3 in (262mm)
-
3Antennas 5.6 in (141.2 mm)
-
4Height 2.0 in (51.5 mm)
-
-
-
1LED On/Off
-
2WPS On/Off
-
3Wi-Fi On/Off
-
4Reset
-
54× Gigabit LAN Ports
-
6Gigabit WAN Port
-
7Power On/Off
-
8Power
-
9USB Port
-
WIRELESS | |
---|---|
Standards | • IEEE 802.11ax 6 GHz, • IEEE 802.11ax/ac/n/a 5 GHz,• IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AXE5400• 6 GHz: 2402 Mbps• 5 GHz: 2402 Mbps• 2.4 GHz: 574 Mbps |
WiFi Range | 2-3 Bedroom Houses 6× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi rangeHigh-Power FEMImproves transmission power to strengthen signal coverage |
WiFi Capacity | Very High Tri-BandAllocate devices to different bands for optimal performanceOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupationDFSAccess an extra band to reduce congestion6 StreamsConnect your devices to more bandwidth |
Working Modes | • Router Mode• Access Point Mode |
SECURITY | |
---|---|
Network Security | • SPI Firewall• Access Control• IP & MAC Binding• Application Layer Gateway• HomeShield Security Real-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner |
Guest Network | 1× 6 GHz Guest Network, 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
VPN Server | • OpenVPN• PPTP• L2TP |
VPN Client | • OpenVPN• PPTP• L2TP |
WiFi Encryption | • WPA• WPA2• WPA3• WPA/WPA2-Enterprise (802.1x) |
HARDWARE | |
---|---|
Ethernet Ports | • 1× Gigabit WAN Port• 4× Gigabit LAN Ports |
USB Support | 1× USB Port• Supported Partition Formats:NTFS, exFAT, HFS+, FAT32• Supported Functions:FTP ServerMedia ServerSamba Server |
Buttons | • LED On/Off Button• WPS Button• Wi-Fi On/Off Button• Power On/Off Button• Reset Button |
Power | 12 V ⎓ 2.5 A |
SOFTWARE | |
---|---|
Protocols | • IPv4• IPv6 |
Service Kits | HomeShieldLearn More> |
OneMesh™ | OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products> |
Parental Controls | HomeShield Parental Controls Custom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports |
WAN Types | • Dynamic IP• Static IP• PPPoE• PPTP• L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware UpgradeTP-Link IDDDNS |
NAT Forwarding | • Port Forwarding• Port Triggering• DMZ• UPnP |
IPTV | • IGMP Proxy• IGMP Snooping• Bridge• Tag VLAN |
DHCP | • Address Reservation• DHCP Client List• Server |
DDNS | • TP-Link• NO-IP• DynDNS |
Management | • Tether App• Webpage |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) |
Certifications | FCC, RoHS |
Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉)• Operating Humidity: 10%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | FCC: ≤29 dBm (2.4 GHz), ≤28 dBm (5 GHz), ≤22 dBm (6 GHz) |
WiFi Reception Sensitivity | 2.4 GHz:11ax HE20 MCS0: -95 dBm, 11ax HE20 MCS11: -64 dBm11ax HE40 MCS0: -92 dBm, 11ax HE40 MCS11: -62 dBm5 GHz:11ax HE20 MCS0: -94 dBm, 11ax HE20 MCS11: -63 dBm11ax HE40 MCS0: -91 dBm, 11ax HE40 MCS11: -60 dBm11ax HE80 MCS0: -88 dBm, 11ax HE80 MCS11: -57 dBm11ax HE160 MCS0: -85 dBm, 11ax HE160 MCS11: -54 dBm6 GHz:11ax HE20 MCS0: -93 dBm, 11ax HE20 MCS11: -62 dBm11ax HE40 MCS0: -90 dBm, 11ax HE40 MCS11: -59 dBm11ax HE80 MCS0: -87 dBm, 11ax HE80 MCS11: -56 dBm11ax HE160 MCS0: -84 dBm, 11ax HE160 MCS11: -53 dBm |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 10.3 × 5.6 × 2.0 in (262 × 143.5 × 51.5 mm) |
Package Contents | • Wi-Fi Router Archer AXE5400• Power Adapter• RJ45 Ethernet Cable• Quick Installation Guide |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, 1024-QAM, and HE160 requires clients to also support the corresponding features. Not all seven 160MHz channels may be available in the 6 GHz band in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 routers.
△25% faster of 1024-QAM refers to the speeds compared to WiFi 5 (802.11ac) 256-QAM.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit www.tp-link.com/homeshield for more information.
**All devices need to support 802.11 Wi-Fi protocols. In order to have a Wi-Fi 6E connection on 6 GHz, you may require a client supporting Wi-Fi 6E.
***A separate modem or gateway may be required. PPPoE, Static IP, and Dynamic IP are supported. PPTP and L2TP may also be supported under certain configurations.
1. Use of WAP3 requires clients to also support the corresponding feature.
2. This router may not support all the mandatory features as ratified in the IEEE 802.11ax specification.
3. Further software upgrade for feature availability may be required.
4. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
