How to set up IP & MAC Binding Function on AC VDSL/ADSL Modem Router
43120 User’s Application Scenario:
IP & MAC Binding, namely, ARP (Address Resolution Protocol) Binding, is used to bind network device’s IP address to its MAC address. This will prevent ARP spoofing and other ARP attacks by denying network access to a device with matching IP address in the Binding list, but unrecognized MAC address.
How can I do that?
Follow the steps below:
Note: Archer VR2600 is used for demonstration in this article.
Step 1
Please login to the management page referring to How to log into the web-based interface of the AC VDSLADSL Modem Router?
Step 2

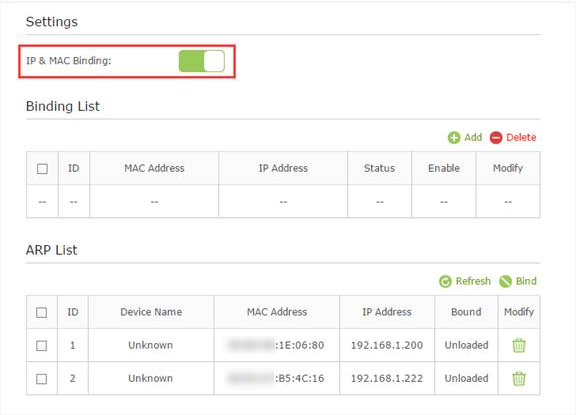

Go to Advanced > Security > IP & MAC Binding and enable IP & MAC Binding.
Step 3
Bind your device(s) according to your needs.
To bind the connected device(s).
(1) Select the device(s) to be bound in the ARP List.
(2) Click Bind to add to the Binding List.
To bind the unconnected device

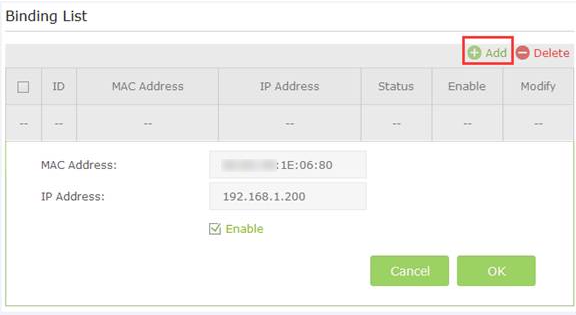

(1) Click Add.
(2) Enter the MAC address and IP address that you want to bind.
Please click here for how to check MAC address of your device.
(3) Select the check box to enable the entry and click OK.
Now you don’t need to worry about ARP spoofing and ARP attacks.
Get to know more details of each function and configuration please go to Download Center to download the manual of your product.
