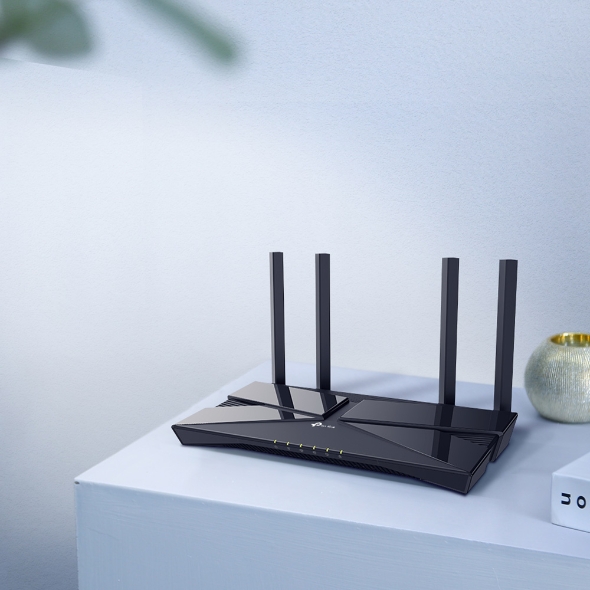

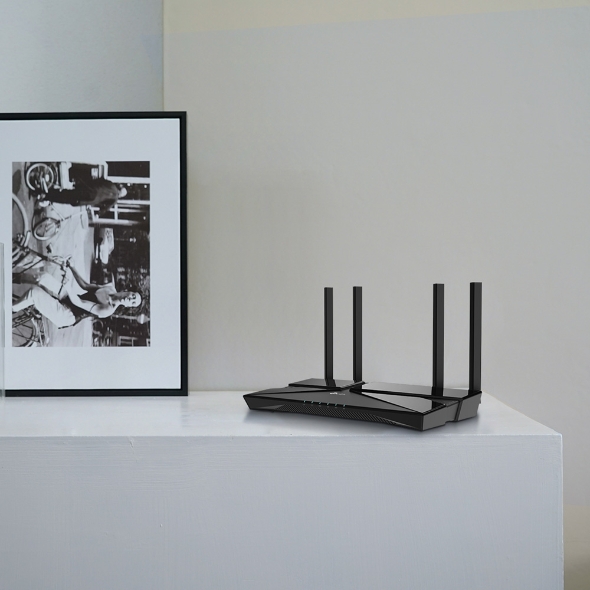

Archer AX10

AX1500 Wi-Fi 6 Router

  • Wi-Fi 6 Technology—Archer AX10 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
  • Next-Gen 1.5 Gbps Speeds—Archer AX10 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band).
  • Connect Dozens of Devices—More simultaneous connections and reduced latency.
  • Broader Coverage—4 Antennas and Beamforming technology focus signal towards individual clients for broader coverage.†
  • Full Gigabit Ports—Take full advantage of broadband speeds up to 1 Gbps.
  • Easy Setup—Finish your network upgrade in minutes with Tether app.
  • Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
  • TP Link Archer AX Series (Archer AX10) Setup

  • What is Wi-Fi 6?

Powerful CPU Powered Wi-Fi 6 Stable Next-Gen Performance

Archer AX10

AX1500 Wi-Fi 6 Router

Advanced, Revolutionary Wi-Fi 6

Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down, and enjoy the future network that loads faster and connects more.

Learn More About Wi-Fi 6 >

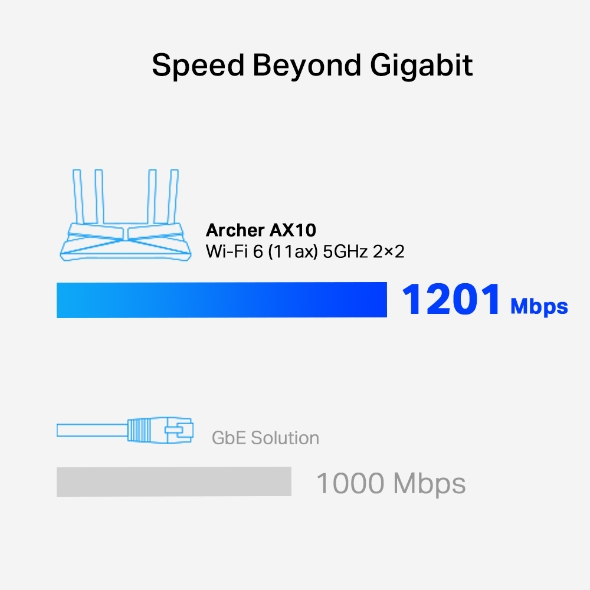

Speed Beyond Gigabit


The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable.



Archer AX10 Wi-Fi 6 (11ax) 5 GHz 2×2


1201 Mbps


GbE Solution


1000 Mbps


2×2 Wi-Fi 5 (11ac) Solution


867 Mbps


1×1 Wi-Fi 5 (11ac) Solution


433 Mbps

Less Lag, More Fun


Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devices—all at the same time.

4K Streaming FPS Online Gaming Live Video Chat

Powerful Processor

Instant Response to Every Click

A powered CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for the online video chatting.

Boosted Wi-Fi Coverage

Beamforming technology and 4 high-gain antennas combine to generate strong, reliable Wi-Fi signal throughout your home, delivering smooth and stable connections for every client.

Gigabit Broadband Internet Access

All Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast, reliable wired connections.



up to

1000 Mbps

Internet Access§



Easy Setup and Use

Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX10 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.

Learn more about Tether App >

Ready for Today and Tomorrow's Smart Home

With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.

Learn about our custom Alexa skills >>

“Alexa, tell TP-Link to prioritize my phone’s Wi-Fi connection”

  •

    Parental Controls

    Block inappropriate content and restrict time spent online

  •

    VPN Service

    Safely reach files in your home, wherever you are, with a secure VPN connection

  •

    Quality of Service

    Prioritize devices and applications for faster performance when needed

WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range 3 Bedroom Houses
4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity High
Dual-Band
Allocate devices to different bands for optimal performance

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

4 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE

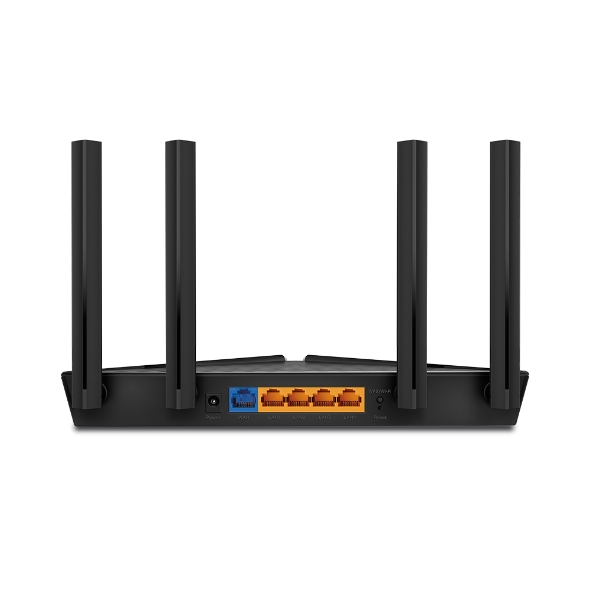

Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power 12 V ⎓ 1 A
SOFTWARE
Protocols IPv4
IPv6
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity 5 GHz:
11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm
11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm
11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package Contents Wi-Fi Router Archer AX10
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Reviews
  • So, here’s the lowdown: If you just need a dependable Wi-Fi 6 router to share a typical broadband connection in a small household, the TP-Link Archer AX10 fits the bill exceptionally well.

† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and the number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

‡ Use of 802.11ax (Wi-Fi 6), and features including 1024-QAM and BSS Color requires clients to also support those features.

§ 1000 Mbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
