Festa F52-Wall
AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
- Up to 1.2 Gbps Wi-Fi Speeds: 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz*
- 4× Gigabit Ports (1× uplink + 3× downlink) offer gigabit connectivity, including a PoE pass-through downlink port for easy PoE device integration
- Seamless Roaming and rich WiFi security technologies enable smooth and secure connectivity
- Free cloud centralized management via the Festa app or the web†
- Easy setup and use, no professional technician required. Self-Organizing Networking and Zero-Touch Provisioning technology make it a breeze
AC1200 Wall Plate Wi-Fi 5 Access
Point for Wide Coverage
-
WiFi Speeds up to
1.2 Gbps† -
Seamless
Roaming -
Free Cloud
Management* -
Zero-Touch
Provisioning (ZTP) -
Easy Management
with Festa App/Web -
4× Gigabit Port
-
802.3af/at PoE
-
Easy
Installation

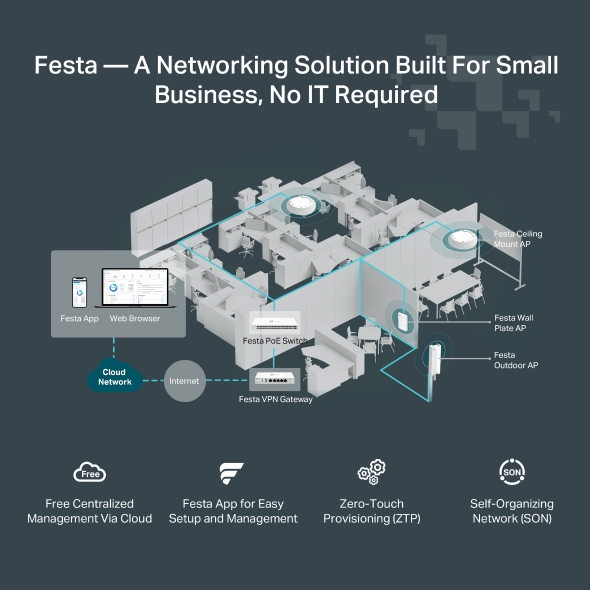

Festa 一 A Networking Solution Built For Small Business, No IT Required
Festa offers business-class features with consumer-inspired simplicity. Our free cloud-based centralized management is accessible via the Festa app or web, providing essential features for small businesses without the complexity required by larger-scale operations.
Mount AP
Plate AP
Outdoor AP
Network
-
Free Centralized
Management Via Cloud -
Festa App for Easy
Setup and Management -
Zero-Touch
Provisioning (ZTP) -
Self-Organizing
Network (SON)
Boutique Hotels
Meeting Room
Villa
Dormitory
Apartment
Condominiums
AC1200 Speeds Powered by MU-MIMO Technology
Festa F52-Wall delivers combined dual-band speeds of up to 1200 Mbps. Armed with the 802.11ac Wave 2 MU-MIMO technology, it can exchange data with multiple clients at the same time to allow more devices to connect without any slowdown to the network.†
-
Beamforming
-
Band Steering
-
Load Balance
- 5 GHz Up to 867 Mbps
- 2.4 GHz Up to 300 Mbps

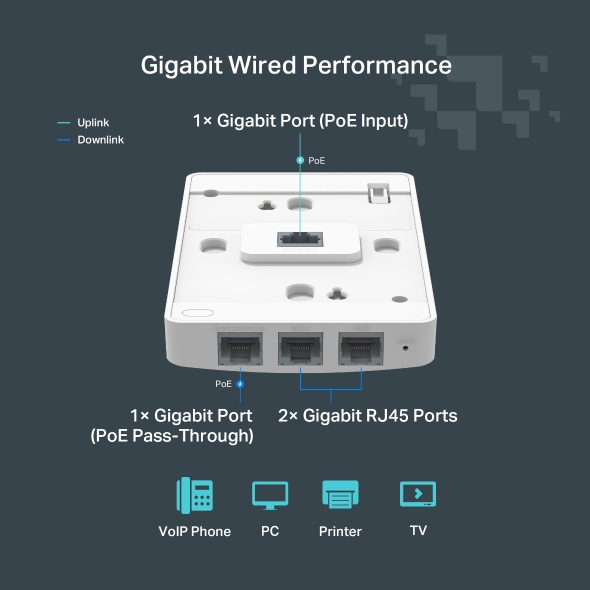

Gigabit Wired Performance
Four gigabit Ethernet ports provide full connectivity throughout the network for high-speed transmissions, allowing you to connect
several devices to your network.
(PoE Pass-Through)

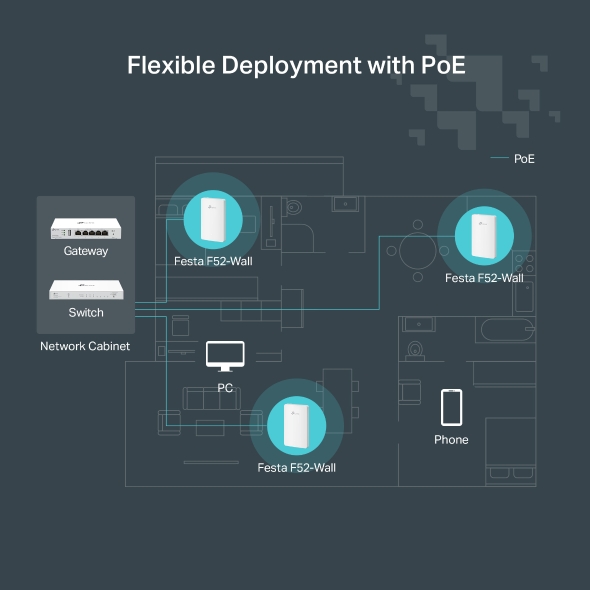

Flexible Deployment with PoE
With 802.3af/at PoE support, a single ethernet cable provides both data and power. Place your AP in optimal locations
without the need for a separate power source.

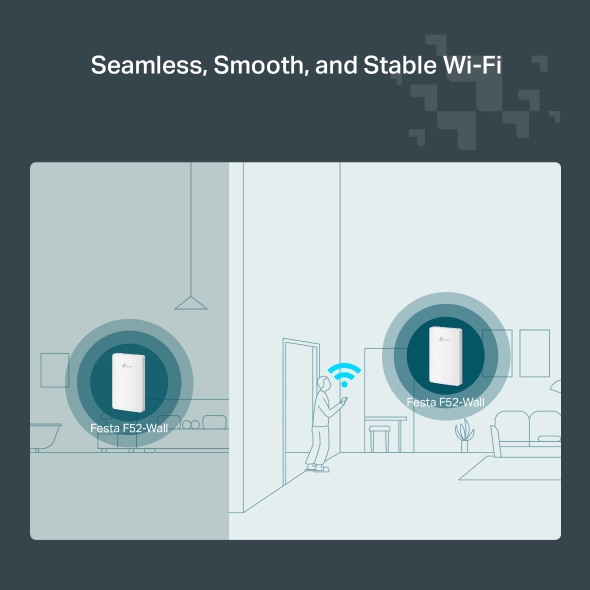

Seamless, Smooth, and Stable Wi-Fi
Seamless Wi-Fi ensures that all users enjoy uninterrupted connections when moving between different access points through 802.11 k/v/r seamless roaming technology.
Quick, Flexible Installation
Compatible with standard wall junction boxes and featuring ultra-compact design, installation is easier than ever.
junction box
junction box
junction box
Festa App and Web for Easy Setup and Management
Convenient setup and on-the-go network management via the Festa app
- • Zero-Touch Provisioning
- • Unlimited Management Scale
- • Topology View
- • VLAN Settings
- • Portal Authentication
(Password & Voucher) - • Rate Limit
• Fast Roaming - • Network Tools
- • Mesh
- • Guest Network
Full onsite/remote management of your Festa network via a web interface
- • Unlimited Management Scale
- • Topology and Heat Map View
- • Portal Authentication (Password & Voucher & Form Auth)
- • Batch Configuration
- • Network Security
- • VPN
- • More
| CARATTERISTICHE HARDWARE | |
|---|---|
| Interfaccia | • Uplink: 1× Gigabit Port (PoE In)• Downlink: 3× Gigabit Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.) |
| Tasto | Reset, LED |
| Alimentazione | 802.3af/at PoE |
| Consumo energetico | • 9.8 W (Without PoE Out)• 24.4 W (With PoE Out) |
| Peso | 212g |
| Dimensioni ( L x P x A ) | 5.6 × 3.4 × 0.8 in (143 × 86 × 20 mm) |
| Tipo di antenna | • 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 4 dBi |
| Tipo di montaggio | Wall Plate Mounting (Kits included) |
| CARATTERISTICHE WIRELESS | |
|---|---|
| Coverage | 25㎡(300ft²)*** |
| Concurrent Clients | 200+** |
| Standard wireless | IEEE 802.11 a/b/g/n/ac |
| Frequenza | 2.4 GHz and 5 GHz |
| Signal rate | • 5 GHz: Up to 867 Mbps• 2.4 GHz: Up to 300 Mbps |
| Funzionalità wireless | • Beamforming• MU-MIMO：2T2R MU-MIMO DL• MIMO：2*2 (2.4G and 5G)• Band Steering• Load Balance• RADIUS Accounting• Wireless Schedule• Static IP/Dynamic IP• Rate Limit: Based on SSID/Client• Multiple SSIDs: 16(8 on each band)• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Transmit Power Control: Adjust Transmit Power on dBm• QoS (WMM) |
| Sicurezza wireless | • Captive Portal Authentication• Access Control• Maximum number of MAC Filter：4000• Wireless Isolation Between Clients• WPA-Personal/Enterprise, WPA2-Personal/Enterprise• 802.1X Support• VLAN |
| Potenza di trasmissione | • CE: <20 dBm (2.4GHz)<23 dBm (5GHz)• FCC: < 21 dBm (2.4 GHz)< 21 dBm (5 GHz) |
| GESTIONE | |
|---|---|
| NTP | √ |
| Centralized Management | √ |
| APP support | Festa App |
| Cloud Access | Free cloud |
| LED ON/OFF | √ |
| Management MAC Access Control | √ |
| SNMP | v1, v2c |
| Log di sistema locale e remoto | √ |
| SSH | √ |
| Zero-Touch Provisioning | √ |
| ALTRO | |
|---|---|
| Certificazione | CE, FCC, RoHS |
| Contenuto della confezione | • Festa F52-Wall• Installation Guide• Wall-Mounting Kit |
| Ambiente | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
†Festa currently offers free cloud access for centralized management and reserves the right to apply fees in the future.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
