InSight S655I
신규 제품VIGI 5MP IR Fisheye Network Camera
- 5MP Super-High Definition and IR Night Vision
- 360° Coverage without Blind Spots
- Supports Multiple Display Modes△ and ePTZ
- Supports Ceiling Mount / Wall Mount / Pendant Mount§
- Smart Detection
- Smart Video Enhancement Technology
- Built-In Microphone & Speaker
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
- Suitable for Small Indoor Areas like Retail Shops and Offices
360° Coverage with 4-in-1 Cameras
A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.
VIGI Fisheye Camera
Note: You can drag the screen in 4PTZ display mode to see the entire monitoring area.
4PTZ
Multiple Display Modes
Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer. △†
- Fisheye
- Cylinder
- 360° Panorama
- Fisheye+
3PTZ - Fisheye+
8PTZ
Smart Video Enhancement Technology
-
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
-
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
-
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
-
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*
| 카메라 | |
|---|---|
| 이미지 센서 | 1/2.7” Progressive Scan CMOS |
| 셔터 속도 | 1/3 to 1/10000 s |
| 슬로우 셔터 | Yes |
| 최소 조도 | Color: 0.01 Lux; 0 Lux with IR light |
| 주간/야간 메커니즘 | IR Cut Filter |
| 주간/야간 전환 | Unified/ Scheduled/ Auto |
| 렌즈 | |
|---|---|
| 유형 | Fixed Focal Lens |
| 초점 거리 | 1.44 mm |
| 조리개 | F2.0 |
| FOV | Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180° |
| 렌즈 마운트 | M12*P0.5 |
| DORI 거리 | Detect: 28.8 m (94 ft)Observe:12 m (39 ft)Recognize: 5.7 m (19 ft)Identify: 2.8 m (9 ft) |
| Fisheye Display | |
|---|---|
| 설치 옵션 | Ceiling Mount; Wall Mount; Pendant Mount§ |
| Display Mode | On VIGI VMS:• Ceiling Mount:Fisheye, AR Dewarp, 180 Panorama, 360 Panorama, Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ• Wall Mount:Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZOn VIGI App:• Ceiling Mount: Fisheye, 180 Panorama, 360 Panorama, Fisheye+3PTZ, 4PTZ, Cylinder, AR Dewarp• Wall Mount: Fisheye, 360 Panorama Unwrap, Fisheye+3PTZ, 4PTZ, 2PTZ, AR Dewarp |
| 각도 변경(수동) | |
|---|---|
| 범위 | N/A |
| 일루미네이터 | |
|---|---|
| IR LED | • Quantity: 4• Range: 10 m• Wavelength: 850 nm |
| 백색 LED | N/A |
| 일루미네이터 켜기/끄기 제어 | Auto/Scheduled/Always on/Always off |
| 비디오 | |
|---|---|
| 최대 해상도 | 2560x1920 |
| 메인 스트림 | • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:2560x1920, 2256x1696, 2048x1536, 1280x960• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If WDR is on, the frame rate only supports up to 15fps. |
| 서브 스트림 | • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:640x480, 320x240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If WDR is on, the frame rate only supports up to 15fps. |
| 비트 레이트 제어 | CBR, VBR |
| 비디오 압축 | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| 비디오 비트 레이트 | • Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 512 Kbps |
| 이미지 | |
|---|---|
| 이미지 설정 | • Brightness• Contrast• Saturation• Sharpness• Exposure• WDR,• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software |
| 이미지 보강 | BLC/3D DNR/HLC/SmartIR |
| 광역 역광 보정 | 120 dB |
| SNR | ≥ 52 dB |
| 이미지 매개변수 스위치 | Yes |
| 프라이버시 마스크 | Up to 4 Masks |
| ROI | 1 Region |
| OSD 설정 | Yes |
| 오디오 | |
|---|---|
| 오디오 커뮤니케이션 | Two-Way Audio |
| 오디오 입력 | Yes |
| 오디오 출력 | Yes |
| 오디오 압축 | Yes |
| 오디오 샘플링 레이트 | 8 KHz |
| 환경 노이즈 필터링 | Yes |
| 오디오 비트 레이트 | 64 Kbps (G.711 alaw) |
| 네트워크 | |
|---|---|
| 프로토콜 | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| 실시간 동시 시청 | 3 Main Streams & 3 Sub-Streams |
| 클라이언트 | Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| 웹 브라우저 | • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| 클라우드 | Yes |
| 보안 | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| 알람 및 이벤트 관리 | |
|---|---|
| 스마트 이벤트 | • Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Abnormal Sound Detection |
| 기본 이벤트 | • Motion Detection• Video Tampering Detection• Exception ( Illegal Login) |
| 알람 링크 | • Memory Card Video Recording• Message Push• Audible Warning• Email Alarm• Upload Capture to FTP |
| 인터페이스 | |
|---|---|
| 네트워크 인터페이스 | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| 알림 | N/A |
| Reset 버튼 | Yes |
| 전원 | DC Power Port |
| 내장 스토리지 | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§ |
| 내장 마이크 | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| 내장 스피커 | Yes |
| 오디오 | N/A |
| 일반 | |
|---|---|
| 작동 온도 | -30 to 60 °C |
| 보관 온도 | -40 to 60 °C |
| 작동 습도 | 95% or Less (Non-Condensing) |
| 보관 습도 | 95% or Less (Non-Condensing) |

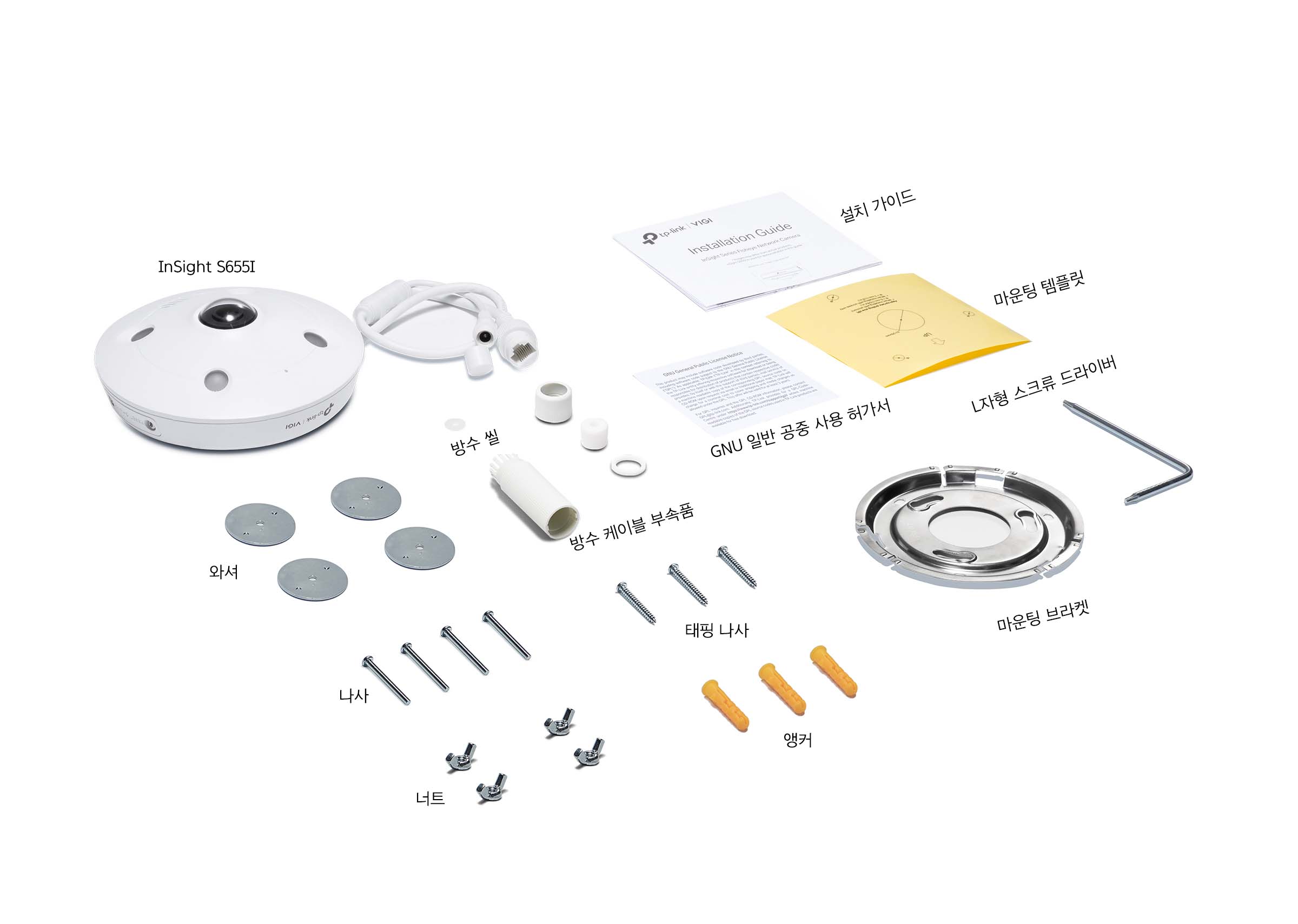

| 패키지 구성품 | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| 재질 | Metal |
| 순중량 | • 0.44 Kg ( without Mounting Accessories)• 0.48 Kg ( with Mounting Accessories) |
| 전원 공급 | • 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 12.14W |
| 보호 | IP67 Weatherproof, IK10 Vandal Proof |
| 제품 크기 (L x W x H) | 5.2 × 5.2 × 2.2 in (132 × 132 × 56 mm) |
| 인증 | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
*Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.
△Please see the specifications for supported display modes in different installation modes.
†The following display modes are under Ceiling Mount.
§The microSD card and pendant mounting kits are not included in the package.
Note: The surveillance images from the fisheye camera displayed on this page are sourced from VIGI VMS Web.
