TL-PA7017 KIT

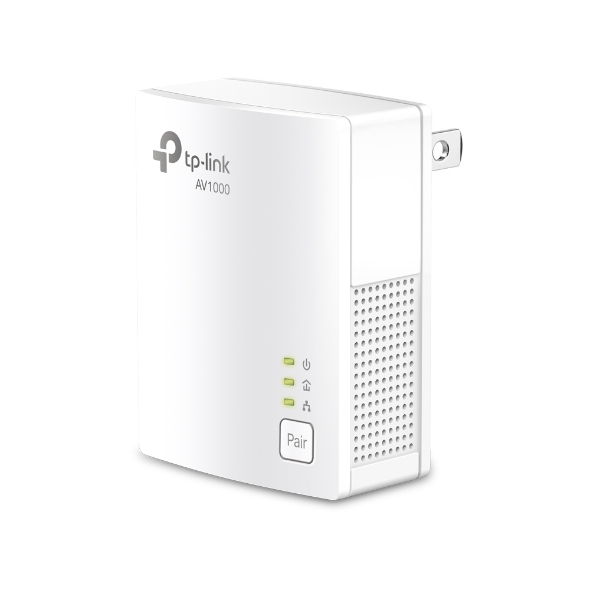

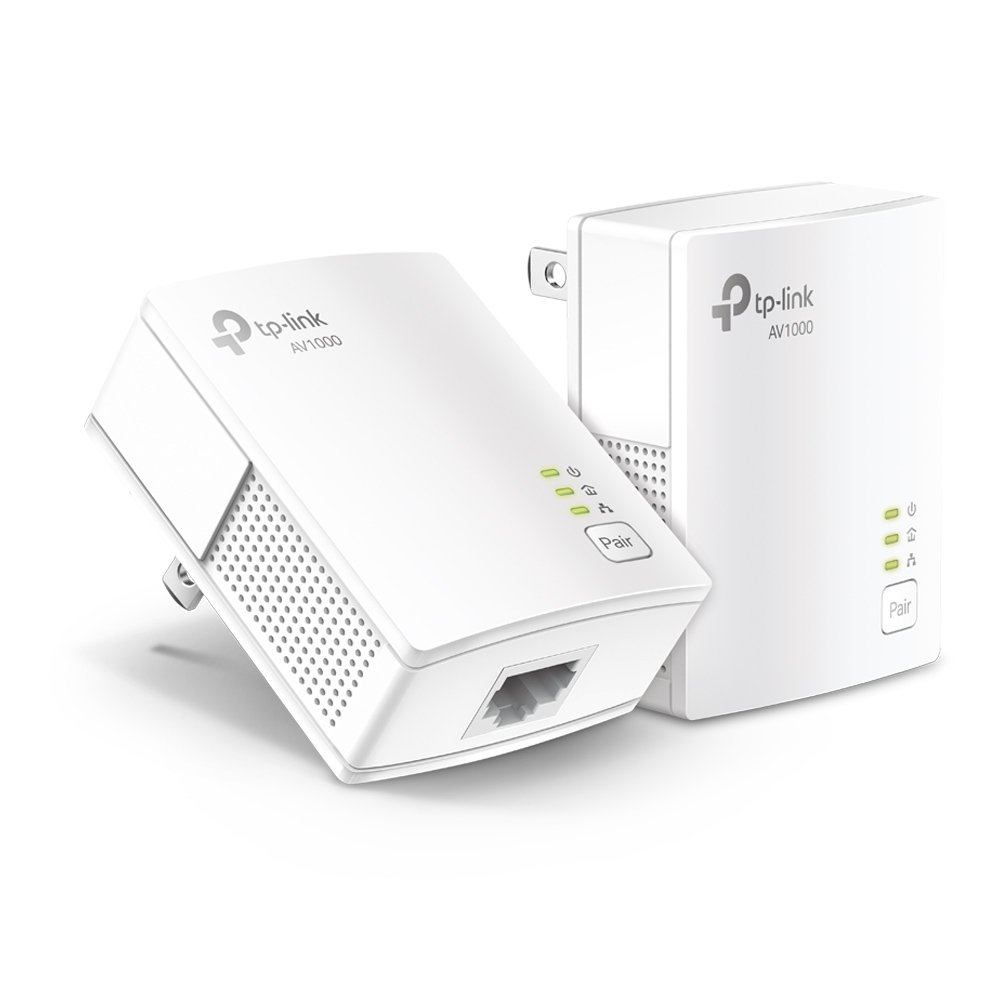

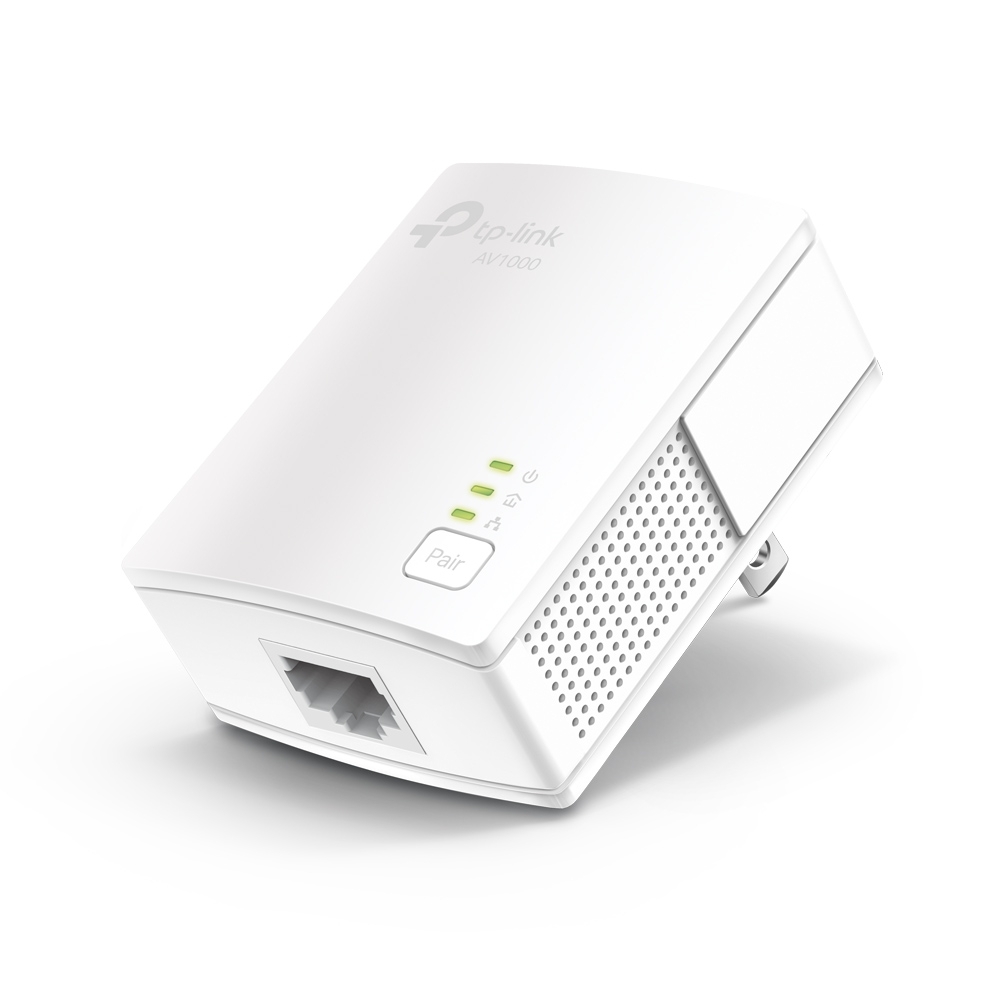

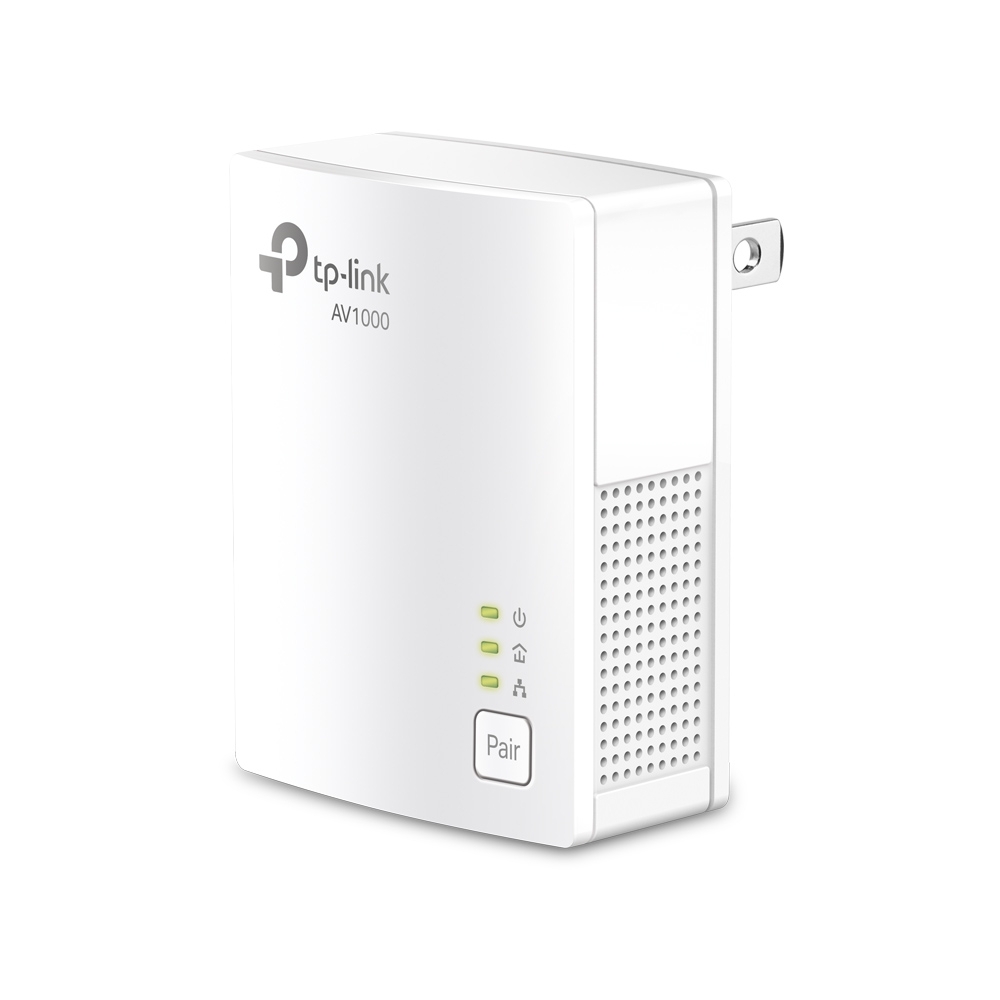

AV1000 Gigabit Powerline Starter Kit
- HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
- Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles
- Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
- Patented Power - Saving Mode - automatically reduces power consumption by up to 85%
Extend Reliable Gigabit Network through Electrical Wiring
AV1000 Gigabit Powerline Starter Kit
TL-PA7017 KIT

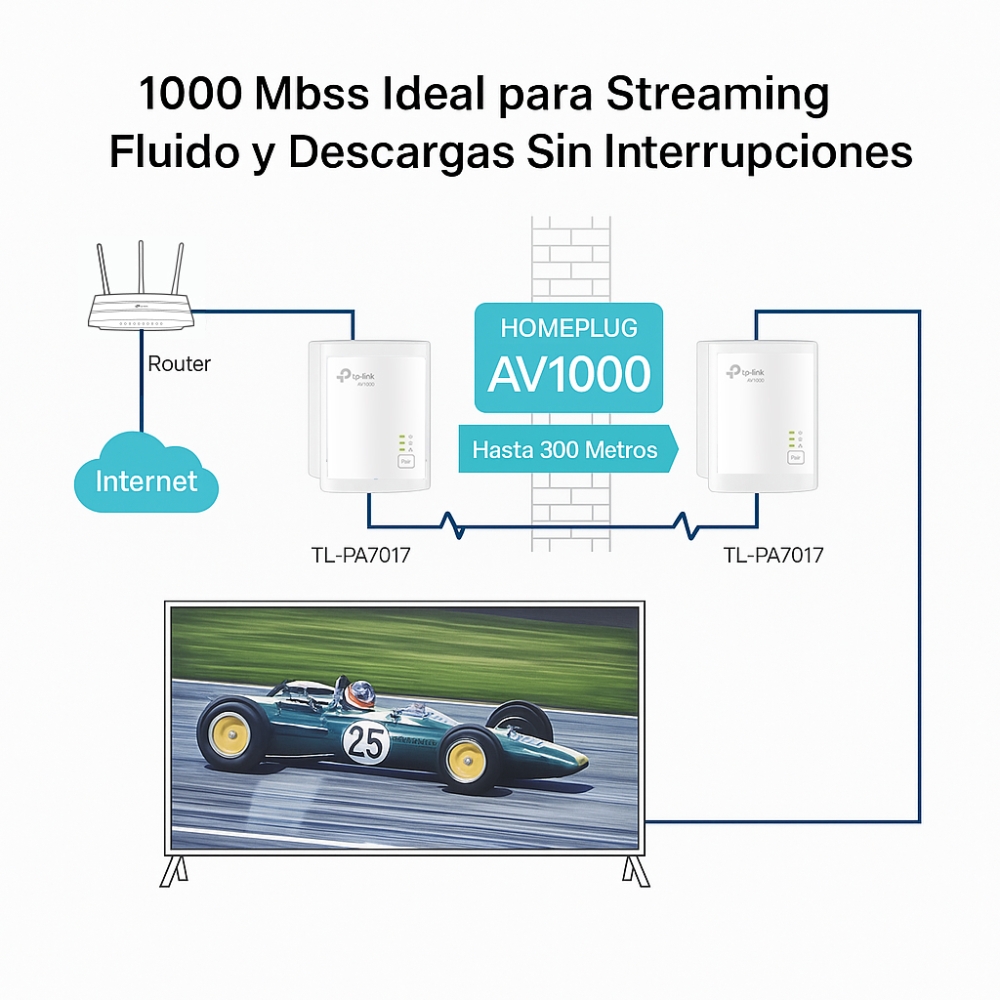

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

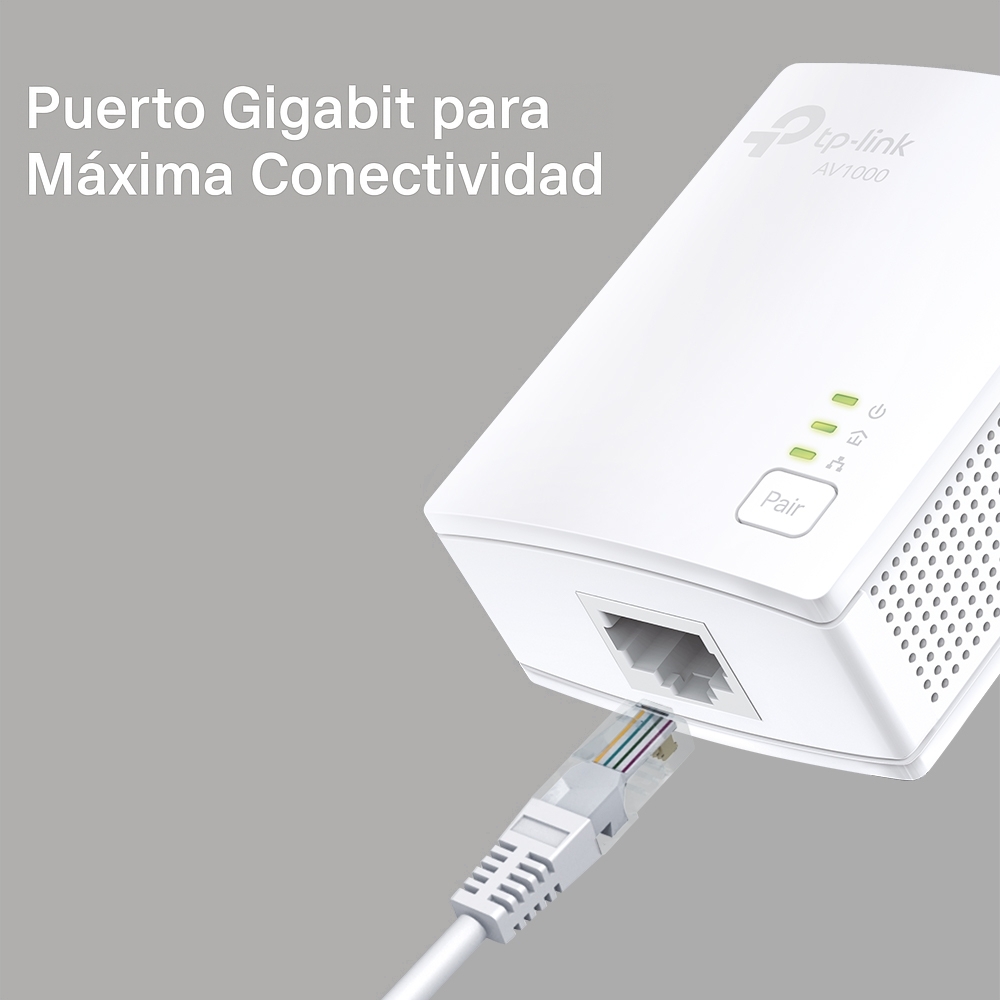

Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

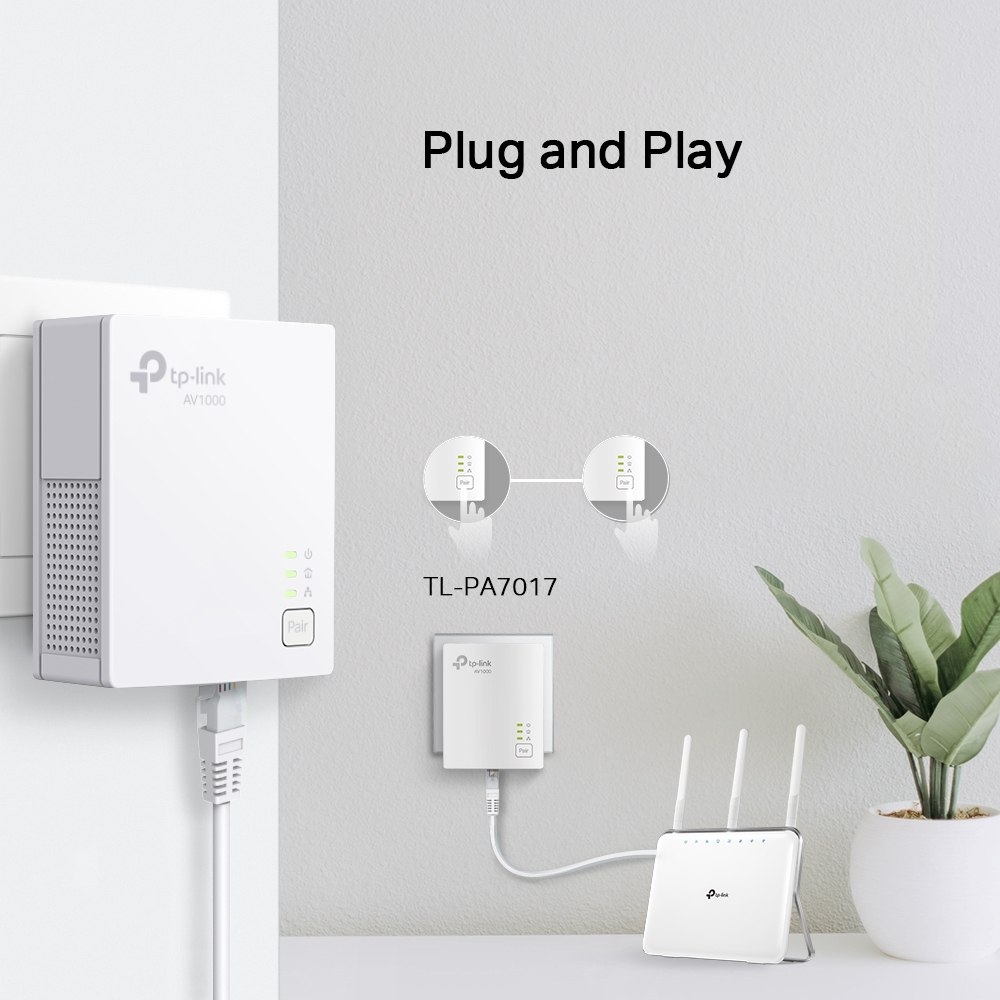

Plug and Play,
No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!
Pair for more security
Press the “Pair” button on each adapter to
create a more secure network.
Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%*
*Actual data will vary in different network conditions and environments.
85%
LESS
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Estándares y Protocolos | HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3,IEEE 802.3u, IEEE 802.3ab |
| Tipo de Enchufe | EU |
| Interface | Gigabit Ethernet Port |
| Botón | Pair/Reset button |
| Consumo de Energía | Maximum: 2.7W (220V/50Hz)Typical: 2.3W (220V/50Hz)Standby: 0.5W (220V/50Hz) |
| Indicador LED | Power, Powerline, Ethernet |
| Dimensiones (W X D X H) | 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm) |
| Rango | Up to 300 meters/1000 feet over existing electrical wiring |
| CARACTERÍSTICAS DE SOFTWARE | |
|---|---|
| Modulation Technology | OFDM (PLC) |
| Cifrado | Powerline Security: 128-bit AES Encryption |
| Otros | |
|---|---|
| Certificacion | CE, RoHS |

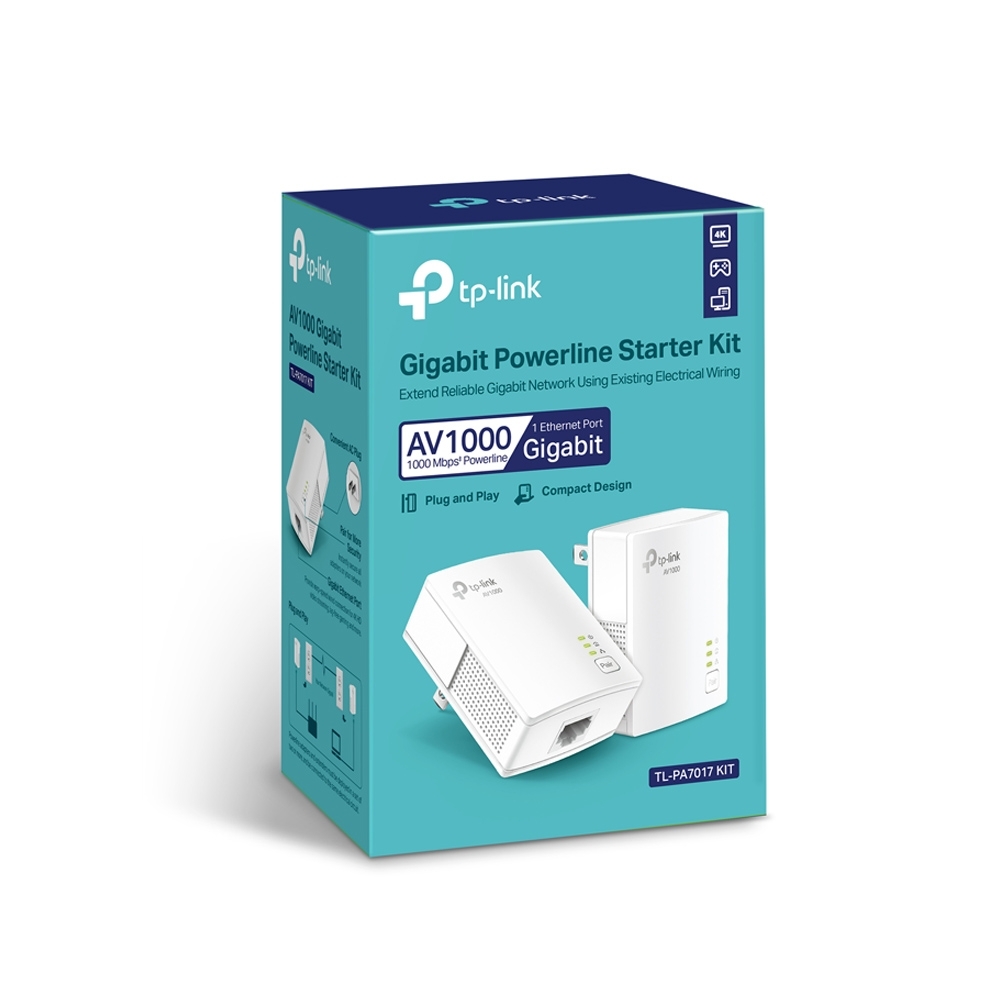

| Contenidos del Paquete | - 2 × AV1000 Gigabit Powerline Adapter TL-PA7017- 2 × Ethernet Cable- 1 × Quick Installation Guide |
| Requisitos del Sistema | Windows 2000/XP/2003/Vista/7/8/8.1/10, Mac, Linux |
| Ambiente | Operating Temperature: 0°C~40°C (32°F ~104°F)Storage Temperature: -40°C~70°C (-40°F ~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
*Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
*Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and whether Powerline is located on a separate circuit.
*The Power Saving feature takes effect when your appliances are disconnected or turned off. Actual power saving data will vary in different network conditions and environments.
