RE815XE
NuevoAXE5400 Mesh Wi-Fi 6E Range Extender
- AXE5400 Tri-Band Wi-Fi: Boosts overall speeds up to an incredible 5400 Mbps.†
- 6 GHz Band: Provides a clearer band to prevent Wi-Fi interference and congestion.
- 160 MHz Channel Bandwidth: Expands bandwidth to double the network speed of traditional 80 MHz.‡
- Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
- Improved Capacity, Less Lag: Experience flawless streams on more screens throughout your home.
- Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
Cutting-edge Technology
Broader, Faster, Stronger
AXE5400 Wi-Fi 6E Range Extender
RE815XE
AXE5400
Lighting-Fast
6GHz
2402Mbps
5GHz
2402Mbps
2.4GHz
574Mbps
160 MHz Bandwidth
Works with Any Router
Tri-band
TP-Link OneMesh
MU-MIMO

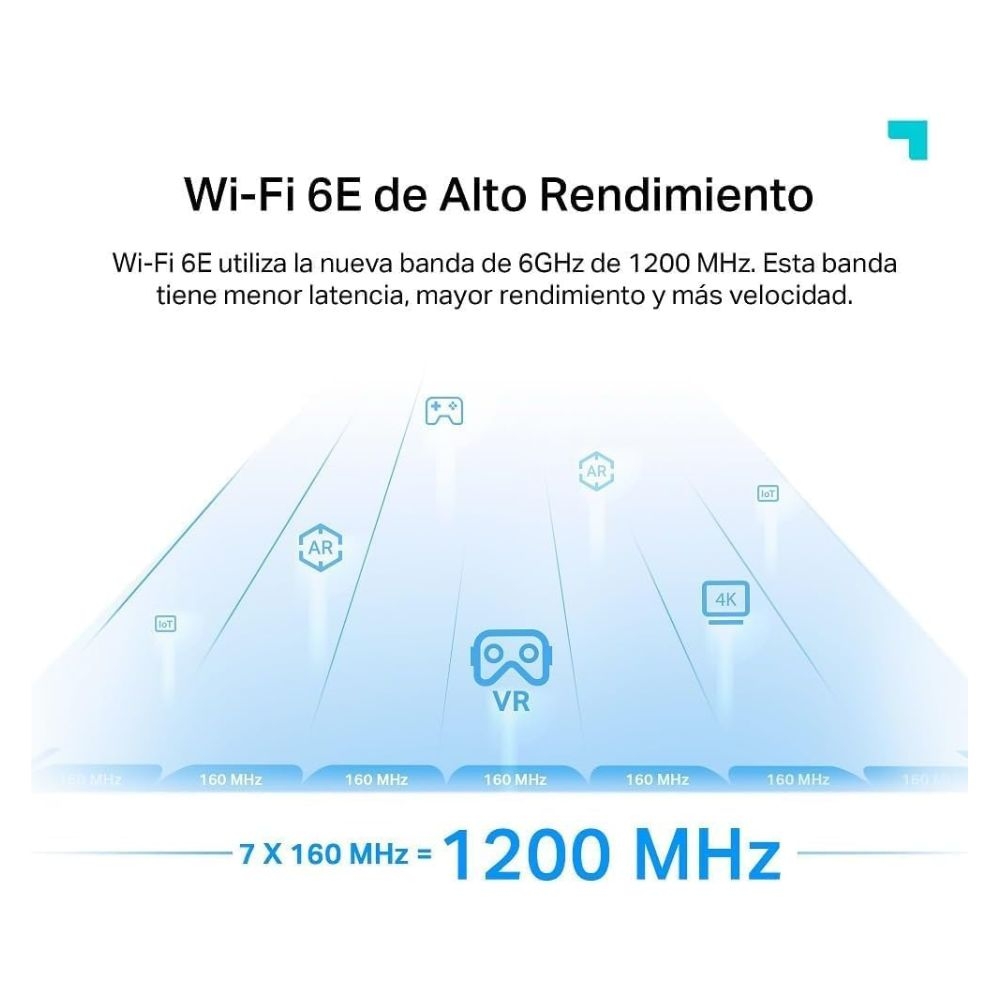

Incredible Performance
WiFi 6E offers the new 6 GHz frequency band with 1200 MHz of available spectrum. This wide-open band creates lower latency, higher throughput, and faster speeds for RE815XE. Enjoy the ultimate streaming experience with the latest WiFi generation.‡
7 X 160 MHz =
1200 MHz
6GHz for More Capacity
RE815XE takes full advantage of tri-band, empowering up to 96 devices with lightning-fast 5400 Mbps speed.†△
With the 6 GHz band serving as its backhaul, all of your connected devices receive phenomenal connectivity.
6GHz

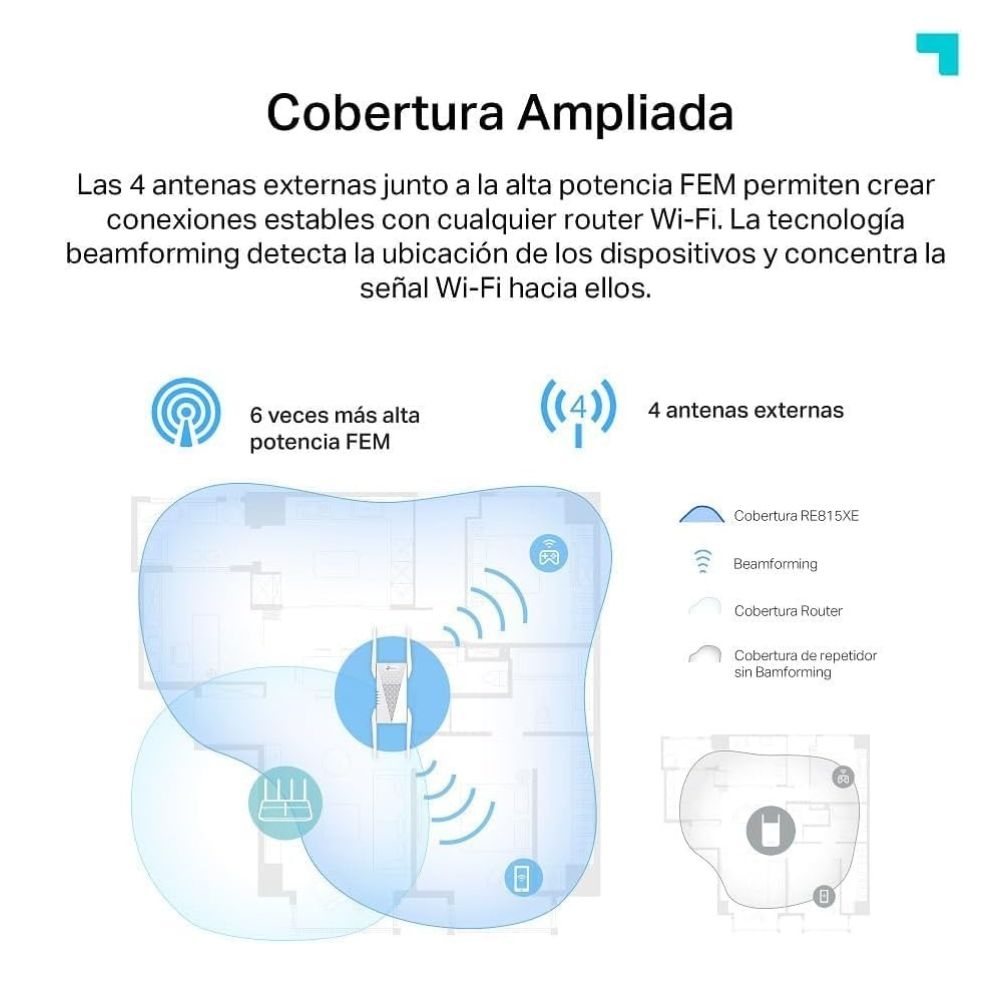

Broader Coverage
RE815XE's four external antennas create a stable wireless connection to any WiFi router, boosting your network's coverage. 6× high-power FEM provide maximum WiFi performance, so your phones and tablets stay connected as you move throughout your home. Beamforming technology detects the location of devices and concentrates WiFi towards them for stronger connections.
-
6× high-power FEM
-
4× external antennas
RE815XE Coverage
Beamforming
Router Coverage
Other RE Coverage without Beamforming
TP-Link OneMesh:
Optimize for Smoothest WiFi Experience
OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.
-
Smart Roaming
Uninterrupted streaming when moving around your home
-
One Wi-Fi Name
No more switching Wi-Fi network names
-
Easy Creation
OneMesh™ Router and OneMesh™ Range Extenders pair instantly
-
Unified Management
Manage the entire network all from the TP-Link Tether app
-
Traditional Router with Extender
-
OneMesh™ Router + Range Extender

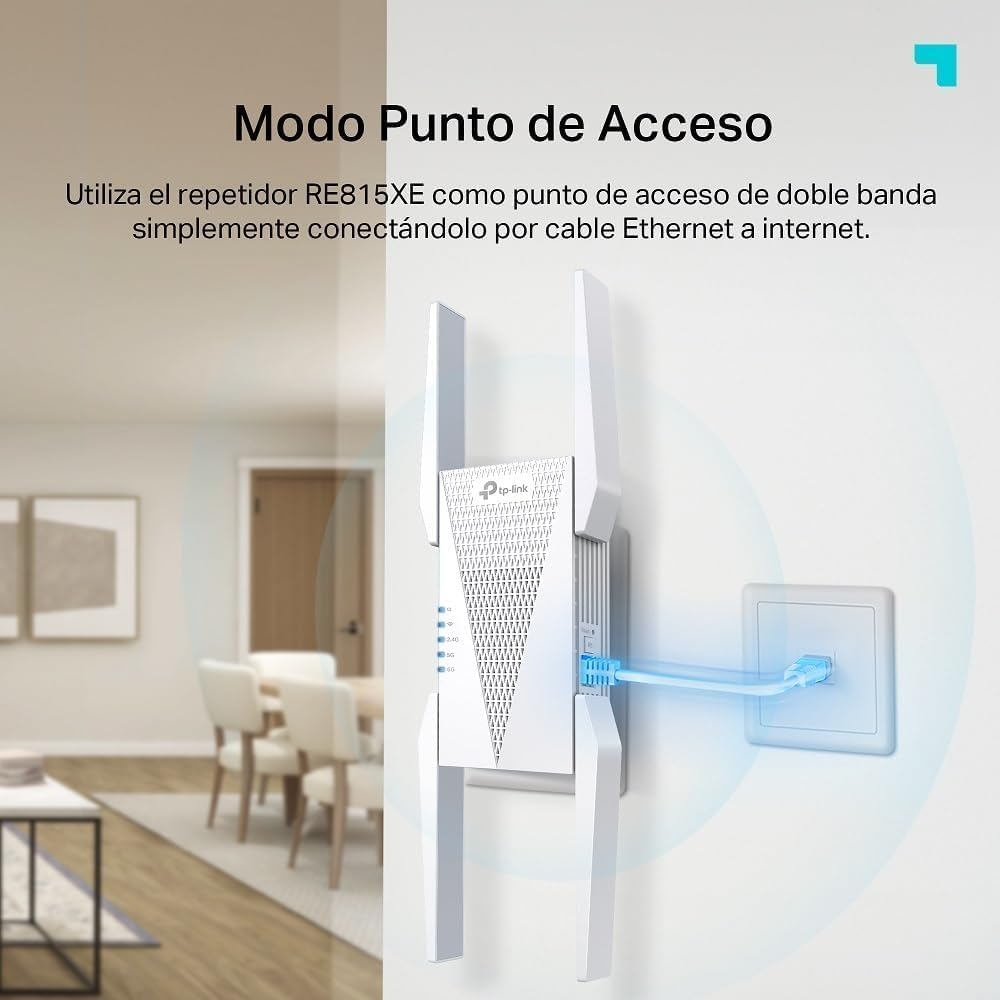

Built-In Access Point Mode
RE815XE is more than a wireless range extender. In places with a network line, simply plug an Ethernet cable into the extender‘s Ethernet port to turn your wired internet connection into a tri-band wireless access point and the port rate reaches to 1,000 Mbps.
Control at Your Fingertips
Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS). Network management has never been easier.
WPS One button to Setup
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|

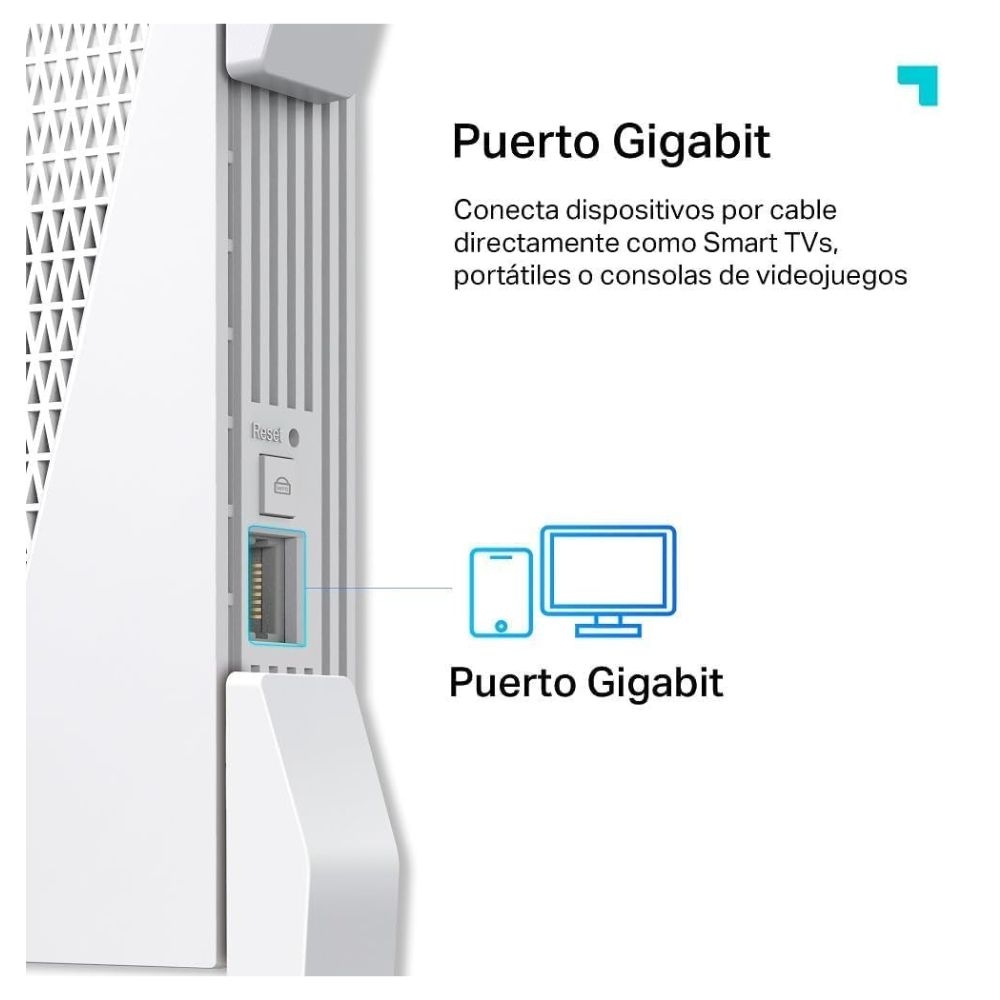

| Puertos | 1 Gigabit Ethernet Port |
| Botón | • WPS Button• Reset Button |
| Input Power | 100-240V~50/60Hz |
| Consumo de Energía | 23W |
| Dimensiones (W X D X H) | 4.2×1.6×13.7 in. (106.6×39.7×348.2 mm) |
| Antena | 4 External Antennas |
| CARACTERÍSTICAS INALÁMBRICAS | |
|---|---|
| Estándares Inalámbricos | • IEEE 802.11ax 6 GHz• IEEE 802.11a/n/ac/ax 5 GHz• IEEE 802.11b/g/n/ax 2.4 GHz |
| Frecuencia | • 2.4 GHz• 5 GHz• 6 GHz |
| Tasa de Señal | • 574 Mbps at 2.4 GHz• 2402 Mbps at 5 GHz• 2402 Mbps at 6 GHz |
| Working Modes | Range Extender/Access Point |
| Sensibilidad de Recepción | 6GHz:11ax HE20 MCS0：-92dBm, 11ax HE20 MCS11：-61dBm11ax HE40 MCS0：-89dBm, 11ax HE40 MCS11：-58dBm11ax HE80 MCS0：-86dBm, 11ax HE80 MCS11：-55dBm11ax HE160 MCS0：-83dBm, 11ax HE160 MCS11：-52dBm5GHz:11ax HE20 MCS0：-93dBm, 11ax HE20 MCS11：-62dBm11ax HE40 MCS0：-90dBm, 11ax HE40 MCS11：-59dBm11ax HE80 MCS0：-87dBm, 11ax HE80 MCS11：-56dBm11ax HE160 MCS0：-84dBm, 11ax HE160 MCS11：-53dBm2.4GHz:11ax HE20 MCS0：-95dBm, 11ax HE20 MCS11：-64dBm11ax HE40 MCS0：-92dBm, 11ax HE40 MCS11：-62dBm |
| Funciones Inalámbricas | • LED Control• Access Control• Power Schedule• Wi-Fi Coverage |
| Seguridad Inalámbrica | • 64/128-bit WEP• WPA/WPA2-PSK encryptions• WPA3 |
| Potencia de Transmisión | FCC: • 2.4GHz < 30dBm• 5GHz < 30dBm• 6GHz < 30dBm |
| Mesh Technology | TP-Link OneMesh |
| Otros | |
|---|---|
| Certificacion | FCC, RoHS |
| Contenidos del Paquete | • Wi-Fi Range Extender RE815XE• Quick Installation Guide |
| Requisitos del Sistema | Microsoft Windows 98SE, NT, 2000, XP, Vista™ orWindows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari4.0, or other Java-enabled browser |
| Ambiente | • Operating Temperature: 0℃~40℃ (32℉ ~104℉)• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, 1024-QAM, and HE160 requires clients to also support the corresponding features. Not all seven 160 MHz channels may be available in the 6 GHz band in some regions/countries due to regulatory restrictions.
§Smart Roaming is designed for devices that support the 802.11k/v standard.
△The maximum capacity is the maximum number of signals that can be connected under ideal conditions, and the specific situation varies with the location of the RE, the type of connected equipment, etc.
*The product may not be compatible with routers or gateways with firmware that has been altered, based on open source programs, or is non-standard or outdated.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
