Archer TX50E
NewAX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
- Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Smoother Experience—75% lower latency ensures ultra-responsive gaming, uninterrupted video chatting and seamless live streaming
- Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
- Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
- Bluetooth 5.0—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
- Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
- Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
Give Your PC Wi-Fi 6 and Bluetooth 5.0
AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
Archer TX50E

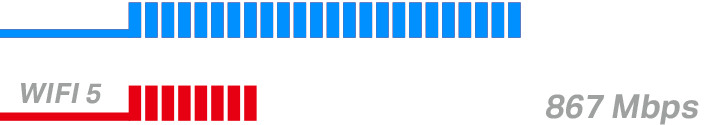

High Performance for High Demands
The very latest Wi-Fi standard, Wi-Fi 6, provides extreme speed, ultra-low latency,
and uninterrupted connectivity so you enjoy faster downloads, smoother streaming, and more immersive gaming.†
-
1Gbps
Traditional Tethered Gaming: 1Gbps
-
2.4Gbps
with PCIe TX50E
with PCIe TX50E
Unlimited Wi-Fi 6 Gaming: 2.4 Gbps
Deep-Dive into VR
Wi-Fi 6 comes with 1024-QAM and 160 MHz bandwidth, for powerful, continuous Wi-Fi.‡ Bandwidth-intensive applications like VR demand high speeds, which Wi-Fi 6 delivers—3× faster than Wi-Fi 5.§ Just insert Archer TX50E into your PC for fully immersive VR experiences.
![](https://static.tp-link.com/res/images/vi/archer-tx50e_v1/images/c1.png)
![](https://static.tp-link.com/res/images/vi/archer-tx50e_v1/images/c2.png)
![](https://static.tp-link.com/res/images/vi/archer-tx50e_v1/images/c-speed.png)
Lag No More
Revolutionary OFDMA reduces latency by up to 75% to provide ultra-responsive gaming, uninterrupted video chatting and seamless live streaming.*
![](https://static.tp-link.com/res/images/vi/archer-tx50e_v1/images/d-chart.png)
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Connect and Enjoy via the Latest Bluetooth 5.0
The latest Bluetooth 5.0 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.***
Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.**
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.‡
802.11ac | without OFDMA
802.11ax | OFDMA
Ingenious Details Make
a Perfect Whole
A customized heat sink improves connection stability by efficiently dissipating thermal energy. Additionally, gold plating on every contractor prevents oxidation. Attention to every detail ensures your adapter is crafted for ultimate performance.
Easy Setup
The utility on the provided CD
makes software installation
remarkably simpleOperating System
Operating System Supports Windows 10 (64-bit) only
Standard and
Low-Profile BracketsBoth a standard and low-profile bracket, for mini tower computer cases, are provided
HARDWARE FEATURES | |
---|---|
Dimensions | 3.7 x 4.8 x 0.8 in(95.2 x 120.8 x 21.5 mm) |
Antenna Type | Two High-Gain Dual Band Antennas |
Chipset | Intel Wi-Fi 6 Chipset |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/g/b 2.4 GHzBluetooth 5.0/4.2/4.0 |
WLAN Signal Rate | 5 GHz11ax: Up to 2402 Mbps(dynamic)11ac: Up to 1733 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11a: Up to 54 Mbps(dynamic)2.4 GHz11ax: Up to 574 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11g: Up to 54 Mbps(dynamic)11b: Up to 11 Mbps(dynamic) |
WLAN Reception Sensitivity | 5 GHz :11ax HT160:-56.25dBm11ax HT80: -59dBm11ax HT40: -62.25dBm11ax HT20: -65dBm11ac HT160:-62dBm11ac HT80: -65.5dBm11ac HT40: -69.75dBm11ac HT20: -73.75dBm11n HT40: -74.5dBm11n HT20: -77.5dBm11a 54Mbps: -77.75dBm11a 6Mbps: -94.5dBm2.4GHz :11ax HT40: -60.75dBm11ax HT20: -63.75dBm11n HT40: -73dBm11n HT20: -76.25dBm11g 54Mbps: -76.5dBm11b 11Mbps: -89dBm |
WLAN Transmit Power | 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP) |
WLAN Modes | Infrastructure mode |
Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
Bluetooth Profiles | Archer TX50E support the native BT profiles implemented in Windows 10. For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | Archer TX50ETwo 5 dBi High-Gain AntennasLow-Profile BracketBluetooth Header CableQuick Installation GuideResource CD |
System Requirements | Windows 10(64-bit) only |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.
‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, HE160, and 1024-QAM require APs to also support the corresponding features.
§802.11ax 2x2 160 MHz enables 2402 Mbps maximum theoretical data rates, 3× faster than standard 802.11ac 2x2 80 MHz (867 Mbps) and nearly 6x faster than baseline 1x1ac (433 Mbps) Wi-Fi as documented in IEEE 802.11 wireless standard specifications, and require the use of similarly configured 802.11ax wireless network routers.
*“Up to 75% lower latency” is based on Intel simulation data of 802.11ax with and without OFDMA using 9 clients. Average latency without OFDM is 36ms, with OFDMA average latency is reduced to 7.6ms. Latency improvement requires that the AP and all clients support OFDMA.
**Use of WPA3TM requires APs to also support the corresponding feature.
***Several new features are introduced in the Bluetooth Core Specification 5.0 Release, including 2× faster speed and 4× broader coverage compared with Bluetooth 4.2.
