The Beginner's Guide to Set Up a WiFi Extender at Home

Do you have that one particular area in your house where you often get slow connections? WiFi extender is the answer! Adding a WiFi extender can be an easy way to get rid of dead spots and improve internet coverage in your home. These devices boost your existing WiFi signal by receiving it from your router and retransmitting it to areas with weak or no signal at all.

But how do you set up one if you’re a beginner? Below, we'll walk you through the simple steps to set up a WiFi extender, making sure you have a strong and reliable connection throughout your home.

What is a WiFi Range Extender?

A WiFi range extender is a device that is designed to increase the coverage area of your existing wireless network. It does this by accepting your existing WiFi signal, amplifying it, and then rebroadcasting it. The term "dead zones" refers to locations in your house or workplace where the WiFi signal is poor or does not reach at all.

How Does a WiFi Extender Work?

WiFi extenders act as an intermediary between your router and your device, rebroadcasting your WiFi signal to cover a larger area. Unlike WiFi boosters, which amplify the signal strength, extenders focus on increasing coverage by catching the router’s signal and extending it further.

If you place the WiFi extender in the right location, it can significantly improve internet performance in larger homes, multi-floor spaces, or areas where walls and obstacles might interfere with your signal.

How to Choose the Right WiFi Extender

The first step is selecting a WiFi extender that matches your needs. Here are some of the key aspects to look at:

• Compatibility: Ensure your extender is compatible with your router, especially if you use an advanced router with features like dual-band or tri-band technology.

• Range Coverage: Check the coverage range of the extender. A small apartment might need a basic extender, while larger homes may benefit from a more powerful, long-range model.

• Speed Capacity: Match the extender’s speed with your internet plan. If your internet speed is high, look for extenders that support high speeds to avoid bottlenecking.

• Features: Some extenders come with added features like Ethernet ports for wired connections, multiple antennas, or smart signal indicators that show where to place the device for optimal performance.

How to Set Up Your WiFi Extender

WiFi extenders usually come with step-by-step setup instructions. Here’s a general guide to get started:

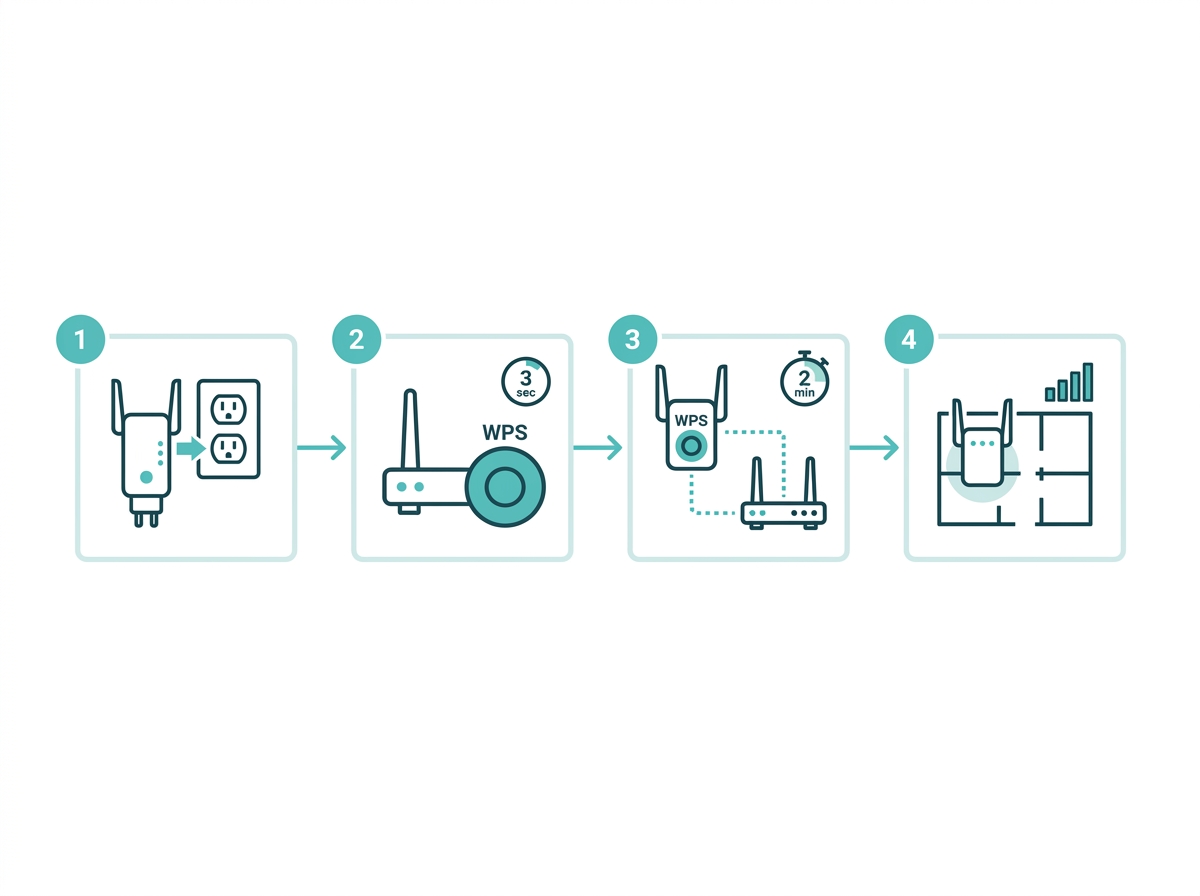

Method 1: Using the WPS Button

Most modern WiFi extenders support WPS (WiFi Protected Setup), a feature that allows quick configuration without a password.

1. Plug in the extender: Place it in an outlet near your router to start. You can move it to a better location once the setup is complete.

2. Press the WPS button on the router: Hold it for about 3 seconds.

3. Press the WPS button on the extender: Within 2 minutes of pressing the WPS button on the router, press the WPS button on your WiFi extender. The devices will connect, and an indicator light on the extender will signal a successful connection.

4. Move the extender to the target location: Unplug the extender and relocate it to a spot halfway between your router and the area with weak WiFi coverage. Avoid walls or appliances that may obstruct the signal.

Method 2: Using the Extender’s Web Interface

If WPS is unavailable, you can set up the extender manually through its web interface.

1. Plug in the extender and wait until the power light turns on.

2. Connect your device to the extender’s network. Find the default WiFi network name for your extender (usually printed on the device or in the manual) and connect to it with your laptop or phone.

3. Open a web browser and enter the setup URL. Typically, the extender’s setup page can be accessed through a specific IP address or URL provided in the manual (e.g., http://extender.local).

4. Log in to the extender’s setup page (the default username and password are often “admin”). Select your WiFi network, enter your WiFi password, and complete the setup steps.

5. Relocate the extender to the best spot between the router and the weak-signal area.

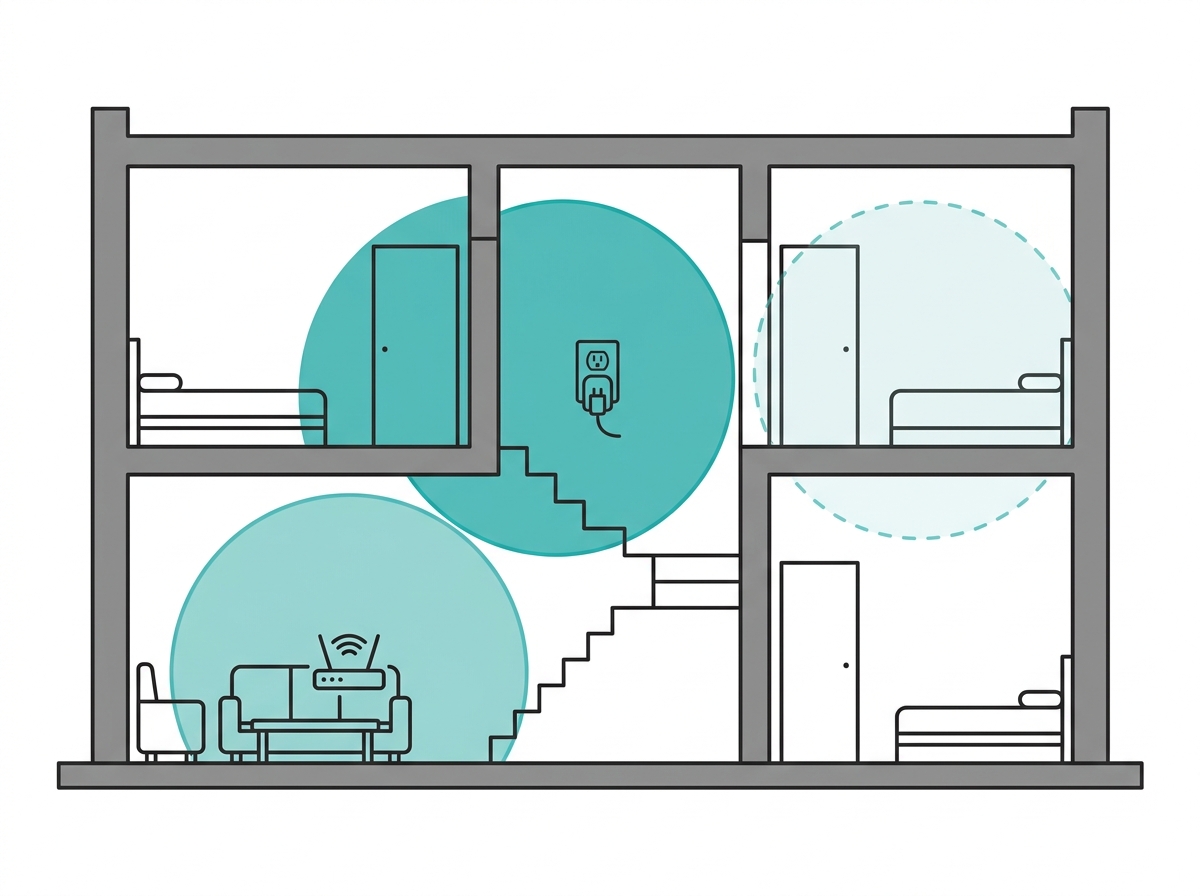

Choose the Right Location

Placement can greatly affect how well your WiFi extender performs. Here are a few tips:

• Halfway placement: Place the extender between your router and the dead zone, ensuring it still receives a strong signal from the router.

• Avoiding obstacles: Keep the extender away from thick walls, metal objects, and appliances that can interfere with WiFi signals, like microwaves and cordless phones.

• Checking signal strength: Use your device to check WiFi strength in the area. Adjust the extender’s position until you get a stable connection with good performance.

Test the Connection and Speed

Once your extender is set up, run a quick speed test to ensure you’re getting the desired performance boost. Here’s how:

• Use an online speed test tool (e.g., Speedtest.net) to check your download and upload speeds near the extender.

• Compare the results with speeds you get directly from the router. If the speed is lower than expected, try repositioning the extender for a better connection.

Troubleshooting Common Issues

If you’re having trouble setting up or using your WiFi extender, here are some quick fixes:

• Connection drops: If the extender frequently loses connection, try moving it closer to the router.

• Slow speeds: If speeds are slower than expected, double-check that the extender is placed in an optimal spot, away from interference.

• Device compatibility issues: Some extenders may not work well with older routers. Check for firmware updates or consider upgrading your router if compatibility issues persist.

• No internet access after setup: Make sure you’ve connected to the correct network and entered the right password. If needed, reset the extender to factory settings and try again.

Maximizing WiFi Extender Performance

Getting the most from your WiFi extender involves ongoing adjustments and maintenance. Here are some tips for optimizing performance:

• Update firmware regularly: Manufacturers release firmware updates to improve device performance and security.

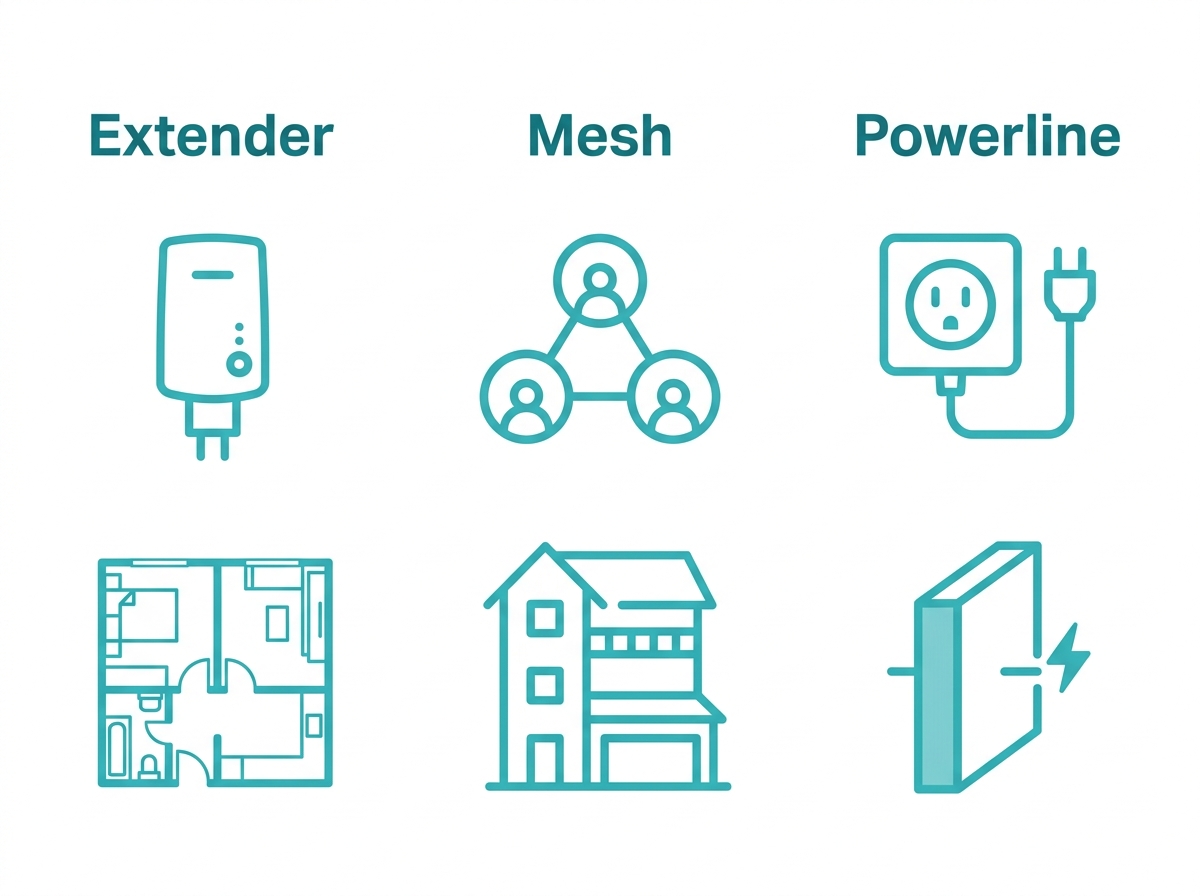

• Consider a mesh network: For larger homes, a mesh WiFi system may work better than a traditional extender, as it provides seamless coverage across multiple units.

• Limit devices: Connecting too many devices to the extender can reduce speed, especially if the extender has a limited bandwidth. Try to use the extender’s connection only for devices in areas with weak signal.

Conclusion

Setting up a WiFi extender is a practical solution for improving your home’s WiFi coverage, especially in areas where signal strength is weak or inconsistent. By following the setup instructions we’ve mentioned above, you can enjoy a stronger, more reliable connection across your home.

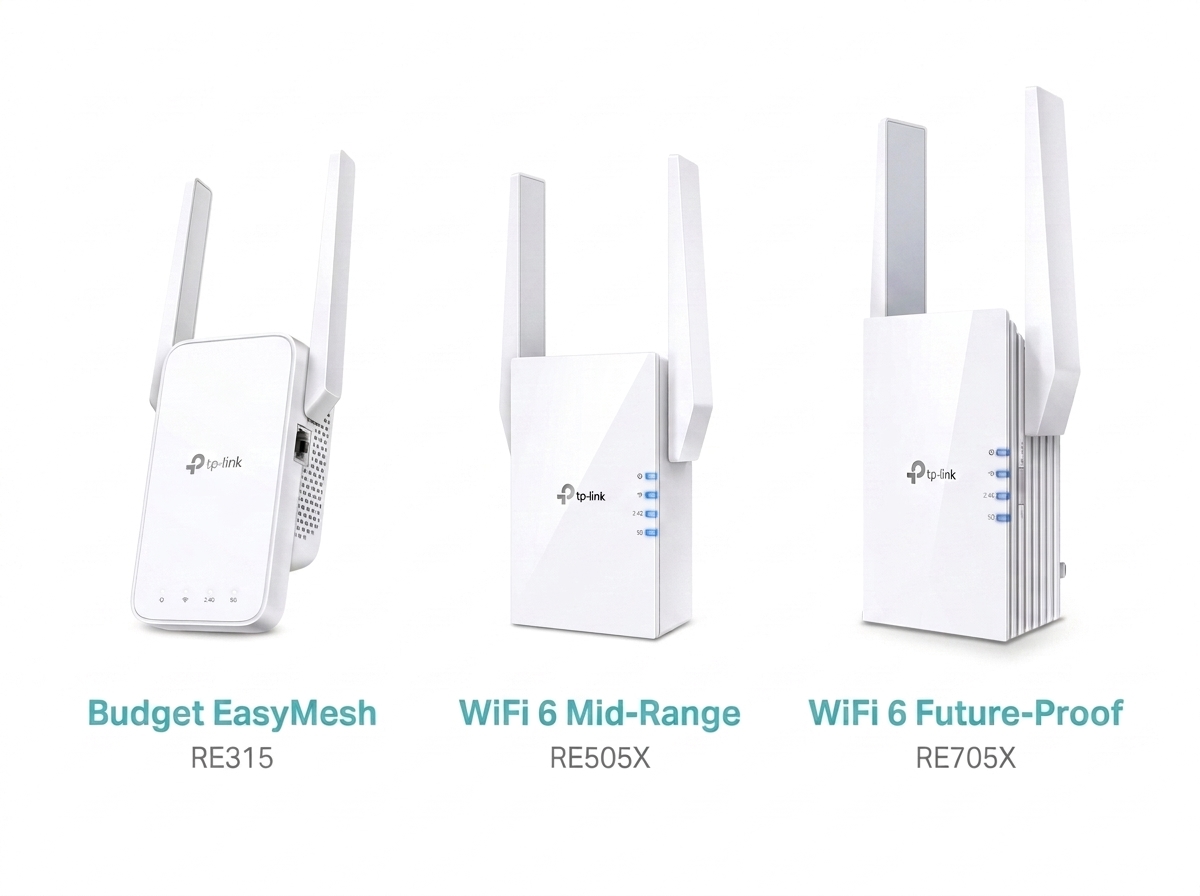

TP-Link offers a variety of reliable WiFi extenders to enhance coverage and eliminate dead zones in your home. With TP-Link’s easy-to-install extenders, you can enjoy seamless connectivity in every corner of your space. Find the right solution for your home and boost your WiFi experience today.
