How to configure DHCP Address Reservation (Broadcom Solution)
User Application Requirement
Zaktualizowano w dniu 02-19-2013 17:22:55 PM
62333
62333 Ten artykuł dotyczy:
Preparation: Check Ethernet adapter’s MAC address of computer.
Step 1
Click on windows key
+ R key on the keyboard at the same time.
+ R key on the keyboard at the same time.Step 2
Type “cmd” in the box, and then press OK.
Step 3

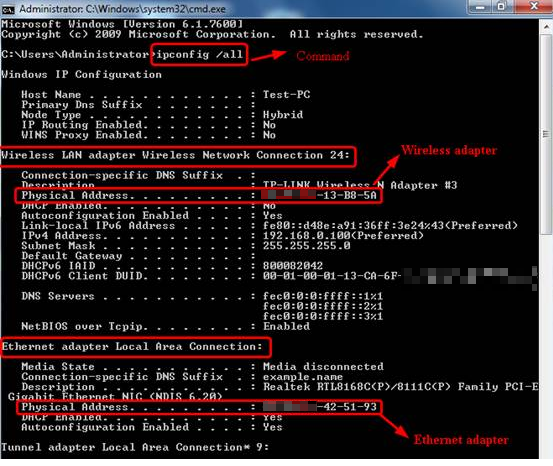

On the popping up black window, type command “ipconfig /all” and press Enter. It will show all current network adapters’ MAC address of this computer.
For example, MAC address of this computer’s ethernet adapter: 48-5B-39-42-51-93 (please write it down for later use)
Step 4
Open the web browser and type in http://192.168.1.1in the address bar and press Enter. The Username and Password are both “admin”.
Step 5
Go to Advanced Setup-> LAN-> Static IP Lease List. Click on Add.
Step 6

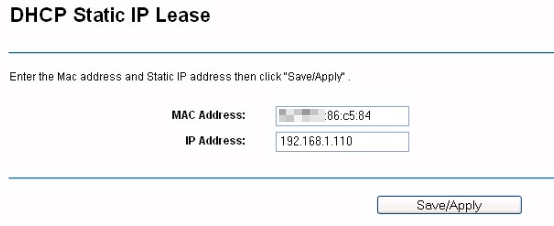

In the new popping out window, please input the MAC address and IP address of the PC. Click on Save/Apply.
Step 7

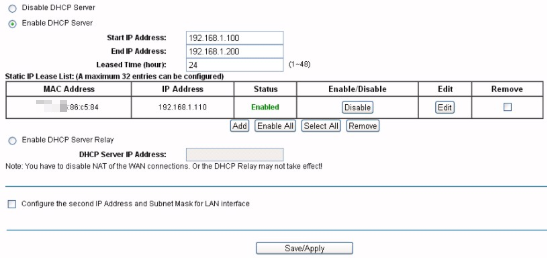

You will see the new item added into the table. Click on Save/Apply. Click on Add to enter more items.
