Archer NX200

Brevemente

5G AX1800 Wireless Dual-Band Gigabit Router

  • Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
  • AX1800 Dual-Band Wi-Fi 6 Speed - 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
  • Plug & Play - Enjoy 5G network right after inserting a SIM card.
  • EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
  • Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.

Enjoy 5G Speed Sharing Everywhere

5G AX1800 Wireless Dual-Band Gigabit Router

Archer NX200
5g icon wifi6 icon mesh icon
5g icon wifi6 icon mesh icon

Superior 5G –
A Revolutionary Experience

Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX200 is backward compatible with 4G mode.**

  • 5G

    Powerful Broadband Connection


    4.67 Gbps**

  • 4G-LTE Advanced



    300 Mbps

  • 4G-LTE



    150 Mbps

  •

    Higher Speed

  •

    Lower Latency

  •

    Larger Capacity

Plug and Play, Enjoy 5G Network Everywhere

Simple, just one SIM card

Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer NX200 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

  • Lodging

  • Farm & Finca

  •
  • Temporary Store

  • Holiday Home

Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

Learn more about EasyMesh >>

  • WiFi Dead Zone Killer
    Eliminate weak signal areas with WiFi coverage for the whole house

  • Smart Roaming
    Uninterrupted streaming when moving around your home

  • One WiFi Name
    No more switching WiFi network names

  • EasyMesh Devices (Router+Range Extender) nx200 product re product

Available WAN Connection Backup

The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.

Modem Ethernet WAN Ethernet WAN

Easy Setup and Use

Set up the Archer NX200 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

Learn more about Tether app>>


CARACTERÍSTICAS DE HARDWARE

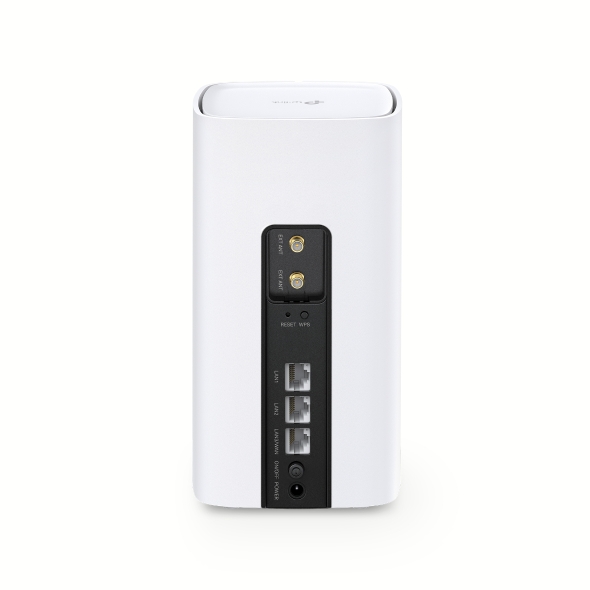

Interface 1 × 10/100/1000 Mbps LAN/WAN Port
2 × 10/100/1000 Mbps LAN Ports
1 × Nano SIM Card Slot
2 × External SMA-F Antenna Interface
Botão WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
Fonte de alimentação Externa Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 2A
Dimensões (L x P x A) 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)
Antena 8 × 5G/LTE Internal Antennas
2 × Wi-Fi Internal Antennas
FUNCIONALIDADES WI-FI
Normas Wireless IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Frequências 2.4 GHz and 5 GHz
Signal Rate 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
Reception Sensitivity 5GHz:
11a 54M:-80 dBm
11ax HE20:-68 dBm
11ax HE40:-65 dBm
11ax HE80:-62 dBm
11ac VHT20:-76 dBm
11ac VHT40:-72 dBm
11ac VHT80:-68 dBm
11n HT20:-79 dBm
11n HT40:-75 dBm
2.4GHz
11g 54M:-78 dBm
11ax HE20:-65 dBm
11ax HE40:-62 dBm
11ac VHT20:-73 dBm
11ac VHT40:-68 dBm
11n HT20:-75 dBm
11n HT40:-72 dBm
Potência de transmissão <23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz)
Funções Wireless Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
WAN Failover Yes
Segurança Wireless 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
FUNCIONALIDADES SOFTWARE
Quality of Service Prioritizes network traffic by device or application
Security DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Gestão TP-Link Cloud, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
DNS Dinâmico (DDNS) TP-Link, DynDns, NO-IP
VPN PPTP VPN, IPSec VPN , OpenVPN
Access Control Parental Control, Local Management Control
Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding
Protocolos IPv4, IPv6
Guest Network 2.4 GHz Guest Network x 1
5 GHz Guest Network x 1
OUTROS
Certificações CE, RoHS
Conteúdo da embalagem 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Requisitos de Sistema Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Nano SIM Card
Temperatura e Humidade Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
