TL-WPA8631P KIT
NovoAV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
- Padrão HomePlug AV2 - taxas de transferência de dados ultrarrápidas de até 1300 Mbps*
- AC1200 Dual-Band Wi-Fi - estende Wi-Fi dual-band ultrarrápido com velocidades até 867 Mbps em 5 GHz e 300 Mbps em 2,4 GHz*
- OneMeshTM - Funciona com seu router OneMeshTM para formar uma rede mesh unificada para streaming contínuo enquanto se move pela sua casa
- 2 × 2 MIMO - Estabelece várias conexões simultâneas para desfrute de velocidades de poweline mais altas e maior estabilidade
- Configuração de Wi-Fi com um toque - Um toque no botão Wi-Fi copia o nome da rede e a senha do router. Quaisquer alterações de configuração serão aplicadas automaticamente a toda a rede Powerline
- Sincronização automática de Wi-Fi - Adicione extensores adicionais à sua rede powerline pelo botão de par, sincronize uniformemente as configurações, como SSID, password, calendarização de Wi-Fi e calendarização de LED para todos os dispositivos de rede
- Plug and Play - configure sua rede powerline e comece a desfrutar de conexões com/sem fios rápidas e contínuas em minutos
- Tomada elétrica extra - obtenha energia da tomada para seus outros aparelhos com a tomada de alimentação integrada
- 3 × Porta Gigabit - fornece redes por cabo seguras para desktops, smart TVs ou consolas de jogos
Wall-Piercing Wi-Fi Extended to Every Outlet
AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
TL-WPA8631P KIT

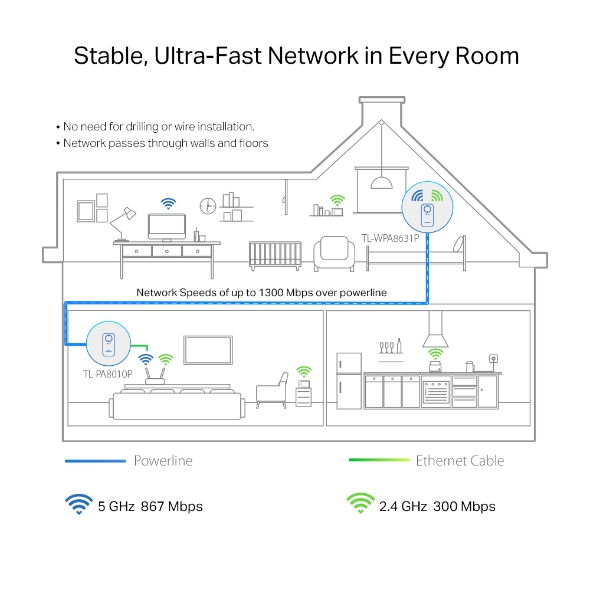

Stable, Ultra-Fast Network in Every Room
- No need for drilling or wire installation.
- Network passes through walls and floors
2.4 GHz 300 Mbps
5 GHz 867 Mbps
The passthrough powerline kit extends AC1200 Wi-Fi to any area in your home.
Up to
1300Mbps
AV1
500Mbps
AV2
1300Mbps
The latest HomePlug AV2 technology delivers speeds of up to 1300 Mbps
over Powerline, preventing lost speed during transfers.
Powerline
Ethernet Cable

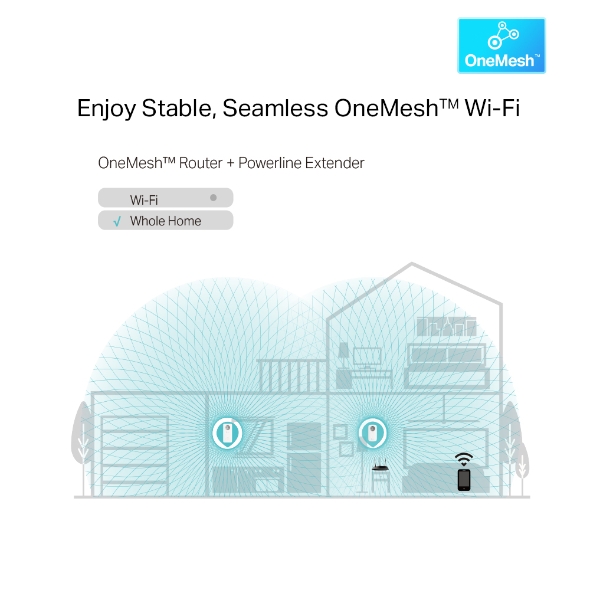

Enjoy Stable, Seamless OneMesh™ Wi-Fi
Bothered by dropped connections while moving around your home?
With the newest OneMeshTM technology, the kit works with your existing OneMeshTM router to form a unified Mesh network. No more switching Wi-Fi network names, enjoy uninterrupted streaming and truly seamless AC1200 Wi-Fi.
-
OneMesh™ Router + Range Extender
-
Traditional Router with Extender
2×2 MIMO Technology for Efficient Transmissions
-
More Stable Connections
2×2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability.
Traditional SISO Transmission
SISO - Single-input Single-outputAdvanced MIMO Transmission
MIMO - Multi-input Multi-output -
Enhanced Long-Distance Performance
2×2 MIMO with Beamforming technology also offers the benefit of improved coverage throughout the home, particularly for previously hard-to-reach outlets.
SISO
Long Distance
MIMO
Long Distance
2×2 MIMO greatly shortens data transmission times, especially during peak hours.

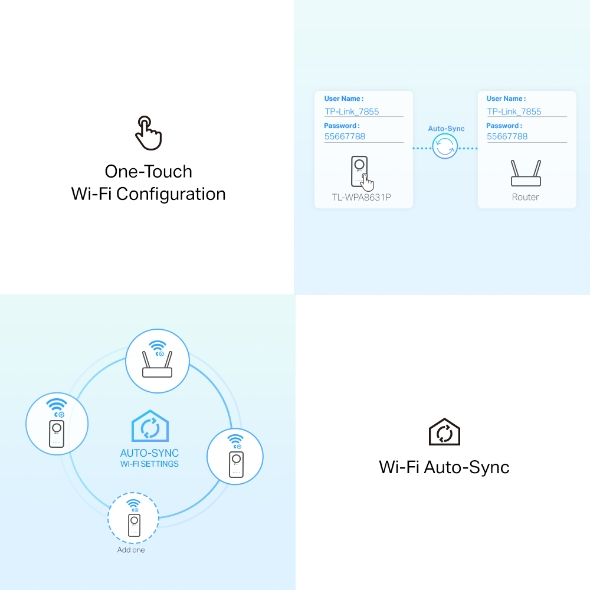

One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.
Wi-Fi Auto-Sync
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.

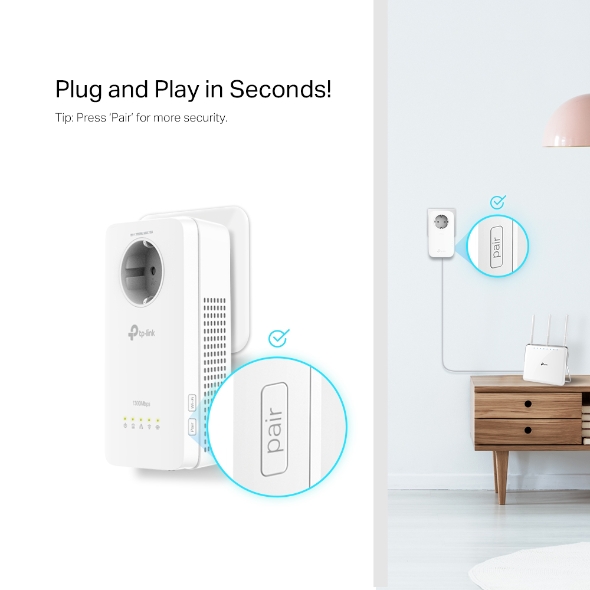

Plug and Play in Seconds!
Plug TL-PA8010P in the wall and connect it to the router. Then plug TL-WPA8631P into any desired power socket.
That’s it. You’re done!
Tip: Press ‘Pair’ for more security.

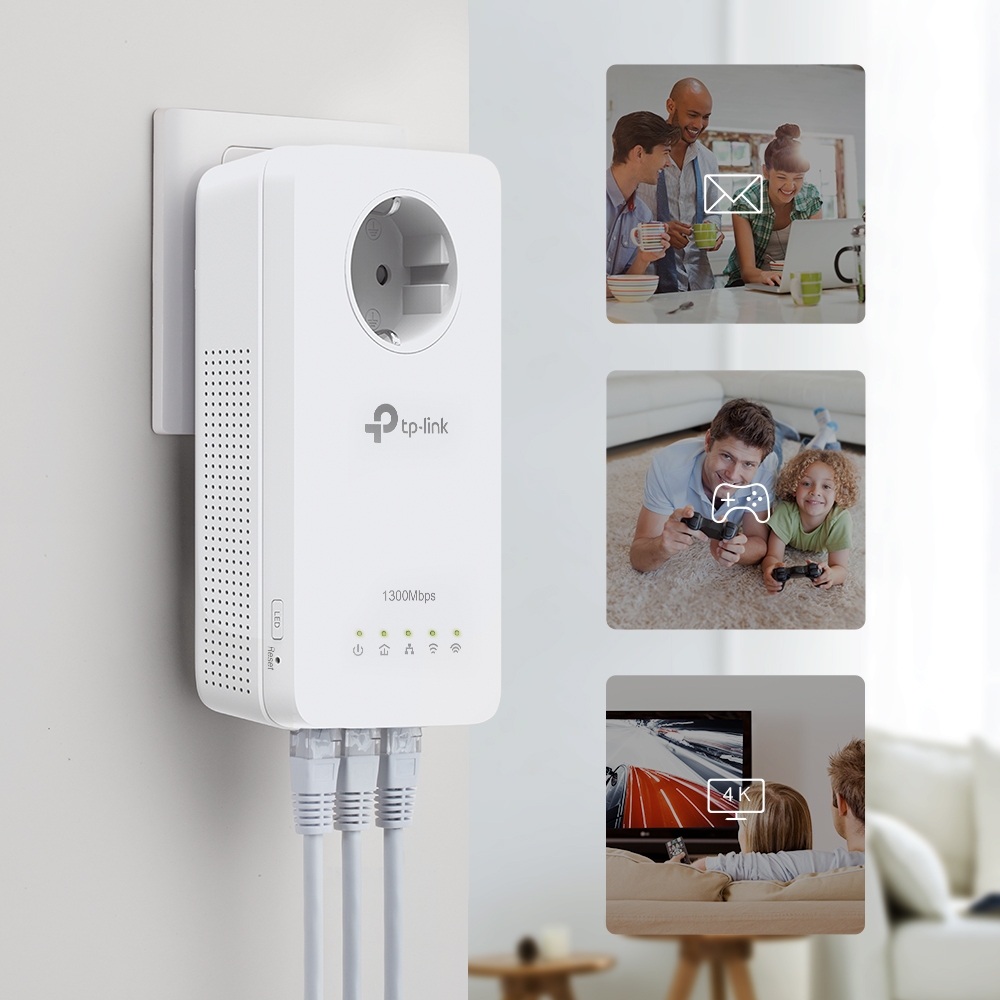

Don’t Lose an Outlet
The passthrough powerline kit can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.
More Gigabit Ethernet Ports, More Devices
Equipped with 3× gigabit Ethernet ports, the kit provides wired connections for 4K video, IPTV streaming, lag-free gaming, and more.
Powerline Management on Your Smartphone
Manage your powerline WiFi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.
- View real-time powerline speed
- LED control (also controlled by LED On/Off button)
- Guest network
Scan the QR code to download TP-Link tpPLC app.
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Transmission Speeds | Powerline: up to 1300 MbpsEthernet: 10/100/1000 Mbps |
| Transmission Distance | Up to 300 meters/1000 feet over existing electrical wiring |
| Protocolos e Normas | HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz) |
| Compatibility | Compatible with all HomePlug AV & HomePlug AV2 standardpowerline adapters* |
| Tipo de ficha | EU |
| Interface | 3 Gigabit Ethernet Ports |
| Botão | Pair, LED On/Off, Wi-Fi, Reset |
| Consumo de energia | TL-WPA8631P: Maximum: 13.7W, Typical: 11WTL-PA8010P: Maximum: 4.9W, Typical: 4.6W |
| Indicador LED | Power, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz) |
| Dimensões (L x P x A) | TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm)TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm) |
| Alcance | Up to 300 meters/1000 feet over existing electrical wiring* |
| FUNCIONALIDADES WI-FI | |
|---|---|
| Normas Wireless | • TL-WPA8631P: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz• TL-PA8010P: N/A |
| Frequências | • TL-WPA8631P: 2.4 GHz and 5 GHz• TL-PA8010P: N/A |
| Signal Rate | • TL-WPA8631P: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz• TL-PA8010P: N/A |
| FUNCIONALIDADES SOFTWARE | |
|---|---|
| Mesh Technology | OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products> |
| Quality of Service | • ToS• Supports up to 4-level type QoS• Support up to 8-level VLAN priority field |
| Security | Wireless: WPA-PSK/WPA2-PSK, WEP Encryptions,Powerline: 128-bit AES Encryption |
| Gestão | TP-Link tpPLC App, or download new tpPLC Utility on PCs: www.tp-link.com/support/download |
| Modulation Technology | OFDM |
| IGMP | IGMP v1/v2/v3 |
| SOFTWARE | |
|---|---|
| OneMesh™ | OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products> |
| PHYSICAL | |
|---|---|
| Dimensões (L x P x A) | • TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm)• TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm) |
| Package Contents | • AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT: 1× TL-WPA8631P, 1× TL-PA8010P;• 2× Ethernet Cables;• 1× Quick Installation Guide |
| OUTROS | |
|---|---|
| Certificações | CE, RoHS |
| Conteúdo da embalagem | AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT: 1× TL-WPA8631P, 1× TL-PA8010P;2× Ethernet Cables;1× Quick Installation Guide |
| Requisitos de Sistema | System Requirements:Windows 10/8.1/8/7/Vista/XP, Mac OS, LinuxSystem Requirements for tpPLC Utility:Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later) |
| Temperatura e Humidade | Operating Temperature: 0°C~40°C (32°F~104°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
*1. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
*2. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*3. Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline being located in a separate circuit.
