Archer BE230

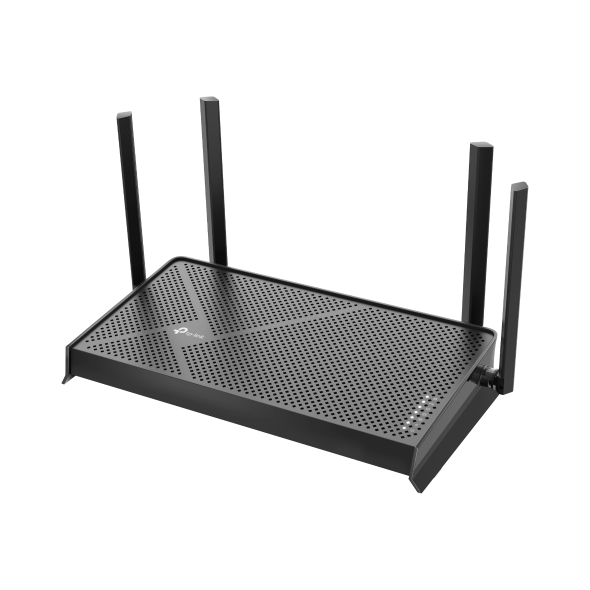

NovoBE3600 Dual-Band Wi-Fi 7 Router
- 3.6 Gbps Dual-Band WiFi 7: BE3600 Dual-Band WiFi delivers WiFi speeds up to 3.6 Gbps.†‡
- 2× 2.5G Ports: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports offer high-speed data transmissions.§
- Maximized Coverage: 4× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.*
-
Easy Setup and Use: Network management has never been easier with the Tether app.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.**
-
Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers.***
Exploring the New Era of Home WiFi
BE3600 Dual-Band Wi-Fi 7 Router

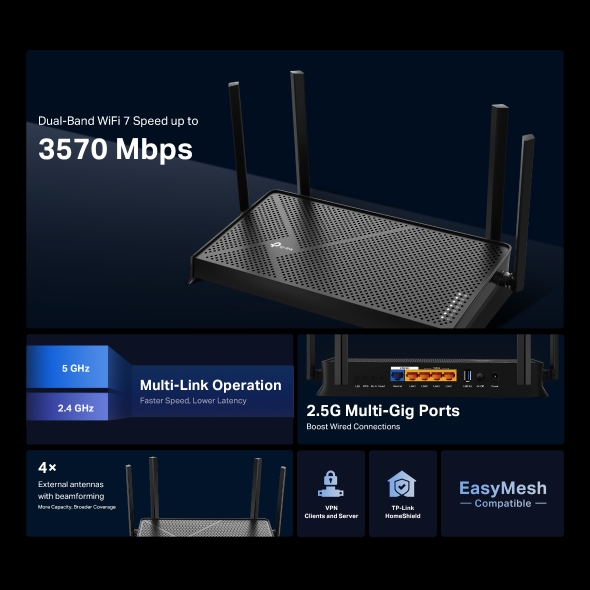

Next-Level Experience Realized with 3.6 Gbps WiFi 7
Powered by Wi-Fi 7 technology, Archer BE230 delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†
Multi-Link Operation
Higher speed, lower latency, more reliable.‡
-
Multi-RUs
Makes full use of resource for higher throughput‡
-
4K-QAM
Packs 120% data for higher speeds.‡
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.
Boosted WiFi Coverage Throughout Your Home
4× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Flexibly Create Whole Home Mesh WiFi
Archer BE230 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.◇
-
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
-
Smart Roaming
Uninterrupted streaming when moving around your home
-
One WiFi Name
No more switching WiFi network names
Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.*
-
Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
-
Parental Controls
Manage time online and block inappropriate content to keep your family safe online.
-
Quality of Service
Assign your favorite devices to have the fastest connections for top performance.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE230 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Ordinary Internet
Encryption VPN Connection (OpenVPN/ PPTP/L2TP/WireGuard VPN)
Setup Got Easier than Ever
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
Learn more about the Tether app >
CONNECT
to a modem and power on both.
DOWNLOAD
and launch the Tether app.
CONFIGURE
by following the in-app instructions.
| WIRELESS | |
|---|---|
| WiFi Speeds | BE3600• 5 GHz: 2882 Mbps (802.11be)• 2.4 GHz: 688 Mbps (802.11be) |
| WiFi Range | 3 Bedroom Houses 4× External AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | High Dual-BandAllocate devices to different bands for optimal performance2×2 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsOFDMASimultaneously communicates with multiple clientsAirtime FairnessImproves network efficiency by limiting excessive occupationDFSAccess an extra band to reduce congestion4 StreamsConnect your devices to more bandwidth |
| Advanced Functions | • Multi-Link Operation (MLO)• 4K-QAM• Multi-RUs• EasyMesh-Compatible• Works with Alexa and Google Assistant• IoT Network |
| Wireless Mode | • Router Mode• Access Point Mode |
| SEGURANÇA | |
|---|---|
| Network Security | • SPI Firewall• Access Control• IP & MAC Binding• Application Layer Gateway• HomeShield Security Real-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner |
| Guest Network | • 1× 5 GHz Guest Network• 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server• PPTP VPN Server• L2TP VPN Server• WireGuard VPN Server |
| VPN Client | • Open VPN Client• PPTP VPN Client• L2TP VPN Client• WireGuard VPN Client |
| WiFi Encryption | • WPA• WPA2• WPA3• WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Ethernet Ports | • 1× 2.5 Gbps WAN• 1× 2.5 Gbps LAN• 3× 1 Gbps LAN |
| USB Support | 1× USB 3.0• Supported Partition Formats:NTFS, exFAT, HFS+, FAT32• Supported Functions:FTP ServerMedia ServerSamba Server |
| Buttons | • Power On/Off Button• Wi-Fi On/Off Button• LED Button • WPS Button• Reset Button |
| Power | 12 V ⎓ 2 A (US)12 V ⎓ 1.5 A (EU) |
| SOFTWARE | |
|---|---|
| Protocol | • IPv4• IPv6 |
| Service Kit | HomeShieldLearn More> |
| EasyMesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls Custom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports |
| WAN Type | • Dynamic IP• Static IP• PPPoE• PPTP• L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade• TP-Link ID• DDNS |
| NAT Forwarding | • Port Forwarding• Port Triggering• DMZ• UPnP |
| IPTV | • IGMP Proxy• IGMP Snooping• Bridge• Tag VLAN |
| DHCP | • Address Reservation• DHCP Client List• Server |
| DDNS | • TP-Link• NO-IP• DynDNS |
| Management | • Tether App• Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉)• Operating Humidity: 10%~90% non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.
§2.5 Gbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
*TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.
**HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
***WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/be. All devices need to support 802.11 WiFi protocols.
