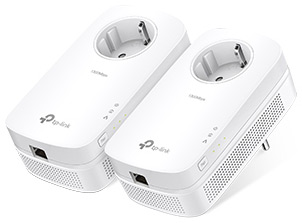

TL-PA8030P KIT
AV1300 3-port Gigabit Passthrough Powerline Starter Kit
- HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1300Mbps1, supports all your online needs
- Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connections
- 3 gigabit ports create secure wired networks for desktops, smart TVs or games consoles
- Integrated power socket ensures no power outlet goes to waste
- Plug and play, no configuration required
- Patented Power-Saving Mode automatically reduces power consumption by up to 85%2
AV1300 Powerline Kit
Bring Your Network
Into New Era
HomePlug AV2
AV1300 3-Port
Gigabit Passthrough
Powerline Starter Kit
TL-PA8030P KIT
Upgraded 1300Mbps!
Perfect for Bandwidth
Demanding Activities
Advanced HomePlug AV2 technology means the TL-PA8030P KIT
supports 2x2 MIMO* with beamforming, so users benefit from ultra-fast
data transfer speeds of up to 1300Mbps. Perfect for bandwidth
demanding activities like streaming Ultra HD video to multiple devices
simultaneously, online gaming and large file transfers.
*The MIMO functionality within HomePlug AV2 significantly improves
data transfer rates especially during peak periods.
Line-Neutral/Line-Ground
with Beamforming
Larger Range
MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.
Long Distance Long Distance
MIMOSISO
Higher Transmission Capacity & More Stable Connections
MIMO Technology means the TL-PA8030P KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.
- Neutral Wire
- Line Wire
- Ground Wire
MIMOSISO
Note:
MIMO - Multi-input Multi-output
SISO - Single-input Single-output
3 Gigabit Ports
for Maximum Connectivity
With 3 gigabit Ethernet ports, TL-PA8030P KIT can simultaneously connect up to 3 wired-only devices. This makes the TL-PA8030P KIT the perfect home entertainment companion. Connect any 3 devices from smart TVs and game consoles to NAS boxes and computers to the Internet at the same time. Just plug the Ethernet cable into the powerline and away you go!
- Game Console
- 4K TV
- Computer
Plug and Play,
No Configuration Required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!
Extra Power Socket for
Additional Devices
The integrated power socket, with power output of up to 16A*, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.
*Power output of up to 16A is suitable for high-power
electrical appliances to be connected.
Power Save by
Up to 85%
TL-PA8030P KIT is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.
- Working mode
- Power-Saving mode
Related Products
| TL-PA8030P | TL-PA8010P | AV1200 Gigabit Passthrough Powerline Starter KitTL-PA8010P KIT  |
|
|---|---|---|---|
| HomePlug AV2 Standard | √ | √ | |
| Powerline Speed | 1200Mbps | 1200Mbps | |
| Ethernet Port | 3 Gigabit Ports | 1 Gigabit Port | |
| Extra Power Socket | √ | √ | |
| One Button Security | √ | √ | |
| Power Saving Mode | 85% | 85% |
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Protocolos e Normas | HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Tipo de ficha | EU |
| Interface | 3 * Gigabit Ethernet Port, Power Socket |
| Botão | Pair Button |
| Consumo de energia | Maximum: 6W (220V/50Hz) Typical: 6W (220V/50Hz) Standby: 0.5W (220V/50Hz) |
| Indicador LED | PWR, PLC, ETH |
| Dimensões (L x P x A) | 5.2×2.8×1.7 in. (131×72×42 mm) |
| Alcance | 300 Meters over electrical circuit |
| Power Output to Integrated Socket | 16 A |
| FUNCIONALIDADES SOFTWARE | |
|---|---|
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security: 128-bit AES |
| OUTROS | |
|---|---|
| Certificações | CE, RoHS |
| Conteúdo da embalagem | Powerline Ethernet Adapter 6.5 ft. (2 m) Ethernet cable (RJ45) Resource CD Quick Installation Guide |
| Requisitos de Sistema | Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux |
| Temperatura e Humidade | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
- Reviews
-
-
TP- LINK’s Powerline adapters provide a drop-dead simple networking solution that overcomes Wi-Fi’s shortcomings without the need to drill holes in your walls or run cables across your floors. It’s an elegant, simple and relatively inexpensive way to beef up your home network.
-
- Prémios
-
-
Recommended ProductTL-PA8030P KIT was recommended by Redes Zone2015, Spain -
Recommended ProductTL-PA8030P KIT was recommended by Computer Hoy2015, Spain -
Best BuyTL-PA8030P KIT has received Best Buy award from Sunday times2015, UK -
Recommended ProductTL-PA8030P KIT was recommended by Todo HTPC2016, Spain
-
- The theoretical maximum channel data transfer rate is derived from HomePlug AV2 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.
- Actual data will vary because of the network conditions and environment factors.
