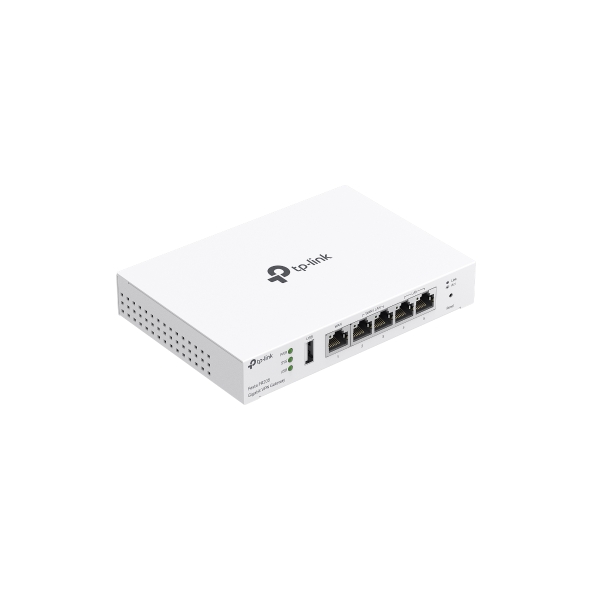

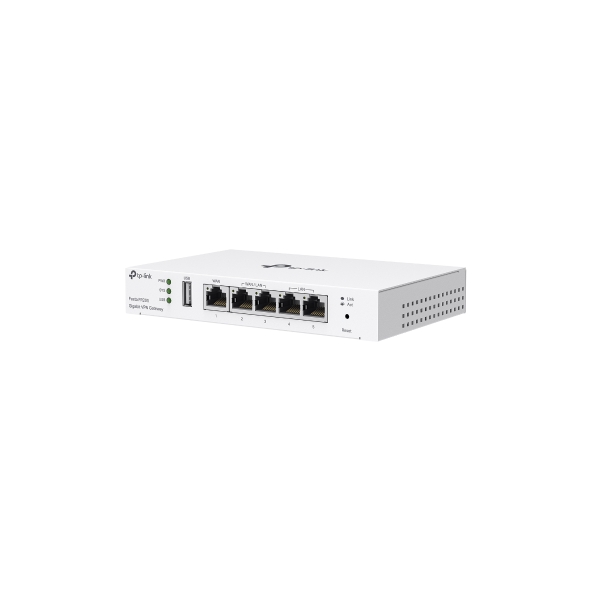

Festa FR205

În curând

Gigabit VPN Gateway

Free Cloud Centralized Management: Accessible via the Festa app or the web^†.
Easy Setup and Use: No professional IT technician is required. Festa App, Self-Organizing Networking, and Zero-Touch Provisioning technology make it a breeze.
Complete Festa Ecosystem: Business-class features with consumer-inspired simplicity. It's ideal for small businesses, home offices, cafes, retail, prosumers, advanced consumers, and large households.

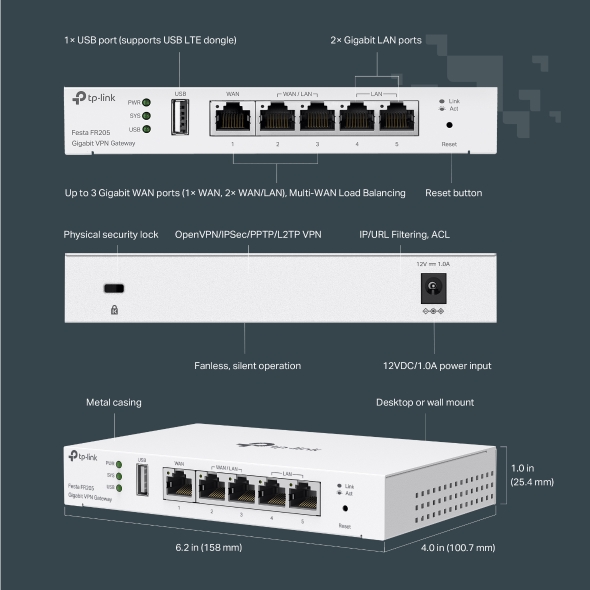

5× Gigabit Ports: 1× WAN, 2× WAN/LAN, and 2× LAN ports for high-speed Gigabit connectivity.
1× USB WAN Port: Enables mobile broadband backup via a 4G/3G modem^‡.
Load Balancing on Up to 3 WAN Ports: Optimizes multi-line broadband utilization.
High-Security VPN Options: Supports IPSec, PPTP, L2TP, and OpenVPN.
Business-Level Quality: Features an elegant metal casing and a design suitable for desktop or wall mounting.

5 Gigabit Ports,
1 USB Port
Load Balancing on up to
3 WAN Ports
Desktop or Wall
Mount
Free Centralized
Management Via Cloud^†

Festa App for Easy
Setup and Management
Zero-Touch
Provisioning (ZTP)
OpenVPN/IPSec/PPTP/
L2TP VPN
Durable Metal Casing

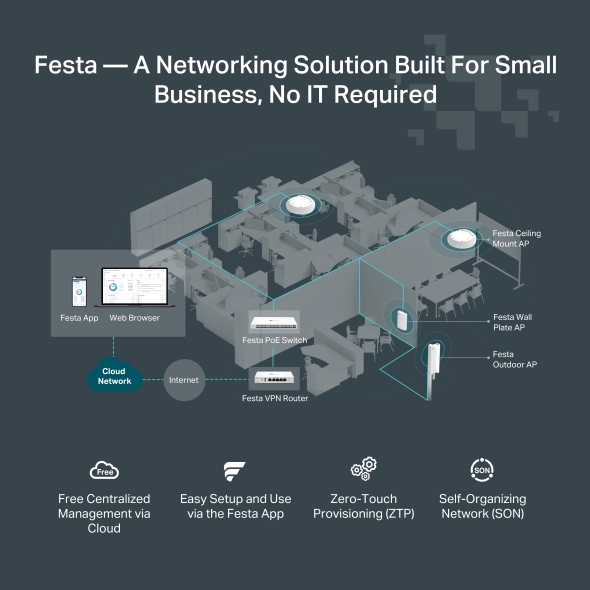

Festa 一 A Networking Solution Built For Small Business, No IT Required

Festa offers business-class features with consumer-inspired simplicity. Our free cloud-based management is Festa offers business-class features with consumer-inspired simplicity. Our free cloud-based centralized management is accessible via the Festa app or web, providing essential features for small businesses without the complexity required by larger-scale operations.

Learn More >

Free Centralized
Management via Cloud
Festa App for Easy
Setup and Management
Zero-Touch
Provisioning (ZTP)
Self-Organizing
Network (SON)

Small Offices
Quick Service Restaurants
Boutique Hotels
Houses of Worship
Public Facilities
Large Homes

Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband

High-Security and High-Performance VPN

OpenVPN/IPSec/PPTP/L2TP VPN effortlessly establishes secure VPN tunnels for safe internet browsing, communication between branches, or enabling remote work and study from home.

Easy to Block Unwanted Websites

Effortlessly set internet access rights and strategies via IP/URL Filtering and Access Control List (ACL).

Festa App and Web for Easy Setup and Management

Securitate
Access Control	Source/Destination IP-Based Access Control
Filtrare	URL Filtering

CARACTERISTICI HARDWARE
Standarde și Protocoale	• IIEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interfață	• 1× Gigabit WAN port • 2× Gigabit WAN/LAN ports • 2× Gigabit LAN ports • 1× USB 2.0 (supports USB LTE dongle^‡)
Rețea media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Număr ventilatoare	Fanless
Butoane	Reset Button
Alimentator	External 12V/1A DC Adapter
Flash	128 MB NAND
DRAM	256 MB DDR
LED	PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensiuni (L x l x H)	6.2×4.0×1.0 in (158×100.7×25.4 mm)
Carcasă	Steel

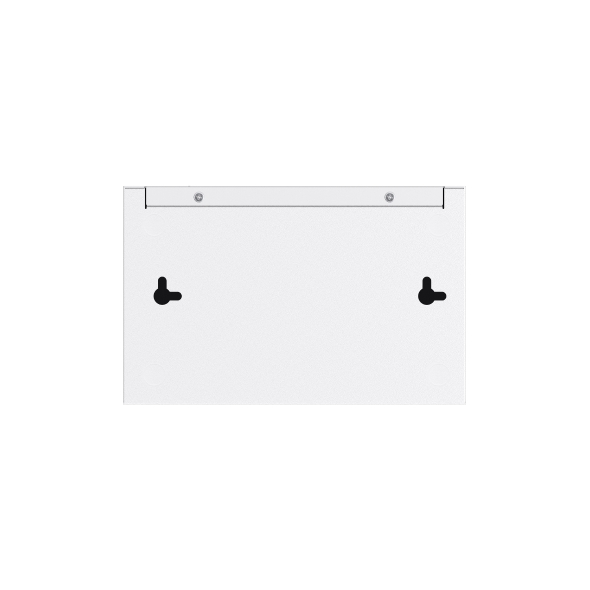

Montare	Desktop/Wall-mount
Consum maxim	7.94 W

Performanță
Sesiuni Concomitente	150,000
New Sessions /Second	2,600
IPsec VPN Throughput	• ESP-SHA1-AES256: 259.78 Mbps • ESP-SHA256-AES256: 260.81 Mbps • ESP-SHA384-AES256: 37.65 Mbps • ESP-SHA512-AES256: 38.32 Mbps
OpenVPN	• 21.70 Mbps
L2TP VPN Throughput	• Unencrypted: 640.99 Mbps • Encrypted: 77.31 Mbps
PPTP VPN Throughput	• Unencrypted: 759.55 Mbps • Encrypted: 75.80 Mbps
66 Byte Packet forwarding rate	• Upload/Download: 954.50 Mbps • Bi-Directional: 1130.00 Mbps
1,518 Byte Packet forwarding rate	• Upload/Download: 997.50 Mbps • Bi-Directional: 1965.00 Mbps

Funcții de Bază
Tip Conexiune WAN	• Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
Clonare MAC	Modify WAN MAC Address
DHCP	• DHCP Server • DHCP Options Customization • Multi-IP Interfaces • Multi-Net DHCP
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

TRANSMISSION
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
NAT	NAT-DMZ
Routing	• Static Routing • Policy Routing
Bandwidth Control	IP-based Bandwidth Control

VPN
VPN IPsec	• 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 • Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
VPN PPTP	• PPTP VPN Server • PPTP VPN Client (10)* • 16 Tunnels • PPTP with MPPE Encryption
VPN L2TP	• L2TP VPN Server • L2TP VPN Client (10)* • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10)* • 50 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode

MANAGEMENT
Centralized Management	√ （via Festa App or Web UI)
APP support	Festa App
Cloud Access	Free Cloud
Servicii	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Mentenanță	• Web Management Interface • SNMP v1/v2c/v3 • Port Mirroring • Syslog Support
Zero-Touch Provisioning	√
Management Features	• Self-Organizing Network (SON) • Auto Topology • Multi-site Management • Remote Maintenance • Batch Firmware Upgrading • Batch Configuration • Integrated Troubleshooting Tools • Monitor Network Status • Access Condition Logs and Alerts

Altele
Certificări	CE, FCC, RoHS,VCCI, BSMI, KC
Conținut Pachet	• Festa FR205 • Power Adapter • RJ-45 Ethernet Cable • Quick Installation Guide • Silicone Feet
Cerințe de sistem	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Mediu	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing
