HB710
BE18000 Tri-Band Whole Home Mesh WiFi 7 System
- 18 Gbps Tri-Band WiFi 7: 10-stream tri-band WiFi enables gaming, 4K/8K streaming, AR/VR, and high-speed downloading on multiple devices—all at the same time.*
- 10 Gbps Wired Connectivity: 1× 10 GbE WAN/LAN port and 1× 10 GbE LAN port ensure the ultimate internet access and ultra-fast wired connections.△
- Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across three bands.†
- Clear 320 MHz Channels: Enjoy robust, high-speed connectivity with doubled throughput on 320 MHz channels on the expansive and less-congested 6 GHz band.†
- Whole Home Coverage: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.‡
- More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.†
- Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide a personalised and safer online experience.†
- Easy Setup and Use: Set up your mesh network in minutes with the powerful Aginet app.
- Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.
Super Mesh-Powered WiFi 7
BE18000 Tri-Band Whole Home Mesh WiFi 7 System
HB710
18 Gbps Tri-Band Speeds 10 Simultaneous Spatial Streams
320 MHz
Channels
4K-QAM
Multi-Link Operation
EasyMesh-Compatible
Seamless Roaming
10G Ethernet Backhaul
10G Internet Access
Parental Controls
Enhanced Security
Aginet Solution
End-to-End
Management Platform
TR-069/TR-369 Remote Management
Wi-Fi 7 — Revolutionize Your WiFi Experience
WiFi 7 has arrived with unprecedented performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.†
-
Extremely High Throughput
-
Wi-Fi 6
-
Wi-Fi 5
-
320 MHz
Doubles the bandwidth, doubles the speed
-
4K-QAM
Packs 120% data for higher speeds
-
Multi-Link Operation
Increases throughput, reduces latency, and improves reliability
-
Multi-RUs
Make full use of every resource for maximum efficiency
18 Gbps Tri-Band WiFi Speeds
Next-gen 2.4 GHz, 5 GHz, and 6 GHz bands enhance WiFi speeds and efficiency significantly, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive AR/VR, online gaming, and blazing-fast downloads.*

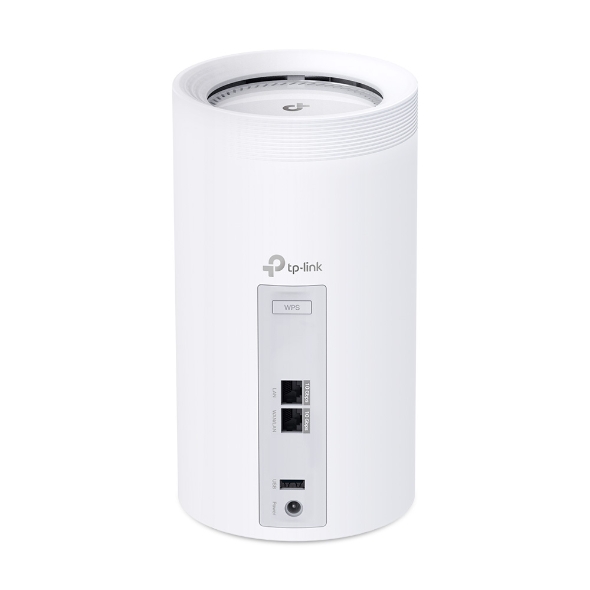

10G Internet Access and Wired Connectivity
Equipped with a 10 GbE WAN/LAN port, HB710 enables 10 Gbps internet access, catering to your high-band width needs. Its 10 GbE LAN port serves as a robust wired backhaul for stronger and more stable mesh networks or as a wired link for ultra-fast wired networking, while the USB port can be used to share files, music, and videos within your network at high speeds.△
- Multi-Gig Internet Access
- Multi-Gig Wired Connections
- Fast Media Sharing
Extensive WiFi Coverage and Stronger Signals
A high-performance antenna array and beamforming technology combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.
Beamforming
8× High-Gain Antennas
The optimally positioned antenna array ensures balanced WiFi coverage with high isolation and less interference
10× High-Power FEMs
Maximize range for better performance
Whole Home Coverage Backed by Robust Backhual
Empowered by EasyMesh technology, HB710 delivers strong WiFi signals to every corner of your home. Ethernet backhaul and wireless backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HB710 unit wherever you want.‡
-
Ranch-Style Home
-
Multi-Story Home
-
L-Shaped Home
Ethernet Backhaul
Up to 10 Gbps connections
Wireless Backhaul
Across 2.4 GHz, 5 GHz, and 6 GHz
Seamless Roaming with One WiFi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience. ‡
-
Mesh System
-
Traditional Router with Extender
-
Web Browsing
-
Smart Home Devices
-
IP Camera Streaming
-
4K Streaming
-
8K Streaming
-
Online Gaming
-
720P Streaming
-
1080P Streaming
-
High-speed Downloading
*Testing of multiple applications and devices is conducted in TP-Link labs. Actual results may vary.
More Connections, No More Buffering
Enhanced by WiFi 7 and featuring OFDMA, Multi-link operation (MLO), and MU-MIMO, you can connect 200+ devices simultaneously to build a fully connected home. Enjoy a more efficient network that loads faster without dragging down performance.†
Connects
200+
devices*
Robust Network Protection
-
WPA3 Security
Higher password safety and enhanced protection against brute-force attacks†
-
Parental Controls
Block inappropriate content and restrict time spent online
-
Multi-SSID
Create separate networks for visitors and keep your main network secure
2-in-1 Router and
Access Point
The versatile and multi-purpose HB710 features options to serve as either a router or access point. Select the mode that suits your requirements for adaptable wireless and wired networking.
-
Router Mode
Create a private wireless and wired network
-
Access Point Mode
Create WiFi access for your existing wired network
Easy to Set Up and Use
You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.
Supports TR-069/TR-369 Remote Management
ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols. While the home user can enjoy more efficient service experiences.
TR-069/TR-369
Remote Management
TR-181 TR-111 TR-143TR-069/TR-369
The Aginet Solution: An End-to-End Management Platform
The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 10 GbE WAN/LAN Port1× 10 GbE LAN Port1× USB 2.0 Port*Per Unit |
| Button | WPS ButtonReset Button |
| External Power Supply | 12V/5A |
| Dimensions ( W x D x H ) | 5.04 × 5.04 × 9.29 in(128 × 128 × 236 mm) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/g/b 2.4 GHz |
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate | BE180006 GHz: Up to 11520 Mbps (EHT320)5 GHz: Up to 5760 Mbps (EHT160)2.4 GHz: Up to 688 Mbps (EHT40)* |
| Transmit Power | FCC:<30 dBm (2.4 GHz)<30 dBm(5 GHz)<30 dBm(6 GHz)CE:<20 dBm (2.4 GHz)<30 dBm (5 GHz)<23 dBm (6 GHz) |
| Wireless Security | WPA/WPA2/WPA3-Personal |
| Multi-SSID | 2× 6 GHz Multi-SSID2× 5 GHz Multi-SSID2× 2.4 GHz Multi-SSID |
| Mesh Technology | EasyMesh compatible and supports 802.11k/v/r |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM |
| Advanced Features | Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU,OFDMA, MU-MIMO, Beamforming, BSS ColorQoS (Quality of Service), Port Forwarding, CWMPParental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
| Management | Local management: WebGUI, Aginet app (for end users)Remote management: TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 for service providersAginet App for end users (need to log in wtih TP-Link ID and bind your device to it)Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
| VPN | PPTP, OpenVPN, IPSec |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4 IPv6 |
| Working Modes | Router ModeAccess Point Mode |
| OTHERS | |
|---|---|
| Package Contents | HB710 (1-Pack)1× HB710 Unit1× Power Adapter1× RJ45 Ethernet Cable1× Quick Installation GuideHB710 (2-Pack)2× HB710 Units2× Power Adapters1× RJ45 Ethernet Cable1× Quick Installation Guide |
| Certifications | CE, FCC |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†Use of WiFi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, BSS Color, and WPA3 requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 mesh.
‡Mesh networking requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
△10 Gbps or multi-gig internet speeds require compatible service plans and equipment. The WAN/LAN port will operate as either a WAN or LAN port. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
