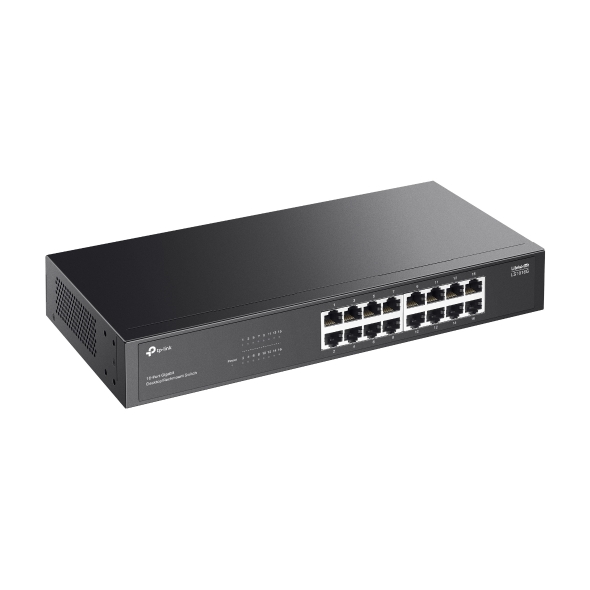

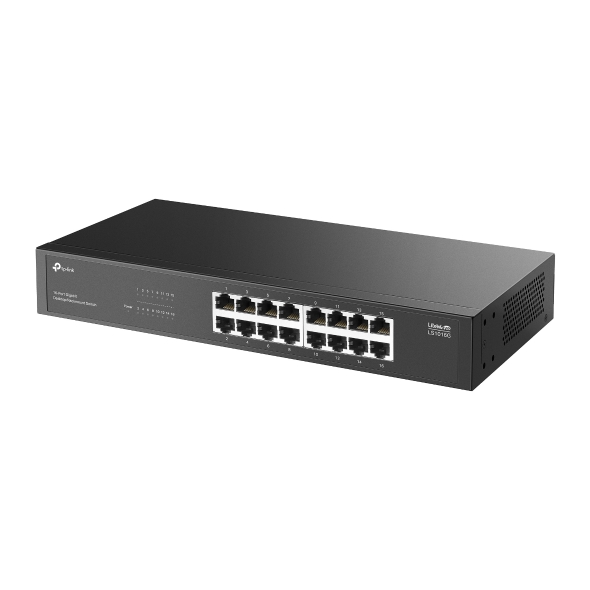

LS1016G
16-Port Gigabit Desktop/Rackmount Switch
- 16× 10/100/1000Mbps ports
- Supports MAC address self-learning, Auto MDI/MDIX and Auto Negotiation
- Plug & play design
- QoS ensures smooth traffic for latency sensitive applications such as voice or video
- Innovative energy-efficient technology saves power consumption
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
- Durable metal casing provides improved heat dissipation and ensures a longer product life
- Desktop or rackmount installation
Expand Your Network,
Ensure Faster Speed
16-Port Gigabit
Desktop/Rackmount Switch

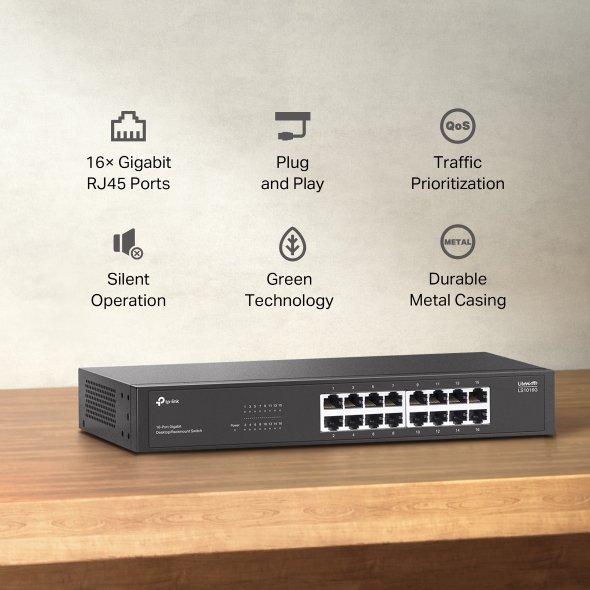

16× Gigabit
RJ45 Ports
Plug
and Play
Traffic
Prioritization
Silent
Operation
Green
Technology
Durable
Metal Casing

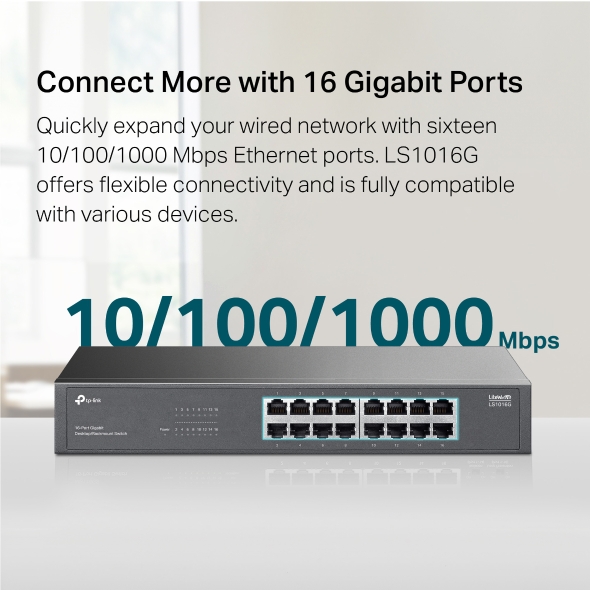

Connect More
with 16 Gigabit Ports
Quickly expand your wired network with sixteen 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. LS1016G offers flexible connectivity and is fully compatible with 4K UHD TVs, computers, printers, IP cameras, game consoles, and more
QoS for a Lag-Free Experience
QoS (Quality of Service) ensures smooth traffic for latency sensitive applications under limited bandwidth resources, such as voice and video.

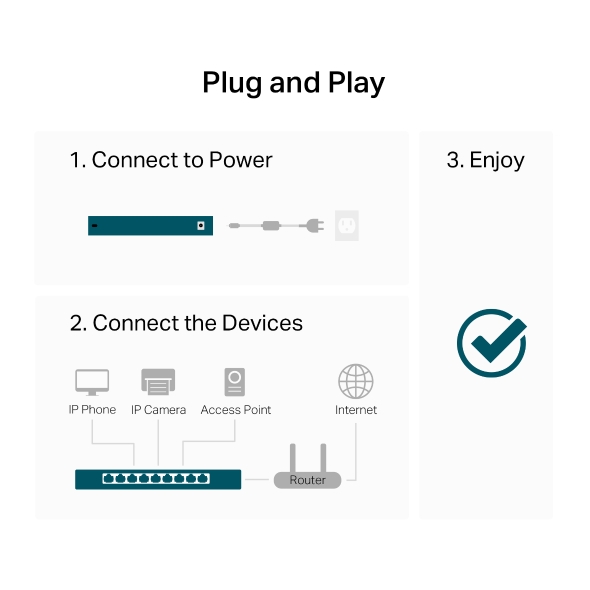

Plug and Play

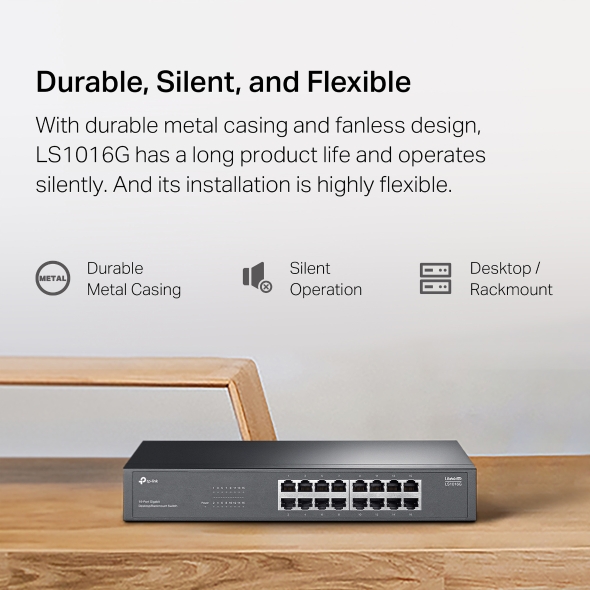

Durable, Silent, and Flexible
LS1016G’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. Its fanless design reduces power consumption and noise generated, making it ideal for noise-sensitive environments. And you can put the switch on desk or mount it to the rack according to your demand.

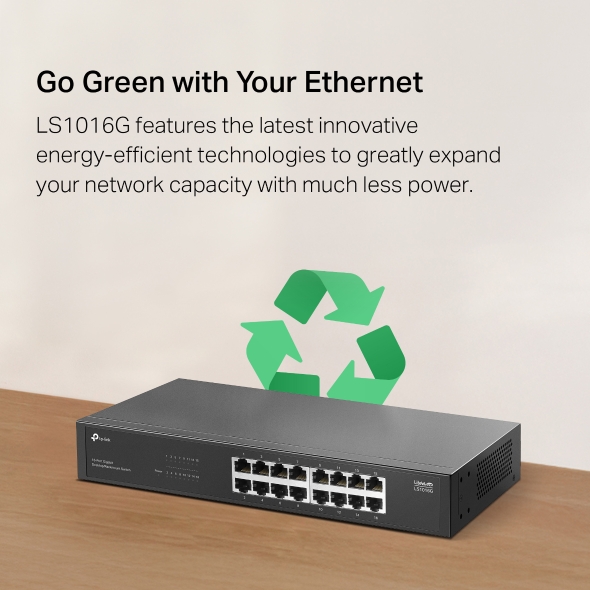

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! LS1016G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption to limit the carbon footprint of your network.
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Standartlar ve Protokoller | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p |
| Arabirim | 16× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• 100BASE-TX: UTP category 5 or above cable (maximum 100m)• 1000BASE-T: UTP category 5e or above cable (maximum 100m) |
| Fan Sayısı | Fanless |
| Güç Kaynağı | 100-240V~50/60Hz, 0.3A |
| Boyutlar ( W X D X H ) | 11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm) |
| Maks. Güç Tüketimi | 7.2 W (110V/60Hz) |
| Max Heat Dissipation | 24.42 BTU/h (110V/60Hz) |
| PERFORMANS | |
|---|---|
| Anahtarlama Kapasitesi | 32 Gbps |
| Paket Yönlendirme Hızı | 23.808 Mpps |
| MAC Adres Tablosu | 8K |
| Jumbo Frame | 15 KB |
| Yeşil Teknoloji | Yes |
| Transfer Metodu | Store-and-Forward |
| DİĞERLERİ | |
|---|---|
| Sertifika | FCC, CE, RoHs |
| Paket İçeriği | 16-Port Gigabit Desktop/Rackmount SwitchPower CordInstallation GuideRackmount KitsRubber Feet |
| Ortam | Operating Temperature: 0℃~50℃ (32℉~122℉);Storage Temperature: -40℃~70℃ (-40℉~158℉);Operating Humidity: 10%~90% non-condensing;Storage Humidity: 5%~90% non-condensing |
