Archer D20
AC750 Wireless Dual Band ADSL2+ Modem Router
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections provide a premium wireless experience
- Share a printer locally and files & media with networked devices or remotely via FTP server
- Ethernet WAN (EWAN) port accepts connections from cable and fiber modems via Ethernet cable
- New web UI and Tether APP provide quick & hassle-free installation and easy management
AC750 Wireless Speed

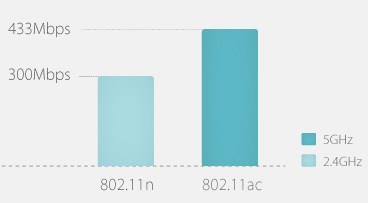

Coming with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speeds in a single stream, Archer D20 delivers a combined wireless data transfer rate of up to 750Mbps with 300Mbps over 2.4GHz and 433Mbps over 5GHz. 802.11ac also brings higher power efficiency and robust security, making Archer D20 a perfect hub for your home or small office network.
Premium Wireless Network Experience
Simultaneous dual band offers the flexibility of two dedicated networks for basic tasks and bandwidth- intensive applications respectively. Two dual band external antennas deliver greater range and perfor-mance.
5GHz2.4GHz
Easy USB Storage and Sharing
Using the Archer D20’s multi-functional USB 2.0 port, you can share a printer with multiple computers and devices on your network and can share files & media at home or via the FTP server while away from home.
Interchangeable LAN/WAN Port
The Archer D20 supports ADSL and Ethernet WAN connections, providing you with the flexibility you need to get the most from your Internet connection. The ADSL port supports ADSL connections via any standard phone cable and the LAN/WAN port allows the Archer D20 to accept connections from fiber/cable modems using an Ethernet cable.
-
- Guest Network
- Guest Network Access pro-
vides another secure Wi-Fi
access for guests sharing
your home or office network
-
- Parental Control
- Parental Controls allow
parents or administrators to
establish restricted access
policies for children or staff
-
- IPv6 Supported
- The Archer D20 supports IPv6,
the next generation of
Internet protocol, helping you
to future-proof your network
Easy Network Management —TP-LINK Tether
TP-LINK Tether provides the easiest way to access and manage your router with your iOS or Android devices. From setup to parental control, Tether provides a simple, intuitive user interface to see what the status of your router is, who’s online and what their privileges are. More models of the router can be configured with TP-LINK Tether.
Install and Manage More Easily
TP-LINK’s innovative web UI (User Interface) is designed into 3 different modules according to different user demands: Quick Setup, Basic and Advanced. The idea behind this is to ensure that everyone’s home network installation and management experience is both quick & hassle free. This is evident in the fact that the new web UI's basic setup can be completed within an astounding 15 seconds.
TP-LINK | Wireless ADSL2+ Modem Routers
| Archer D9 | Archer D7 | Archer D5 | Archer D2 | Archer D20 | |
| Products | AC1900 Wireless Dual Band Gigabit ADSL2+ Modem Router |
AC1750 Wireless Dual Band Gigabit ADSL2+ Modem Router |
AC1200 Wireless Dual Band Gigabit ADSL2+ Modem Router |
AC750 Wireless Dual Band Gigabit ADSL2+ Modem Router |
AC750 Wireless Dual Band ADSL2+ Modem Router |
| Standards | IEEE 802.11ac/ n/g/b/a |
IEEE 802.11ac/ n/g/b/a |
IEEE 802.11ac/ n/g/b/a |
IEEE 802.11ac/ n/g/b/a |
IEEE 802.11ac/ n/g/b/a |
| Wireless Speed | 1300Mbps 600Mbps |
1300Mbps 450Mbps |
867Mbps 300Mbps |
433Mbps 300Mbps |
433Mbps 300Mbps |
| Wireless Range | |||||
| EWAN | √ | √ | √ | √ | √ |
| Gigabit Ports | √ | √ | √ | √ | - |
| USB 2.0 Ports | 1 | 2 | 2 | 1 | 1 |
| USB 3.0 Ports | 1 | - | - | - | - |
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Arabirim | 1 10/100Mbps RJ45 WAN/LAN Port 3 10/100Mbps RJ45 LAN Ports 1 RJ11 Port 1 USB 2.0 Port |
| Buton | 1 Power On/Off Button 1 Wi-Fi On/Off Button 1 WPS/RESET Button |
| Harici Güç Kaynağı | 12VDC/1.5A |
| IEEE Standartları | IEEE 802.3, 802.3u |
| ADSL Standartları | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standartları | ITU-T G.992.3 (G.DMT.bis) |
| ADSL2+ Standartları | ITU-T G.992.5 |
| Boyutlar ( W X D X H ) | 8.0 x 5.6 x 1.3 In. (202 x 141 x 33.7mm) |
| Anten Tipi | 2 external fixed antennas |
| KABLOSUZ ÖZELLİKLERİ | |
|---|---|
| Kablosuz Standartlar | IEEE 802.11b/g/n 2.4GHz IEEE 802.11a/n/ac 5GHz |
| Kablosuz Hızı | 2.4GHz: Up to 300Mbps 5GHz: Up to 433Mbps |
| Frekans | 2.4GHz and 5GHz |
| İletim Gücü | <20dBm(EIRP) |
| Kablosuz Fonksiyonlar | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Kablosuz Güvenlik | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering |
| Kablosuz Takvim | Support 2.4GHz and 5GHz Wireless Schedule |
| YAZILIM ÖZELLİKLERİ | |
|---|---|
| Quality of Service | ATM QoS, Traffic Control(IP QoS) |
| Gelişmiş Özellikler | Parental Control Network Address Translation (NAT); Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3 |
| Güvenlik | NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death IP and MAC Address Binding |
| IPv6 | IPv6 and IPv4 dual stack |
| Çalışma Modları | ADSL Modem Router, Wireless Router |
| Yönetim | Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP relay |
| Port Yönlendirme | Virtual server, Port Triggering, DMZ, ALG, UPnP |
| Dinamik DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Passthrough |
| ATM/PPP Protokolleri | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed) Bridge (RFC1483 Bridge) PVC – Up to 8 PVCs |
| USB Paylaşım | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
| Misafir Ağ | 2.4GHz guest network × 1 5GHz guest network × 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RCM, RoHS |
| Paket İçeriği | AC750 Wireless Dual Band ADSL2+ Modem Router External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Quick Installation Guide Power Adapter |
| Kutu Boyutları (B x Y x E) | 8.0 x 5.6 x 1.3 In. (307 x 223 x 70mm) |
| Sistem Gereksinimleri | Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system |
| Ortam | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
