TL-SG608E
Coming Soon8-Port Gigabit Easy Smart Switch
- 8× 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Easily Expand Your Gigabit
Network and Save Energy
8-Port Gigabit Easy Smart Switch
TL-SG608E
Link Your Devices, Create Convenient Business
The 8-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office.
Office Network
Home Network

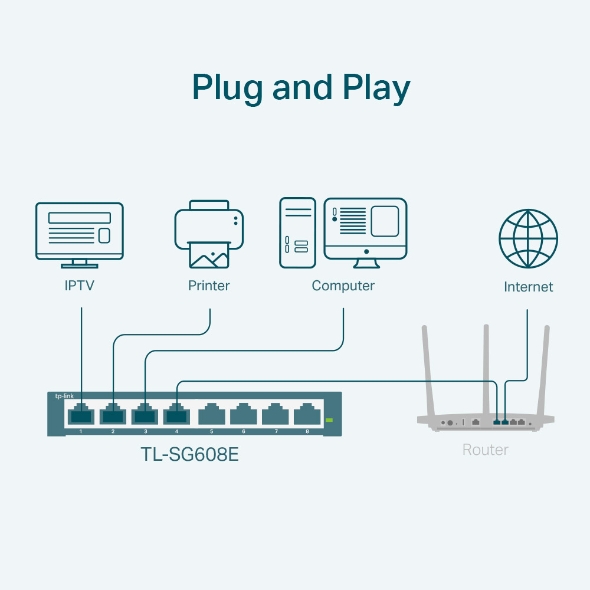

Easy to Use
-
1Plug In
-
2Connect Devices
IPTV Printer Computer Internet TL-SG608E Router -
3Enjoy

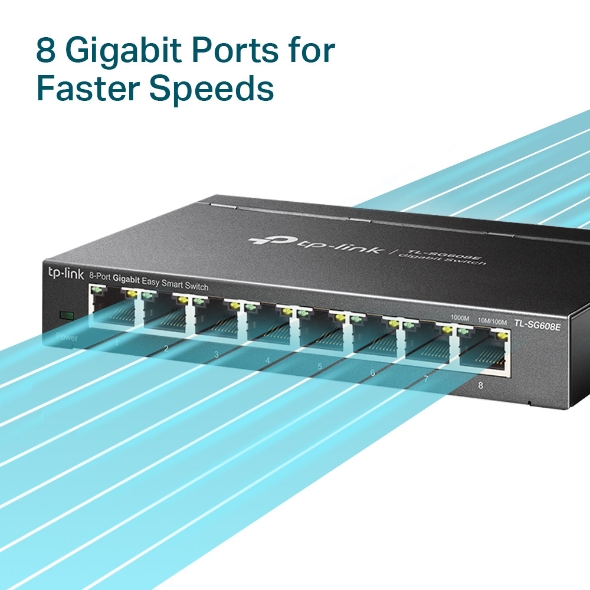

Gigabit Ports for Maximum Speed
8 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.
TL-SG608E
More Features,More Choices
-
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video
-
IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
-
VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups
Management Made Easy
TL-SG608E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG608E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Go Green with Your Ethernet
TP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
conservation
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 8 10/100/1000 Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter(Output: 5 VDC/ 0.6 A) |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max Power Consumption | 3.68 W (220 V/ 50 Hz) |
| Max Heat Dissipation | 12.55 BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG608EPower AdapterInstallation GuideRubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
