Festa F61-Outdoor
Coming SoonAX1800 Indoor/Outdoor WiFi 6 Access Point
- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz*
- Free cloud centralized management via the Festa app or the web†
- Mesh & Seamless Roaming enable smooth wireless connectivity
- 1× Gigabit Port for high-speed transmissions
- Supports both 802.3at PoE and Passive PoE (PoE adapter included) for easy installation
- Smart antennas and high-power amplifiers provide robust full coverage
- IP67-Rated enclosure withstands harsh weather
- Easy setup and use, no professional technician required. Self-Organizing Networking and Zero-Touch Provisioning technology make it a breeze
Seamless Connectivity with
AX1800 Indoor/Outdoor Wi-Fi 6
Access Point
-
WiFi Speeds up to
1.8 Gbps† -
Festa Mesh &
Seamless Roaming -
Free Cloud
Management* -
Zero-Touch
Provisioning (ZTP) -
Easy Management
with Festa App/Web -
PoE+/Passive
PoE
Support -
IP67 Weatherproof &
6KV Lightning
Protection -
Wide Range
Coverage
w/
Smart Antennas
Festa 一 A Networking Solution Built For Small Business, No IT Required
Festa offers business-class features with consumer-inspired simplicity. Our free cloud-based centralized management is accessible via the Festa app or web, providing essential features for small businesses without the complexity required by larger-scale operations.
Mount AP
Plate AP
Outdoor AP
Network
-
Free Centralized
Management Via Cloud -
Festa App for Easy
Setup and Management -
Zero-Touch
Provisioning (ZTP) -
Self-Organizing
Network (SON)
Outdoor Dining
Pool Deck
Venues
Warehouses
Outdoor Facilities
Garden
Experience High-Speed Connectivity with Dual-Band
Wi-Fi 6 up to 1.8 Gbps
-
MU-MIMO
Bring simultaneous device connections, reducing network congestion
-
HE 160
Increased bandwidth to deliver faster speeds and improve network efficiency
-
1024 QAM
Enhance data transmission— simultaneous connections and higher speeds
-
OFDMA
Reduce interference and enhance overall network performance
5 GHz
2.4 GHz
2.4 GHz
5 GHzWide Range Coverage for Multi-Device Environments
Equipped with professional grade antennas with high-powered amplifiers, the Festa F61-Outdoor provides strong and expansive wireless coverage for multi-device environments. Utilizing Wi-Fi 6 technology including OFDMA and MU-MIMO, the Festa F61-Outdoor can handle simultaneous connections from dozens of clients in open areas.
-
Beamforming
-
Band
Steering -
Airtime
Fairness
Smart Antennas for Superior WiFi Performance
The Festa F61-Outdoor delivers reduced interference, extended coverage, and enhanced performance through its professional
antenna arrays and the intelligent algorithms of Festa Smart Antenna technology.
Polarized Antennas
Polarized Antennas
Flexible Deployment with PoE+/Passive PoE Support
-
Using Festa PoE+ Switch
Powered and connected by an 802.3at PoE switch using one single cable for convenient deployment.
-
Using the Provided Passive PoE Adapter
Powered and connected by the provided passive PoE adapter using one single cable, ideal for home WiFi deployment.
Festa RouterPoE AdapterUp to 100mInternet
Seamless WiFi 6 Mesh Networking
The Festa F61-Outdoor supports Seamless Roaming, ensuring users always connect to the most optimal access point. Additionally, it features Mesh technology, utilizing existing wireless signals to connect to hard-to-wire networks and reducing the need for redundant cabling.
F61-Outdoor
F61-Outdoor
Festa FR365

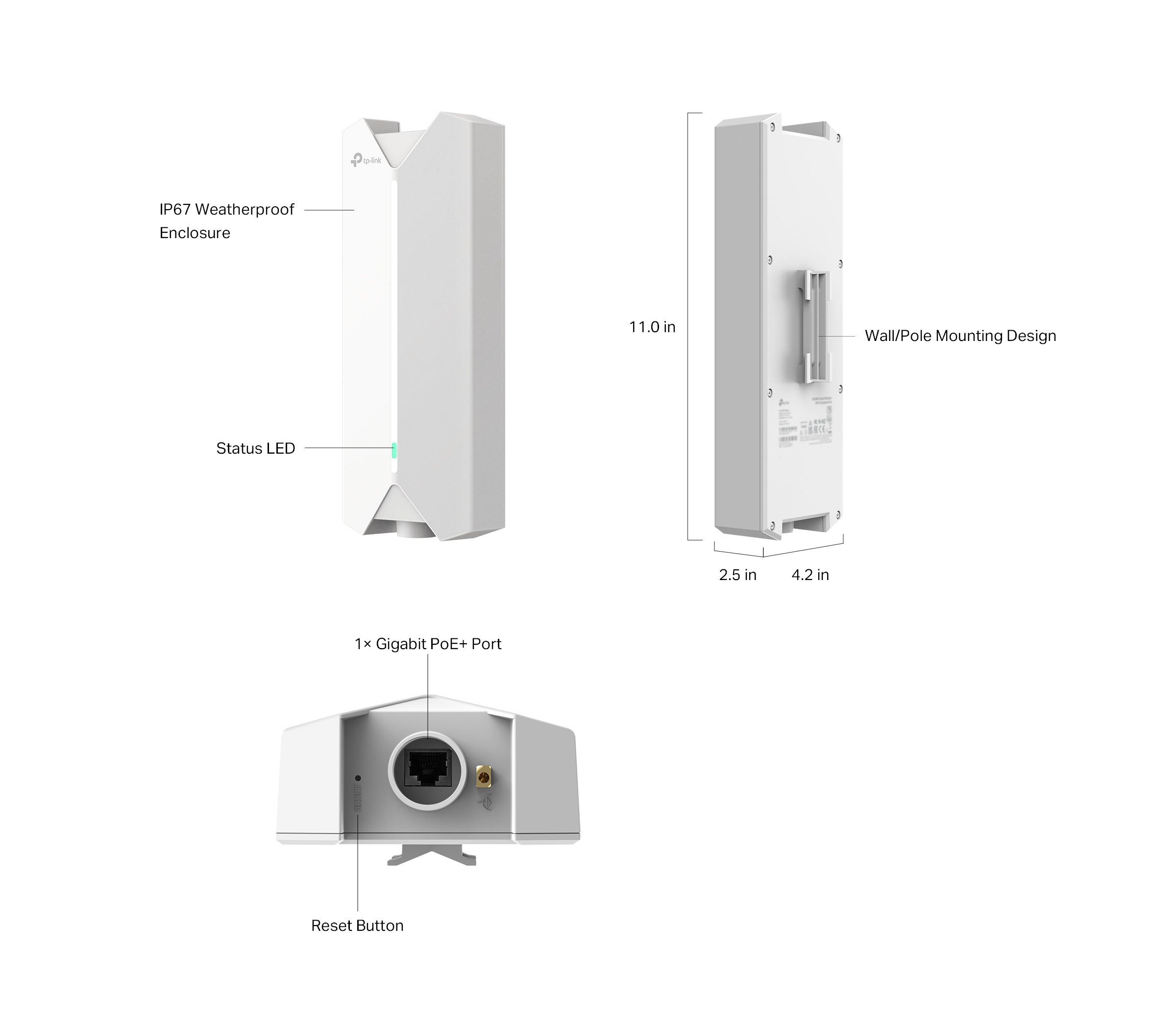

Robust Casing Design for Outdoor Environments
Enclosure
ESD Protection
Easy and Flexible Installation
Select the mounting option that best fits your preference.
Festa App and Web for Easy Setup and Management
Convenient setup and on-the-go network management via the Festa app
- • Zero-Touch Provisioning
- • Unlimited Management Scale
- • Topology View
- • VLAN Settings
- • Portal Authentication
(Password & Voucher) - • Rate Limit
• Fast Roaming - • Network Tools
- • Mesh
- • Guest Network
Full onsite/remote management of your Festa network via a web interface
- • Unlimited Management Scale
- • Topology and Heat Map View
- • Portal Authentication (Password & Voucher & Form Auth)
- • Batch Configuration
- • Network Security
- • VPN
- • More
| HARDWARE FEATURES | |
|---|---|
| Interface | 1x Gigabit Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3at PoE• 48V Passive PoE (PoE Adapter included) |
| Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE)• US: 14.7W (802.3at PoE or Passive PoE) |
| Weight | 780g |
| Dimensions ( W x D x H ) | 11.0 × 4.2 × 2.5 in (280.4 × 106.5 × 63.5 mm) |
| Antenna Type | 2 Internal Dual-Band Omni Antennas• 2.4 GHz: 4 dBi • 5 GHz: 5 dBi |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall mouting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 1201 Mbps*• 2.4 GHz: 574 Mbps |
| Wireless Functions | • Mesh• Seamless Roaming • Beamforming• MU-MIMO: 2*2 MU-MIMO DL• MIMO: 2*2 (2.4G and 5G) MU-MIMO• Automatic Channel Selection• OFDMA: UL/DL OFDMA‡• Band Steering• Load Balance• Airtime Fairness • RADIUS Accounting• Wireless Schedule• Wireless Statistics• Static IP/Dynamic IP• Rate Limit: Based on SSID/Client• Multiple SSIDs: 16(8 on each band)• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Transmit Power Control: Adjust Transmit Power on dBm• QoS (WMM) |
| Wireless Security | • Captive Portal Authentication• Access Control• Maximum Number of MAC Filter: 4,000• Wireless Isolation Between Clients• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise• 802.1X Support• VLAN |
| Transmission Power | • CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz Band 1& Band 2, EIRP)<28 dBm(5 GHz, Band3, EIRP)• FCC:<25 dBm (2.4 GHz)<25 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Firmware update via Web | √ |
| NTP | √ |
| Centralized Management | √ |
| APP support | Festa App |
| Cloud Access | Free cloud |
| LED ON/OFF Control | √ |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | √ |
| SSH | √ |
| Zero-Touch Provisioning | √ |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Festa F61-Outdoor• Passive PoE Adapter• Power Cord• Mounting Kit• Waterproof Kit• Installation Guide |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing; |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, and 1024-QAM, require clients to support the corresponding features.
†Festa currently offers free cloud access for centralized management and reserves the right to apply fees in the future.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
