AC750 Wi-Fi Range Extender
- Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 750Mbps
- Operates over both the 2.4GHz band(300Mbps) and 5GHz band(433Mbps) for more stable wireless experience
- Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
- Works with any Wi-Fi router or wireless access point
- EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
Product EOL: Replace with RE200
Stable Dual Band Wi-Fi Extension
to Bring Dead Zones to Life
AC750 Wi-Fi Range Extender
RE205
Easily Expand Your Wi-Fi Coverage
Tired of Wi-Fi dead zones in your home? The RE205 Range Extender connects to your Wi-Fi router wirelessly, strengthening and expanding its signal into areas it can’t reach on its own, while reducing signal interference to ensure reliable Wi-Fi coverage throughout your home or office.
High-Speed Dual Band Wi-Fi for Better Connections
The RE205 lets you keep more devices connected at the same time with its 2.4GHz 300Mbps and 5GHz 433Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.
- 300Mbps
- 2.4GHz Band
- 433Mbps
- 5GHz Band

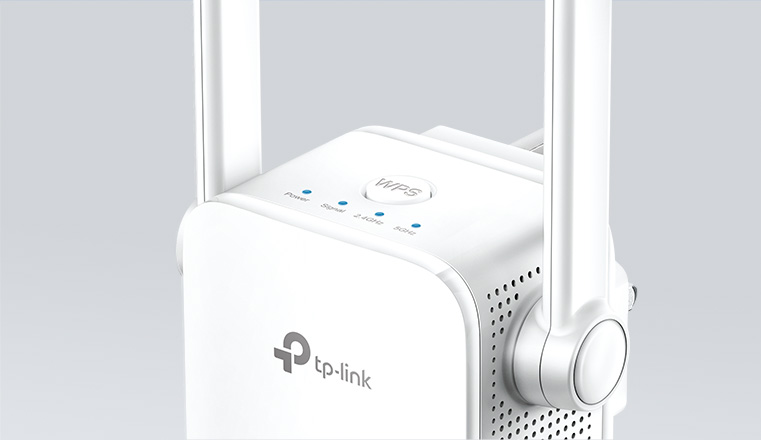

Perfect Location at a Glimpse
An Intelligent Signal light helps you quickly find the best location to install the RE205.
- Blue
-
Good
connection
- Red
-
Too far away
from the router
Built-in Access Point Mode
RE205 is more than a wireless range extender. Simply plug the Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual band wireless access point.
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
-
EasyMesh Devices
(Router + Range Extender) -
Traditional Router
with Extender Wi-Fi
-
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
-
Smart Roaming
Uninterrupted streaming when moving around your home
-
One WiFi Name
No more switching WiFi network names
Easy Management and Remote Control
The RE205 works with all Wi-Fi routers. You can use TP-Link's free Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich phone app allows you to enjoy not only hassle-free installation, but also access to advanced network management, all at your fingertips.
| WIRELESS | |
|---|---|
| Working Modes | Range Extender/Access Point |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Plug Type | EU |
| Interface | 1 x 10/100M Ethernet Port (RJ45) |
| Ports | 1 x 10/100Mbps Ethernet Port (RJ45) |
| Button | WPS Button, RESET Button |
| Input Power | 100-240V~50/60Hz |
| Power Consumption | 7.2W |
| Dimensions ( W x D x H ) | 3.06 x 1.57 x 3.15 in. (77.8 x 40 x 80 mm) |
| Antenna | 2 External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4 GHz and 5 GHz(11ac) |
| Signal Rate | 5GHz:Up to 433Mbps2.4GHz:Up to 300Mpbs |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5GHz：11a 6Mbps: -94dBm@10% PER11a 54Mbps: -77dBm@10% PER11ac HT20: -69dBm@10% PER 11ac HT40: -66dBm@10% PER11ac HT80: -63dBm@10% PER2.4GHz11g 54Mbps: -79dBm@10% PER11n HT20: -77dBm@10% PER11n HT40: -74dBm@10% PER |
| Wireless Modes | Range Extender/Access PointWireless StatisticConcurrent Mode boost both 2.4G/5G Wi-Fi band |
| Wireless Functions | Wireless StatisticConcurrent Mode boost both 2.4G/5G Wi-Fi bandAccess ControlLED ControlDomain Login Function |
| Wireless Security | WEP, WPA/WPA2-PSK encryptions, Enable/Disable SSID Broadcast |
| Transmission Power | ≤20dBm (2.4 GHz)≤20dBm (5 GHz) |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | - AC750 Wi-Fi Range Extender RE205- Quick Installation Guide |
| Box Dimensions (W X D X H) | 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm) |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
TP-Link EasyMesh-Compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent software updates.
