TL-PI60G

10G PoE++ Injector

  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device's need

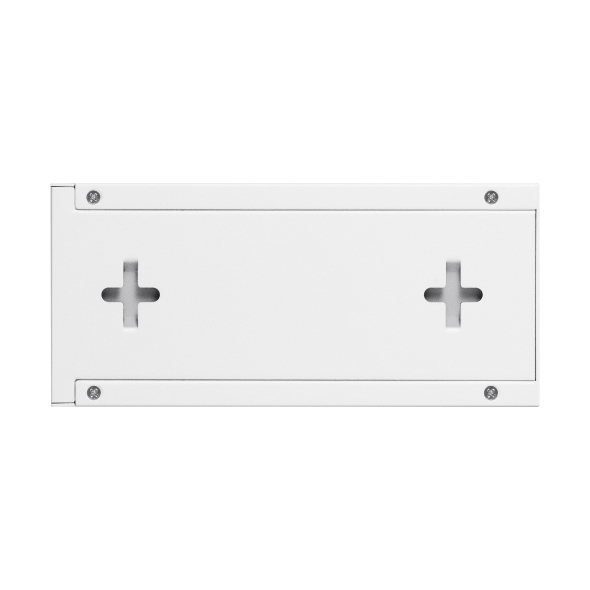

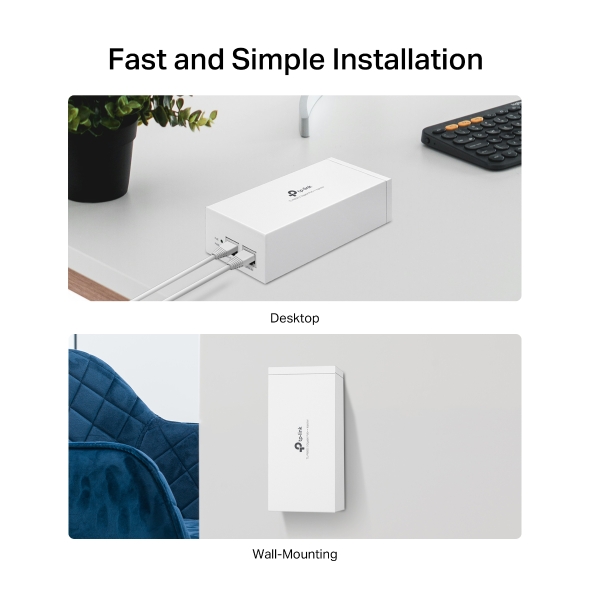

  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation, requires no configuration
  • Integrated power supply
TP-Link

Easily Expand & Power Your Network with 60 W Gigabit PoE++ Injector

TL-PI60G

  •

    60 W PoE
    Budget*

  •

    Plug
    and Play

  •

    Gigabit
    Ports

  •

    Durable
    Metal Casing

Easily Expand & Power Your Network

  • Power supply

    up to 60W

    With auto detect technology, TL-Pl60G determines and delivers the exact power supply to your devices with up to 60W power output and backwards compatibility for 802.3af PoE (15.4 W) and 802.3at PoE (30 W) devices.

  • Transmission Distance

    100m

    Deliver power up to 100 meters (328ft.),
    perfect for lP cameras or access point
    deployment in large areas.

Standard 802.3af/at/bt for Various Powered Devices

TL-PI60G delivers up to 60W to PoE devices with backward compatibility with 802.3af and 802.3at.

PoE++ (802.3bt)

up to
60 W per port

  • IP Cameras

    PTZ HD IP Cameras
    with Heaters

  • Wi-Fi 7 / 6E / 6 APs

    Wi-Fi 7 / 6E / 6
    APs

  • Smart Building Lighting

    Smart Building
    Lighting

  • Audio System

    Audio
    System

  • Thin Clients

    Thin
    Clients

PoE+ (802.3at)

up to
30 W per port

  • IP Video Phones

    IP Video
    Phones

  • PTZ HD IP Cameras

    PTZ HD
    IP Cameras

  • Wi-Fi 7 / 6E / 6 APs

    Wi-Fi 7 / 6E / 6
    APs

  • Small Audio Speakers

    Small Audio
    Speakers

  • Small Digital Signages

    Small Digital
    Signages

PoE (802.3af)

up to
15.4 W per port

  • IP Phones

    IP
    Phones

  • Basic IP Cameras

    Basic
    IP Cameras

  • Wi-Fi 5 / 4 APs

    Wi-Fi 5 / 4
    APs

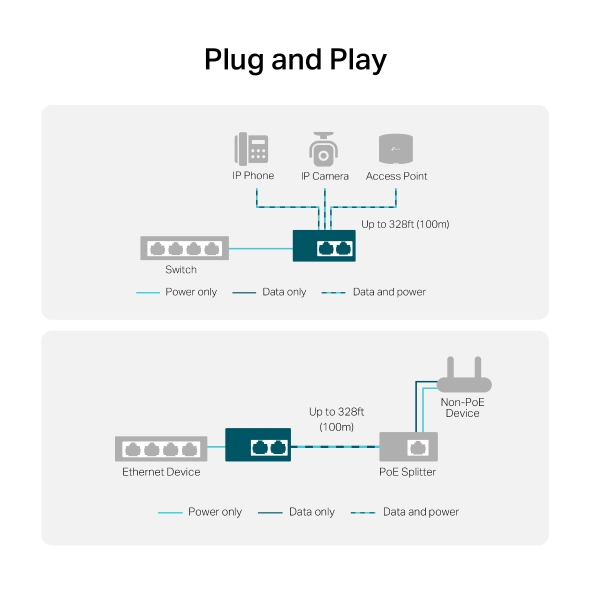

Plug and Play

TL-PI30G-M2 converts a non-PoE gigabit port to a PoE gigabit port and supplies power and data via a single ethernet cable.

1. Connect to Power
2. Connect the Devices
3. Enjoy
IP Phone
IP Camera
Access Point
Up to 328ft (100m)
Switch
Power only
Data only
Data and power

Works with a PoE splitter to expand your network to areas with no power lines or outlets.

1. Connect to Power
2. Connect the Devices
3. Enjoy
Ethernet Device
Up to 328ft (100m)
PoE Splitter
Non-PoE Device
Power only
Data only
Data and power

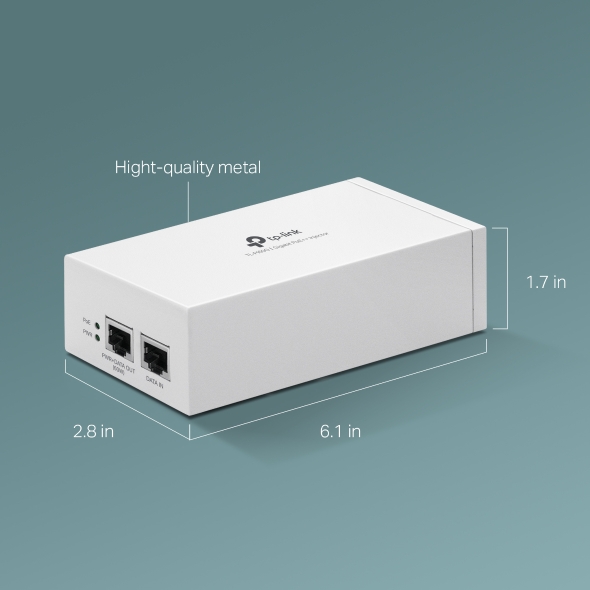

Durable Metal Casing

Hard-wearing metal casing provides improved heat dissipation and longer product life.

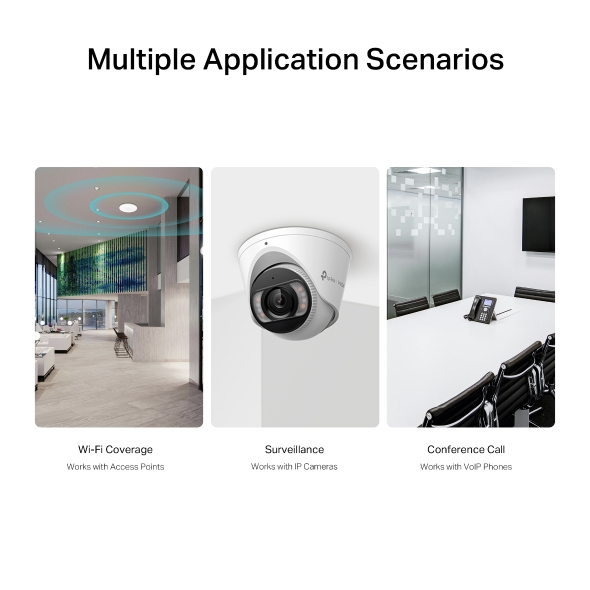

Multiple Application Scenarios

  • Wi-Fi Coverage

    Wi-Fi Coverage

    Works with Access Points

  • Surveillance

    Surveillance

    Works with IP Cameras

  • Conference Call

    Conference Call

    Works with VoIP Phones

Choose the Right PoE Adapter that Fits Your Needs

  TL-PI30G TL-PI30G-M2 TL-PI60G TL-PI90X TL-PI4824G TL-PI4818G
Model TL-PI30G TL-PI30G-M2 TL-PI60G TL-PI90X TL-PI4824G TL-PI4818G
POE Budget 30 W 30 W 60 W 90 W 24 W 18 W
Speed 1000/100/10Mbps 2.5Gbps/1Gbps/ 100Mbps/10Mbps 1000/100/10Mbps 10Gbps/5Gbps/2.5Gbps/ 1Gbps/100Mbps/10Mbps 1000/100/10Mbps 1000/100/10Mbps
PoE Compliant 802.3 at/af 802.3 at/af 802.3 at/af/bt 802.3 at/af/bt Passive PoE (48V) Passive PoE (48V)
Power Input 100-240V, 50-60Hz 100-240 V, 50-60Hz 100-240V, 50-60Hz 100-240 V, 50-60Hz 100-240 V, 50-60Hz 100-240V, 50-60Hz
Dimensions (in) 4.9 × 2.3 × 1.4 4.9 × 2.3 × 1.4 6.1 × 2.8 × 1.7 6.1 × 2.8 × 1.7 4.3 × 2.3 × 1.5 3.4 × 1.7 × 1.4
Installation Desktop / Wall-Mounting Desktop / Wall-Mounting Desktop / Wall-Mounting Desktop / Wall-Mounting Desktop / Wall-Mounting Desktop / Wall-Mounting
TL-PI30G
Model TL-PI30G
POE Budget 30 W
Speed 1000/100/10Mbps
PoE Compliant 802.3 at/af
Power Input 100-240V, 50-60Hz
Dimensions (in) 4.9 × 2.3 × 1.4
Installation Desktop / Wall-Mounting
TL-PI30G-M2
Model TL-PI30G-M2
POE Budget 30 W
Speed 2.5Gbps/1Gbps/ 100Mbps/10Mbps
PoE Compliant 802.3 at/af
Power Input 100-240 V, 50-60Hz
Dimensions (in) 4.9 × 2.3 × 1.4
Installation Desktop / Wall-Mounting
TL-PI60G
Model TL-PI60G
POE Budget 60 W
Speed 1000/100/10Mbps
PoE Compliant 802.3 at/af/bt
Power Input 100-240V, 50-60Hz
Dimensions (in) 6.1 × 2.8 × 1.7
Installation Desktop / Wall-Mounting
TL-PI90X
Model TL-PI90X
POE Budget 90 W
Speed 10Gbps/5Gbps/2.5Gbps/ 1Gbps/100Mbps/10Mbps
PoE Compliant 802.3 at/af/bt
Power Input 100-240 V, 50-60Hz
Dimensions (in) 6.1 × 2.8 × 1.7
Installation Desktop / Wall-Mounting
TL-PI4824G
Model TL-PI4824G
POE Budget 24 W
Speed 1000/100/10Mbps
PoE Compliant Passive PoE (48V)
Power Input 100-240 V, 50-60Hz
Dimensions (in) 4.3 × 2.3 × 1.5
Installation Desktop / Wall-Mounting
TL-PI4818G
Model TL-PI4818G
POE Budget 18 W
Speed 1000/100/10Mbps
PoE Compliant Passive PoE (48V)
Power Input 100-240V, 50-60Hz
Dimensions (in) 3.4 × 1.7 × 1.4
Installation Desktop / Wall-Mounting
prev
next


*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

HARDWARE FEATURES
Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
Network Media • 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m)
• EIA/TIA-568 100Ω STP (maximum 100 m)
• 100BASE-TX: UTP category 5, 5e cables (maximum 100 m)
• EIA/TIA-568 100Ω STP (maximum 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)
Ports • 1× 10/100/1000Mbps RJ45 data-in port
• 1× 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W)

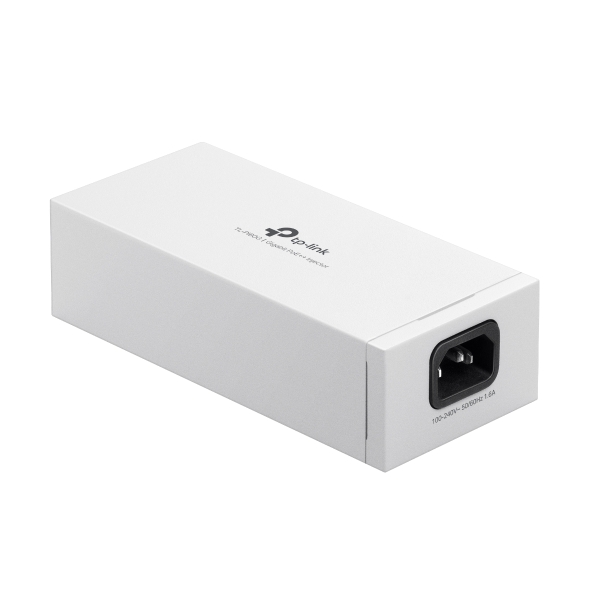

• 1× AC socket
Power Consumption • Input: 100-240 V, 50/60 Hz, 1.6A
• Output: Auto-determine the necessary power requirements (max. 60 W)
Basic Function • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
• Auto-determine the necessary power requirements
• Wall-mounting and desktop installation supported
• Plug-and-Play
LED • Power
• PoE
Dimensions ( W x D x H ) 6.1×2.8×1.7 in (155×70×42 mm)
GENERAL
Material Metal Casing
OTHERS
Certification FCC, CE, RoHS
Package Contents • PoE++ Injector TL-PI60G
• Installation Guide
• Power Cord
• RJ45 Cable
Environment • Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90%RH non-condensing
• Storage Humidity: 5% to 90%RH non-condensing
