Configuring Packet Content ACL
CHAPTERS
|
|
This guide applies to: T2600G-52TS v3 or above, T2600G-28TS v3 or above, T2600G-28MPS v3 or above, T2600G-28SQ v1 or above, T2600G-18TS v2 or above. |
On the latest T2600G series switches, we developed a new feature: Packet Content ACL. This configuration guide detailedly introduces how to configure Packet Content ACL.
1.1Packet Content ACL Introduction
Comparing with the basic ACL, such as MAC ACL and IP ACL, Packet Content ACL provides more flexible and accurate rules to filter packets.
Packet Content ACL defines rules based on the offset position, string mask and user-defined string. That is, you can use offset position and string mask to specify specific segments of a received packet and compare these segments with your pre-defined strings, then the matched packets will follow the filtering operation: Permit or Deny.
1.2Configuration Points of Packet Content ACL
There are three necessary elements in Packet Content ACL: Chunk Offset, Chunk Value and Chunk Mask.
Chunk Offset

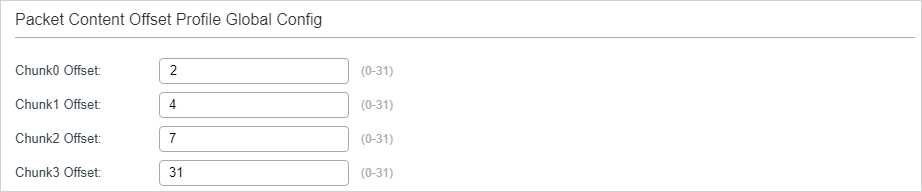

Packet Content ACL can analyze up to four segments carried in the first 128 bytes of a received packet, and the length of each segment is 4 bytes. The Chunk Offset is used to specify the segments to be analyzed, as the following figure shows.
The valid values of Chunk Offset are from 0 to 31. Offset 31 specifies the 127th, 128th, 1st, 2nd bytes of the packet, offset 0 specifies the 3rd, 4th, 5th, 6th bytes of the packet, offset 1 specifies the 7th, 8th, 9th, 10th bytes of the packet, and so on, for the rest of the offset values.
Chunk Value and Chunk Mask
As the above paragraph introduces, a Chunk Offset extracts a specific segment in a packet. Then, you need to configure a Chunk Mask to specify which fields of the extracted segment should be compared with the user-defined string, which is also called as Chunk Value.

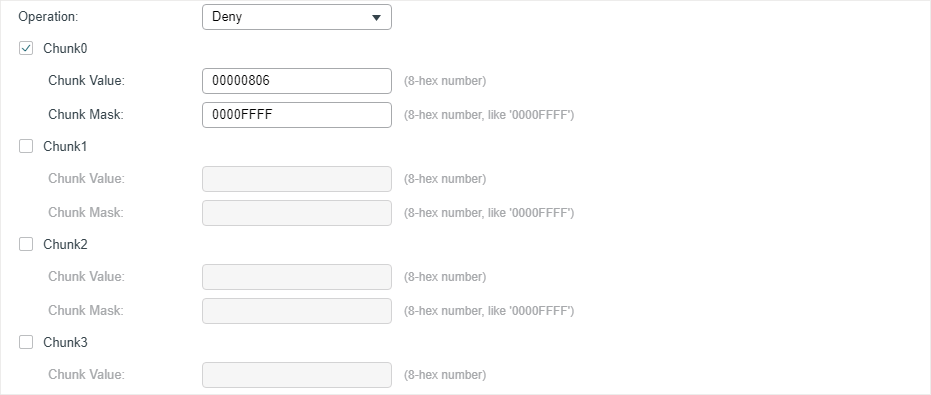

Figure 1-2 Chunk Value and Chunk Mask
Taking the above rule as an example, Operation is Deny, Chunk0 Offset has been set to 2 in Figure 1-2, Chunk 0 is enabled, Chunk Value is 00000806, and Chunk Mask is 0000FFFF. The working mechanism of this rule is as follows:
1)The value of Chunk0 Offset 2 specifies the segment of a received packet: the 11th, 12th, 13th, 14th bytes. This 4-byte segment is extracted to be used for the following analysis.
2)The value of Chunk Mask 0000FFFF indicates that the last 2 bytes (13th, 14th) of the extracted segment is to be compared with the Chunk Value 0806.
3)If the 2-byte field in the packet is exactly 0806, the packet matches this rule. Then the filtering mode Deny is applied to this packet. If not, the switch uses the next rule to analyze this packet.
|
|
Note: Both Chunk Mask and Chunk Value should be configured in Hexadecimal format. |
Additionally, you can enable and configure the other three Chunks as well. Only a packet that matches all of the enabled Chunks in a rule is regarded to match this rule.
This chapter introduces how to configure Packet Content ACL through an example about ARP packet filtering. To complete the configuration, follow these steps:
1)Determine the network requirements.
2)Analyze the ARP packet structure.
3)Formulate the configuration scheme.
4)Configure Packet Content ACL on the switch.
2.1Network Requirements

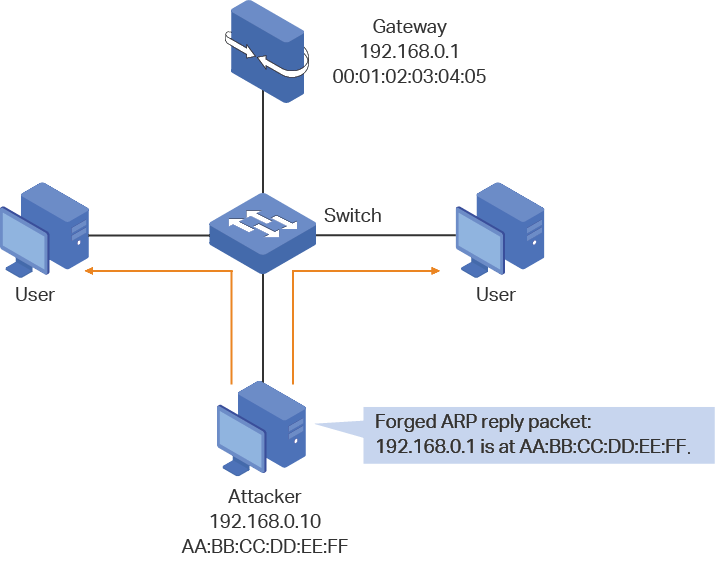

As the following figure shows, the IP address and MAC address of the legal Gateway are 192.168.0.1 and 00:01:02:03:04:05. An attacker in the LAN imitates the gateway to send forged ARP reply packets to users, so that these users record wrong ARP table and all packets to the internet are directed to the wrong node.
Figure 2-1 Network Topology
To protect the network from this kind of imitating gateway attacks, you can configure Packet Content ACL on the switch to filter forged ARP packets. The requirements are as follows:
When receives an ARP packet whose Sender IP Address is 192.168.0.1, the switch should check whether the Sender MAC Address is 00:01:02:03:04:05 or not. If yes, the packet is sent; if not, the packet is dropped.
2.2Analyze Packet Structure
Before configuring Packet Content ACL, you first need to analyze the structure of the packets to be filtered, and then determine which segments should be extracted to be compared with the specific strings.
In this example, you need to analyze the ARP packet structure, as the following figure shows.

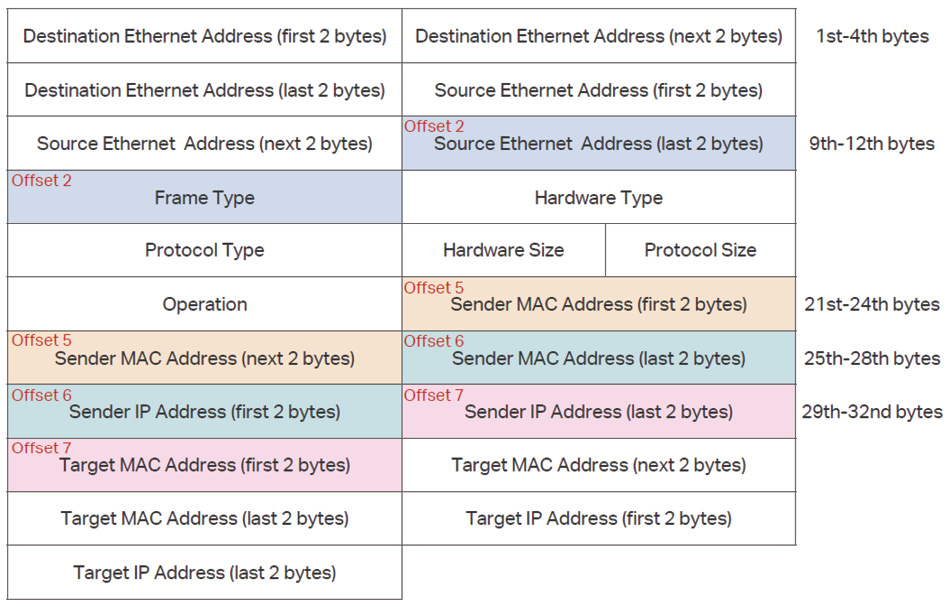

Figure 2-2 ARP Packet Structure
Consider the following three fields in the ARP packet: Frame Type, Sender MAC Address and Sender IP Address.
Frame Type
Frame Type occupies the 13th, 14th bytes in the packet, so it can be specified by Offset 2, which indicates the 11th, 12th, 13th, 14th bytes.
The frame type of an ARP packet is 0806. Therefore, to identify ARP packets, the Chunk Mask and Chunk Value of Offset 2 should be set to 0000FFFF and 00000806.
Sender MAC Address and Sender IP Address
Similarly, Sender MAC Address and Sender IP Address can be specified by Offset 5, Offset 6 and Offset 7. In this example, the Sender MAC Address and Sender IP Address of the legal gateway are 00:01:02:03:04:05 and 192.168.0.1. To identify the ARP packets that are from the legal gateway, the Chunk Mask and Chunk Value should be set as follows:
|
|
Note: Before calculating Chunk Mask and Chunk Value, transfer 192.168.0.1 from Decimal digit to Hexadecimal digit: C0A80001. For convenience, you can find a Hex converter on the internet. |
Offset 5 specifies the first 4 bytes of Sender MAC Address. So the Chunk Mask and Chunk Value of Offset 5 should be set to FFFFFFFF and 00010203.
Offset 6 specifies the last 2 bytes of Sender MAC Address and the first 2 bytes of Sender IP Address. So the Chunk Mask and Chunk Value of Offset 6 should be set to FFFFFFFF and 0405C0A8.
Offset 7 specifies the last 2 bytes of Sender IP Address. So the Chunk Mask and Chunk Value of Offset 7 should be set to FFFF0000 and 00010000.
2.3Formulate Configuration Scheme
Basing on the above analysis and network requirements, the configuration scheme for this example is as follows:
1)Configure Time Range.
2)Create a Packet Content ACL.
3)Configure the four Chunk Offset values as 2, 5, 6 and 7.
4)Add a Permit rule for the Packet Content ACL.
An ARP packet that contains the Sender IP Address 192.168.0.1 and Sender MAC Address 00:01:02:03:04:05 should be sent normally. The Chunk Offset configuration for this rule is shown in the following table.
Table 2-1Chunk Offset Configuration for the Permit Rule
|
Chunk Offset |
Chunk Offset Value |
Chunk Status |
Chunk Mask |
Chunk Value |
|
Chunk0 Offset |
2 |
Enable |
0000FFFF |
00000806 |
|
Chunk1 Offset |
5 |
Enable |
FFFFFFFF |
00010203 |
|
Chunk2 Offset |
6 |
Enable |
FFFFFFFF |
0405C0A8 |
|
Chunk3 Offset |
7 |
Enable |
FFFF0000 |
00010000 |
5)Add a Deny rule for the Packet Content ACL.
An ARP packet that contains the Sender IP Address 192.168.0.1 and illegal Sender MAC Address, which is not 00:01:02:03:04:05, should be dropped. The Chunk Offset configuration for this rule is shown in the following table.
Table 2-2Chunk Offset Configuration for the Deny Rule
|
Chunk Offset |
Chunk Offset Value |
Chunk Status |
Chunk Mask |
Chunk Value |
|
Chunk0 Offset |
2 |
Enable |
0000FFFF |
00000806 |
|
Chunk1 Offset |
5 |
Disable |
- |
- |
|
Chunk2 Offset |
6 |
Enable |
0000FFFF |
0000C0A8 |
|
Chunk3 Offset |
7 |
Enable |
FFFF0000 |
00010000 |
6)Add a Permit rule for other packets. That is, if a packet that matches neither of the above rules, it should be sent normally.
|
|
Note: The switch should first process the Permit rule to permit the packets from the legal gateway, and then the Deny rule to deny the packets from the attacker that claims to be the gateway. After that, the switch should permit other packets that match neither of the two rules. Therefore, the Permit rule for ARP packets from the legal gateway should get the smallest rule ID, which means the highest priority. And so on, for the Deny rule and the other Permit rule. |
7)Bind the Packet Content ACL to all ports of the switch.
2.4Configure Packet Content ACL on the Switch
2.4.1Using the GUI
Follow the steps below to configure Packet Content ACL:
1)Choose the menu SYSTEM > Time Range > Time Range Config and click
to load the following page. Configure the time range name as Range1. Click
in the Period Time Config section to add a period time and click Create.

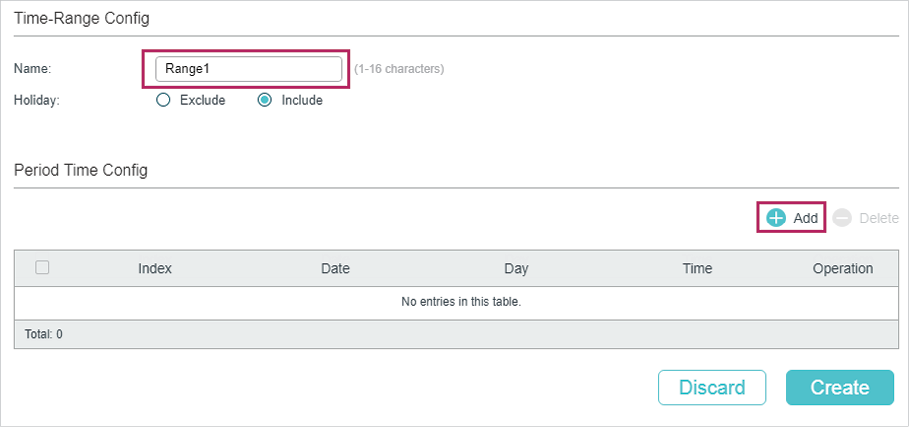

Figure 2-3 Configuring Time Range

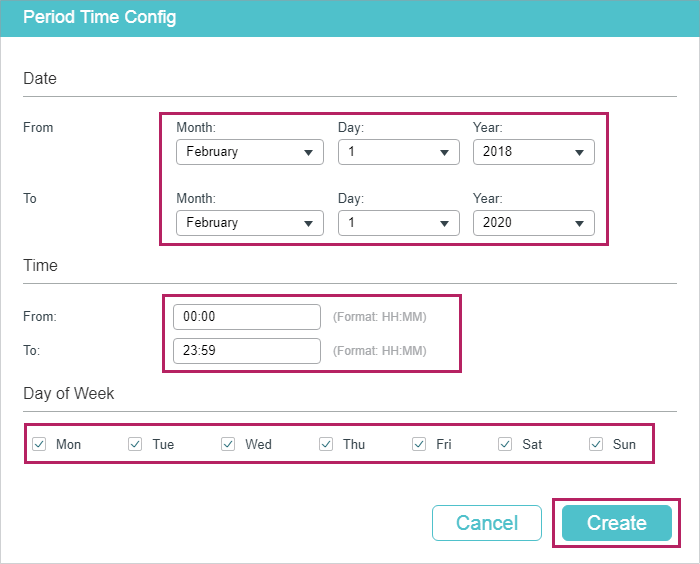

Figure 2-4 Adding Time Period Time
2)Choose the menu SECURITY > ACL > ACL Config and click

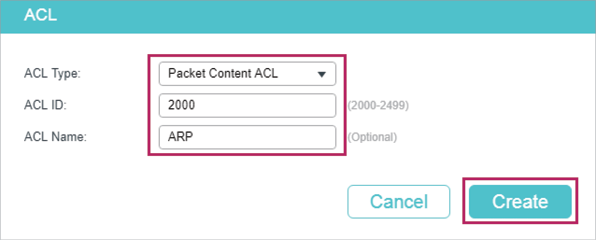

to add a Packet Content ACL. Configure the ACL ID as 2000 and the ACL Name as ARP, and click Create.
Figure 2-5 Adding Packet Content ACL
3)The added ACL is displayed in the table. Click Edit ACL.

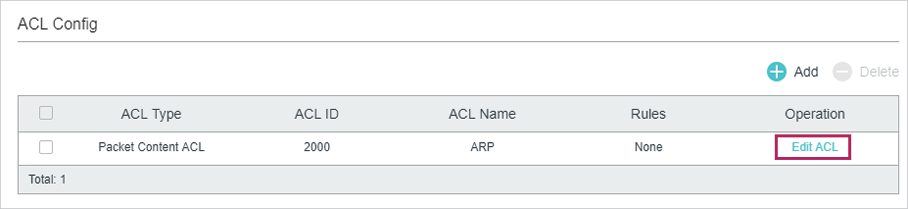

Figure 2-6 Packet Content ACL Added
4)Set the four Chunk Offsets to 2, 5, 6 and 7, and click Apply. Then click
in the ACL Rules Config section.

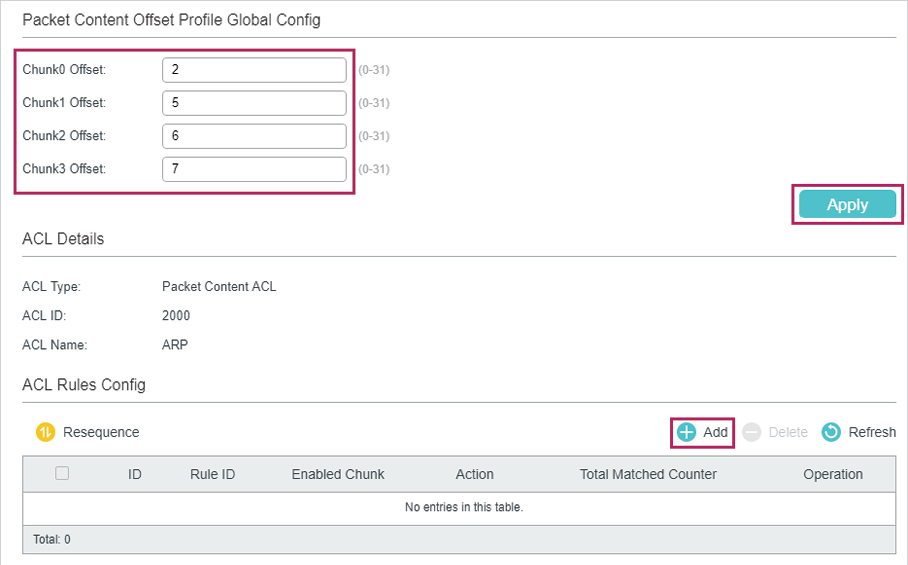

Figure 2-7 Editing Packet Content ACL

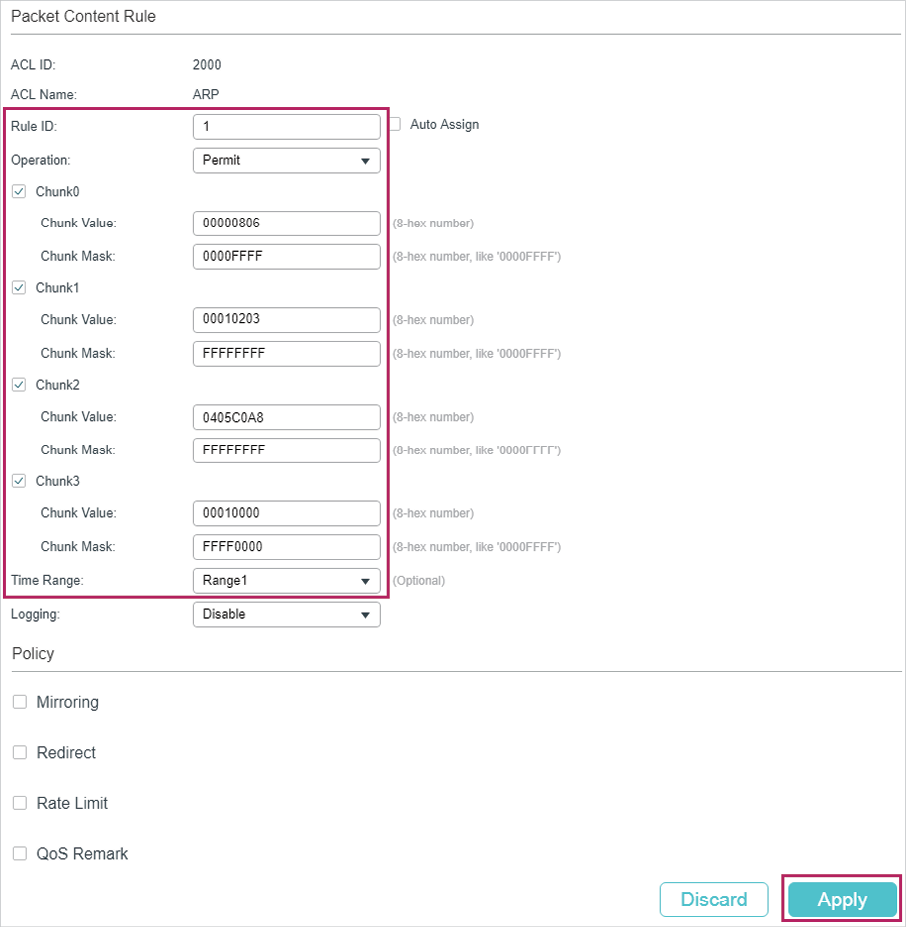

5)The following page will appear. Add the Permit rule for the packets that are from the legal gateway. Set Rule ID to 1, configure the four Chunk Offsets as Table 2-1 lists, and select a Time Range. Click Apply.
Figure 2-8 Adding Permit Rule

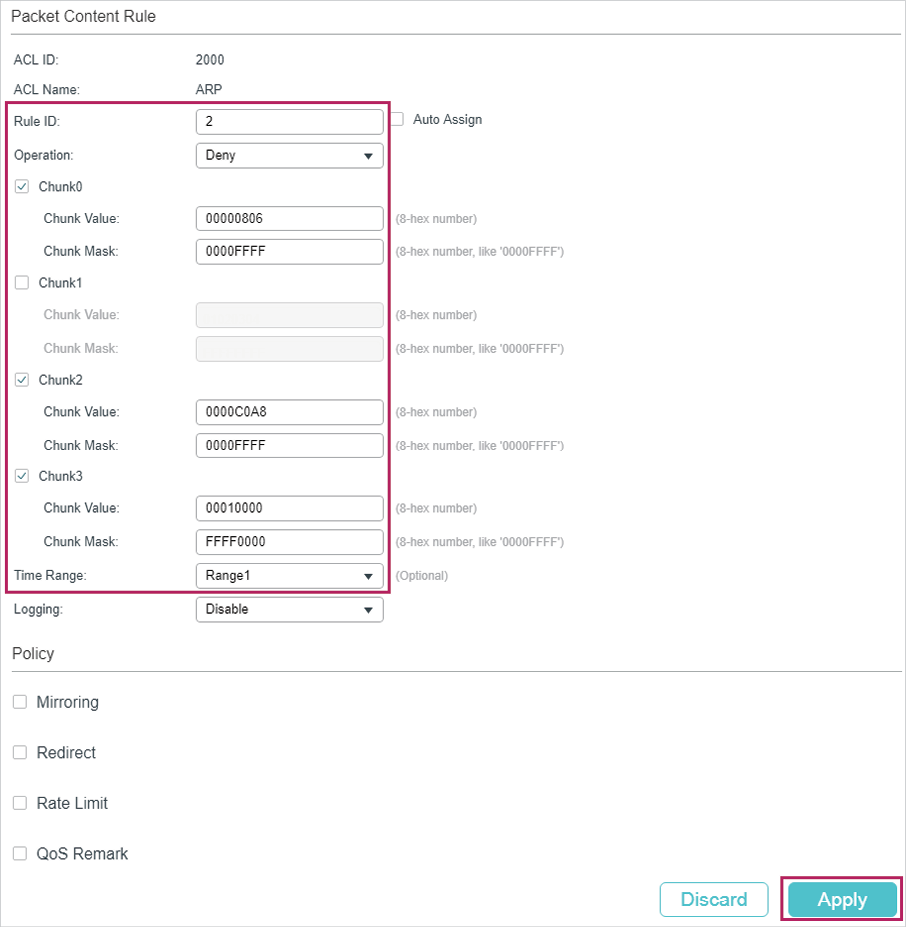

6)Similarly, add the Deny rule as Table 2-2 lists. Set the Rule ID to 2 and select Time Range. Click Apply.
Figure 2-9 Adding Deny Rule
7)Similarly, add the Permit rule for the packets that match neither of the above two rules. Set the Rule ID to 3, remain the four Chunks as disabled and select Time Range. Click Apply.

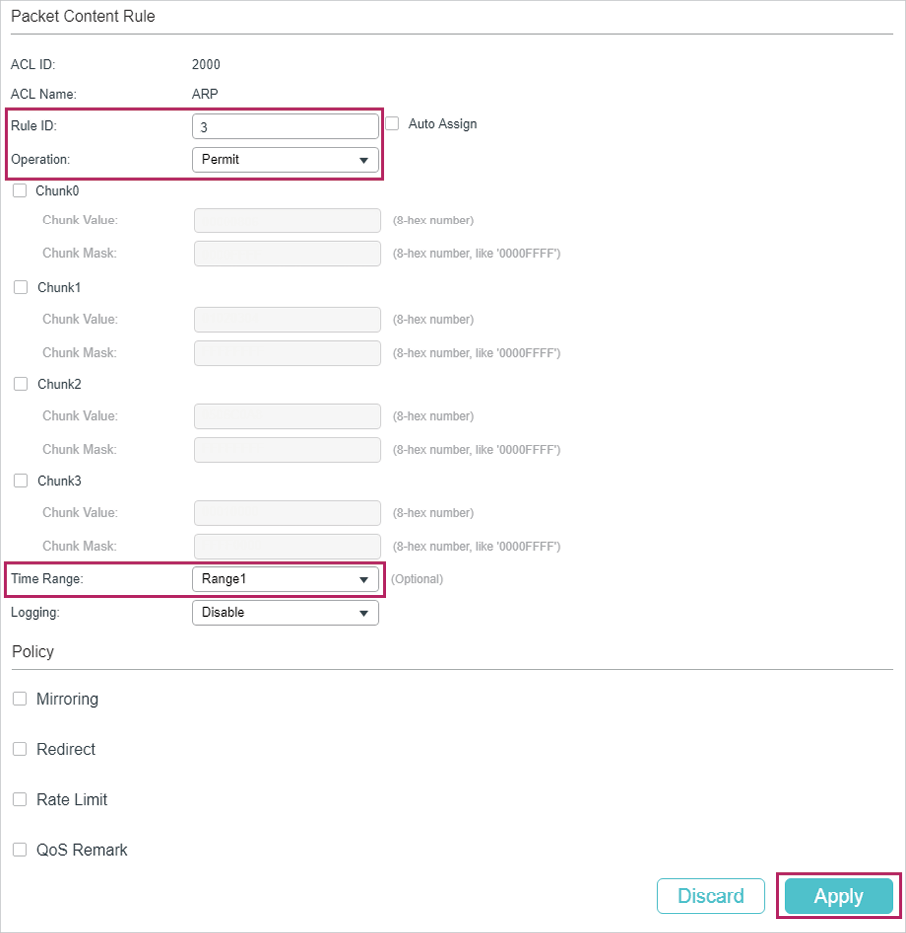

Figure 2-10 Adding Deny Rule
8)Choose the menu SECURITY > ACL > ACL Binding > Port Binding and click

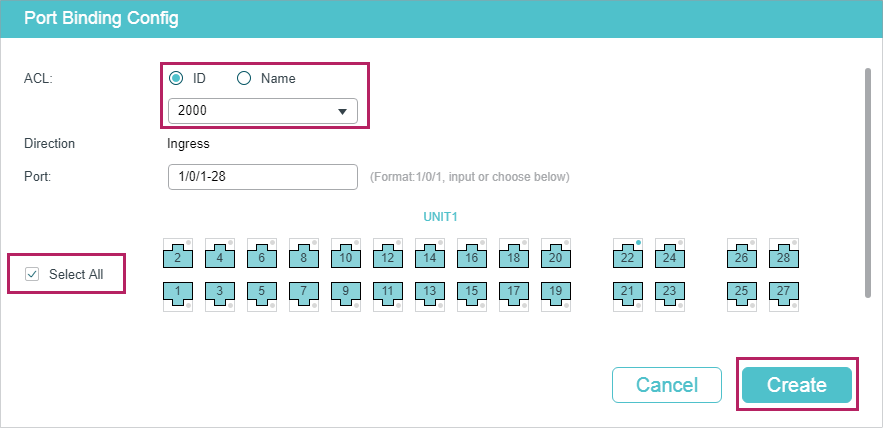

to bind the Packet Content ACL to all ports of the switch. Select ACL 2000, check all ports, and click Create.
Figure 2-11 Binding ACL to Port
9)Click
to save the configuration.
2.4.2Using the CLI
Follow the steps below to configure Packet Content ACL:
1)Create a Time Range.
Switch#configure
Switch(config)#time-range Range1
Switch(config-time-range)#absolute from 02/01/2018 to 02/01/2020
Switch(config-time-range)#periodic start 00:00 end 23:59 day-of-the-week 1-7
Switch(config-time-range)#exit
2)Create a Packet Content ACL.
Switch(config)#access-list create 2000 name ARP
3)Set the four Chunk Offsets to 2, 5, 6 and 7.
Switch(config)#access-list packet-content profile chunk-offset0 2 chunk-offset1 5 chunk-offset2 6 chunk-offset3 7
4)Add the Permit rule for the packets that are from the legal gateway. Set the rule ID to 1, configure Chunk Offsets as Table 2-1 lists, and bind Rang1 to this rule.
Switch(config)#access-list packet-content config 2000 rule 1 permit logging disable chunk0 00000806 mask0 0000ffff chunk1 00010203 mask1 ffffffff chunk2 0405c0a8 mask2 ffffffff chunk3 00010000 mask3 ffffffff tseg Range1
5)Add the Deny rule. Set the rule ID to 2, configure Chunk Offsets as Table 2-2 lists, and bind Rang1 to this rule.
Switch(config)#access-list packet-content config 2000 rule 2 deny logging disable chunk0 00000806 mask0 0000ffff chunk2 0000c0a8 mask2 ffffffff chunk3 00010000 mask3 ffff0000 tseg Range1
6)Add a Permit rule for the packets that matches neither of the above two rules. Set the rule ID to 3 and bind Rang1 to this rule.
Switch(config)#access-list packet-content config 2000 rule 3 permit logging disable tseg Range1
7)View your settings.
Switch(config)#show access-list 2000
Packet content access list 2000 name: “ARP”
rule 1 permit logging disable chunk0 00000806 mask0 0000FFFF chunk1 00010203 mask1 FFFFFFFF chunk2 0405C0A8 mask2 FFFFFFFF chunk3 00010000 mask3 FFFF0000 tseg “Range1”
rule 2 deny logging disable chunk0 00000806 mask0 0000FFFF chunk2 0000C0A8 mask2 0000FFFF chunk3 00010000 mask3 FFFF0000 tseg “Range1”
rule 3 permit logging disable tseg “Range1”
8)Save your settings.
Switch(config)#end
Switch#copy running-config startup-config
