Configuring Omada Cloud Service for Omada Controller
CHAPTERS
|
|
This guide applies to: Omada Controller 3.2.1. |
TP-Link Omada Cloud Service provides a better way to realize remote management. With Cloud Access enabled on the controller and a TP-Link ID bound with your controller, and you can easily monitor and manage your wireless network. To ensure that your EAPs stay new and get better over time, the Omada Cloud will notify you when a newer firmware upgrade is available. Surely you can also manage multiple Omada Controllers with a single TP-Link ID.
Follow the steps below to configure Cloud Access and access the controller via Omada Cloud:
1.1Enable Cloud Access
You can configure the controller via Omada Cloud only when Cloud Access is enabled on the controller and you have been added as a Cloud User.

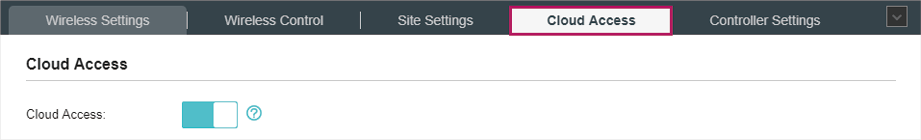

On the page Cloud Access you can configure Cloud Access. Click the button to enable the Cloud Access. The Cloud Access status is
, which means that the Cloud Access is enabled.
To configure and manage Omada Controller through Cloud service, you need to have a TP-Link ID, and bind your TP-Link ID to the controller. Then you can remotely access the controller as a Cloud User.
|
|
Note: To register a TP-Link ID and bind it to your controller, make sure that the controller host can access the internet. |

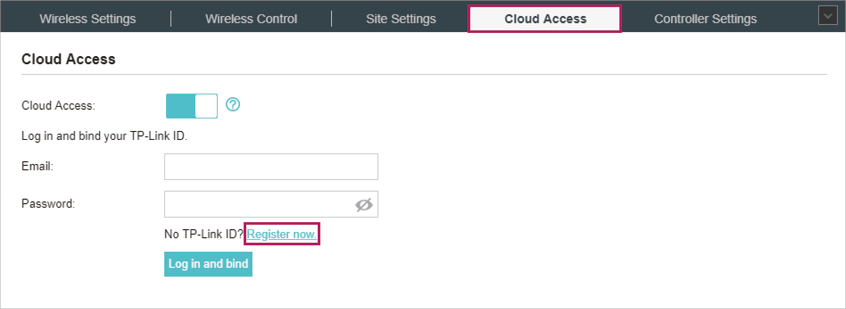

In the Quick Setup process, you can register a TP-Link ID and bind it to your controller. If you have skipped the registration during the Quick Setup process, you can go to Cloud Access. Click Register Now and follow the instructions to register a TP-Link ID.

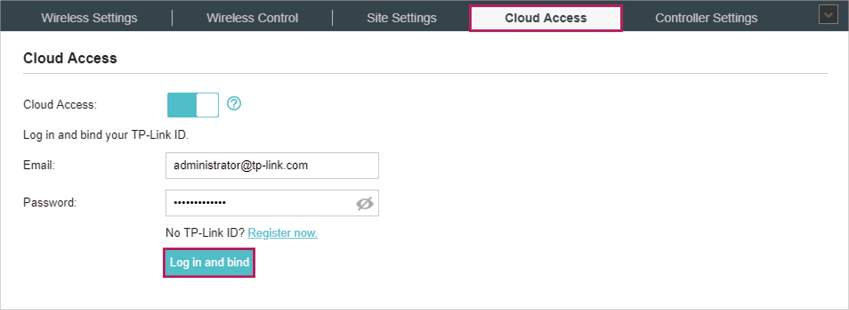

Log in and bind your TP-Link ID
After activating your TP-Link ID, come back to Cloud Access page to log in and bind your TP-Link ID to your controller.

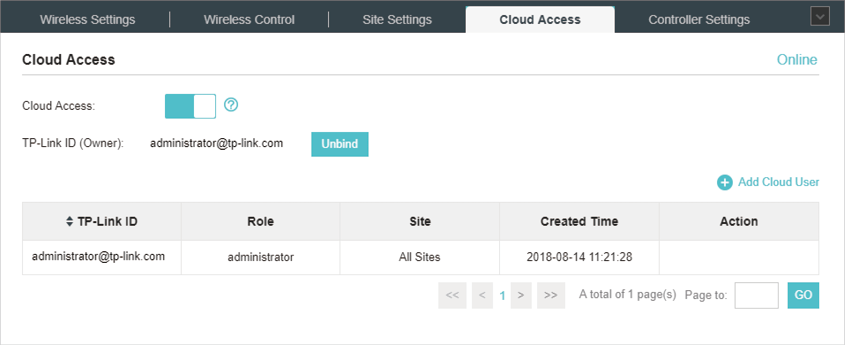

The TP-Link ID which is bound with the controller for the first time will be automatically bound as an administrator. And only one TP-Link ID can be bound with the controller as an administrator. An administrator account can add or remove other TP-Link IDs to or from the same controller as Cloud Users.
Add new Cloud Users

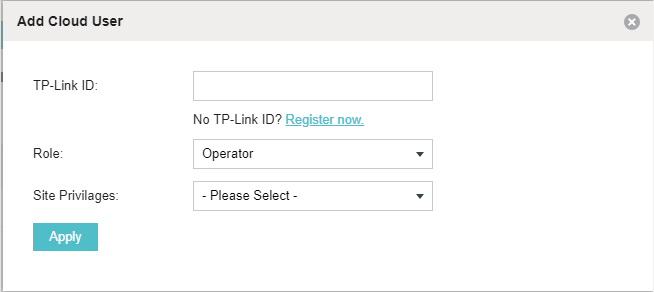

After you have an administrator TP-Link ID, you can add new Cloud Users. Click
, enter another TP-Link ID as needed and click Save.
|
TP-Link ID |
Enter the TP-Link ID that you want to add as the new Cloud User. If you do not have another TP-Link ID, you can click Register Now and follow the instructions to register a TP-Link ID. |
|
Role |
Select the role for the new Cloud User from the drop-down list. Two options are provided: Operator: An Operator account can change the settings of the privileged sites that are given by the administrator. And the Operator account cannot manage the cloud users and change controller settings. Observer: An Observer account can only view the status and settings of the privileged sites that are given by the administrator but not change the settings. Both the Operator and Observer accounts cannot manage the cloud users and controller settings. Thus Operator and Observer accounts can only be created or deleted by the administrator. |
|
Site Privileges |
Select the privileged sites (multiple options available) for the Operator or Observer accounts from the drop-down list. |

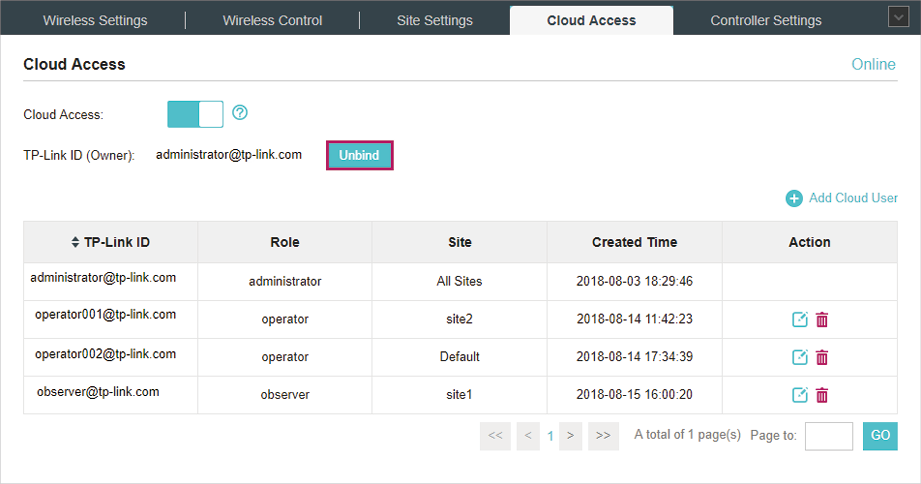

Unbind a TP-Link ID
You can click Unbind to unbind your administrator TP-Link ID. Note that Unbind operation cannot be performed when you log in to the controller through Omada Cloud service.
2Manage the Controller via Omada Cloud

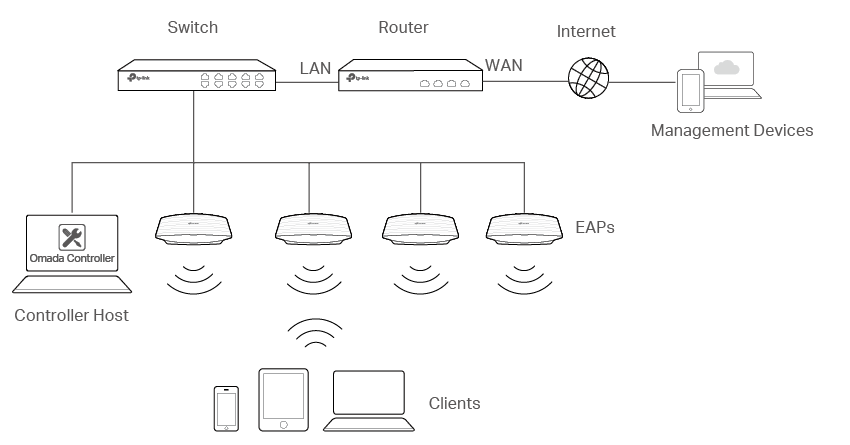

With Cloud Access enabled, you can manage your controller remotely using your TP-Link ID. You can refer to the following topology.
Before you remotely access your controller, make sure that the following requirements have been met:
■Cloud Access is enabled on the controller.
■Your controller has been bound with a TP-Link ID. If you don’t have a TP-Link ID, refer to Register a TP-Link ID to get one.
■Both your Controller Host and management devices have internet access.
2.1Access the controller via Omada Cloud

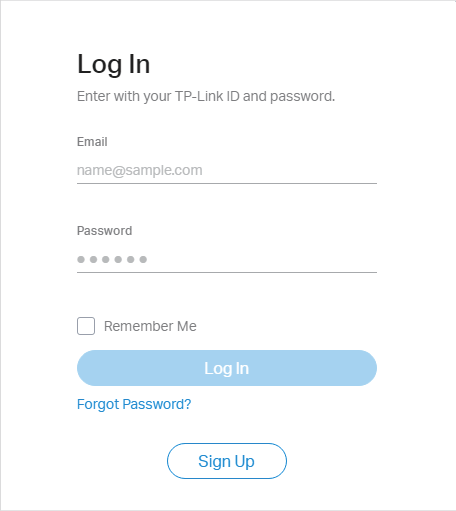

1. Launch a web browser and type https://omada.tplinkcloud.com in the address bar, then press Enter (Windows) or Return (Mac).
2. Enter your TP-Link ID and password and click Log In.

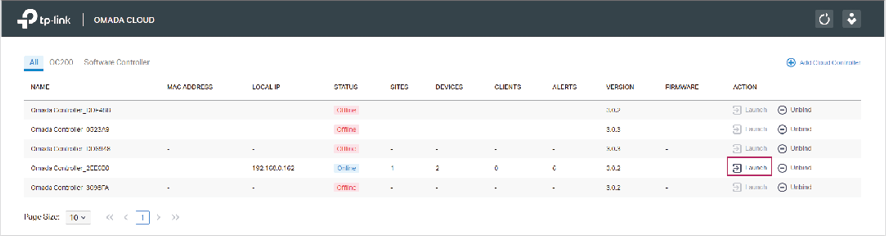

3. After you log in to Omada Cloud, a list of controllers that has been bound with your TP-Link ID will appear. If the controller does not appear on the list, you can click
to refresh the current page.

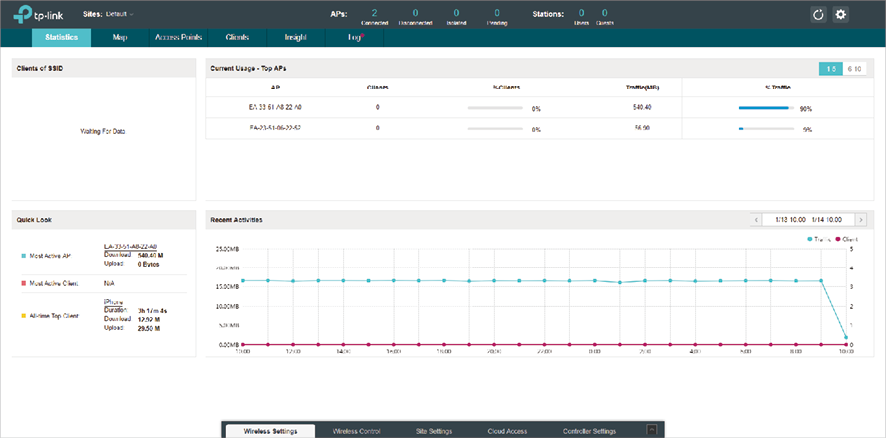

Click Launch to access your controller. Then you can configure and manage your controller.
|
|
Note: •To Refresh the page, click •To remove the Omada Controller from your cloud account, you can click •To log out Omada Cloud, click |
. Automatic refreshing is not available when accessing the controller via Omada Cloud.
.
and select 2.2Change your TP-Link ID information
You can change your TP-Link ID information on the Omada Cloud page. Click
and select My TP-Link ID, the cloud accounting settings will appear.

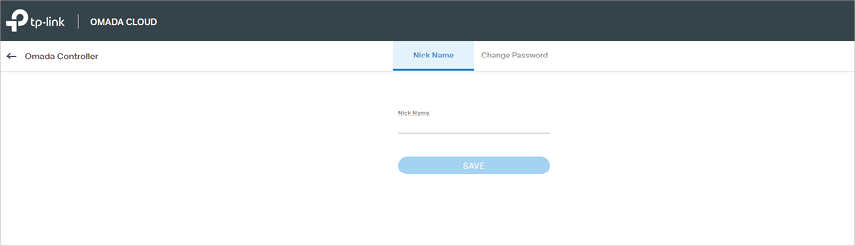

You can have a nickname for your TP-Link ID. Enter your nick name and click Save.

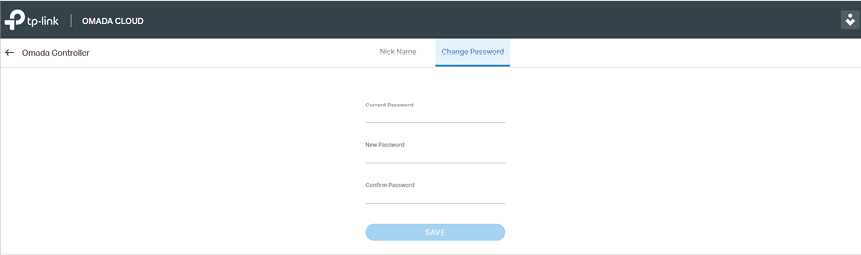

You can also change the password of your TP-Link ID. Enter the current password, then a new password twice and click Save.
