Configuring Access Security
CHAPTERS
2. Access Security Configurations
3. Appendix: Default Parameters
|
|
This guide applies to: T1500G-10PS v2 or above, T1500G-8T v2 or above, T1500G-10MPS v2 or above, T1500-28PCT v3 or above, T1600G-18TS v2 or above, T1600G-28PS v3 or above, T1600G-28TS v3 or above, T1600G-52TS v3 or above, T1600G-52PS v3 or above, T1700X-16TS v3 or above, T1700G-28TQ v3 or above, T2500G-10TS v2 or above, T2600G-18TS v2 or above, T2600G-28TS v3 or above, T2600G-28MPS v3 or above, T2600G-28SQ v1 or above, T2600G-52TS v3 or above. |
1.1Overview
Access Security provides different security measures for accessing the switch remotely so as to enhance the configuration management security.
1.2Supported Features
Access Control
This function is used to control the users’ access to the switch based on IP address, MAC address or port.
HTTP
This function is based on the HTTP protocol. It can allow or deny users to access the switch via a web browser.
HTTPS
This function is based on the SSL or TLS protocol working in transport layer. It supports a security access via a web browser.
SSH
This function is based on the SSH protocol, a security protocol established on application and transport layers. The function with SSH is similar to a telnet connection, but SSH can provide information security and powerful authentication.
Telnet
This function is based on the Telnet protocol subjected to TCP/IP protocol. Through Telnet, users can log on to the switch remotely.
Serial Port
You can configure the serial port parameters. Only T2600G series switches support Serial Port.
2Access Security Configurations
With access security configurations, you can:
Configure the Access Control feature
Configure the HTTP feature
Configure the HTTPS feature
Configure the SSH feature
Configure the Telnet function
Configure the Serial Port parameters
2.1Using the GUI
2.1.1Configuring the Access Control Feature
Choose the menu SECURITY > Access Security > Access Control to load the following page.
Figure 2-1 Configuring the Access Control
1)In the Global Config section, enable Access Control, select one control mode and click Apply.
|
Control Mode |
Select the control mode for users to log in to the web management page. IP-based: Only the users within the IP-range you set here are allowed to access the switch. MAC-based: Only the users with the MAC address you set here are allowed to access the switch. Port-based: Only the users connecting to the ports you set here are allowed to access the switch. |
2)In the Entry Table section, click
to add an Access Control entry.
When the IP-based mode is selected, the following window will pop up.
Figure 2-2 Configuring Access Control Entry-IP Based
|
Access Interface |
Select the interface to control the methods for users’ accessing. SNMP: A function to manage the network devices via NMS. Telnet: A connection type for users to remote login. SSH: A connection type based on SSH protocol. HTTP: A connection type based on HTTP protocol. HTTPS: A connection type based on SSL protocol. Ping: A communication protocol to test the connection of the network. |
|
IP Address/Mask |
Enter the IP address and mask to specify an IP range. Only the users within this IP range can access the switch. |
When the MAC-based mode is selected, the following window will pop up.
Figure 2-3 Configuring Access Control Entry-MAC Based
|
Access Interface |
Select the interface to control the methods for users’ accessing. SNMP: A function to manage the network devices via NMS. Telnet: A connection type for users to remote login. SSH: A connection type based on SSH protocol. HTTP: A connection type based on HTTP protocol. HTTPS: A connection type based on SSL protocol. Ping: A communication protocol to test the connection of the network. |
|
MAC Address |
Specify the MAC address. Only the users with the correct MAC address can access the switch. |
When the Port-based mode is selected, the following window will pop up.

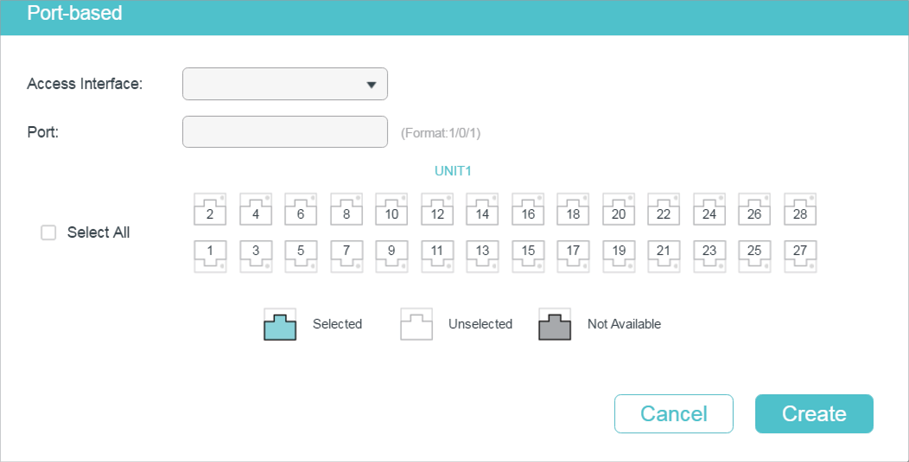

Figure 2-4 Configuring Access Control Entry-Port Based
|
Access Interface |
Select the interface to control the methods for users’ accessing. SNMP: A function to manage the network devices via NMS. Telnet: A connection type for users to remote login. SSH: A connection type based on SSH protocol. HTTP: A connection type based on HTTP protocol. HTTPS: A connection type based on SSL protocol. Ping: A communication protocol to test the connection of the network. |
|
Port |
Select one or more ports to configure. Only the users connected to these ports are allowed to access the switch. |
3)Click Create. Then you can view the created entries in the Entry Table.
2.1.2Configuring the HTTP Function
Choose the menu SECURITY > Access Security > HTTP Config to load the following page.
Figure 2-5 Configuring the HTTP Function
1)In the Global Control section, enable HTTP function, specify the port using for HTTP, and click Apply to enable the HTTP function.
|
HTTP |
HTTP function is based on the HTTP protocol. It allows users to manage the switch through a web browser. |
|
Port |
Specify the port number for HTTP service. |
2)In the Session Config section, specify the Session Timeout and click Apply.
|
Session Timeout |
The system will log out automatically if users do nothing within the Session Timeout time. |
3)In the Number of Access Users section, enable Number Control function, specify the following parameters and click Apply.
|
Number Control |
Enable or disable Number Control. With this option enabled, you can control the number of the users logging on to the web management page at the same time. The total number of users should be no more than 16. |
|
Number of Admins |
Specify the maximum number of users whose access level is Admin. |
|
Number of Operators |
Specify the maximum number of users whose access level is Operator. |
|
Number of Power Users |
Specify the maximum number of users whose access level is Power User. |
|
Number of Users |
Specify the maximum number of users whose access level is User. |
2.1.3Configuring the HTTPS Function
Choose the menu SECURITY > Access Security > HTTPS Config to load the following page.
Figure 2-6 Configuring the HTTPS Function
1)In the Global Config section, enable HTTPS function, select the protocol the switch supports and specify the port using for HTTPS. Click Apply.
|
HTTPS |
Enable or disable the HTTPS function. HTTPS function is based on the SSL or TLS protocol. It provides a secure connection between the client and the switch. |
|
SSL Version 3 |
Enable or disable SSL Version 3 protocolon the switch. SSL is a transport protocol. It can provide server authentication, encryption and message integrity to allow secure HTTP connection. |
|
TLS Version 1 |
Enable or disable TLS Version 1 protocol on the switch. TLS is a transport protocol upgraded from SSL. It supports a different encryption algorithm from SSL, so TLS and SSL are not compatible. TLS can support a more secure connection. |
2)In the CipherSuite Config section, select the algorithm to be enabled and click Apply.
|
RSA_WITH_RC4_128_MD5 |
Key exchange with RC4 128-bit encryption and MD5 for message digest. |
|
RSA_WITH_RC4_128_SHA |
Key exchange with RC4 128-bit encryption and SHA for message digest. |
|
RSA_WITH_DES_CBC_SHA |
Key exchange with DES-CBC for message encryption and SHA for message digest. |
|
RSA_WITH_3DES_EDE_CBC_SHA |
Key exchange with 3DES and DES-EDE3-CBC for message encryption and SHA for message digest. |
3)In the Session Config section, specify the Session Timeout and click Apply.
|
Session Timeout |
The system will log out automatically if users do nothing within the Session Timeout time. |
4)In the Number of Access Users section, enable Number Control function, specify the following parameters and click Apply.
|
Number Control |
Enable or disable Number Control. With this option enabled, you can control the number of the users logging on to the web management page at the same time. The total number of users should be no more than 16. |
|
Number of Admins |
Specify the maximum number of users whose access level is Admin. |
|
Number of Operators |
Specify the maximum number of users whose access level is Operator. |
|
Number of Power Users |
Specify the maximum number of users whose access level is Power User. |
|
Number of Users |
Specify the maximum number of users whose access level is User. |
5)In the Load Certificate and Load Key section, download the certificate and key.
|
Certificate File |
Select the desired certificate to download to the switch. The certificate must be BASE64 encoded. The SSL certificate and key downloaded must match each other, otherwise the HTTPS connection will not work. |
|
Key File |
Select the desired Key to download to the switch. The key must be BASE64 encoded. The SSL certificate and key downloaded must match each other, otherwise the HTTPS connection will not work. |
2.1.4Configuring the SSH Feature
Choose the menu SECURITY > Access Security > SSH Config to load the following page.
Figure 2-7 Configuring the SSH Feature
1)In the Global Config section, select Enable to enable SSH function and specify following parameters.
|
SSH |
Select Enable to enable the SSH function. SSH is a protocol working in application layer and transport layer. It can provide a secure, remote connection to a device. It is more secure than Telnet protocol as it provides strong encryption. |
|
Protocol V1 |
Select Enable to enable SSH version 1. |
|
Protocol V2 |
Select Enable to enable SSH version 2. |
|
Idle Timeout |
Specify the idle timeout time. The system will automatically release the connection when the time is up. |
|
Maximum Connections |
Specify the maximum number of the connections to the SSH server. New connection will not be established when the number of the connections reaches the maximum number you set. |
|
Port |
Specify the port using for SSH. |
2)In the Encryption Algorithm section, enable the encryption algorithm you want the switch to support and click Apply.
3)In Data Integrity Algorithm section, enable the integrity algorithm you want the switch to support and click Apply.
4)In Import Key File section, select key type from the drop-down list and click Browse to download the desired key file.
|
Key Type |
Select the key type. The algorithm of the corresponding type is used for both key generation and authentication. |
|
Key File |
Select the desired public key to download to the switch. The key length of the downloaded file ranges of 512 to 3072 bits. |
|
|
Note: It will take a long time to download the key file. Please wait without any operation. |
2.1.5Configuring the Telnet Function
Choose the menu SECURITY > Access Security > Telnet Config to load the following page.
Figure 2-8 Configuring the Telnet Function
Enable Telnet and click Apply.
|
Telnet |
Select Enable to make the Telnet function effective. Telnet function is based on the Telnet protocol subjected to TCP/IP protocol. It allows users to log on to the switch remotely. |
|
Port |
Specify the port using for Telnet. |
2.1.6Configuring the Serial Port Parameters
|
|
Note: Only T2600G series switches support Serial Port. |
Choose the menu SECURITY > Access Security > Serial Port Config to load the following page.
Figure 2-9 Configuring the Serial Port Parameters
Configure the Baud Rate and click Apply.
|
Baud Rate |
Configure the baud rate of the console connection. The default value is 38400 bps. |
|
Data Bits |
Displays the data bits. |
|
Parity Bits |
Displays the parity bits. |
|
Stop Bits |
Displays the stop bits. |
2.2Using the CLI
2.2.1Configuring the Access Control
Follow these steps to configure the access control:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
Use the following command to control the users’ access by limiting the IP address: user access-control ip-based enable Configure the control mode as IP-based. user access-control ip-based { ip-addr ip-mask } [ snmp ] [ telnet ] [ ssh ] [ http ] [ https ] [ ping ] [ all ] Only the users within the IP-range you set here are allowed to access the switch. ip-addr: Specify the IP address of the user. ip-mask: Specify the subnet mask of the user. [ snmp ] [ telnet ] [ ssh ] [ http ] [ https ] [ ping ] [ all ]: Select to control the types for users’ accessing. By default, these types are all enabled. Use the following command to control the users’ access by limiting the MAC address: user access-control mac-based enable Configure the control mode as MAC-based. user access-control mac-based { mac-addr } [ snmp ] [ telnet ] [ ssh ] [ http ] [ https ] [ ping ] [ all ] Only the users with the MAC address you set here are allowed to access the switch. mac-addr: Specify the MAC address of the user. [ snmp ] [ telnet ] [ ssh ] [ http ] [ https ] [ ping ] [ all ]: Select to control the types for users’ accessing. By default, these types are all enabled. Use the following command to control the users’ access by limiting the ports connected to the users: user access-control port-based enable Configure the control mode as Port-based. user access-control port-based interface { fastEthernet port-list | gigabitEthernet port-list | ten-gigabitEthernet port-list } [ snmp ] [ telnet ] [ ssh ] [ http ] [ https ] [ ping ] [ all ] Only the users connecting to the ports you set here are allowed to access the switch. port-list: Specify the list of Ethernet port, in the format of 1/0/1-4. You can appoint 5 ports at most. [ snmp ] [ telnet ] [ ssh ] [ http ] [ https ] [ ping ] [ all ]: Select to control the types for users’ accessing. By default, these types are all enabled. |
|
Step 3 |
show user configuration Verify the security configuration information of the user authentication information and the access interface. |
|
Step 4 |
end Return to privileged EXEC mode. |
|
Step 5 |
copy running-config startup-config Save the settings in the configuration file. |
The following example shows how to set the type of access control as IP-based. Set the IP address as 192.168.0.100, set the subnet mask as 255.255.255.255 and make the switch support snmp, telnet, http and https.
Switch#configure
Switch(config)#user access-control ip-based enable
Switch(config)#user access-control ip-based 192.168.0.100 255.255.255.255 snmp telnet http https
Switch(config)#show user configuration
User authentication mode: IP based
Index IP Address Access Interface
----- ----------------- -------------------------------
1 192.168.0.100/32 SNMP Telnet HTTP HTTPS
Switch(config)#end
Switch#copy running-config startup-config
2.2.2Configuring the HTTP Function
Follow these steps to configure the HTTP function:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
ip http server Enable the HTTP function. By default, it is enabled. |
|
Step 3 |
ip http session timeout minutes Specify the Session Timeout time. The system will log out automatically if users do nothing within the Session Timeout time. minutes: Specify the timeout time, which ranges from 5 to 30 minutes. The default value is 10. |
|
Step 4 |
ip http max-users admin-num operator-num poweruser-num user-num Specify the maximum number of users that are allowed to connect to the HTTP server. The total number of users should be no more than 16. admin-num: Enter the maximum number of users whose access level is Admin. The valid values are from 1 to 16. operator-num: Enter the maximum number of users whose access level is Operator. The valid values are from 0 to 15. poweruser-num: Enter the maximum number of users whose access level is Power User. The valid values are from 0 to 15. user-num: Enter the maximum number of users whose access level is User. The valid values are from 0 to 15. |
|
Step 5 |
show ip http configuration Verify the configuration information of the HTTP server, including status, session timeout, access-control, max-user number and the idle-timeout, etc. |
|
Step 6 |
end Return to privileged EXEC mode. |
|
Step 7 |
copy running-config startup-config Save the settings in the configuration file. |
The following example shows how to set the session timeout as 9, set the maximum admin number as 6, and set the maximum operator number as 2, the maximum power user number as 2, the maximum user number as 2.
Switch#configure
Switch(config)#ip http server
Switch(config)#ip http session timeout 9
Switch(config)#ip http max-user 6 2 2 2
Switch(config)#show ip http configuration
HTTP Status: Enabled
HTTP Port: 80
HTTP Session Timeout: 9
HTTP User Limitation: Enabled
HTTP Max Users as Admin: 6
HTTP Max Users as Operator: 2
HTTP Max Users as Power User: 2
HTTP Max Users as User: 2
Switch(config)#end
Switch#copy running-config startup-config
2.2.3Configuring the HTTPS Function
Follow these steps to configure the HTTPS function:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
ip http secure-server Enable the HTTPS function. By default, it is enabled. |
|
Step 3 |
ip http secure-protocol { [ ssl3 ] [ tls1 ] } Configure to make the switch support the corresponding protocol. By default, the switch supports SSLv3 and TLSv1. ssl3: Enable the SSL version 3 protocol. SSL is a transport protocol. It can provide server authentication, encryption and message integrity to allow secure HTTP connection. tls1: Enable the TLS version 1 protocol. TLS is s transport protocol upgraded from SSL. It supports different encryption algorithm from SSL, so TLS and SSL are not compatible. TLS can support a more secure connection. |
|
Step 4 |
ip http secure-ciphersuite { [ 3des-ede-cbc-sha ] [ rc4-128-md5 ] [ rc4-128-sha ] [ des-cbc-sha ] } Enable the corresponding ciphersuite. By default, these types are all enabled. 3des-ede-cbc-sha: Key exchange with 3DES and DES-EDE3-CBC for message encryption and SHA for message digest. rc4-128-md5: Key exchange with RC4 128-bit encryption and MD5 for message digest. rc4-128-sha: Key exchange with RC4 128-bit encryption and SHA for message digest. des-cbc-sha: Key exchange with DES-CBC for message encryption and SHA for message digest. |
|
Step 5 |
ip http secure-session timeout minutes Specify the Session Timeout time. The system will log out automatically if users do nothing within the Session Timeout time. minutes: Specify the timeout time, which ranges from 5 to 30 minutes. The default value is 10. |
|
Step 6 |
ip http secure-max-users admin-num operator-num poweruser-num user-num Specify the maximum number of users that are allowed to connect to the HTTPS server. The total number of users should be no more than 16. admin-num: Enter the maximum number of users whose access level is Admin. The valid values are from 1 to 16. operator-num: Enter the maximum number of users whose access level is Operator. The valid values are from 0 to 15. poweruser-num: Enter the maximum number of users whose access level is Power User. The valid values are from 0 to 15. user-num: Enter the maximum number of users whose access level is User. The valid values are from 0 to 15. |
|
Step 7 |
ip http secure-server download certificate ssl-cert ip-address ip-addr Download the desired certificate to the switch from TFTP server. ssl-cert: Specify the name of the SSL certificate, which ranges from 1 to 25 characters. The certificate must be BASE64 encoded. The SSL certificate and key downloaded must match each other. ip-addr: Specify the IP address of the TFTP server. Both IPv4 and IPv6 addresses are supported. |
|
Step 8 |
ip http secure-server download key ssl-key ip-address ip-addr Download the desired key to the switch from TFTP server. ssl-key: Specify the name of the key file saved in TFTP server. The key must be BASE64 encoded. ip-addr: Specify the IP address of the TFTP server. Both IPv4 and IPv6 addresses are supported. |
|
Step 9 |
show ip http secure-server Verify the global configuration of HTTPS. |
|
Step 10 |
end Return to privileged EXEC mode. |
|
Step 11 |
copy running-config startup-config Save the settings in the configuration file. |
The following example shows how to configure the HTTPS function. Enable SSL3 and TLS1 protocol. Enable the ciphersuite of 3des-ede-cbc-sha. Set the session timeout time as 15, the maximum admin number as 2, the maximum operator number as 2, the maximum power user number as 2, the maximum user number as 2. Download the certificate named ca.crt and the key named ca.key from the TFTP server with the IP address 192.168.0.100.
Switch#configure
Switch(config)#ip http secure-server
Switch(config)#ip http secure-protocol ssl3 tls1
Switch(config)#ip http secure-ciphersuite 3des-ede-cbc-sha
Switch(config)#ip http secure-session timeout 15
Switch(config)#ip http secure-max-users 2 2 2 2
Switch(config)#ip http secure-server download certificate ca.crt ip-address 192.168.0.100
Start to download SSL certificate......
Download SSL certificate OK.
Switch(config)#ip http secure-server download key ca.key ip-address 192.168.0.100
Start to download SSL key......
Download SSL key OK.
Switch(config)#show ip http secure-server
HTTPS Status: Enabled
HTTPS Port: 443
SSL Protocol Level(s): ssl3 tls1
SSL CipherSuite: 3des-ede-cbc-sha
HTTPS Session Timeout: 15
HTTPS User Limitation: Enabled
HTTPS Max Users as Admin: 2
HTTPS Max Users as Operator: 2
HTTPS Max Users as Power User: 2
HTTPS Max Users as User: 2
Switch(config)#end
Switch#copy running-config startup-config
2.2.4Configuring the SSH Feature
Follow these steps to configure the SSH function:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
ip ssh server Enable the SSH function. By default, it is disabled. |
|
Step 3 |
ip ssh version { v1 | v2 } Configure to make the switch support the corresponding protocol. By default, the switch supports SSHv1 and SSHv3. v1 | v2: Select to enable the corresponding protocol. |
|
Step 4 |
ip ssh timeout value Specify the idle timeout time. The system will automatically release the connection when the time is up. value: Enter the value of the timeout time, which ranges from 1 to 120 seconds. The default value is 120 seconds. |
|
Step 5 |
ip ssh max-client num Specify the maximum number of the connections to the SSH server. New connection will not be established when the number of the connections reaches the maximum number you set. num: Enter the number of the connections, which ranges from 1 to 5. The default value is 5. |
|
Step 6 |
ip ssh algorithm { AES128-CBC | AES192-CBC | AES256-CBC | Blowfish-CBC | Cast128-CBC | 3DES-CBC | HMAC-SHA1 | HMAC-MD5 } Enable the corresponding algorithm. By default, these types are all enabled. AES128-CBC | AES192-CBC | AES256-CBC | Blowfish-CBC | Cast128-CBC | 3DES-CBC: Specify the encryption algorithm you want the switch supports. HMAC-SHA1 | HMAC-MD5: Specify the data integrity algorithm you want the switch supports. |
|
Step 7 |
ip ssh download { v1 | v2 } key-file ip-address ip-addr Select the type of the key file and download the desired file to the switch from TFTP server. v1 | v2: Select the key type. The algorithm of the corresponding type is used for both key generation and authentication. key-file: Specify the name of the key file saved in TFTP server. Ensure the key length of the downloaded file is in the range of 512 to 3072 bits. ip-addr: Specify the IP address of the TFTP server. Both IPv4 and IPv6 addresses are supported. |
|
Step 8 |
show ip ssh Verify the global configuration of SSH. |
|
Step 9 |
end Return to privileged EXEC mode. |
|
Step 10 |
copy running-config startup-config Save the settings in the configuration file. |
|
|
Note: It will take a long time to download the key file. Please wait without any operation. |
The following example shows how to configure the SSH function. Set the version as SSH V1 and SSH V2. Enable the AES128-CBC and Cast128-CBC encryption algorithm. Enable the HMAC-MD5 data integrity algorithm. Choose the key type as SSH-2 RSA/DSA.
Switch(config)#ip ssh server
Switch(config)#ip ssh version v1
Switch(config)#ip ssh version v2
Switch(config)#ip ssh timeout 100
Switch(config)#ip ssh max-client 4
Switch(config)#ip ssh algorithm AES128-CBC
Switch(config)#ip ssh algorithm Cast128-CBC
Switch(config)#ip ssh algorithm HMAC-MD5
Switch(config)#ip ssh download v2 publickey ip-address 192.168.0.100
Start to download SSH key file......
Download SSH key file OK.
Switch(config)#show ip ssh
Global Config:
SSH Server: Enabled
Protocol V1: Enabled
Protocol V2: Enabled
Idle Timeout: 100
MAX Clients: 4
Port: 22
Encryption Algorithm:
AES128-CBC: Enabled
AES192-CBC: Disabled
AES256-CBC: Disabled
Blowfish-CBC: Disabled
Cast128-CBC: Enabled
3DES-CBC: Disabled
Data Integrity Algorithm:
HMAC-SHA1: Disabled
HMAC-MD5: Enabled
Key Type: SSH-2 RSA/DSA
Key File:
---- BEGIN SSH2 PUBLIC KEY ----
Comment: “dsa-key-20160711”
Switch(config)#end
Switch#copy running-config startup-config
2.2.5Configuring the Telnet Function
Follow these steps enable the Telnet function:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
telnet enable Enable the telnet function. By default, it is enabled. |
|
Step 3 |
telnet port port Specify the port using for Telnet. It ranges from 1 to 65535. |
|
Step 4 |
end Return to privileged EXEC mode. |
|
Step 5 |
copy running-config startup-config Save the settings in the configuration file. |
2.2.6Configuring the Serial Port Parameters
|
|
Note: Only T2600G series switches support Serial Port. |
Follow these steps enable the serial port parameters:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
serial_port baud_rate { 9600 | 19200 | 38400 | 57600 | 115200 } Specify the baud rate of the console connection. 9600 | 19200 | 38400 | 57600 | 115200: Specify the communication baud rate on the console port. The default value is 38400 bps. |
|
Step 3 |
end Return to privileged EXEC mode. |
|
Step 4 |
copy running-config startup-config Save the settings in the configuration file. |
Default settings of Access Security are listed in the following tables.
Table 3-1Default Settings of Access Control Configuration
|
Parameter |
Default Setting |
|
Access Control |
Disabled |
Table 3-2Default Settings of HTTP Configuration
|
Parameter |
Default Setting |
|
HTTP |
Enabled |
|
Port |
80 |
|
Session Timeout |
10 minutes |
|
Number Control |
Disabled |
Table 3-3Default Settings of HTTPS Configuration
|
Parameter |
Default Setting |
|
HTTPS |
Enabled |
|
SSL Version 3 |
Enabled |
|
TLS Version 1 |
Enabled |
|
Port |
443 |
|
RSA_WITH_RC4_128_MD5 |
Enabled |
|
RSA_WITH_RC4_128_SHA |
Enabled |
|
RSA_WITH_DES_CBC_SHA |
Enabled |
|
RSA_WITH_3DES_EDE_CBC_SHA |
Enabled |
|
Session Timeout |
10 minutes |
|
Number Control |
Disabled |
Table 3-4Default Settings of SSH Configuration
|
Parameter |
Default Setting |
|
SSH |
Disabled |
|
Protocol V1 |
Enabled |
|
Protocol V2 |
Enabled |
|
Idle Timeout |
120 seconds |
|
Maximum Connections |
5 |
|
Port |
22 |
|
AES128-CBC |
Enabled |
|
AES192-CBC |
Enabled |
|
AES256-CBC |
Enabled |
|
Blowfish-CBC |
Enabled |
|
Cast128-CBC |
Enabled |
|
3DES-CBC |
Enabled |
|
HMAC-SHA1 |
Enabled |
|
HMAC-MD5 |
Enabled |
|
Key Type: |
SSH-2 RSA/DSA |
Table 3-5Default Settings of Telnet Configuration
|
Parameter |
Default Setting |
|
Telnet |
Enabled |
|
Port |
23 |
Table 3-6Default Settings of Serial Port
|
Parameter |
Default Setting |
|
Baud Rate |
38400 bps |
