Configuring IPv4 IMPB

CHAPTERS

1. IPv4 IMPB

2. IP-MAC Binding Configuration

3. ARP Detection Configuration

4. IPv4 Source Guard Configuration

5. Configuration Examples

6. Appendix: Default Parameters

This guide applies to:

T1500G-8T v2 or above, T1500G-10PS v2 or above, T1500G-10MPS v2 or above, T1500-28PCT v3 or above, T1600G-18TS v2 or above, T1600G-28PS v3 or above, T1600G-28TS v3 or above, T1600G-52TS v3 or above, T1600G-52PS v3 or above, T1700X-16TS v3 or above, T1700G-28TQ v3 or above, T2500G-10TS v2 or above, T2600G-18TS v2 or above, T2600G-28TS v3 or above, T2600G-28MPS v3 or above, T2600G-28SQ v1 or above, T2600G-52TS v3 or above.

1IPv4 IMPB

1.1Overview

IPv4 IMPB (IP-MAC-Port Binding) is used to bind the IP address, MAC address, VLAN ID and the connected port number of the specified host. Basing on the binding table, the switch can prevent the ARP cheating attacks with the ARP Detection feature and filter the packets that don’t match the binding entries with the IP Source Guard feature.

1.2Supported Features

IP-MAC Binding

This feature is used to add binding entries. The binding entries can be manually configured, or learned by ARP scanning or DHCP snooping. The features ARP Detection and IPv4 Source Guard are based on the IP-MAC Binding entries.

ARP Detection

In an actual complex network, there are high security risks during ARP implementation procedure. The cheating attacks against ARP, such as imitating gateway, cheating gateway, cheating terminal hosts and ARP flooding attack, frequently occur to the network. ARP Detection can prevent the network from these ARP attacks.

Prevent ARP Cheating Attacks

Based on the IP-MAC Binding entries, the ARP Detection can be configured to detect the ARP packets and filter the illegal ones so as to prevent the network from ARP cheating attacks.

Prevent ARP Flooding Attack

You can limit the receiving speed of the legal ARP packets on the port to avoid ARP flooding attack.

IPv4 Source Guard

IPv4 Source Guard is used to filter the IPv4 packets based on the IP-MAC Binding table. Only the packets that match the binding rules are forwarded.

2IP-MAC Binding Configuration

You can add IP-MAC Binding entries in three ways:

Manual Binding

Via ARP Scanning

Via DHCP Snooping

Additionally, you can view, search and edit the entries in the Binding Table.

2.1Using the GUI

2.1.1Binding Entries Manually

You can manually bind the IP address, MAC address, VLAN ID and the Port number together on the condition that you have got the detailed information of the hosts.

Choose the menu SECURITY > IPv4 IMPB > IP-MAC Binding > Manual Binding and click to load the following page.

Figure 2-1 Manual Binding

Follow these steps to manually create an IP-MAC Binding entry:

1)Enter the following information to specify a host.

Host Name

Enter the host name for identification.

IP Address

Enter the IP address.

MAC Address

Enter the MAC address.

VLAN ID

Enter the VLAN ID.

2)Select protect type for the entry.

Protect Type

Select the protect type for the entry. The entry will be applied to to the specific feature. The following options are provided:

None: This entry will not be applied to any feature.

ARP Detection: This entry will be applied to the ARP Detection feature.

IP Source Guard: This entry will be applied to the IPv4 Source Guard feature.

Both: This entry will be applied to both of the features.

3)Enter or select the port that is connected to this host.

4)Click Apply.

2.1.2Binding Entries via ARP Scanning

With ARP Scanning, the switch sends the ARP request packets of the specified IP field to the hosts. Upon receiving the ARP reply packet, the switch can get the IP address, MAC address, VLAN ID and the connected port number of the host. You can bind these entries conveniently.

Note:

Before using this feature, make sure that your network is safe and the hosts are not suffering from ARP attacks at present; otherwise, you may obtain incorrect IP-MAC Binding entries. If your network is being attacked, it’s recommended to bind the entries manually.

Choose the menu SECURITY > IPv4 IMPB > IP-MAC Binding > ARP Scanning to load the following page.

Figure 2-2 ARP Scanning

Follow these steps to configure IP-MAC Binding via ARP scanning:

1)In the Scanning Option section, specify an IP address range and a VLAN ID. Then click Scan to scan the entries in the specified IP address range and VLAN.

Starting IP Address/Ending IP Address

Specify an IP range by entering a start and end IP address.

VLAN ID

Specify a VLAN ID.

2)In the Scanning Result section, select one or more entries and configure the relevant parameters. Then click Bind.

Host Name

Enter a host name for identification.

IP Address

Displays the IP address.

MAC Address

Displays the MAC address.

VLAN ID

Displays the VLAN ID.

Port

Displays the port number.

Protect Type

Select the protect type for the entry. The entry will be applied to to the specific feature. The following options are provided:

None: This entry will not be applied to any feature.

ARP Detection: This entry will be applied to the ARP Detection feature.

IP Source Guard: This entry will be applied to the IP Source Guard feature.

Both This entry will be applied to both of the features.

2.1.3Binding Entries via DHCP Snooping

With DHCP Snooping enabled, the switch can monitor the IP address obtaining process of the host, and record the IP address, MAC address, VLAN ID and the connected port number of the host.

Choose the menu SECURITY > IPv4 IMPB > IP-MAC Binding > DHCP Snooping to load the following page.

Figure 2-3 DHCP Snooping

Follow these steps to configure IP-MAC Binding via DHCP Snooping:

1)In the Global Config section, globally enable DHCP Snooping. Click Apply.

2)In the VLAN Config section, enable DHCP Snooping on a VLAN or range of VLANs. Click Apply.

VLAN ID

Displays the VLAN ID.

Status

Enable or disable DHCP Snooping on the VLAN.

3)In the Port Config section, configure the maximum number of binding entries a port can learn via DHCP snooping. Click Apply.

Port

Displays the port number.

Maximum Entries

Configure the maximum number of binding entries a port can learn via DHCP snooping

LAG

Displays the LAG that the port is in.

4)The learned entries will be displayed in the Binding Table. You can go to SECURITY > IPv4 IMPB > IP-MAC Binding > Binding Table to view or edit the entries.

2.1.4Viewing the Binding Entries

In the Binding Table, you can view, search and edit the specified binding entries.

Choose the menu SECURITY > IPv4 IMPB > IP-MAC Binding > Binding Table to load the following page.

Figure 2-4 Binding Table

You can specify the search criteria to search your desired entries.

Source

Select the source of the entry and click Search.

All: Displays the entries from all sources.

Manual Binding: Displays the manually bound entries.

ARP Scanning: Displays the binding entries learned from ARP Scanning.

DHCP Snooping: Displays the binding entries learned from DHCP Snooping.

IP

Enter an IP address and click Search to search the specific entry.

Additionally, you select one or more entries to edit the host name and protect type and click Apply.

Host Name

Enter a host name for identification.

IP Address

Displays the IP address.

MAC Address

Displays the MAC address.

VLAN ID

Displays the VLAN ID.

Port

Displays the port number.

Protect Type

Select the protect type for the entry. The entry will be applied to to the specific feature. The following options are provided:

None: This entry will not be applied to any feature.

ARP Detection: This entry will be applied to the ARP Detection feature.

IP Source Guard: This entry will be applied to the IP Source Guard feature.

Both: This entry will be applied to both of the features.

Source

Displays the source of the entry.

2.2Using the CLI

Binding entries via ARP scanning is not supported by the CLI. The following sections introduce how to bind entries manually and via DHCP Snooping and view the binding entries.

2.2.1Binding Entries Manually

You can manually bind the IP address, MAC address, VLAN ID and the Port number together on the condition that you have got the detailed information of the hosts.

Follow these steps to manually bind entries:

Step 1

configure

Enter global configuration mode.

Step 2

ip source binding hostname ip-addr mac-addr vlan vlan-id interface { fastEthernet port | gigabitEthernet port | ten-gigabitEthernet port | port-channel port-channel-id } { none | arp-detection | ip-verify-source | both }

Manually bind the host name, IP address, MAC address, VLAN ID and port number of the host, and configure the protect type for the host.

hostname: Specify a name for the host. It contains 20 characters at most.

ip-addr: Enter the IP address of the host.

mac-addr: Enter the MAC address of the host, in the format of xx:xx:xx:xx:xx:xx.

vlan-id: Enter the VLAN ID of the host.

port: Enter the number of the port on which the host is connected.

none | arp-detection | ip-verify-source | both: Specify the protect type for the entry. None indicates this entry will not be applied to any feature; arp-detection indicates this entry will be applied to ARP Detection; ip-verify-source indicates this entry will be applied to IPv4 Source Guard.

Step 3

show ip source binding

Verify the binding entry.

Step 4

end

Return to privileged EXEC mode.

Step 5

copy running-config startup-config

Save the settings in the configuration file.

The following example shows how to bind an entry with the hostname host1, IP address 192.168.0.55, MAC address 74:d4:35:76:a4:d8, VLAN ID 10, port number 1/0/5, and enable this entry for the ARP detection feature.

Switch#configure

Switch(config)#ip source binding host1 192.168.0.55 74:d4:35:76:a4:d8 vlan 10 interface gigabitEthernet 1/0/5 arp-detection

Switch(config)#show ip source binding

U Host IP-Addr MAC-Addr VID Port ACL SOURCE

- ---- ------- -------- --- ---- --- ------

1 host1 192.168.0.55 74:d4:35:76:a4:d8 10 Gi1/0/5 ARP-D Manual

Notice:

1.Here, ‘ARP-D’ for ‘ARP-Detection’,and’IP-V-S’ for ‘IP-Verify-Source’.

Switch(config)#end

Switch#copy running-config startup-config

2.2.2Binding Entries via DHCP Snooping

Follow these steps to bind entries via DHCP Snooping:

Step 1

configure

Enter global configuration mode.

Step 2

ip dhcp snooping

Globally enable DHCP Snooping.

Step 3

ip dhcp snooping vlan vlan-range

Enable DHCP Snooping on the specified VLAN.

vlan-range: Enter the vlan range in the format of 1-3, 5.

Step 4

interface { fastEthernet port | range fastEthernet port-list | gigabitEthernet port | range gigabitEthernet port-list | ten-gigabitEthernet port | range ten-gigabitEthernet port-list | interface port-channel port-channel-id | interface range port-channel port-channel-id-list }

Enter interface configuration mode.

Step 5

ip dhcp snooping max-entries value

Configure the maximum number of binding entries the port can learn via DHCP snooping.

value: Enter the value of maximum number of entries. The valid values are from 0 to 512.

Step 6

show ip dhcp snooping

Verify global configuration of DHCP Snooping.

Step 7

end

Return to privileged EXEC mode.

Step 8

copy running-config startup-config

Save the settings in the configuration file.

The following example shows how to enable DHCP Snooping globally and on VLAN 5, and set the maximum number of binding entries port 1/0/1 can learn via DHCP snooping as 100:

Switch#configure

Switch(config)#ip dhcp snooping

Switch(config)#ip dhcp snooping vlan 5

Switch(config)#interface gigabitEthernet 1/0/1

Switch(config-if)#ip dhcp snooping max-entries 100

Switch(config-if)#show ip dhcp snooping

Global Status: Enable

VLAN ID: 5

Switch(config-if)#show ip dhcp snooping interface gigabitEthernet 1/0/1

Interface max-entries LAG

--------- ----------- ---

Gi1/0/1 100 N/A

Switch(config-if)#end

Switch#copy running-config startup-config

2.2.3Viewing Binding Entries

On privileged EXEC mode or any other configuration mode, you can use the following command to view binding entries:

show ip source binding

View the information of binding entries, including the host name, IP address, MAC address, VLAN ID, port number and protect type.

3ARP Detection Configuration

To complete ARP Detection configuration, follow these steps:

1)Add IP-MAC Binding entries.

2)Enable ARP Detection.

3)Configure ARP Detection on ports.

4)View ARP statistics.

3.1Using the GUI

3.1.1Adding IP-MAC Binding Entries

In ARP Detection, the switch detects the ARP packets based on the binding entries in the IP-MAC Binding Table. So before configuring ARP Detection, you need to complete IP-MAC Binding configuration.

3.1.2Enabling ARP Detection

Choose the menu SECURITY > IPv4 IMPB > ARP Detection > Global Config to load the following page.

Figure 3-1 ARP Detection Global Config

Follow these steps to enable ARP Detection:

1)In the Global Config section, enable ARP Detection and configure the related parameters. Click Apply.

ARP Detect

Enable or disable ARP Detection globally.

Validate Source MAC

Enable or disable the switch to check whether the source MAC address and the sender MAC address are the same when receiving an ARP packet. If not, the ARP packet will be discarded.

Validate Destination MAC

Enable or disable the switch to check whether the destination MAC address and the target MAC address are the same when receiving an ARP reply packet. If not, the ARP packet will be discarded.

Validate IP

Enable or disable the switch to check whether the sender IP address of all ARP packets and the target IP address of ARP reply packets are legal. The illegal ARP packets will be discarded, including broadcast addresses, multicast addresses, Class E addresses, loopback addresses (127.0.0.0/8) and the following address: 0.0.0.0.

2)In the VLAN Config section, enable ARP Detection on the selected VLANs. Click Apply.

VLAN ID

Displays the VLAN ID.

Status

Enable or disable ARP Detection on the VLAN.

Log Status

Enable or disable Log feature on the VLAN. With this feature enabled, the switch generates a log when an illegal ARP packet is discarded.

3.1.3Configuring ARP Detection on Ports

Choose the menu SECURITY > IPv4 IMPB > ARP Detection >Port Config to load the following page.

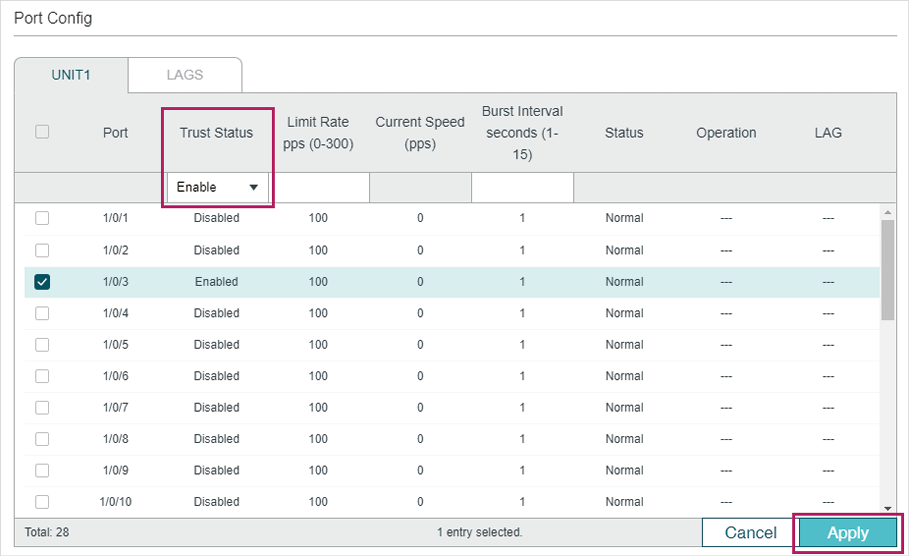

Figure 3-2 ARP Detection on Port

Follow these steps to configure ARP Detection on ports:

1)Select one or more ports and configure the parameters.

Trust Status

Enable or disable this port to be a trusted port. On a trusted port, the ARP packets are forwarded directly without checked. The specific ports, such as up-link ports and routing ports are suggested to be set as trusted.

Limit Rate

Specify the maximum number of the ARP packets that can be received on the port per second.

Current Speed

Displays the current speed of receiving the ARP packets on the port.

Burst Interval

Specify a time range. If the average speed of received ARP packets in this time range reaches the limit, the port will be shut down.

Status

Displays the status of the ARP attack:

Normal: The forwarding of ARP packets on the port is normal.

Down: The transmission speed of the legal ARP packet exceeds the defined value. The port will be shut down for 300 seconds. You can also click the Recovery button to recover

Operation

If Status is changed to Down, there will be a Recover button. You can click the button to restore the port to the normal status.

LAG

Displays the LAG that the port is in.

2)Click Apply.

3.1.4Viewing ARP Statistics

You can view the number of the illegal ARP packets received on each port, which facilitates you to locate the network malfunction and take the related protection measures.

Choose the menu SECURITY > IPv4 IMPB > ARP Detection > ARP Statistics to load the following page.

Figure 3-3 View ARP Statistics

In the Auto Refresh section, you can enable the auto refresh feature and specify the refresh interval, and thus the web page will be automatically refreshed.

In the Illegal ARP Packet section, you can view the number of illegal ARP packets in each VLAN.

VLAN ID

Displays the VLAN ID.

Forwarded

Displays the number of forwarded ARP packets in this VLAN.

Dropped

Displays the number of dropped ARP packets in this VLAN.

3.2Using the CLI

3.2.1Adding IP-MAC Binding Entries

In ARP Detection, the switch detects the ARP packets based on the binding entries in the IP-MAC Binding Table. So before configuring ARP Detection, you need to complete IP-MAC Binding configuration.

3.2.2Enabling ARP Detection

Follow these steps to enable ARP Detection:

Step 1

configure

Enter global configuration mode.

Step 2

ip arp inspection

Globally enable the ARP Detection feature.

Step 3

ip arp inspection validate { src-mac | dst-mac | ip }

Configure the switch to check the IP address or MAC address of the received packets.

src-mac: Enable the switch to check whether the source MAC address and the sender MAC address are the same when receiving an ARP packet. If not, the ARP packet will be discarded.

dst-mac: Enable the switch to check whether the sender IP address of all ARP packets and the target IP address of ARP reply packets are legal. The illegal packets will be discarded.

ip: Enable or disable the switch to check whether the sender IP address of all ARP packets and the target IP address of ARP reply packets are legal. The illegal ARP packets will be discarded, including broadcast addresses, multicast addresses, Class E addresses, loopback addresses (127.0.0.0/8) and the following address: 0.0.0.0.

Step 4

ip arp inspection vlan vlan-list [ logging ]

Enable ARP Detection on one or more 802.1Q VLANs that already exist.

vlan-list: Enter the VLAN ID. The format is 1,5-9.

logging: Enable the Log feature to make the switch generate a log when an ARP packet is discarded.

Step 5

show ip arp inspection

Verify the ARP Detection configuration.

Step 6

end

Return to privileged EXEC mode.

Step 7

copy running-config startup-config

Save the settings in the configuration file.

The following example shows how to enable ARP Detection globally and on VLAN 2, and enable the switch to check whether the source MAC address and the sender MAC address are the same when receiving an ARP packet:

Switch#configure

Switch(config)#ip arp inspection

Switch(config)#ip arp inspection validate src-mac

Switch(config)#ip arp inspection vlan 2

Switch(config)#show ip arp inspection

Global Status: Enable

Verify SMAC: Enable

Verify DMAC: Disable

Verify IP: Disable

Switch(config)#show ip arp inspection vlan

VID Enable status Log Status

---- ------------- ----------

1 Disable Disable

2 Enable Disable

Switch(config)#end

Switch#copy running-config startup-config

3.2.3Configuring ARP Detection on Ports

Follow these steps to configure ARP Detection on ports:

Step 1

configure

Enter global configuration mode.

Step 2

interface { fastEthernet port | range fastEthernet port-list | gigabitEthernet port | range gigabitEthernet port-list | ten-gigabitEthernet port | range ten-gigabitEthernet port-list }Enter interface configuration mode.

Step 3

ip arp inspection trust

Configure the port as a trusted port, on which the ARP Detection function will not take effect. The specific ports, such as up-linked ports and routing ports are suggested to be set as trusted ports.

Step 4

ip arp inspection limit-rate value

Specify the maximum number of the ARP packets can be received on the port per second.

value: Specify the limit rate value. The valid values are from 0 to 300 pps (packets/second), and the default value is 100.

Step 5

ip arp inspection burst-interval value

Specify a time range. If the average speed of received ARP packets in this time range reach the limit, the port will be shut down.

value: Specify the time range. The valid values are from 1 to 15 seconds, and the default value is 1 second.

Step 6

show ip arp inspection interface

View the configurations and status of the ports.

Step 7

ip arp inspection recover

(Optional) For ports on which the speed of receiving ARP packets has exceeded the limit, use this command to restore the port from Down status to Normal status.

Step 8

end

Return to privileged EXEC mode.

Step 9

copy running-config startup-config

Save the settings in the configuration file.

The following example shows how to set port 1/02 as a trusted port, and set limit-rate as 20 pps and burst interval as 2 seconds on port 1/0/2:

Switch#configure

Switch(config)#interface gigabitEthernet 1/0/2

Switch(config-if)#ip arp inspection trust

Switch(config-if)#ip arp inspection limit-rate 20

Switch(config-if)#ip arp inspection burst-interval 2

Switch(config-if)#show ip arp inspection interface gigabitEthernet 1/0/2

Interface Trust state limit Rate(pps) Current speed(pps) Burst Interval Status LAG

--------- ----------- --------------- ------------------ -------------- -------- ---

Gi1/0/2 Enable 20 0 2 --- N/A

Switch(config-if)#end

Switch#copy running-config startup-config

The following example shows how to restore the port 1/0/1 that is in Down status to Normal status:

Switch#configure

Switch(config)#interface gigabitEthernet 1/0/1

Switch(config-if)#ip arp inspection recover

Switch(config-if)#end

Switch#copy running-config startup-config

3.2.4Viewing ARP Statistics

On privileged EXEC mode or any other configuration mode, you can use the following command to view ARP statistics:

show ip arp inspection statistics

View the ARP statistics on each port, including the number of forwarded ARP packets and the number of dropped ARP packets.

4IPv4 Source Guard Configuration

To complete IPv4 Source Guard configuration, follow these steps:

1)Add IP-MAC Binding entries.

2)Configure IPv4 Source Guard.

4.1Using the GUI

4.1.1Adding IP-MAC Binding Entries

In IPv4 Source Guard, the switch filters the packets that do not match the rules of IPv4-MAC Binding Table. So before configuring ARP Detection, you need to complete IP-MAC Binding configuration.

4.1.2Configuring IPv4 Source Guard

Choose the menu SECURITY > IPv4 IMPB > IPv4 Source Guard to load the following page.

Figure 4-1 IPv4 Source Guard Config

Follow these steps to configure IPv4 Source Guard:

1)In the Global Config section, choose whether to enable the Log feature. Click Apply.

Pv4 Source Guard Log

Enable or disable IPv4 Source Guard Log feature. With this feature enabled, the switch generates a log when illegal packets are received.

2)In the Port Config section, configure the protect type for ports and click Apply.

Port

Displays the port number.

Security Type

Select Security Type on the port for IPv4 packets. The following options are provided:

Disable: The IP Source Guard feature is disabled on the port.

SIP+MAC: Only the packet with its source IP address, source MAC address and port number matching the IPv4-MAC binding rules can be processed, otherwise the packet will be discarded.

SIP: Only the packet with its source IP address and port number matching the IPv4-MAC binding rules can be processed, otherwise the packet will be discarded.
Note: Only T1500&T1500G&T1600G series switch supports this feature.

LAG

Displays the LAG that the port is in.

4.2Using the CLI

4.2.1Adding IP-MAC Binding Entries

In IPv4 Source Guard, the switch filters the packets that do not match the rules of IPv4-MAC Binding Table. So before configuring ARP Detection, you need to complete IP-MAC Binding configuration.

4.2.2Configuring IPv4 Source Guard

Follow these steps to configure IPv4 Source Guard:

Step 1

configure

Enter global configuration mode.

Step 2

interface { fastEthernet port | range fastEthernet port-list | gigabitEthernet port | range gigabitEthernet port-list | ten-gigabitEthernet port | range ten-gigabitEthernet port-list }

Enter interface configuration mode.

Step 3

ip verify source { sip+mac | sip }

Enable IP Source Guard for IPv4 packets.

sip+mac: Only the packet with its source IP address, source MAC address and port number matching the IP-MAC binding rules can be processed, otherwise the packet will be discarded.

sip: Only the packet with its source IP address and port number matching the IPv4-MAC binding rules can be processed, otherwise the packet will be discarded.
Note: Only T1500&T1500G&T1600G series switch supports this feature.

Step 4

show ip verify source [ interface { fastEthernet port | gigabitEthernet port | ten-gigabitEthernet port | port-channel port-channel-id } ]

Verify the IP Source Guard configuration for IPv4 packets.

Step 5

end

Return to privileged EXEC mode.

Step 6

copy running-config startup-config

Save the settings in the configuration file.

The following example shows how to enable IPv4 Source Guard on port 1/0/1:

Switch#configure

Switch(config)#interface gigabitEthernet 1/0/1

Switch(config-if)#ip verify source sip+mac

Switch(config-if)#show ip verify source interface gigabitEthernet 1/0/1

Port Security-Type LAG

---- ------------- ----

Gi1/0/1 SIP+MAC N/A

Switch(config-if)#end

Switch#copy running-config startup-config

5Configuration Examples

5.1Example for ARP Detection

5.1.1Network Requirements

As shown below, User 1 and User 2 are legal users in the LAN and connected to port 1/0/1 and port 1/0/2. Both of them are in the default VLAN 1. The router has been configured with security feature to prevent attacks from the WAN. Now the network administrator wants to configure Switch A to prevent ARP attacks from the LAN.

Figure 5-1 Network Topology

5.1.2Configuration Scheme

To meet the requirement, you can configure ARP Detection to prevent the network from ARP attacks in the LAN.

The overview of configurations on the switch is as follows:

1)Configure IP-MAC Binding. The binding entries for User 1 and User 2 should be manually bound.

2)Configure ARP Detection globally.

3)Configure ARP Detection on ports. Since port 1/0/3 is connected to the gateway router, set port 1/0/3 as trusted port. To prevent ARP flooding attacks, limit the speed of receiving the legal ARP packets on all ports.

Demonstrated with T2600G-28TS, the following sections provide configuration procedure in two ways: using the GUI and using the CLI.

5.1.3Using the GUI

1)Choose the menu SECURITY > IPv4 IMBP > IP-MAC Binding > Manual Binding and click to load the following page. Enter the host name, IP address, MAC address and VLAN ID of User 1, select the protect type as ARP Detection, and select port 1/0/1 on the panel. Click Apply.

Figure 5-2 Binding Entry for User 1

2)On the same page, add a binding entry for User 2. Enter the host name, IP address, MAC address and VLAN ID of User 2, select the protect type as ARP Detection, and select port 1/0/2 on the panel. Click Apply.

Figure 5-3 Binding Entry for User 2

3)Choose the menu SECURITY > IPv4 IMBP > ARP Detection > Global Config to load the following page. Enable APP Detect, Validate Source MAC, Validate Destination MAC and Validate IP, and click Apply. Select VLAN 1, change Status as Enabled and click Apply.

Figure 5-4 Enable ARP Detection

4)Choose the menu SECURITY > IPv4 IMBP > ARP Detection > Port Config to load the following page. By default, all ports are enabled with ARP Detection and ARP flooding defend. Configure port 1/0/3 as trusted port and keep other defend parameters as default. Click Apply.

Figure 5-5 Port Config

5)Click to save the settings.

5.1.4Using the CLI

1)Manually bind the entries for User 1 and User 2.

Switch_A#configure

Switch_A(config)#ip source binding User1 192.168.0.31 74:d3:45:32:b6:8d vlan 1 interface gigabitEthernet 1/0/1 arp-detection

Switch_A(config)#ip source binding User1 192.168.0.32 88:a9:d4:54:fd:c3 vlan 1 interface gigabitEthernet 1/0/2 arp-detection

2)Enable ARP Detection globally and on VLAN 1.

Switch_A(config)#ip arp inspection

Switch_A(config)#ip arp inspection vlan 1

3)Configure port 1/0/3 as trusted port.

Switch_A(config)#interface gigabitEthernet 1/0/3

Switch_A(config-if)#ip arp inspection trust

Switch_A(config-if)#end

Switch_A#copy running-config startup-config

Verify the Configuration

Verify the IP-MAC Binding entries:

Switch_A#show ip source binding

U Host IP-Addr MAC-Addr VID Port ACL SOURCE

- ---- ------- -------- --- ---- --- ------

1 User1 192.168.0.31 74:d3:45:32:b6:8d 1 Gi1/0/1 ARP-D Manual

1 User2 192.168.0.33 88:a9:d4:54:fd:c3 1 Gi1/0/2 ARP-D Manual

Notice:

1.Here, ‘ARP-D’ for ‘ARP-Detection’,and’IP-V-S’ for ‘IP-Verify-Source’.

Verify the global configuration of ARP Detection:

Switch_A#show ip arp inspection

Global Status: Enable

Verify SMAC: Enable

Verify DMAC: Enable

Verify IP: Enable

Verify the ARP Detection configuration on VLAN:

Switch_A#show ip arp inspection vlan

VID Enable status Log Status

---- ------------- ----------

1 Enable Disable

Verify the ARP Detection configuration on ports:

Switch_A#show ip arp inspection interface

Interface Trust state limit Rate(pps) Current speed(pps) Burst Interval Status LAG

--------- ----------- --------------- ------------------ -------------- ------- ---

Gi1/0/1 Disable 100 0 1 --- N/A

Gi1/0/2 Disable 100 0 1 --- N/A

Gi1/0/3 Enable 100 0 1 --- N/A

...

5.2Example for IP Source Guard

5.2.1Network Requirements

As shown below, the legal host connects to the switch via port 1/0/1 and belongs to the default VLAN 1. It is required that only the legal host can access the network via port 1/0/1, and other unknown hosts will be blocked when trying to access the network via ports 1/0/1-3.

Figure 5-6 Network Topology

5.2.2Configuration Scheme

To implement this requirement, you can use IP-MAC Binding and IP Source Guard to filter out the packets received from the unknown hosts. The overview of configuration on the switch is as follows:

1)Bind the MAC address, IP address, connected port number and VLAN ID of the legal host with IP-MAC Binding.

2)Enable IP Source Guard on ports 1/0/1-3.

Demonstrated with T2600G-28TS, the following sections provide configuration procedure in two ways: using the GUI and using the CLI.

5.2.3Using the GUI

1)Choose the menu SECURITY > IPv4 IMPB > IP-MAC Binding > Manual Binding and click to load the following page. Enter the host name, IP address, MAC address and VLAN ID of the legal host, select the protect type as , and select port 1/0/1 on the panel. Click Apply.

Figure 5-7 Manual Binding

2)Choose the menu SECURITY > IPv4 IMPB > IPv4 Source Guard to load the following page. Enable IPv4 Source Guard Logging to make the switch generate logs when receiving illegal packets, and click Apply. Select ports 1/0/1-3, configure the Security Type as SIP+MAC, and click Apply.

Figure 5-8 IPv4 Source Guard

3)Click to save the settings.

5.2.4Using the CLI

1)Manually bind the IP address, MAC address, VLAN ID and connected port number of the legal host, and apply this entry to the IP Source Guard feature.

Switch#configure

Switch(config)#ip source binding legal-host 192.168.0.100 74:d3:45:32:b5:6d vlan 1 interface gigabitEthernet 1/0/1 ip-verify-source

2)Enable the log feature and IP Source Guard on ports 1/0/1-3.

Switch(config)# ip verify source logging

Switch(config)# interface range gigabitEthernet 1/0/1-3

Switch(config-if-range)#ip verify source sip+mac

Switch(config-if-range)#end

Switch#copy running-config startup-config

Verify the Configuration

Verify the binding entry:

Switch#show ip source binding

U Host IP-Addr MAC-Addr VID Port ACL SOURCE

- ---- ------- -------- --- ---- --- ------

1 User1 192.168.0.100 74:d3:45:32:b5:6d 1 Gi1/0/1 IP-V-S Manual

Notice:

1.Here, ‘ARP-D’ for ‘ARP-Detection’,and’IP-V-S’ for ‘IP-Verify-Source’.

Verify the configuration of IP Source Guard:

Switch#show ip verify source

IP Source Guard log: Enabled

Port Security-Type LAG

Gi1/0/1 SIP+MAC N/A

Gi1/0/2 SIP+MAC N/A

Gi1/0/3 SIP+MAC N/A

...

6Appendix: Default Parameters

Default settings of DHCP Snooping are listed in the following table:

Table 6-1DHCP Snooping

Parameter

Default Setting

Global Config

DHCP Snooping

Disable

VLAN Config

Status

Disable

Port Config

Maximum Entry

512

Default settings of ARP Detection are listed in the following table:

Table 6-2ARP Detection

Parameter

Default Setting

Global Config

ARP Detect

Disable

Validate Source MAC

Disable

Validate Destination MAC

Disable

Validate IP

Disable

VLAN Config

Status

Disable

Log Status

Disable

Port Config

Trust Status

Disable

Limit Rate

100 pps

Burst Interval

1 second

Default settings of IPv4 Source Guard are listed in the following table:

Table 6-3IPv4 Source Guard

Parameter

Default Setting

Global Config

IPv4 Source Guard Log

Disable

Port Config

Security Type

Disable
