Managing MAC Address Table
CHAPTERS
4. Example for Security Configurations
5. Appendix: Default Parameters
|
|
This guide applies to: T1500G-8T v2 or above, T1500G-10PS v2 or above, T1500G-10MPS v2 or above, T1500-28PCT v3 or above, T1600G-18TS v2 or above, T1600G-28TS v3 or above, T1600G-28PS v3 or above, T1600G-52TS v3 or above, T1600G-52PS v3 or above, T1700X-16TS v3 or above, T1700G-28TQ v3 or above, T2500G-10TS v2 or above, T2600G-18TS v2 or above, T2600G-28TS v3 or above, T2600G-28MPS v3 or above, T2600G-28SQ v1 or above, T2600G-52TS v3 or above. |
1.1Overview
The MAC address table contains address information that the switch uses to forward packets. As shown below, the table lists map entries of MAC addresses, VLAN IDs and ports. These entries can be manually added or automatically learned by the switch. Based on the MAC-address-to-port mapping in the table, the switch can forward packets only to the associated port.
Table 1-1The MAC Address Table
|
MAC Address |
VLAN ID |
Port |
Type |
Aging Status |
|
00:00:00:00:00:01 |
1 |
1 |
Dynamic |
Aging |
|
00:00:00:00:00:01 |
1 |
2 |
Static |
No-Aging |
|
... |
The address table of the switch contains dynamic addresses, static addresses and filtering addresses. You can add or remove these entries according to your needs. Furthermore, you can configure notification traps and limit the number of MAC addresses in a VLAN for traffic safety.
Address Configurations
Dynamic address
Dynamic addresses are addresses learned by the switch automatically, and the switch regularly ages out those that are not in use. That is, the switch removes the MAC address entries related to a network device if no packet is received from the device within the aging time. And you can specify the aging time if needed.
Static address
Static addresses are manually added to the address table and do not age. For some relatively fixed connection, for example, frequently visited server, you can manually set the MAC address of the server as a static entry to enhance the forwarding efficiency of the switch.
Filtering address
Filtering addresses are manually added and determine the packets with specific source or destination MAC addresses that will should dropped by the switch.
Security Configurations
|
|
Note: T1500/T1600G series switches do not support MAC Notification or MAC VLAN Security. |
Configuring MAC Notification Traps
You can configure traps and SNMP (Simple Network Management Protocol) to monitor and receive notifications of the usage of the MAC address table and the MAC address change activity. For example, you can configure the switch to send notifications when a new MAC address is learned, so the administrator knows a new users accesses the network.
Limiting the Number of MAC Addresses in VLANs
You can configure VLAN Security to limit the number of MAC addresses that can be learned in specified VLANs. The switch will not learn addresses when the number of learned addresses has reached the limit, preventing the address table from being used up by broadcasting packets of MAC address attacks.
With MAC address table, you can:
Add static MAC address entries
Change the address aging time
Add filtering address entries
View address table entries
2.1Using the GUI
2.1.1Adding Static MAC Address Entries
You can add static MAC address entries by manually specifying the desired MAC address or binding dynamic MAC address entries.
Adding MAC Addresses Manually
Choose the menu L2 FEATURES > Switching > MAC Address > Static Address and click
to load the following page.

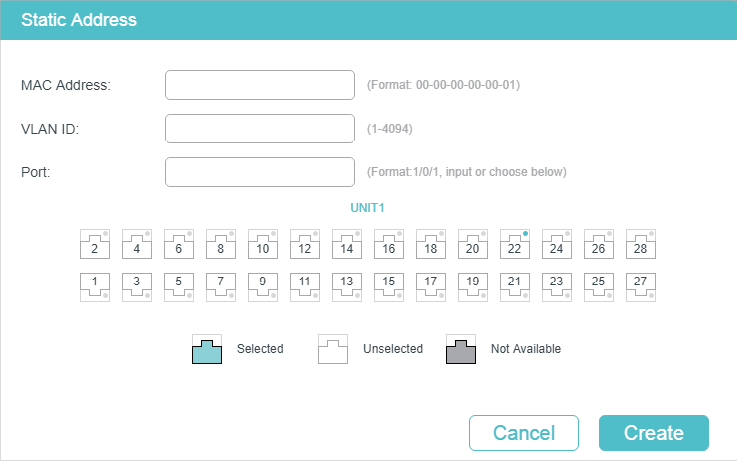

Figure 2-1 Adding MAC Addresses Manually
Follow these steps to add a static MAC address entry:
1)Enter the MAC address, VLAN ID and select a port to bind them together as an address entry.
|
MAC Address |
Enter the static MAC address to be added to the static MAC address entry. |
|
VLAN ID |
Specify an existing VLAN in which packets with the specific MAC address are received. |
|
Port |
Specify a port to which packets with the specific MAC address are forwarded. The port must belong to the specified VLAN. After you have added the static MAC address, if the corresponding port number of the MAC address is not correct, or the connected port (or the device) has been changed, the switch cannot forward the packets correctly. Please reset the static address entry appropriately. |
2)Click Create.
Binding Dynamic Address Entries
If some dynamic address entries are frequently used, you can bind these entries as static entries.
Choose the menu L2 FEATURES > Switching > MAC Address > Dynamic Address to load the following page.
Figure 2-2 Binding Dynamic MAC Address Entries
Follow these steps to bind dynamic MAC address entries:
1)In the Dynamic Address Tablesection, Select your desired MAC address entries.
2)Click Bind, and then the selected entries will become static MAC address entries.
|
|
Note: •In the same VLAN, once an address is configured as a static address, it cannot be set as a filtering address, and vice versa. •Multicast or broadcast addresses cannot be set as static addresses. •Ports in LAGs (Link Aggregation Group) are not supported for static address configuration. |
2.1.2Modifying the Aging Time of Dynamic Address Entries
Choose the menu L2 FEATURES > Switching > MAC Address > Dynamic Address to load the following page.

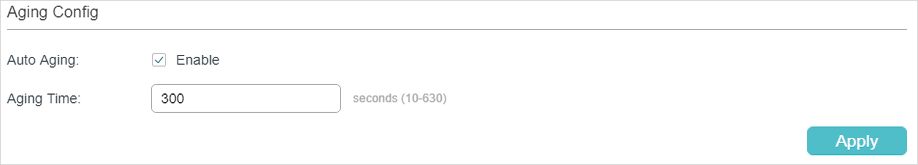

Figure 2-3 Modifying the Aging Time of Dynamic Address Entries
Follow these steps to modify the aging time of dynamic address entries:
1)In the Aging Config section, enable Auto Aging, and enter your desired length of time.
|
Auto Aging |
Enable Auto Aging, then the switch automatically updates the dynamic address table with the aging mechanism. By default, it is enabled. |
|
Aging Time |
Set the length of time that a dynamic entry remains in the MAC address table after the entry is used or updated. The valid values are from 10 to 630 seconds, and the default value is 300. A short aging time is applicable to networks where network topology changes frequently, and a long aging time is applicable to stable networks. We recommend that you keep the default value if you are unsure about settings in your case. |
2)Click Apply.
2.1.3Adding MAC Filtering Address Entries
Choose the menu L2 FEATURES > Switching > MAC Address > Filtering Address and click to load the following page.

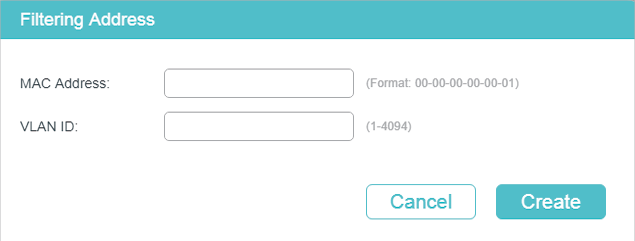

Figure 2-4 Adding MAC Filtering Address Entries
Follow these steps to add MAC filtering address entries:
1)Enter the MAC Address and VLAN ID.
|
MAC Address |
Specify the MAC address to be used by the switch to filter the received packets. |
|
VLAN ID |
Specify an existing VLAN in which packets with the specific MAC address are dropped. |
2)Click Create.
|
|
Note: •In the same VLAN, once an address is configured as a filtering address, it cannot be set as a static address, and vice versa. •Multicast or broadcast addresses cannot be set as filtering addresses. |
2.1.4Viewing Address Table Entries
You can view entries in MAC address table to check your former operations and address information.
Choose the menu L2 FEATURES > Switching > MAC Address > Address Table and click
to load the following page.

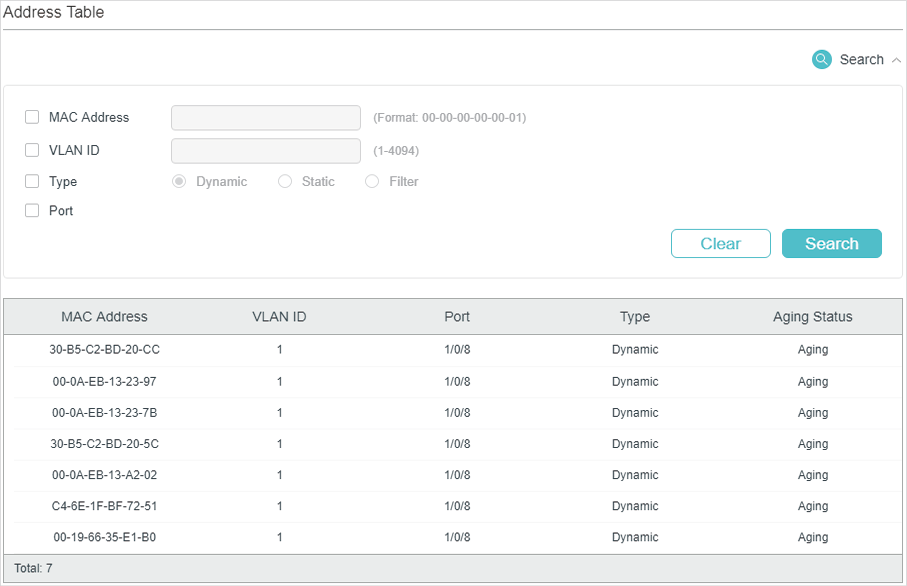

Figure 2-5 Viewing Address Table Entries
2.2Using the CLI
2.2.1Adding Static MAC Address Entries
Follow these steps to add static MAC address entries:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
mac address-table static mac-addr vid vid interface { fastEthernet port | gigabitEthernet port | ten-gigabitEthernet port } Bind the MAC address, VLAN and port together to add a static address to the VLAN. mac-addr: Enter the MAC address, and packets with this destination address received in the specified VLAN are forwarded to the specified port. The format is xx:xx:xx:xx:xx:xx, for example, 00:00:00:00:00:01. vid: Specify an existing VLAN in which packets with the specific MAC address are received. port: Specify a port to which packets with the specific MAC address are forwarded. The port must belong to the specified VLAN. |
|
Step 3 |
end Return to privileged EXEC mode. |
|
Step 4 |
copy running-config startup-config Save the settings in the configuration file. |
|
|
Note: •In the same VLAN, once an address is configured as a static address, it cannot be set as a filtering address, and vice versa. •Multicast or broadcast addresses cannot be set as static addresses. •Ports in LAGs (Link Aggregation Group) are not supported for static address configuration. |
The following example shows how to add a static MAC address entry with MAC address 00:02:58:4f:6c:23, VLAN 10 and port 1. When a packet is received in VLAN 10 with this address as its destination, the packet will be forwarded only to port 1/0/1.
Switch#configure
Switch(config)# mac address-table static 00:02:58:4f:6c:23 vid 10 interface gigabitEthernet 1/0/1
Switch(config)#show mac address-table static
MAC Address Table
----------------------------------------------------------------------------
MAC VLAN Port Type Aging
----------------- ------ -------- ----------- ---------
00:02:58:4f:6c:23 10 Gi1/0/1 config static no-aging
Total MAC Addresses for this criterion: 1
Switch(config)#end
Switch#copy running-config startup-config
2.2.2Modifying the Aging Time of Dynamic Address Entries
Follow these steps to modify the aging time of dynamic address entries:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
mac address-table aging-time aging-time Set your desired length of address aging time for dynamic address entries. aging-time: Set the length of time that a dynamic entry remains in the MAC address table after the entry is used or updated. The valid values are from10 to 630. Value 0 means the Auto Aging function is disabled. The default value is 300 and we recommend you keep the default value if you are unsure. |
|
Step 3 |
end Return to privileged EXEC mode. |
|
Step 4 |
copy running-config startup-config Save the settings in the configuration file. |
The following example shows how to modify the aging time to 500 seconds. A dynamic entry remains in the MAC address table for 500 seconds after the entry is used or updated.
Switch#configure
Switch(config)# mac address-table aging-time 500
Switch(config)#show mac address-table aging-time
Aging time is 500 sec.
Switch(config)#end
Switch#copy running-config startup-config
2.2.3Adding MAC Filtering Address Entries
Follow these steps to add MAC filtering address entries:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
mac address-table filtering mac-addr vid vid Add the filtering address to the VLAN. mac-addr: Specify a MAC address to be used by the switch to filter the received packets. The switch will drop packets of which the source address or destination address is the specified MAC address. The format is xx:xx:xx:xx:xx:xx, for example, 00:00:00:00:00:01. vid: Specify an existing VLAN in which packets with the specific MAC address will be dropped. |
|
Step 3 |
end Return to privileged EXEC mode. |
|
Step 4 |
copy running-config startup-config Save the settings in the configuration file. |
|
|
Note: •In the same VLAN, once an address is configured as a filtering address, it cannot be set as a static address, and vice versa. •Multicast or broadcast addresses cannot be set as filtering addresses. |
The following example shows how to add the MAC filtering address 00:1e:4b:04:01:5d to VLAN 10. Then the switch will drop the packet that is received in VLAN 10 with this address as its source or destination.
Switch#configure
Switch(config)# mac address-table filtering 00:1e:4b:04:01:5d vid 10
Switch(config)#show mac address-table filtering
MAC Address Table
----------------------------------------------------------------------------
MAC VLAN Port Type Aging
----------------- ------ -------- ----------- ---------
00:1e:4b:04:01:5d 10 filter no-aging
Total MAC Addresses for this criterion: 1
Switch(config)#end
Switch#copy running-config startup-config
|
|
Note: T1500/T1600G series switches do not support MAC Notification or MAC VLAN Security. |
With security configurations of the MAC address table, you can:
Configure MAC notification traps.
Configure MAC VLAN Security to limit the number of MAC addresses in VLANs.
3.1Using the GUI
3.1.1Configuring MAC Notification Traps
Choose the menu L2 FEATURES > Switching > MAC Address > MAC Notification to load the following page.

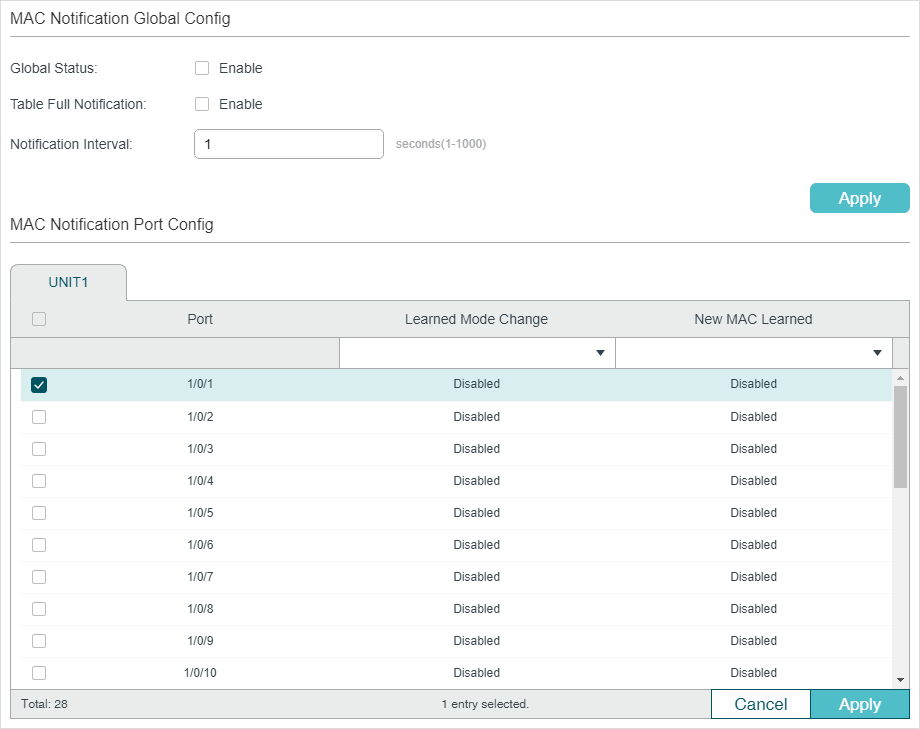

Figure 3-1 Configuring MAC Notification Traps
Follow these steps to configure MAC notification traps:
1)In the MAC Notification Global Config section, enable this feature, configure the relevant options, and click Apply.
|
Global Status |
Enable MAC notification feature globally. |
|
Table Full Notification |
Enable Table Full Notification, and when address table is full, a notification will be generated and sent to the management host. |
|
Notification Interval |
Specify the time value of Notification Interval. Notification Interval is the interval at which the New MAC Learned notifications are continuously sent. |
2)In the MAC Notification Port Config section, select one or more ports to configure the notification status. Click Apply.
|
Learned Mode Change |
Enable Learned Mode Change, and when the learned mode of the specified port is changed, a notification will be generated and sent to the management host. |
|
New MAC Learned |
Enable New MAC Learned, and when the specified port learns a new MAC address, a notification will be generated and sent to the management host. |
3)Configure SNMP and set a management host. For detailed SNMP configurations, please refer to Configuring SNMP & RMON.
3.1.2Limiting the Number of MAC Addresses Learned in VLANs
Choose the menu L2 FEATURES > Switching > MAC Address > MAC VLAN Security and click Add to load the following page.
Figure 3-2 Limiting the Number of MAC Addresses in VLANs
Follow these steps to limit the number of MAC addresses in VLANs:
1)Enter the VLAN ID to limit the number of MAC addresses that can be learned in the specified VLAN.
|
VLAN ID |
Specify an existing VLAN in which you want to limit the number of MAC addresses. |
2)Enter your desired value in Max Learned Number to set a threshold.
|
Max Learned Number |
Set the maximum number of MAC addresses in the specific VLAN. It ranges from 0 to 16383. You can control the available address table space by setting maximum learned MAC number for VLANs. However, an improper maximum number can cause unnecessary floods in the network or a waste of address table space. Therefore, before you set the number limit, please be sure you are familiar with the network topology and the switch system configuration. |
3)Choose the mode that the switch adopts when the maximum number of MAC addresses in the specified VLAN is exceeded.
|
Drop |
Packets with new source MAC addresses in the VLAN will be dropped when the maximum number of MAC addresses in the specified VLAN is exceeded. |
|
Forward |
Packets of new source MAC addresses will be forwarded but the addresses will not be learned when the maximum number of MAC addresses in the specified VLAN is exceeded. |
4)Click Create.
3.2Using the CLI
3.2.1Configuring MAC Notification Traps
Follow these steps to configure MAC notification traps:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
mac address-table notification global-status {enable | disable} Enable MAC Notification globally. enable | disable: Enable or disable MAC Notification globally. |
|
Step 3 |
mac address-table notification table-full-status [enable | disable] (Optional) Enable Table Full Notification. enable | disable: With Table Full Notification enabled, when address table is full, a notification will be generated and sent to the management host. |
|
Step 4 |
mac address-table notification interval time Specify the time value of Notification Interval. Notification Interval is the interval at which the New MAC Learned notifications are continuously sent. time: Specify the Notification Interval in seconds between 1to 1000. By default, it is 1 second. |
|
Step 5 |
interface { fastEthernet port | range fastEthernet port-list | gigabitEthernet port | range gigabitEthernet port-list | ten-gigabitEthernet port | ten-range gigabitEthernet port-list } Configure notification traps on the specified port. port/ port-list: The number or the list of the Ethernet port that you want to configure notification traps. |
|
Step 6 |
mac address-table notification {[learn-mode-change enable | disable] [new-mac-learned enable | disable]} Enable learn-mode-change, exceed-max-learned, or new-MAC-learned notification traps on the specified port. enable | disable:Enable or disable learn-mode-change, exceed-max-learned, or new-MAC-learned notification traps on the specified port. learn-mode-change: With learn-mode-change enabled, when the learned mode of the specified port is changed, a notification will be generated and sent to the management host. new-mac-learned: With new-mac-learned enabled, when the specified port learns a new MAC address, a notification will be generated and sent to the management host. |
|
Step 7 |
end Return to privileged EXEC mode. |
|
Step 8 |
copy running-config startup-config Save the settings in the configuration file. |
Now you have configured MAC notification traps. To receive notifications, you need to further enable SNMP and set a management host. For detailed SNMP configurations, please refer to Configuring SNMP & RMON.
The following example shows how to enable new-MAC-learned trap on port 1, and set the interval time as 10 seconds. After you have further configured SNMP, the switch will bundle notifications of new addresses in every 10 seconds and send to the management host.
Switch#configure
Switch(config)#mac address-table notification global-status enable
Switch(config)#mac address-table notification interval 10
Switch(config)#interface gigabitEthernet 1/0/1
Switch(config-if)#mac address-table notification new-mac-learned enable
Switch(config-if)#show mac address-table notification interface gigabitEthernet 1/0/1
Mac Notification Global Config
Notification Global Status : enable
Table Full Notification Status: disable
Notification Interval : 10
Port LrnMode Change New Mac Learned
---- -------------- ----------------
Gi1/0/1 disable enable
Switch(config-if)#end
Switch#copy running-config startup-config
3.2.2Limiting the Number of MAC Addresses in VLANs
Follow these steps to limit the number of MAC addresses in VLANs:
|
Step 1 |
configure Enter global configuration mode. |
|
Step 2 |
mac address-table security vid vid max-learn num {drop | forward} Configure the maximum number of MAC addresses in the specified VLAN and select a mode for the switch to adopt when the maximum number is exceeded. vid: Specify an existing VLAN in which you want to limit the number of MAC addresses. num: Set the maximum number of MAC addresses in the specific VLAN. It ranges from 0 to 16383. drop | forward: The mode that the switch adopts when the maximum number of MAC addresses in the specified VLAN is exceeded. drop: Packets of new source MAC addresses in the VLAN will be dropped when the maximum number of MAC addresses in the specified VLAN is exceeded. forward: Packets of new source MAC addresses will be forwarded but the addresses not learned when the maximum number of MAC addresses in the specified VLAN is exceeded. |
|
Step 3 |
end Return to privileged EXEC mode. |
|
Step 4 |
copy running-config startup-config Save the settings in the configuration file. |
The following example shows how to limit the number of MAC addresses to 100 in VLAN 10, and configure the switch to drop packets of new source MAC addresses when the limit is exceeded.
Switch#configure
Switch(config)#mac address-table security vid 10 max-learn 100 drop
Switch(config)#show mac address-table security vid 10
VlanId Max-learn Current-learn Status
------ --------- ------------- ------
10 100 0 Drop
Switch(config)#end
Switch#copy running-config startup-config
4Example for Security Configurations
4.1Network Requirements
Several departments are connected to the company network as shown in Figure 4-1. Now the Marketing Department that is in VLAN 10 has network requirements as follows:
Free the network system from illegal accesses and MAC address attacks by limiting the number of access users in this department to 100.
Assist the network manager supervising the network with notifications of any new access users.

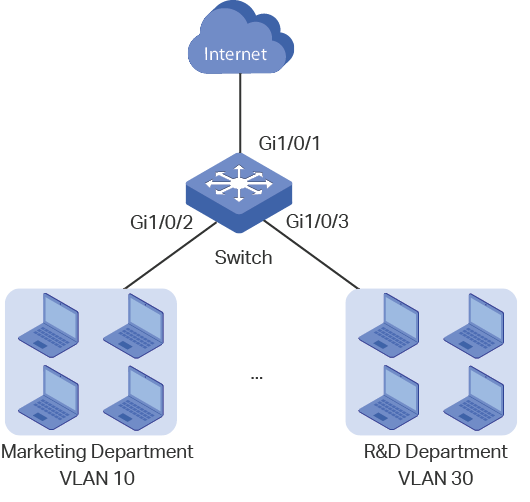

Figure 4-1 The Network Topology
4.2Configuration Scheme
VLAN Security can be configured to limit the number of access users and in this way to prevent illegal accesses and MAC address attacks.
MAC Notification and SNMP can be configured to monitor the interface which is used by the Marketing Department. Enable the new-MAC-learned notification and the SNMP, then the network manager can get notifications when new users access the network.
Demonstrated with T2600G-28TS, this chapter provides configuration procedures in two ways: using the GUI and using the CLI.
4.3Using the GUI
1)Choose the menu L2 FEATURES > Switching > MAC Address > MAC VLAN Security and click Add to load the following page. Set the maximum number of MAC address in VLAN 10 as 100, choose drop mode and click Create.

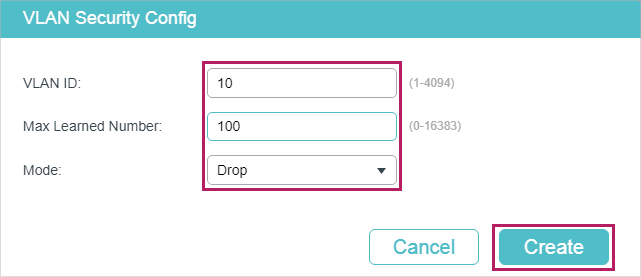

Figure 4-2 Configuring VLAN Security
2)Choose the menu L2 FEATURES > Switching > MAC Address > MAC Notification to load the following page. Enable Global Status, set notification interval as 10 seconds, and click Apply. Then, enable new-mac-learned trap on port 1/0/2 and click Apply.

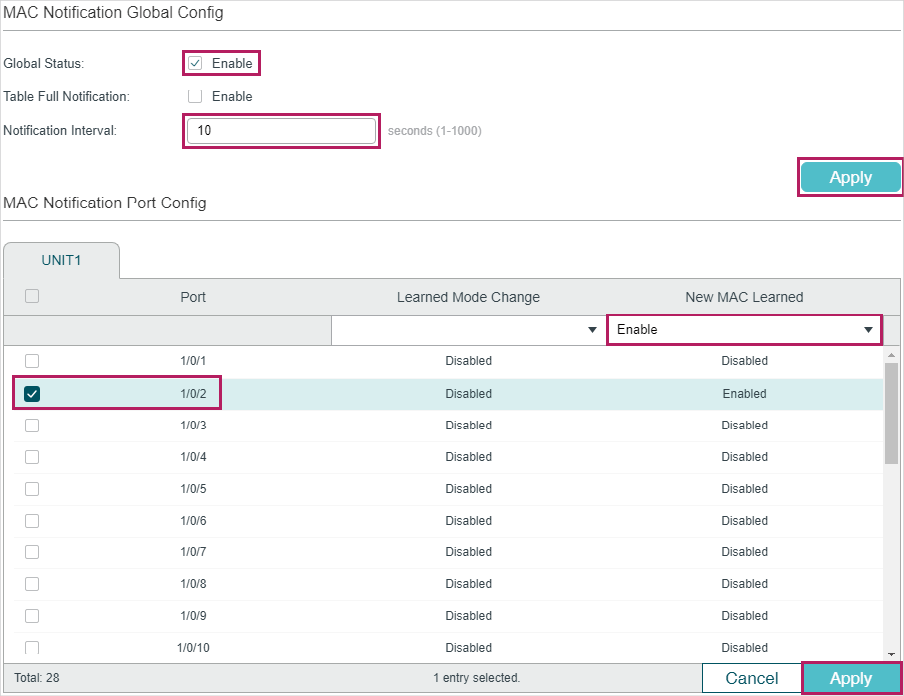

Figure 4-3 Configuring New-MAC-learned Traps
3)Click
to save the settings.
4)Enable SNMP and set a management host. For detailed SNMP configurations, please refer to Configuring SNMP & RMON.
4.4Using the CLI
1)Set the maximum number of MAC address in VLAN 10 as 100, and choose drop mode.
Switch#configure
Switch(config)#mac address-table security vid 10 max-learn 100 drop
2)Configure the new-MAC-learned trap on port 1/0/2 and set notification interval as 10 seconds.
Switch(config)#mac address-table notification global-status enable
Switch(config)#mac address-table notification interval 10
Switch(config)#interface gigabitEthernet 1/0/2
Switch(config-if)#mac address-table notification new-mac-learned enable
Switch(config-if)#end
Switch#copy running-config startup-config
3)Configure SNMP and set a management host. For detailed SNMP configurations, please refer to Configuring SNMP & RMON.
Verify the Configurations
Verify the configuration of VLAN Security.
Switch#show mac address-table security vid 10
VlanId Max-learn Current-learn Status
------ --------- ------------- ------
10 100 0 Drop
Verify the configuration of MAC Notification on port 1/0/2.
Switch#show mac address-table notification interface gigabitEthernet 1/0/2
Port LrnMode Change New Mac Learned
---- -------------- ----------------
Gi1/0/2 disable enable
Default settings of the MAC Address Table are listed in the following tables.
Table 5-1Entries in the MAC Address Table
|
Parameter |
Default Setting |
|
Static Address Entries |
None |
|
Dynamic Address Entries |
Auto-learning |
|
Filtering Address Entries |
None |
Table 5-2Default Settings of Dynamic Address Table
|
Parameter |
Default Setting |
|
Auto Aging |
Enable |
|
Aging Time |
300 seconds |
Table 5-3Default Settings of MAC Notification
|
Parameter |
Default Setting |
|
Global Status |
Disable |
|
Table Full Notification |
Disable |
|
Notification Interval |
1 Second |
|
Learned Mode Change Notification |
Disable |
|
Exceed Max Learned Notification |
Disable |
|
New MAC Learned Notification |
Disable |
Table 5-4Default Settings of MAC VLAN Security
|
Parameter |
Default Setting |
|
MAC VLAN Security |
Disable |
