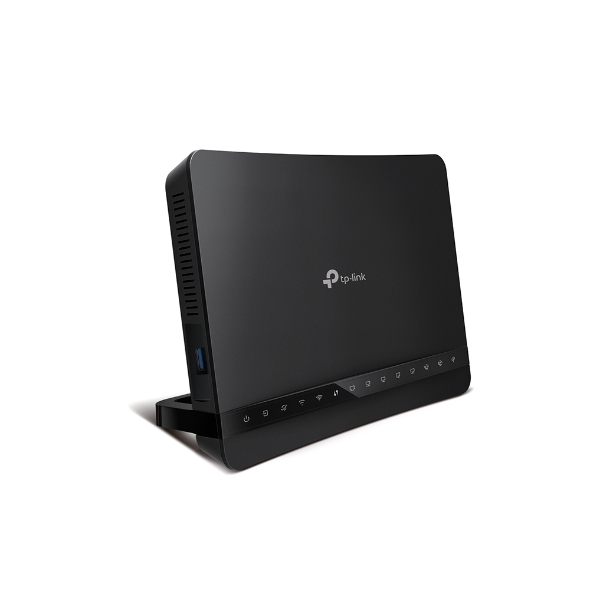

VC321-G2v

AC1600 Wireless Dual Band Gigabit VolP VDSL/ADSL Modem Router

Supports VDSL2 35b: Downstream is increased by up to 350Mbps, 3.5x faster than its VDSL2 predecessor
Superfast Dual Band Wi-Fi: Up to 1.6Gbps Wi-Fi speed, 300Mbps 2.4GHz, 1300Mbps 5GHz
Supports VoIP Calls: Simply make or receive phone calls over the Internet
Full Gigabit Port: Up to 10x faster than standard Ethernet, deliver lightning-fast wired performance
Supports USB 3.0: With USB 3.0 port, easily share files & media with networked devices
Easy Remote Management: TR-069 protocol enables an operator to remotely configure and manage end-user devices

Visión General

AC1600 Wireless

Dual Band Gigabit
VolP VDSL/ADSL Modem Router

VC321-G2v

Supports VDSL2 35b

The VC321-G2v features Super VDSL (VDSL2 Profile 35b), the latest generation of DSL technology. Downstream is increased by up to 350Mbps, 3.5x faster than its VDSL2 predecessor.

Superfast Dual Band Wi-Fi

The VC321-G2v, reaching speeds of up to 1300 Mbps on the 5GHz band and 300Mbps on the 2.4GHz band, is ideal for online gaming, HD streaming, and large file downloads.

Versatile Connectivity

With multiple inputs, the VC321-G2v provides you with a variety of internet connection options.
As a backup, the WAN port accepts the connections from cable or fiber modem via Ethernet cable. Additionally, the USB port supports 3G/4G dongle connections to keep you connected no matter what.

VoIP Calls

Supports up to 8 VoIP accounts and various call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.

USB 3.0 Port

Supports storage sharing, FTP and media servers as well as 3G/4G dongle.

Full Gigabit Wired Port

With one gigabit WAN and four gigabit LAN ports, speeds can be up to 10x faster than standard Ethernet connections. The VC321-G2v can provide robust and extremely fast connections to all of your favorite wired devices, including game consoles, smart TVs, DVRs, and more.

Especificaciones

CARACTERÍSTICAS DE HARDWARE
Interface	4 10/100/1000Mbps RJ 45 LAN Ports 1 10/100/1000Mbps RJ 45 WAN Port 3 RJ11 Ports(1 DSL Port + 2 FXS Ports) 1 USB 3.0 Port
Botón	WPS Button,WiFi On/Off Button, Power On/Off Button, RESET Button
Fuente de alimentación externa	12V/2A
Estándar IEEE	IEEE 802.3, 802.3u, 802.3ab
Estándares VDSL2	ITU-T G.993.2, Up to 17a Profile (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP)
Estándares ADSL	Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite)
Estándares ADSL2	ITU-T G.992.3 (G.dmt.bis) Annex A/L/M ITU-T G.992.4 (G.lite.bis)
Estándares ADSL2+	ITU-T G.992.5 Annex A/M
Dimensiones (An x Pr x Al)	8.4 × 5.7 × 3.1 in (214.0 × 144.5 × 80.0 mm)
Tipo de Antena	3 Internal Antennas
Estándares VOIP	SIP (RFC3261)/RTP(RFC1889/3550) ITU-T G.711A/u, G.722, G.729AB, G.726 T.38 pass-through

CARACTERÍSTICAS INALÁMBRICAS
Estándares inalámbricos	IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frecuencia	2.4GHz and 5GHz
Tasa de señal	1300Mbps at 5GHz, 300Mbps at 2.4GHz
Transmit Power	<20dBm(2.4GHz), <23dBm(5GHz)
Seguridad inalámbrica	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

FUNCIONES DE SOFTWARE
Calidad de servicio	ATM QoS, QoS
Seguridad	SPI Firewall, NAT Firewall, MAC / IP/ URL Filtering
Modos de funcionamiento	VDSL/ADSL Modem Router Wireless Router 3G/4G Router
Gestión	Web based configuration(HTTP) SNMP v1/v2c CWMP(TR-069)
DHCP	Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Reenvío de puertos	Virtual Server, Port Triggering, DMZ, ALG, UPnP
DNS Dinámico	DynDns, NO-IP
Paso de VPN	L2TP, PPTP, IPSec Passthrough
Protocolos	Supports IPv4 and IPv6
Protocolos ATM / PPP	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Funciones avanzadas	Parental Control, Network Address Translation(NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
Compartir USB	Support Samba(Storage), FTP Server, Media Server, 3G/4G Modem
IPSec VPN	Supports up to 16 IPSec VPN tunnels

OTROS
Certificación	CE, FCC, RoHS
contenidos del paquete	AC1600 Wireless Dual Band Gigabit VoIP VDSL2 Modem Router VC321-G2v Power Adapter RJ11 DSL Cable RJ45 Ethernet Cable VDSL Splitter Quick Installation Guide
Requisitos del sistema	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Ambiente	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
