Archer C50 (W)
DiscontinuadoAC1200 Wireless Dual Band Router
- Dual-Band AC1200 WiFi: Upgrade to fast 5th generation WiFi, 300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz.†
- Aginet Solution Reduces ISPs' OPEX: Enables ISP to realize remote management of deployed devices by Aginet ACS, and customizes default configuration and batch configuration by Aginet Config.
- Easy Remote Management: An operator can remotely configure and manage end-user devices by supporting TR-069 protocol.
- Easy Network Management: End-users easily set up the product in minutes thanks to its intuitive web interface and the powerful Tether app.
- Maximum Coverage: Four external antennas and beamforming technology provide stable wireless connections and optimal coverage.
- 2-in-1 Modes: Supports Router mode to Instantly generate a private wireless network, and Access Point mode to create a new Wi-Fi access point.
- Value-Added Features: VPN, Parental Controls, MU-MIMO, Guest network, Multi-SSID, and IPTV optimization.
Strong,
Far-Reaching Wi-Fi
AC1200 Dual Band Wi-Fi Router
Archer C50
High-Speed Dual Band Wi-Fi for Better Connections
The Archer C50 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology.
With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer C50 is
the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.†

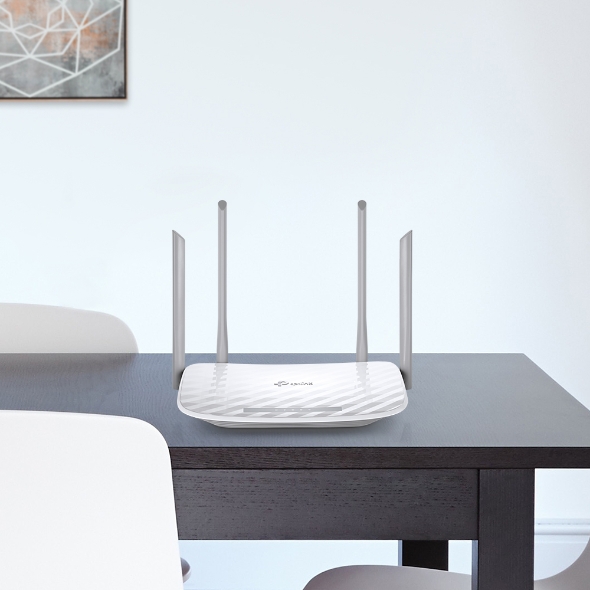

4 Antennas & Beamforming for Maximum Coverage
Equipped with four external antennas, Archer C50 creates stronger and more reliable networks for all to enjoy in your home. Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance.
-
Other Router without Beamforming
-
Archer C50
Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use key words to easily set up a black list and limit the level of web access.
Support Multi-SSID
Multiple SSID helps ISPs easily create separate WLAN networks for various service deployments, such as IPTV, Internet, etc.
Easy Setup and Management with the Tether APP
The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer C50 and manage the private network settings.
Easy Remote Management for ISPs
Support TR-069 protocols, enabling ISPs to remotely configure and manage end-user devices. Support TR-098.
TR-069
Remote Management
TR-098
TP-Link’s Aginet Solution: Greatly Reduce ISPs’ OPEX
Support Aginet Config, enabling ISPs to customize default configurations according to their requirements, and keep the settings after users reset devices.
Support Aginet ACS, enabling ISP to realize remote management of deployed devices and reduce on-site maintenance cost.
Aginet Config for batch configuration
Aginet ACS for remote management
| INALAMBRICO | |
|---|---|
| Estándares | Wi-Fi 5• IEEE 802.11ac/n/a 5 GHz• IEEE 802.11n/b/g 2.4 GHz |
| Velocidad WiFi | AC1200• 5 GHz: 867 Mbps (802.11ac)• 2.4 GHz: 300 Mbps (802.11n) |
| Rango WiFi | 3 Bedroom Houses • 4× Fixed AntennasMultiple antennas form a signal-boosting array to cover more directions and large areas• BeamformingConcentrates wireless signal strength towards clients to expand WiFi range |
| Capacidad WiFi | Medium • Dual-BandAllocate devices to different bands for optimal performance• 2×2 MU-MIMOSimultaneously communicates with multiple MU-MIMO clients |
| Modos de trabajo | • Router Mode• Access Point Mode |
| SEGURIDAD | |
|---|---|
| Control de acceso | • Parental Control• Local Management Control• Host list• Access Schedule• Rule Management |
| Seguridad de la red | • SPI Firewall• Access Control• IP & MAC Binding• Application Layer Gateway |
| Red de invitados | • 1× 5 GHz Guest Network• 1× 2.4 GHz Guest Network |
| Cifrado WiFi | • WPA/WPA2• WPA-PSK/WPA2-PSK Authentication• TKIP/AES Encryption• 64/128-bit WEP Encryption |
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Procesador | Single-Core CPU |

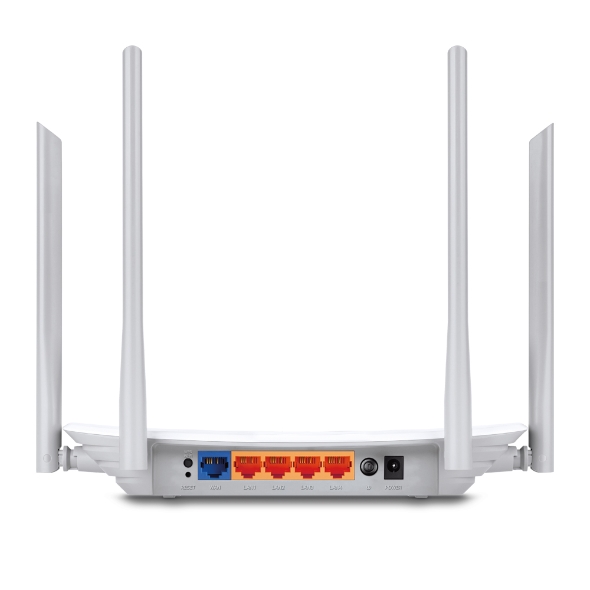

| Interface | • 1× 10/100 Mbps WAN Port• 4× 10/100 Mbps LAN Ports |
| Botón | • WPS/Wi-Fi Button• Power On/Off Button• Reset Button |
| Fuente de alimentación | 9VDC/0.85A |
| Antena | 4 External Antennas |
| SOFTWARE | |
|---|---|
| Protocolos | • IPv4• IPv6 |
| Controles parentales | • URL Filtering• Time Controls |
| Tipos de WAN | • Dynamic IP• Static IP• PPPoE• PPTP• L2TP |
| Calidad de servicio | • QoS by Device• WMM• Bandwidth Control |
| NAT Forwarding | • Port Forwarding• Port Triggering• DMZ• UPnP |
| IPTV | • IGMP Proxy• IGMP Snooping• Bridge• Tag VLAN |
| DHCP | • Address Reservation• DHCP Client List• Server• Client |
| DDNS | • NO-IP• DynDNS |
| Gestión | For ISP: • Remote management via Aginet ACS and TR-069• Customized and batch configuration via Aginet ConfigFor End Users:• Local management via Web UI• Local and remote manage via Tether App |
| OTRO | |
|---|---|
| Certificaciones | FCC, CE, RoHS |
| Ambiente | Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
| DATOS DE PRUEBA | |
|---|---|
| Potencia de transmisión WiFi | • CE EIRP:<20 dBm (2.4 GHz)<23 dBm (5 GHz)• FCC:<30 dBm(2.4 GHz & 5 GHz) |
| FÍSICO | |
|---|---|
| Dimensiones (Al x An x Pr) | 9.1 × 5.7 × 1.5 in(230 × 144 × 35 mm) |
| contenidos del paquete | • Wi-Fi Router Archer C50 |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and the maximum number of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
