WiFi Routers EX230

EX230

Discontinuado

AX1800 Dual Band Wi-Fi 6 Router

  • Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with WiFi speeds of 1.8 Gbps.*
  • Dual-Band WiFi 6: Equipped with the latest WiFi 6 wireless technology for faster speeds, greater capacity, and reduced network congestion.**
  • Connect More Devices: WiFi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.**
  • Extensive Coverage: Beamforming, and four antennas combine to deliver focused reception to devices far away.
  • EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.△
  • Easy Setup: Set up your router in minutes with the powerful TP-Link Aginet app.
  • TR-069 Remote Management: TR-098, TR-181, TR-111, TR-104 and TR-143 are supported.

Visión General

Explore the New
Era of WiFi

AX1800 Dual Band WiFi 6 Router

EX230

EasyMesh Compatible

1800 Mbps
Dual Band Speeds

More Connected Devices

TR-069
Remote Management

Refined Password Security

Full Gigabit Ports

Parental Controls

The Next Generation of WiFi is Upon Us

WiFi 6 (802.11ax) could turn out to be the most significant advancement in WiFi development, delivering a huge boost in speed and total capacity. Mainstream adoption of WiFi 6 is inching ever closer with more and more AX clients available. It's the right time to upgrade your router to the newest generation of WiFi !**

  • 5 GHz

    1201 Mbps

  • 2.4 GHz

    574 Mbps

  •

    Larger Capacity

  •

    Lower Latency

  •

    1024-QAM

  •

    Target Wake Time

Dual-Band WiFi 6 Up to 1.8 Gbps

Every application feels more fluid with drastically improved WiFi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading.

  • Wi-Fi 4, 2.4 GHz
    40 MHz, 2×2

    300 Mbps

  • Wi-Fi 5, 5 GHz
    80 MHz, 2×2

    867 Mbps

  • Wi-Fi 6, 2.4 GHz
    40 MHz, 2×2

    574 Mbps

  • Wi-Fi 6, 5 GHz
    80 MHz, 2×2

    1201 Mbps

  • 90% Faster

  • 40% Faster

More Connections at High Speed

Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.

OFDMA

OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency. **

OFDMA
4× Capacity

Extensive WiFi Coverage

Beamforming technology, and four high-gain antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.

  Beamforming
Other Router without Beamforming
  4× Antennas
EX230

Create Smart Mesh WiFi with Great Flexibility

EX230 is compatible with EasyMesh. It can form a unified mesh WiFi network, seamlessly covering the entire home together with added-on EX220 or other TP-Link EasyMesh models.△

  • Traditional Router with Extender

  • EasyMesh Routers

WPA3—The Next Level of Cybersecurity

The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.

Gigabit Broadband Internet Access

The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast and reliable wired connections.

up to 1000 Mbps Internet Access §

Easy Setup and Use

Whether you prefer the intuitive Aginet app or the powerful web interface, you can set up your device in minutes. The Agient app allows you to manage network settings from your smart phone or tablet.

QRcode
Apple Store
Google Store


Support TR-069 Remote Management

ISPs can remotely configure and manage devices via TAUC (TP-Link Aginet Unified Cloud) and Aginet ACS, or their ACS (Auto-Configuration Server) system. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

TR-069

Remote Management

TR-181 TR-111 TR-143

Aginet Solution:
End-to-End Management System for ISPs

Aginet Solution offer ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.

Learn More about Aginet Solution

Especificaciones

CARACTERÍSTICAS DE HARDWARE

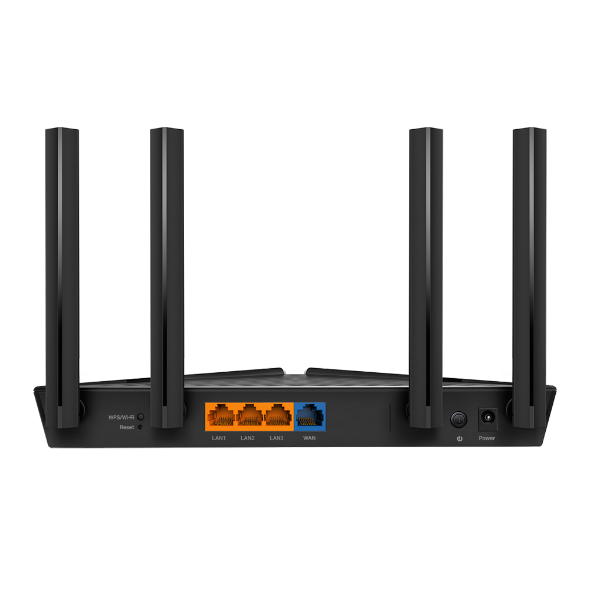

Interface 1 10/100/1000 Mbps RJ45 WAN Port, 3 10/100/1000 Mbps RJ45 LAN Ports
Botón Power On/Off Button, Reset Button, WPS/Wi-Fi Button
Fuente de alimentación externa 12V/1A
Dimensiones (An x Pr x Al) 10.2 × 5.3 × 1.6 in (260.2 × 135.0 × 41.6 mm)
Tipo de Antena Four External antennas
Ganancia de la Antena 2 x 4dBi for 2.4 GHz and 2 x 5dBi for 5 GHz
CARACTERÍSTICAS INALÁMBRICAS
Estándares inalámbricos IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/g/b 2.4 GHz
Frecuencia 2.4 GHz and 5 GHz
Tasa de señal 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz*
Funciones inalámbricas Enable/Disable Wireless Radio, WMM, Wireless Statistics
Seguridad inalámbrica WPA/WPA2/WPA3 encryptions
Poder de transmision CE: <20dBm (2.4 GHz), <23dBm (5.17 GHz–5.71 GHz)
FCC:<30dBm (2.4 GHz & 5.15 GHz–5.825 GHz)
Horario inalámbrico Support 2.4 GHz and 5 GHz Wireless Schedule
Tecnología Mesh EasyMesh Compatible, and support 802.11k/v/r
FUNCIONES DE SOFTWARE
Características avanzadas Muti-SSID, TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness, Guest Network
Modos de funcionamiento Router, Access Point
Tipo de WAN Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN)
Gestión Access Control, Remote Management, TR-069(TR-098/TR-181), TR-111, TR-143
DHCP Server, DHCP Client List, Address Reservation
Reenvío de puertos Virtual Server, Port Triggering, UPnP, DMZ
DNS Dinámico DynDns, NO-IP
Paso de VPN IPSec, PPTP, L2TP
Control de acceso Parental Control, White List, Black List
Seguridad del Firewall DoS, SPI Firewall, IP and MAC Address Binding
Protocolos IPv4, IPv6
Servidor VPN PPTP, OpenVPN, IPSec
OTROS
contenidos del paquete AX1800 Wi-Fi 6 Router EX230
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Requisitos Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
Ambiente Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
Obtenga productos, eventos y servicios para su región.

Soporte

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**Use of WiFi 6 (802.11ax), and features including OFDMA, 1024-QAM, and WPA3 requires clients to also support the corresponding features.

§1000 Mbps internet speeds require compatible service plans and equipment.

△This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.
