Festa F61-Outdoor
NewAX1800 Indoor/Outdoor WiFi 6 Access Point
- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz*

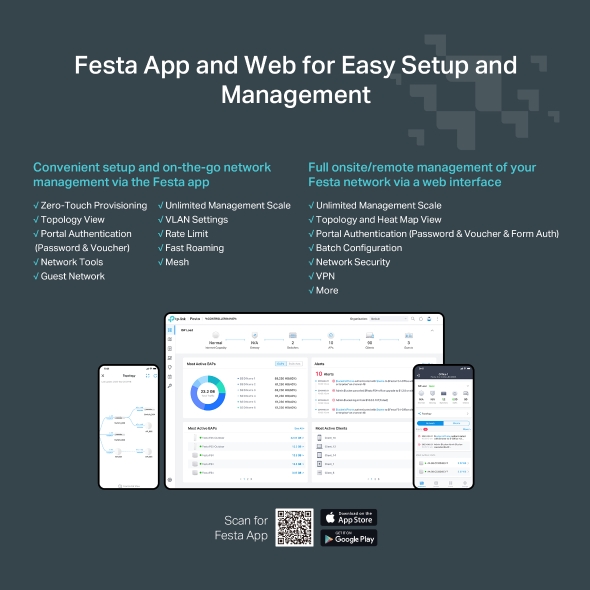

- Free cloud centralized management via the Festa app or the web†
- Mesh & Seamless Roaming enable smooth wireless connectivity
- 1× Gigabit Port for high-speed transmissions
- Supports both 802.3at PoE and Passive PoE (PoE adapter included) for easy installation
- Smart antennas and high-power amplifiers provide robust full coverage
- IP67-Rated enclosure withstands harsh weather
- Easy setup and use, no professional technician required. Self-Organizing Networking and Zero-Touch Provisioning technology make it a breeze
| HARDWARE FEATURES | |
|---|---|

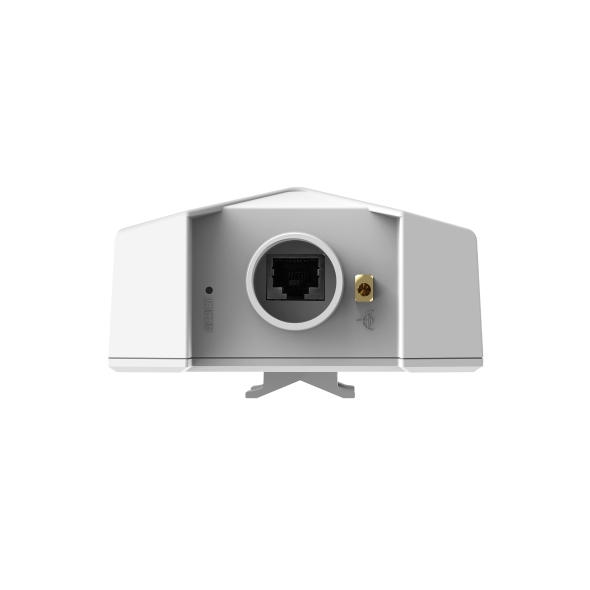

| Interface | 1x Gigabit Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3at PoE• 48V Passive PoE (PoE Adapter included) |
| Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE)• US: 14.7W (802.3at PoE or Passive PoE) |
| Weight | 780g |
| Dimensions ( W x D x H ) | 11.0 × 4.2 × 2.5 in (280.4 × 106.5 × 63.5 mm) |
| Antenna Type | 2 Internal Dual-Band Omni Antennas• 2.4 GHz: 4 dBi • 5 GHz: 5 dBi |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall mouting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 1201 Mbps*• 2.4 GHz: 574 Mbps |
| Wireless Functions | • Mesh• Seamless Roaming • Beamforming• MU-MIMO: 2*2 MU-MIMO DL• MIMO: 2*2 (2.4G and 5G) MU-MIMO• Automatic Channel Selection• OFDMA: UL/DL OFDMA‡• Band Steering• Load Balance• Airtime Fairness • RADIUS Accounting• Wireless Schedule• Wireless Statistics• Static IP/Dynamic IP• Rate Limit: Based on SSID/Client• Multiple SSIDs: 16(8 on each band)• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Transmit Power Control: Adjust Transmit Power on dBm• QoS (WMM) |
| Wireless Security | • Captive Portal Authentication• Access Control• Maximum Number of MAC Filter: 4,000• Wireless Isolation Between Clients• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise• 802.1X Support• VLAN |
| Transmission Power | • CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz Band 1& Band 2, EIRP)<28 dBm(5 GHz, Band3, EIRP)• FCC:<25 dBm (2.4 GHz)<25 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Firmware update via Web | √ |
| NTP | √ |
| Centralized Management | √ |
| APP support | Festa App |
| Cloud Access | Free cloud |
| LED ON/OFF Control | √ |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | √ |
| SSH | √ |
| Zero-Touch Provisioning | √ |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Festa F61-Outdoor• Passive PoE Adapter• Power Cord• Mounting Kit• Waterproof Kit• Installation Guide |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing; |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, and 1024-QAM, require clients to support the corresponding features.
†Festa currently offers free cloud access for centralized management and reserves the right to apply fees in the future.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
