Chapter 5 Set Up the Router as an Access Point
In the Access Point mode, your router connects to a wired or wireless router via an Ethernet cable and extends the wireless coverage of your existing network.
The router can work as an access point, transforming your existing wired network to a wireless one.
1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.
2.Go to Advanced > Operation Mode, select Access Point and click Save. The router will reboot and switch to Access Point mode.
3.After rebooting, connect the router’s Internet port to your existing router’s Ethernet port via an Ethernet cable.
4.Log in again to the web management page http://tplinkwifi.net, and click Quick Setup.

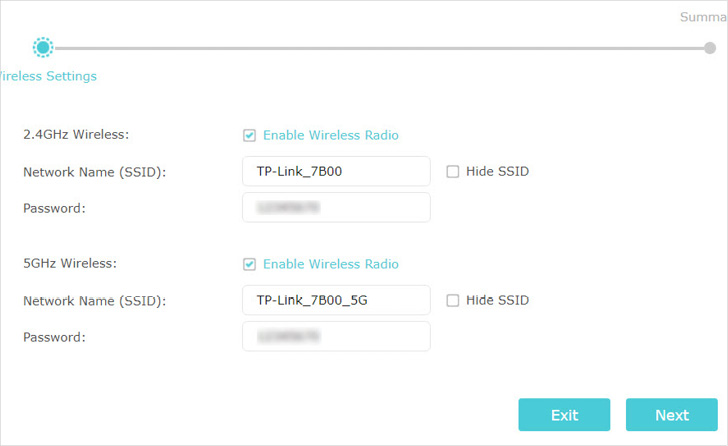

5.Configure your wireless settings and click Next.

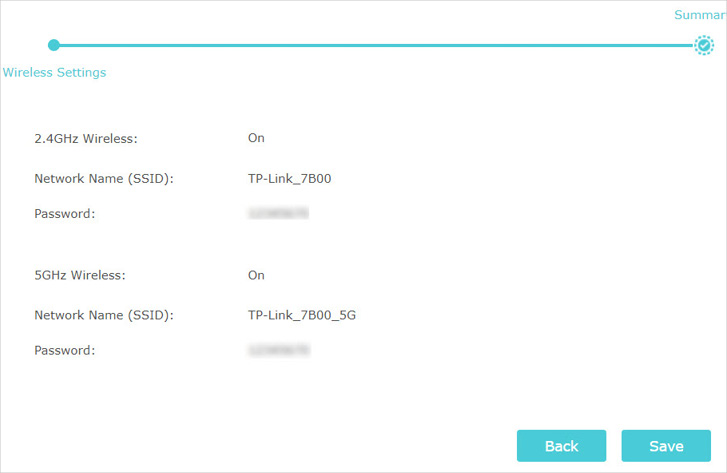

6.Confirm the information and click Finish. Now, you can enjoy Wi-Fi.
Tips:
Functions, such as Parental Controls, Qos and NAT Forwarding, are not supported in the Access Point mode.
