Archer VR300 V1.2 User Guide

Chapter 8 Parental Controls

This function allows you to block inappropriate, explicit and malicious websites and limit internet access during specified time periods.

I want to:

Control what types of websites my children or other home network users can visit and the time of day they are allowed to access the internet.

For example, I want to allow my children’s devices (for example, a computer or a tablet) to access only www.tp-link.com and wikipedia.org from 18:00 (6PM) to 22:00 (10PM) on weekdays and not other time.

How can I do that?

1.Visit http://tplinkmodem.net, and log in with your TP-Link ID or the password you set for the router.

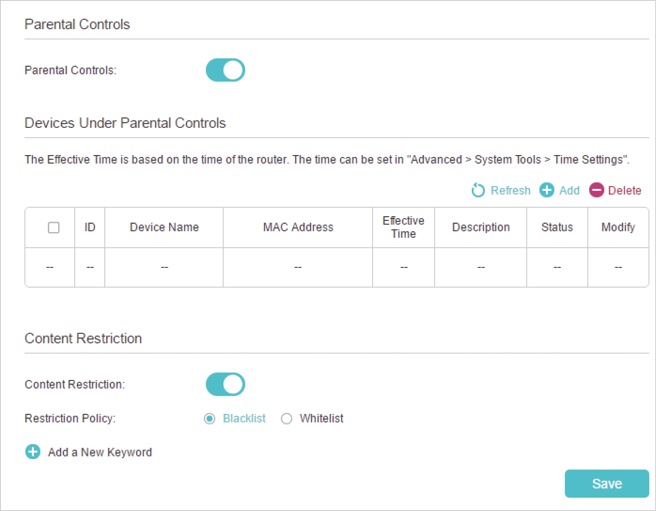

2.Go to Basic or Advanced > Parental Controls and enable Parental Controls.

3.Click Add.

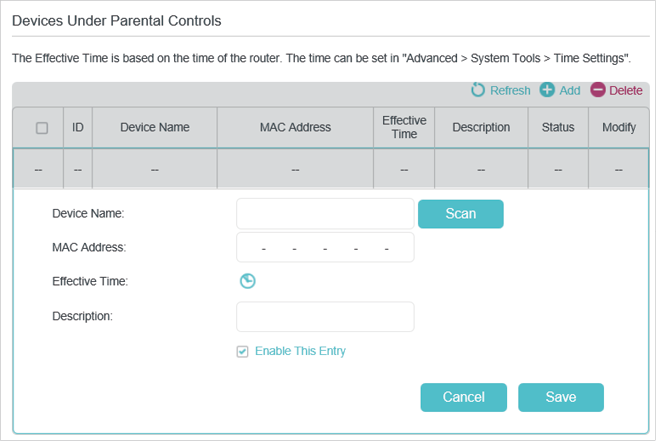

4.Click Scan, and add the device to be controlled. Or, enter the Device Name and MAC Address manually.

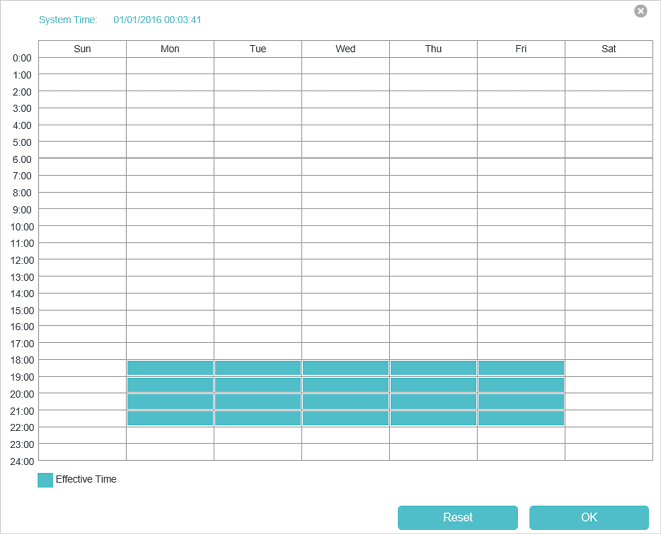

5.Click the icon to set the Effective Time. Drag the cursor over the appropriate cell(s) and click OK.

6.Enter a Description for the entry.

7.Select the check box to enable this entry and click OK.

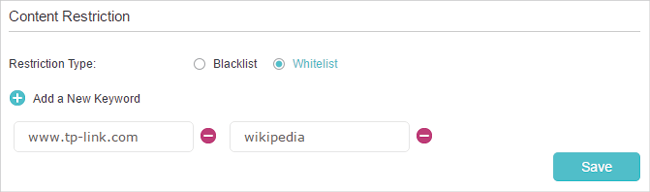

8.Enable Content Restriction and select the restriction mode.

1 )In Blacklist mode, the controlled devices cannot access any websites containing the specified keywords during the Effective Time period.

2 )In Whitelist mode, the controlled devices can only access websites containing the specified keywords during the Effective Time period.

9.Click Add a New Keyword. You can add many keywords for both Blacklist and Whitelist. Below are some sample entries to allow access.

1 )Enter a web address (for example, www.tp-link.com) or a web address keyword (for example, wikipedia) to only allow or block access to the websites containing that keyword.

2 )Specify the domain suffix (for example, .edu or .org) to allow access only to the websites with that suffix.

10.Enter the keywords or websites you want to add and click Save.

Done!

Now you can control your children’s internet access according to your needs.
