We will inform you through the web management page if there’s any update firmware available for your router. Also, the latest firmware will be released at the TP-Link official website www.tp-link.com, and you can download it from the Support page for free.

Note:

•Backup your router configuration before firmware upgrade.

•Do NOT turn off the router during the firmware upgrade.

1.1. Online Upgrade

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2.When the latest firmware is available for your router, the upgrade icon will display in the top-right corner of the page. Click the icon to go to the Firmware Upgrade page.

Alternatively, you can go to Advanced > System > Firmware Upgrade, and click CHECK FOR UPGRADES to see whether the latest firmware is released.

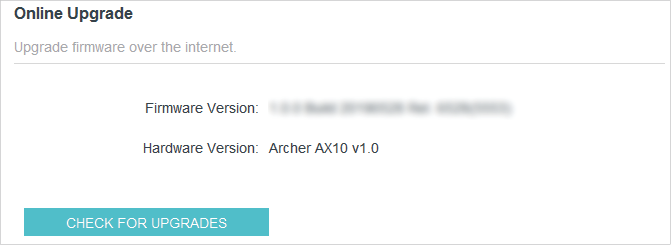

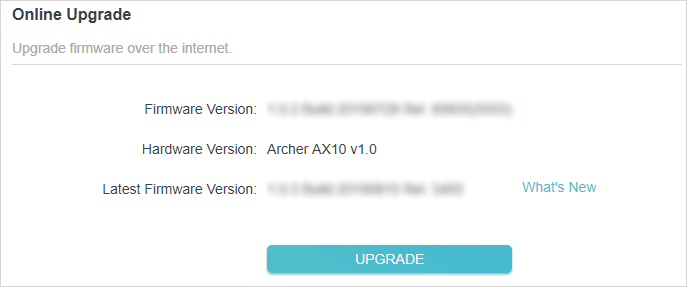

3.Focus on the Online Upgrade section, and click UPGRADE if there is new firmware.

4.Wait a few minutes for the upgrade and reboot to complete.

Tips: If there’s a new and important firmware update for your router, you will see the prompt notification on your computer as long as a web browser is opened. Click UPGRADE, and log in to the web management page with the username and password you set for the router. You will see the Firmware Upgrade page.

1.2. Local Upgrade

1.Download the latest firmware file for the router from www.tp-link.com.

2.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

3.Go to Advanced > System > Firmware Upgrade.

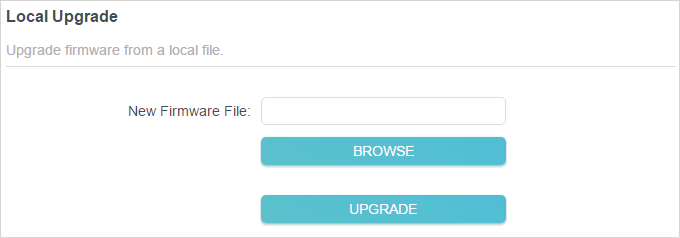

4.Focus on the Local Upgrade section. Click BROWSE to locate the downloaded new firmware file, and click UPGRADE.

5.Wait a few minutes for the upgrade and reboot to complete.

Note: If you fail to upgrade the firmware for the router, please contact our Technical Support.

2. Backup and Restore Configuration Settings

The configuration settings are stored as a configuration file in the router. You can backup the configuration file to your computer for future use and restore the router to a previous settings from the backup file when needed. Moreover, if necessary you can erase the current settings and reset the router to the default factory settings.

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2.Go to Advanced > System Tools > Backup & Restore.

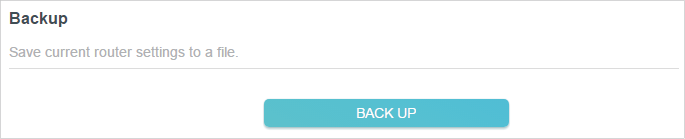

•To backup configuration settings:

Click BACK UP to save a copy of the current settings to your local computer. A ‘.bin’ file of the current settings will be stored to your computer.

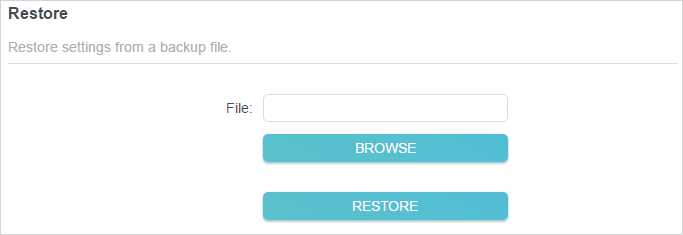

•To restore configuration settings:

1.Click BROWSE to locate the backup configuration file stored on your computer, and click RESTORE.

2.Wait a few minutes for the restoring and rebooting.

Note: During the restoring process, do not turn off or reset the router.

•To reset the router except your login password and TP-Link ID:

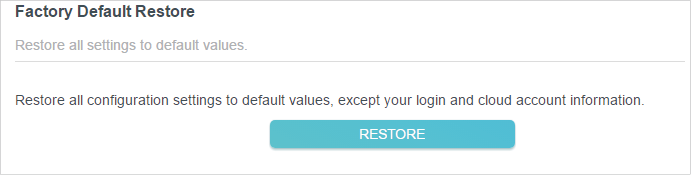

1.In the Factory Default Restore section, click RESTORE.

2.Wait a few minutes for the resetting and rebooting.

Note:

•During the resetting process, do not turn off the router.

•After reset, you can still use the current login password or the TP-Link ID to log in to the web management page.

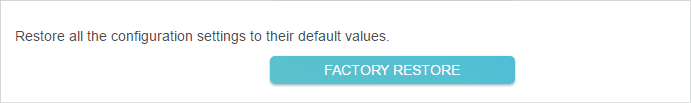

•To reset the router to factory default settings:

1.Click FACTORY RESTORE to reset the router.

2.Wait a few minutes for the resetting and rebooting.

Note:

•During the resetting process, do not turn off or reset the router.

•We strongly recommend you backup the current configuration settings before resetting the router.

3. Change the Login Password

The account management feature allows you to change your login password of the web management page.

Note: If you are using a TP-Link ID to log in to the web management page, the account management feature will be disabled. To manage the TP-Link ID, go to Advanced > TP-Link ID.

1.Visit http://tplinkwifi.net, and log in with the password you set for the router.

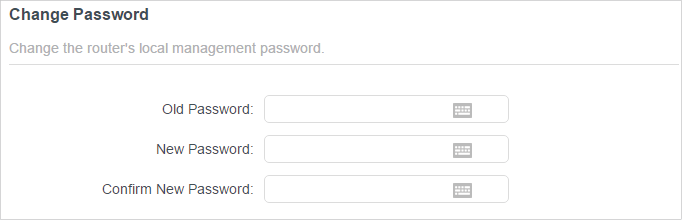

2.Go to Advanced > System > Administration and focus on the Change Password section.

3.Enter the old password, then a new password twice (both case-sensitive). Click SAVE.

4.Use the new password for future logins.

4. Password Recovery

This feature allows you to recover the login password you set for you router in case you forget it.

Note: If you are using a TP-Link ID to log in to the web management page, the Password Recovery feature will be disabled. To manage the TP-Link ID, go to Advanced > TP-Link ID.

1.Visit http://tplinkwifi.net, and log in with the password you set for the router.

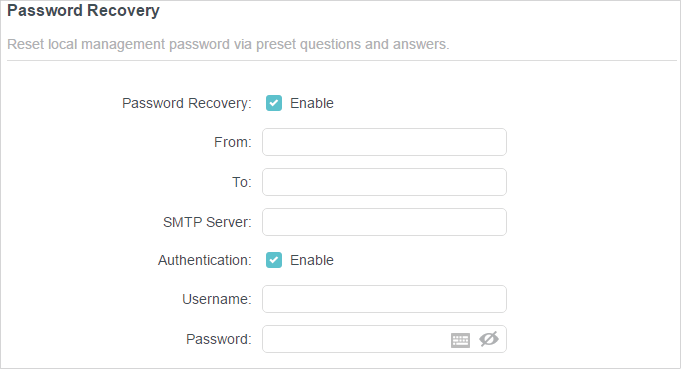

2.Go to Advanced > System > Administration and focus on the Password Recovery section.

3.Tick the Enable box of Password Recovery.

4.Specify a mailbox (From) for sending the recovery letter and enter its SMTP Server address. Specify a mailbox (To) for receiving the recovery letter. If the mailbox (From) to send the recovery letter requires encryption, Tick the Enable box of Authentication and enter its username and password.

Tips:

•SMTP server is available for users in most webmail systems. For example, the SMTP server address of Gmail is smtp.gmail.com.

•Generally, Authentication should be enabled if the login of the mailbox requires username and password.

5.Click SAVE.

To recover the login password, please visit http://tplinkwifi.net, click Forgot Password? on the login page and follow the instructions to set a new password.

5. Local Management

This feature allows you to limit the number of client devices on your LAN from accessing the router by using the MAC address-based authentication.

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2.Go to Advanced > System > Administration and complete the settings In Local Management section as needed.

•Access the router via HTTPS and HTTP:

Tick the Enable box of Local Management via HTTPS to access the router via HTTPS and HTTP, or keep it disabled to access the router only via HTTP.

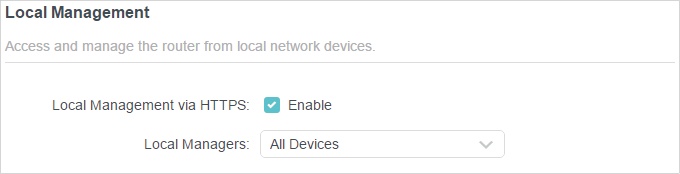

•Allow all LAN connected devices to manage the router:

Select All Devices for Local Managers.

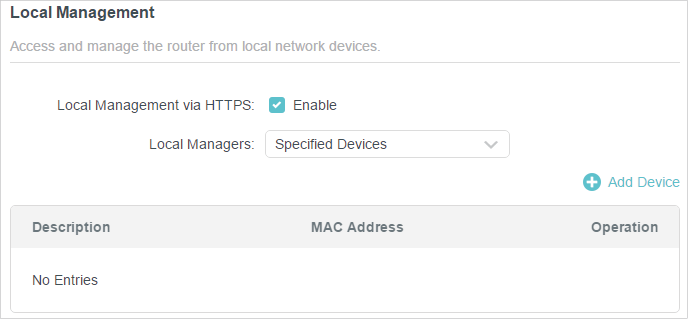

•Allow specific devices to manage the router:

1.Select All Devices for Local Managers and click SAVE.

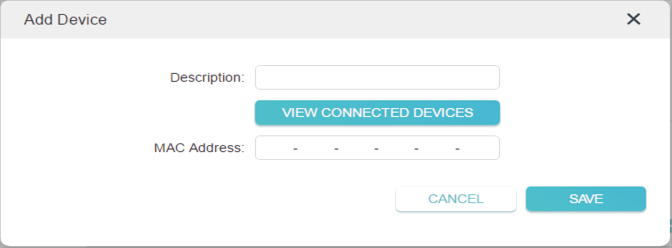

2.Click Add Device.

3.Click VIEW CONNECTED DEVICES and select the device to manage the router from the Connected Devices list, or enter the MAC address of the device manually.

4.Specify a Description for this entry.

5.Click SAVE.

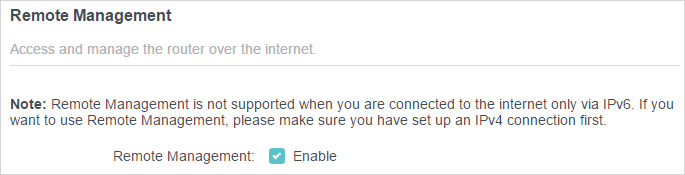

6. Remote Management

This feature allows you to control remote devices’ authority to manage the router.

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2.Go to Advanced > System > Administration and complete the settings in Remote Management section as needed.

•Forbid all devices to manage the router remotely:

Do not tick the Enable checkbox of Remote Management.

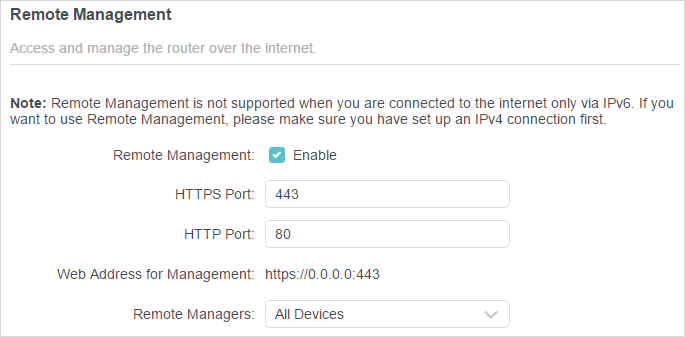

•Allow all devices to manage the router remotely:

1.Tick the Enable checkbox of Remote Management.

2.Keep the HTTPS and HTTP port as default settings (recommended) or enter a value between 1024 and 65535.

3.Select All Devices for Remote Managers.

4.Click SAVE.

Devices on the internet can log in to http://Router’s WAN IP address:port number (such as http://113.116.60.229:1024) to manage the router.

Tips:

•You can find the WAN IP address of the router on Network Map > Internet.

•The router’s WAN IP is usually a dynamic IP. Please refer to Set Up a Dynamic DNS Service Account if you want to log in to the router through a domain name.

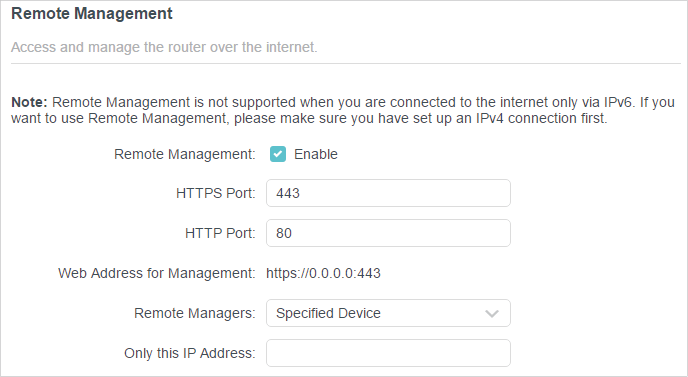

•Allow a specific device to manage the router remotely:

1.Tick the Enable checkbox of Remote Management.

2.Keep the HTTPS and HTTP port as default settings (recommended) or enter a value between 1024 and 65535.

3.Select Specified Device for Remote Managers.

4.In the Only this IP Address field, enter the IP address of the remote device to manage the router.

5.Click SAVE.

Devices using this WAN IP can manage the router by logging in to http://Router’s WAN IP:port number (such as http://113.116.60.229:1024).

Tips: The router’s WAN IP is usually a dynamic IP. Please refer to Set Up a Dynamic DNS Service Account if you want to log in to the router through a domain name.

7. System Log

When the router does not work normally, you can save the system log and send it to the technical support for troubleshooting.

•To save the system log locally:

1.Visit http://tplinkwifi.net, and log in your TP-Link ID or the password you set for the router.

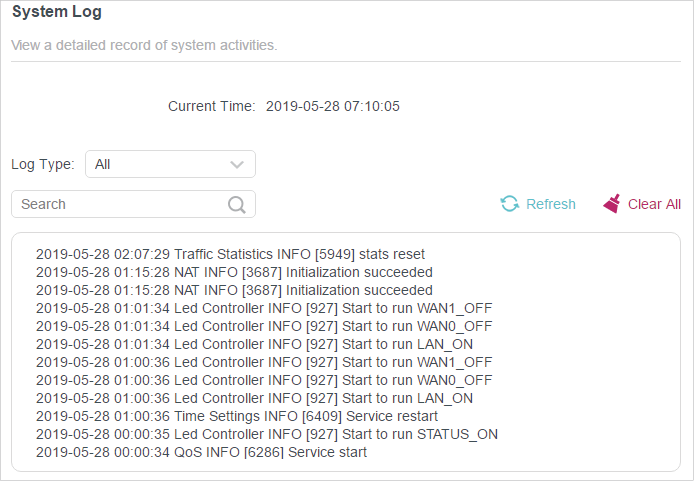

2.Go to Advanced > System > System Log.

3.Choose the type and level of the system logs as needed.

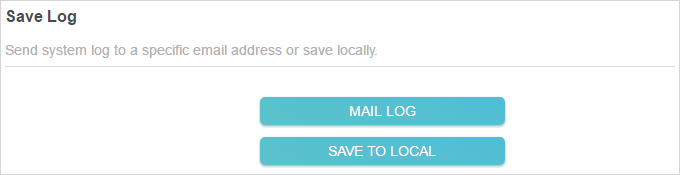

4.In the Save Log section, click SAVE TO LOCAL to save the system logs to a local disk.

•To send the system log to a mailbox at a fixed time:

For example, I want to check my router’s working status at a fixed time every day, however, it’s too troublesome to log in to the web management page every time I want to go checking. It would be great if the system logs could be sent to my mailbox at 8 a.m. every day.

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2.Go to Advanced > System Tools > System Log.

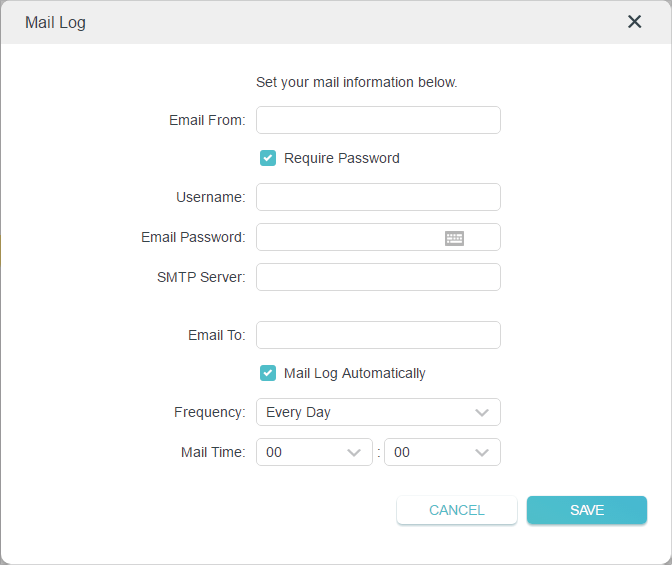

3.In the Save Log section, click MAIL LOG.

4.Enter the information required:

1 )Email From: Enter the email address used for sending the system log.

2 )Select Require Password.

Tips: Generally, Require Password should be selected if the login of the mailbox requires username and password.

3 )Username: Enter the email address used for sending the system log.

4 )Email Password: Enter the password to login the sender’s email address.

5 )SMTP Server: Enter the SMTP server address.

Tips: SMTP server is available for users in most webmail systems. For example, the SMTP server address of Hotmail is smtp-mail.outlook.com.

6 )Email To: Enter the recipient’s email address, which can be the same as or different from the sender’s email address.

7 )Select Mail Log Automatically.

Tips: The router will send the system log to the designated email address if this option is enabled.

8 )Frequency: This determines how often the recipient will receive the system log .

5.Click SAVE.

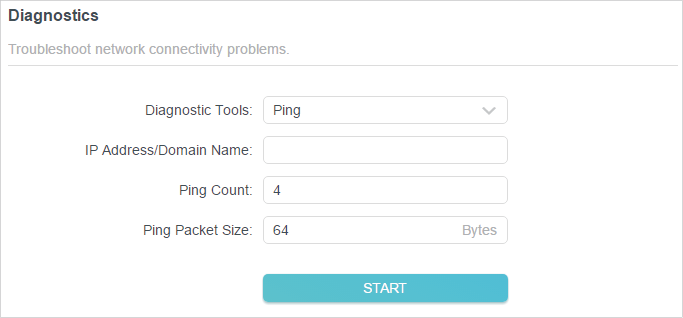

8. Test the Network Connectivity

Diagnostics is used to test the connectivity between the router and the host or other network devices.

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2.Go to Advanced > System > Diagnostics.

3.Enter the information:

1 )Choose Ping or Traceroute as the diagnostic tool to test the connectivity;

•Ping is used to test the connectivity between the router and the tested host, and measure the round-trip time.

•Traceroute is used to display the route (path) your router has passed to reach the tested host, and measure transit delays of packets across an Internet Protocol network.

2 )Enter the IP Address or Domain Name of the tested host.

3 )Modify the Ping Count number and the Ping Packet Size. It’s recommended to keep the default value.

4 )If you have chosen Traceroute, you can modify the Traceroute Max TTL. It’s recommended to keep the default value.

4.Click START to begin the diagnostics.

The figure below indicates the proper connection between the router and the Yahoo server (www.Yahoo.com) tested through Ping.

The figure below indicates the proper connection between the router and the Yahoo server (www.Yahoo.com) tested through Traceroute.

9. Set Up System Time

System time is the time displayed while the router is running. The system time you configure here will be used for other time-based functions like Parental Controls. You can choose the way to obtain the system time as needed.

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

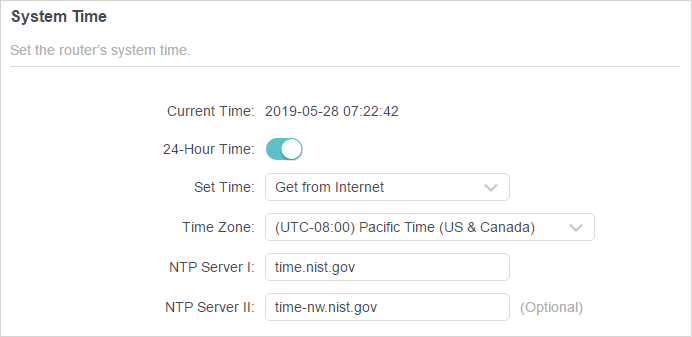

2.Go to Advanced > System > Time & Language.

•To get time from the internet:

1.Enable 24-Hour Time if you want the time to display in a 24-hour way.

2.In the Set Time field, select Get from Internet.

3.Select your local Time Zone from the drop-down list.

4.In the NTP Server I field, enter the IP address or domain name of your desired NTP Server.

5.(Optional) In the NTP Server II field, enter the IP address or domain name of the second NTP Server.

6.Click SAVE.

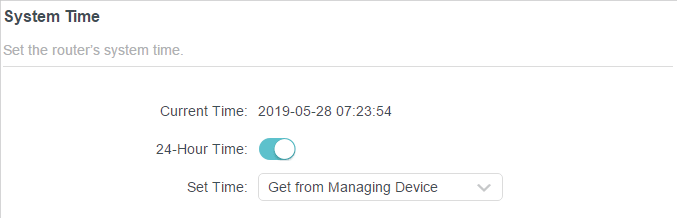

•To get time from your computer:

1.In the Set Time field, select Get from Managing Device.

2.The time of your computer will then be displayed and click SAVE.

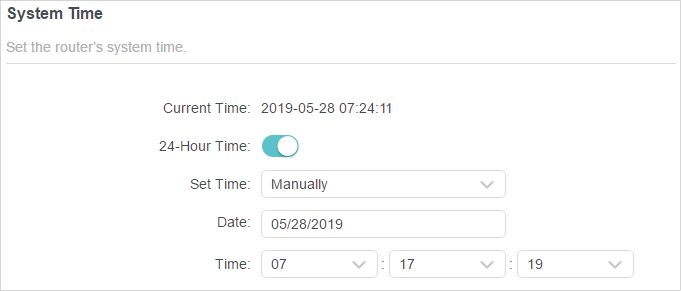

•To manually set the date and time:

1.In the Set Time field, select Manually.

2.Set the current Date (In MM/DD/YYYY format).

3.Set the current Time (In HH/MM/SS format).

4.Click SAVE.

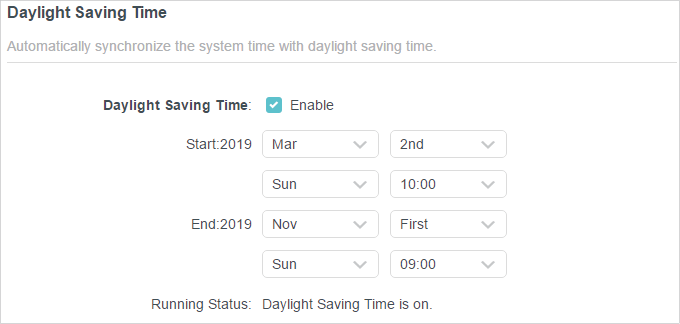

•To set up Daylight Saving Time:

1.Tick the Enable box of Daylight Saving Time.

2.Select the correct Start date and time when daylight saving time starts at your local time zone.

3.Select the correct End date and time when daylight saving time ends at your local time zone.

4.Click SAVE.

10. Set the Router to Reboot Regularly

The Scheduled Reboot feature cleans the cache to enhance the running performance of the router.

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2.Go to Advanced > System > Reboot.

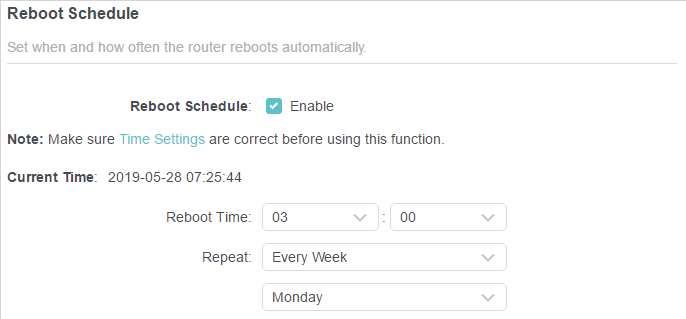

3.Tick the Enable box of Reboot Schedule.

4.Specify the Reboot Time when the router reboots and Repeat to decide how often it reboots.

5.Click SAVE.

11. Control the LED

The LED of the router indicates its activities and status. You can enable the Night Mode feature to specify a time period during which the LED is off.

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2.Go to Advanced > System > LED Control.

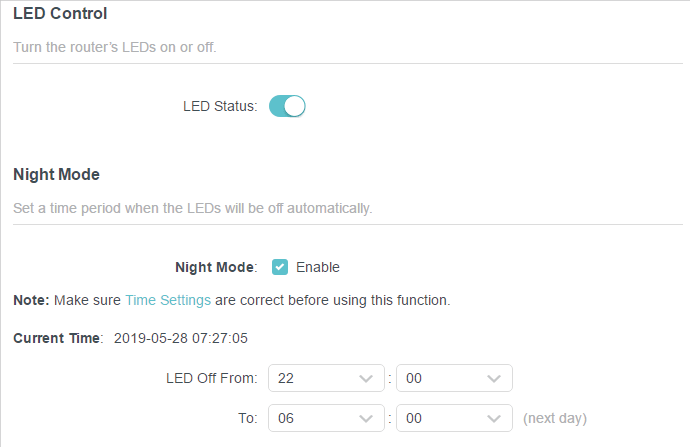

3.Enable Night Mode.

4.Specify the LED off time, and the LED will be off during this period every day.

5.Click SAVE.
