Archer AX72 V1 User Guide

Chapter 10 OneMesh with Seamless Roaming

This chapter introduces the TP-Link OneMeshTM feature.

It contains the following sections:

•Set Up a OneMesh Network

•Manage Devices in the OneMesh Network

TP-Link OneMesh router and TP-Link OneMesh extenders work together to form one unified Wi-Fi network. Walk through your home and stay connected with the fastest possible speeds thanks to OneMesh’s seamless coverage.

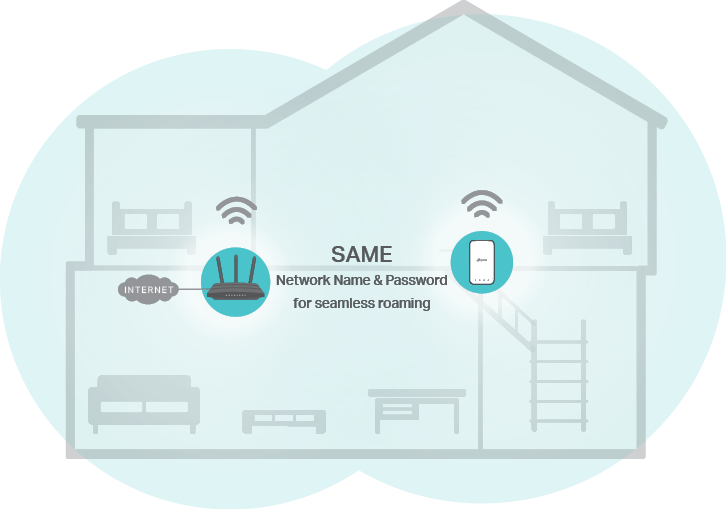

Unified Wi-Fi Network

Router and extenders share the same wireless settings, including network name, password, access control settings and more.

Seamless Roaming

Devices automatically switch between your router and extenders as you move through your home for the fastest possible speeds.

Easy Setup and Management

Set up a OneMesh network with a push of WPS buttons. Manage all network devices on the Tether app or at your router’s web management page.

1. Set Up a OneMesh Network

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2.Go to Advanced > OneMesh.

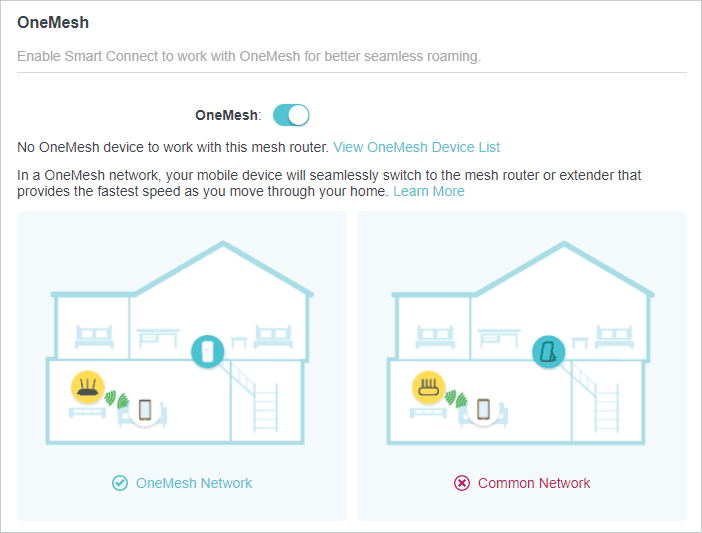

3.Enable OneMesh.

4.Connect a OneMesh extender to this router by following the setup instructions in the extender’s manual. The extender will be listed on the router’s OneMesh page.

Note: To check full list of TP-Link OneMesh devices, visit https://www.tp-link.com/onemesh/compatibility.

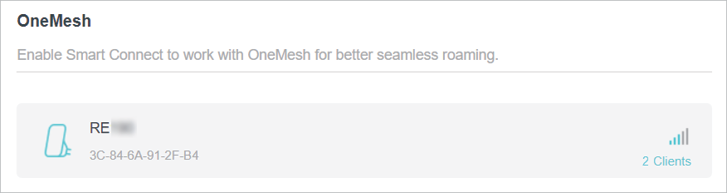

5.If you have set up the extender to join the OneMesh network, it will be listed on the router’s OneMesh page.

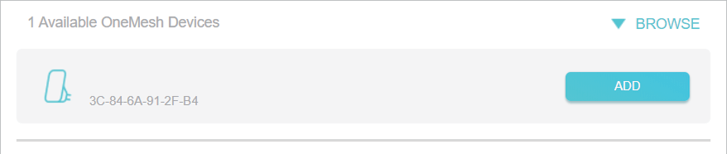

Otherwise, you need to find it in the Available OneMesh Devices list and click Add to add it to the OneMesh network.

Done! Now your router and extender successfully form a OneMesh network!

2. Manage Devices in the OneMesh Network

In a OneMesh network, you can manage all mesh devices and connected clients on your router’s web page.

•To view mesh devices and connected clients in the network:

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

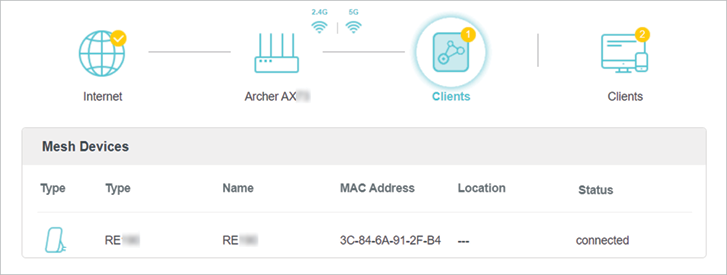

2.Go to Network Map.

3.Click to view all mesh devices, and click to view all connected clients.

•To manage a OneMesh device in the network:

1.Visit http://tplinkwifi.net, and log in with your TP-Link ID or the password you set for the router.

2.Go to Advanced > OneMesh.

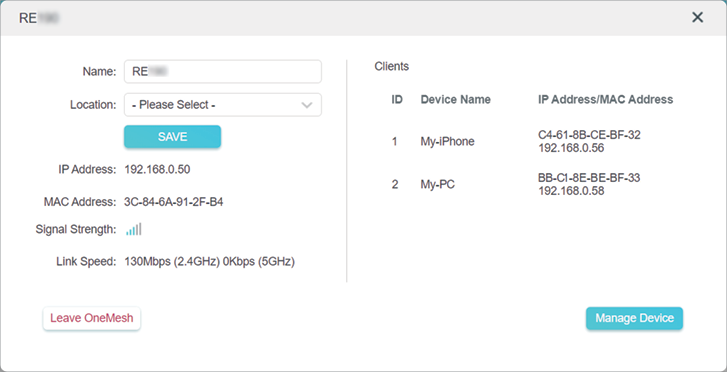

3.Click the OneMesh device to view detailed information.

4.Manage the OneMesh device as needed. You can:

•Change device information.

•Click Manage Device to redirect to the web management page of this device.

•Click Leave OneMesh to delete this device from the OneMesh network.
